Avions Dassault Light Transport Prototypes & Projects

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804
While searching the web for something else, I happened on this amazing project by Dassault for a high speed liaison aircraft dated June 14, 1957 and meant to replace the MD.312 Flamant. I had never heard of that project before! Any idea what it was called? Any provisional specs?

Picture not available anymore, attached from the linked site

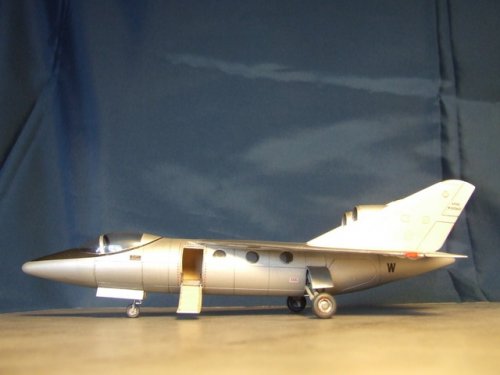

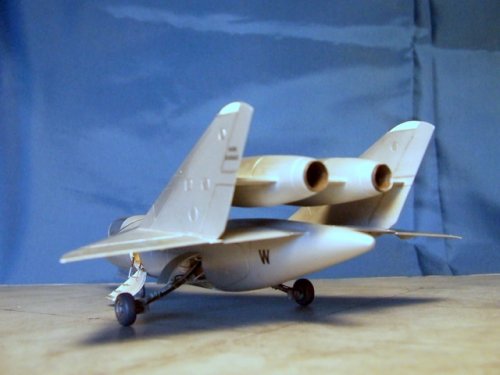

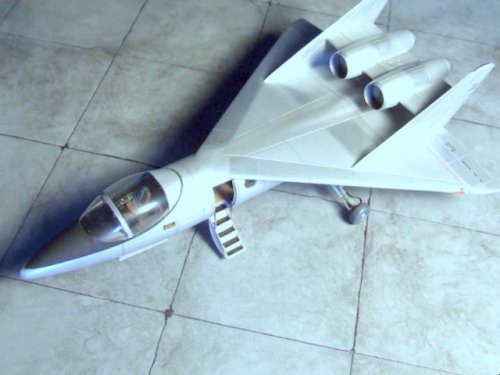

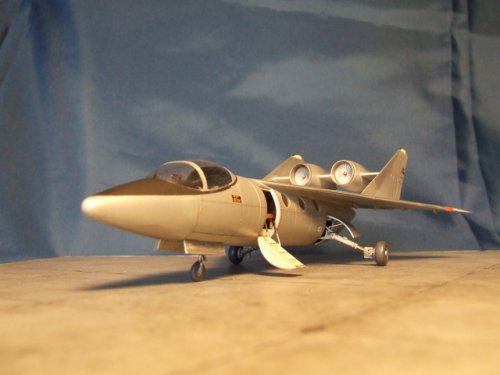

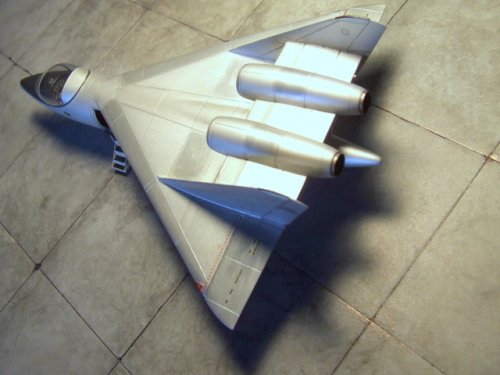

Six more photos of this amazing and original scratchbuilt 1/72 scale model by André Roy can be seen on this page:

http://www.freewebs.com/aeroscale/dassaultliaisonproject.htm


Attachments

  • Dassault_01.jpg
    81.1 KB · Views: 215
  • Dassault_02.jpg
    70.5 KB · Views: 220
  • Dassault_03.jpg
    74.1 KB · Views: 209
  • Dassault_04.jpg
    91.2 KB · Views: 207
  • Dassault_05.jpg
    73.4 KB · Views: 212

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,356
Reaction score
6,003
Re: Unknown Dassault high speed liaison aircraft

My dear Stargazer2006,

I spoke about this aircraft before with my dear Jemiba,but
I don't remember where ?.


Michel Van

ACCESS: Above Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
5,304
Reaction score
2,290
Re: Unknown Dassault high speed liaison aircraft

hesham said:
My dear Stargazer2006,

I spoke about this aircraft before with my dear Jemiba,but
I don't remember where ?.

here ?
http://www.secretprojects.co.uk/forum/index.php/topic,1635.0.html


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,039
Reaction score
562
Re: Unknown Dassault high speed liaison aircraft

amazing project by Dassault

Dassault....................Or Anderson ?? ;D ::)

cheers,
Robin.


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,342
Reaction score
1,500
Re: Unknown Dassault high speed liaison aircraft

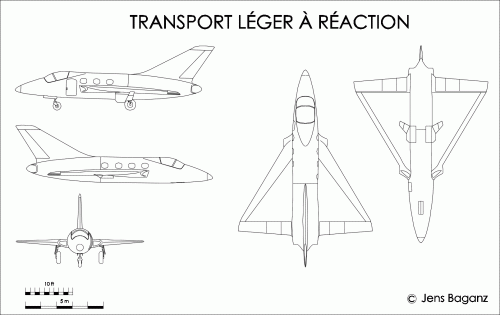

This model was mentioned on another modelers website, too, and IIRC, there it
was made clear, that the basis was the delta winged bizjet design, which eventually
led to the Falcon (Shown some years ago in AirInternational). But this model, I think,
is an "updated" version of this old project, so it is more or less a "what-if".
Will try to find the french website this evening, just to be sure.


Attachments

  • Dassault_pre-Falcon_delta.GIF
    68.9 KB · Views: 278

martinbayer

ACCESS: Top Secret
Joined
Jan 6, 2009
Messages
817
Reaction score
352
Re: Unknown Dassault high speed liaison aircraft

My French is pretty rusty, but the first time I came across this model was here:

http://www.master194.com/forum/viewtopic.php?f=37&t=34872

via a link from the Sharkit site:

http://www.sharkit.com/sharkit/news/news.html

Martin


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804
Re: Unknown Dassault high speed liaison aircraft

Thanks a lot! Being French myself, the least I can do is to get it translated into English for you all...

This was one of the numerous studies aimed at giving the FLAMANT a successor: a "fast liaison aircraft". The first sketches built on the OURAGAN's lines... Others used the MIRAGE I (first flown on June 25, 1955) as a starting point. Delta-wings fitted in high or low position to the fuselage... Problems in positioning the air intakes, which could no longer be integrated in the fuselage, but out of it... twin- or quadri-jet configuration...

In order to avoid any piloting trouble in case of an engine failure, a solution was found by mounting both side-by-side on a horizontal plane, right between the fins... That's all there was about it... and being a Dassault maniac, I liked it and decided to indulge myself. Having discovered a top view in the magazine "Le trait d'union", I interpolated it to obtain this.

It is quite obvious that I do not hold the naked truth about it, but I attempted to remain within the realm of what was possible, and the design philosophy of the time, using the round windows of the Dassault MD-312 or the characteristically-shaped fins of the early Mirage series... It's all scratch-built and I don't think the type will ever be marketed!!! Scale modeling enables you to plunge back into history, to travel, to exercise your brains... not just your thumbs! An excellent article by Mr. René Lemaire (the father of the Mystère XX) can be found in "LE TRAIT D'UNION" N° 179 dated May-June 1998.


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,342
Reaction score
1,500
Re: Unknown Dassault high speed liaison aircraft

Thanks for this translation !
Seems, it could be more realistic, than I thought, although the text still calls for
quite a bit of wariness, I think. Somebody, who has seen this top view by himself ?
BTW, somebody who knows, how to order and get (!) the Trait d'Union issues ?
(Boxkite and me, we both tried several times, but in vain ... :'( )


Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,040
Reaction score
245
Avions Marcel Dassault MD-320 Jet-Hirondelle project......

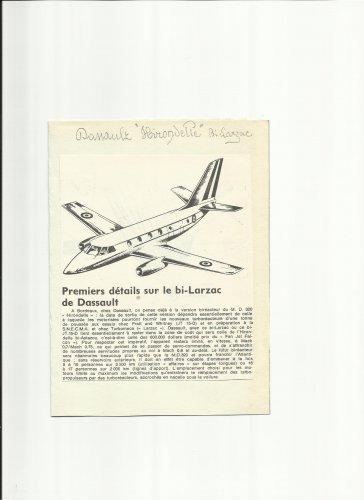

Dear Boys and Girls, here is an article in French announcing a "project" for Turbomeca-SNECMA Larzac jet-powered version of the Avions Marcel Dassault MD-320 Hirondelle turboprop business/liaison aircraft......

The article comes from the 15th July 1968 issue of Aviation Magazine International......

Terry (Caravellarella)


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804
Re: Avions Marcel Dassault MD-320 Hirondelle project......

Wow! The ancestor of the Falcon series... Brilliant! Terry, you are really contributing some awesome stuff these days!! ;)


Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,040
Reaction score
245
Re: Avions Marcel Dassault MD-320 Hirondelle project......

Actually Stéphane, the Hirondelle came after the Mystère 20/Falcon 20, but led (in terms of structure & design) to the smaller Falcon 10 biz-jet ;D......

I've got tons of stuff like this, but I've been trying to pick out the "secret" stuff, the "projects" and the very unusual only; after all this is "Secret Projects"......

Best, Terry (Caravellarella)


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
137
Re: Avions Marcel Dassault MD-320 Hirondelle project......

A little more


Attachments

  • Scan.jpg
    306.7 KB · Views: 324

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
137
Re: Avions Marcel Dassault MD-320 Hirondelle project......

and now


Attachments

  • Scan.jpg
    193.3 KB · Views: 302

Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,040
Reaction score
245
Re: Avions Marcel Dassault MD-320 Hirondelle project......

toura said:

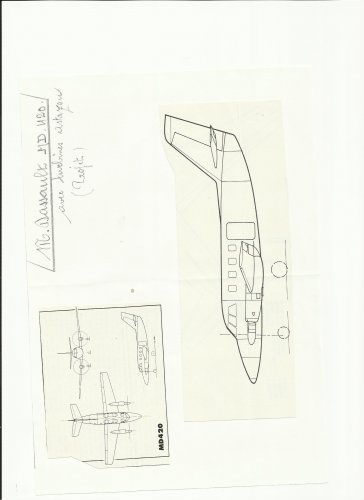

Dear Toura, what is the Dassault MD-420? I don't recognise it, though it does appear to use the cockpit of the Mystère 20/Falcon 20 business jet. I don't think it is the Hirondelle.

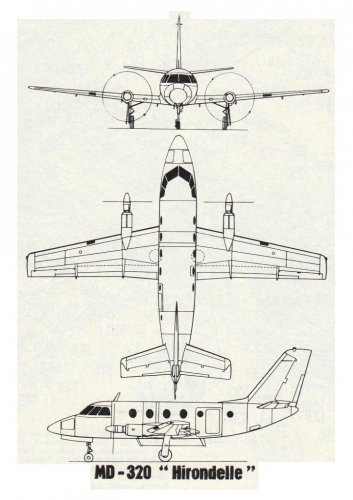

This 3-view drawing of the Avions Marcel Dassault MD-320 Hirondelle comes from the 1st October 1968 issue of Aviation Magazine International and it isn't the same as the aircraft in your drawing......

Terry (Caravellarella)


Attachments

  • Avions Marcel Dassault MD-320 Hirondelle 3-view - Aviation Magazine International - No.jpg
    Avions Marcel Dassault MD-320 Hirondelle 3-view - Aviation Magazine International - No.jpg
    99.3 KB · Views: 276

unclejim

ACCESS: Confidential
Joined
Dec 7, 2010
Messages
77
Reaction score
0
Re: Avions Marcel Dassault MD-320 Jet-Hirondelle project......

Don't limit yourself. Love these posts.


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
137
Re: Avions Marcel Dassault MD-320 Jet-Hirondelle project......

DEAR cARAVELARELLA
My md 420 is not an "Hirondelle" but a studies from
Dassault with 2 Astazou engines.......
I don't know more I've read this in an old
"Le fana de l'aviation" but without details
Bye


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
137
Re: Avions Marcel Dassault MD-320 Jet-Hirondelle project......

My dear Caravellarela
Your 3 views of md 320 is for the first form of this plane
with under wing exaust


Attachments

  • Scan.jpg
    291 KB · Views: 483

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
137
Re: Avions Marcel Dassault MD-320 Jet-Hirondelle project......

and the second form has higher engines with exaust in line
Bye


Attachments

  • Scan.jpg
    431.4 KB · Views: 315

Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,040
Reaction score
245
Re: Avions Marcel Dassault MD-320 Jet-Hirondelle project......

toura said:
DEAR cARAVELARELLA
My md 420 is not an "Hirondelle" but a studies from
Dassault with 2 Astazou engines.......
I don't know more I've read this in an old
"Le fana de l'aviation" but without details
Bye

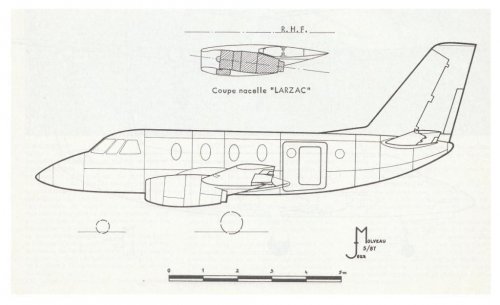

Dear Toura, I've checked and your MD-420 is an interim design between an Astazou-powered version of the the original Bastan-powered MD-415 Communauté/MD-410 Spirale of 1959 and the later MD-320 Hirondelle of 1968. The MD-420 is a kind of shorter, more streamlined MD-415 which is probably why its model number follows in that series. The MD-415/410 series are more closely related to the Mystère IVA and the Étendard (so I've read)......

I think you should start another MD-420 dedicated topic as it isn't a Hirondelle.

The MD-320 Hirondelle is numbered in the same series as the MD-312/315 Flamant types and is more closley related to the Mystère 20/Falcon 20 business jet. Here is a drawing of the MD-320 Jet-Hirondelle "project" from the February 1988 issue of Le Fana de l'Aviation......

Terry (Caravellarella)


Attachments

  • Avions Marcel Dassault MD-320 Hirondelle Bi-Larzac project - Le Fana de l'Aviation - No.jpg
    Avions Marcel Dassault MD-320 Hirondelle Bi-Larzac project - Le Fana de l'Aviation - No.jpg
    61.6 KB · Views: 325

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
137
Re: Avions Marcel Dassault MD-320 Jet-Hirondelle project......

MY DEAR cARAVELLARELLA
More details for me !
I note all this..Thanks
Bye


Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,040
Reaction score
245
Avions Marcel Dassault MD-316T light transport prototype......

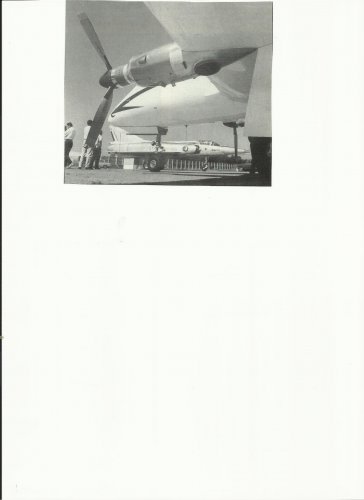

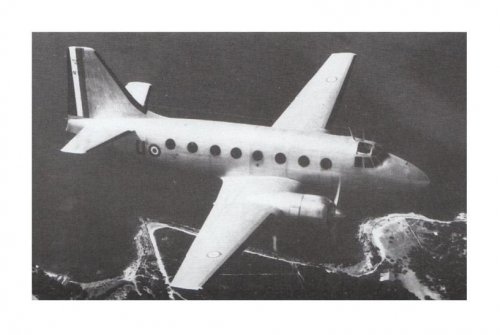

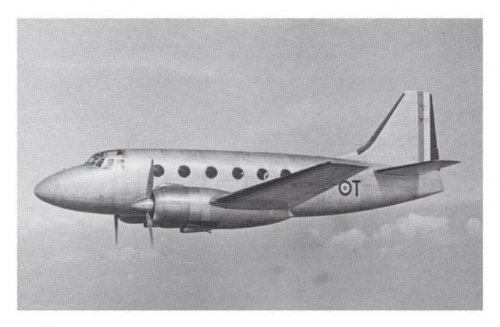

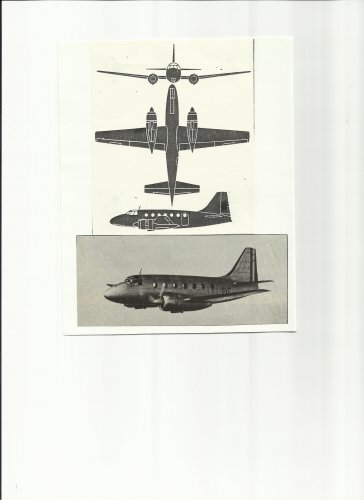

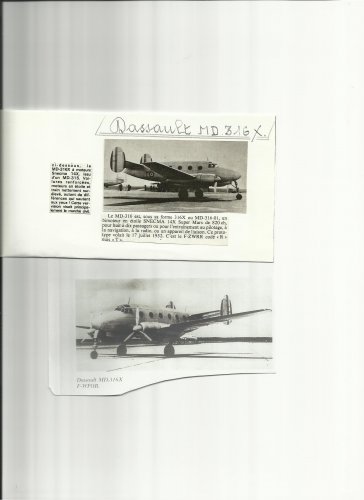

Dear Boys and Girls, here is a picture with a caption in French about the Avions Marcel Dassault MD-316T light transport prototype which was an enlarged 12 seater passenger version of the Avions Marcel Dassault MD-311/312/315 Flamant navigation trainer/liaison/light transport aircraft. Powered by Wright C-7BA-1 engines, it first flew on 7th June 1953 and may have been used by the Spanish airline Aviaco for route-proving on the Bordeaux-Bilbao route. Please, can anyone tell me anything else about this prototype?

The picture comes from the 1st August 1958 issue of Les Ailes. I also attach 2 other pictures of unknown origin......

Terry (Caravellarella)


Attachments

  • Avions Marcel Dassault MD-316T light transport prototype 2.......jpg
    Avions Marcel Dassault MD-316T light transport prototype 2.......jpg
    56.1 KB · Views: 91
  • Avions Marcel Dassault MD-316T light transport prototype 1.......jpg
    Avions Marcel Dassault MD-316T light transport prototype 1.......jpg
    66.1 KB · Views: 273

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
137
Re: Avions Marcel Dassault MD-316T light transport prototype......

Yes, a little more


Attachments

  • Scan.jpg
    239.3 KB · Views: 100

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
137
Re: Avions Marcel Dassault MD-316T light transport prototype......

Hi all
You have also the 316 X


Attachments

  • Scan.jpg
    253.7 KB · Views: 109

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,356
Reaction score
6,003
Re: Avions Marcel Dassault MD-320 Jet-Hirondelle project......

From Le Fana 217;

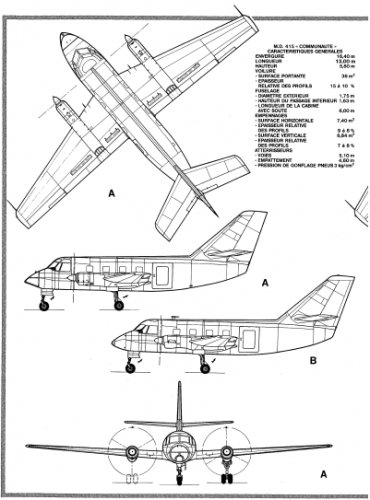

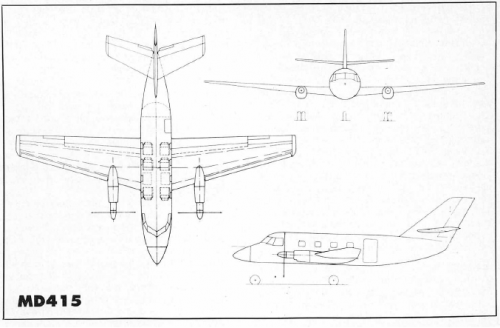

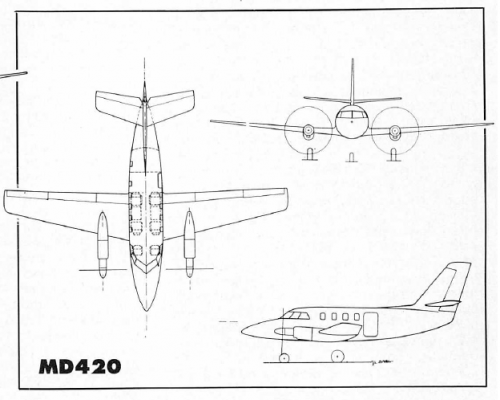

here is a Dassault MD-415 & MD-420 three views.


Attachments

  • 1.png
    151.2 KB · Views: 99
  • 2.png
    147.6 KB · Views: 106

iverson

ACCESS: Top Secret
Joined
Sep 24, 2009
Messages
502
Reaction score
411
Re: Avions Marcel Dassault MD-320 Jet-Hirondelle project......

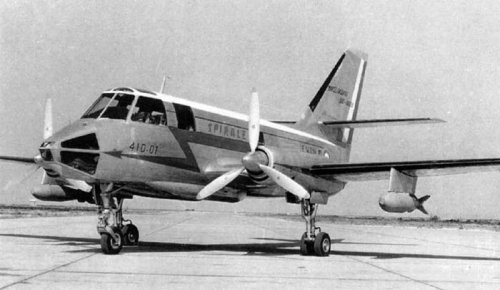

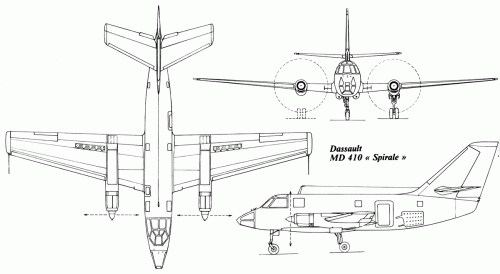

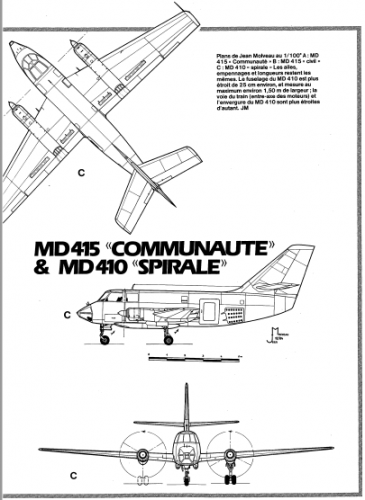

Here is the MD.410 Spirale counter-insurgency aircraft developed in parallel with the MD.415. Found on the net.

Thread title changed, as the Jet-Hirondelle isn't the sole theme anymore.
;)


Attachments

  • md410-3.jpg
    48.4 KB · Views: 80
  • md410-2.jpg
    51.6 KB · Views: 100
  • md410-1 2.gif
    md410-1 2.gif
    97.3 KB · Views: 112

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,356
Reaction score
6,003
From Le Fana 209.


Attachments

  • 1.png
    77.2 KB · Views: 84
  • 2.png
    68.8 KB · Views: 125

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,356
Reaction score
6,003

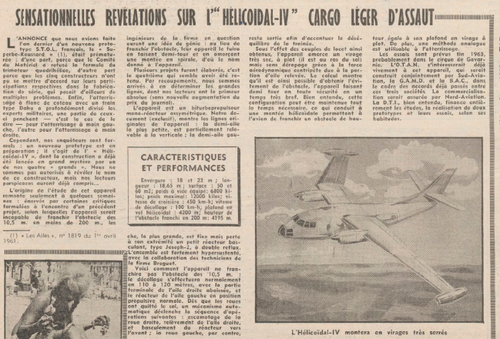

From Ailes 30/3/1962,

the Heliciodal-IV,was it the same as Spirale-IV ?.


Attachments

  • 1.png
    380 KB · Views: 74
  • 2.png
    540.3 KB · Views: 69
