Andre Melin Flying Boat Project of 1913

jzichek

ACCESS: Secret
Senior Member
Joined
Nov 26, 2008
Messages
280
Reaction score
120
Website
www.patreon.com

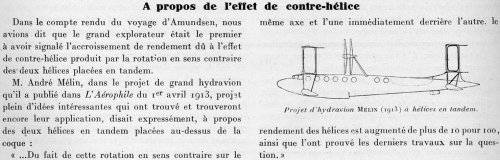

I scanned the attached from a 1926 issue of l'Aeronautique held at the Seattle Public Library. This project seems pretty advanced for its day, with its sleek flying boat fuselage, buried engine(s), and tandem propellers. There seems to also be the outline of a boat housed in the rear fuselage - perhaps a lifeboat in the event of a crash? The tandem wing arrangement makes it even more unusual, if not unwieldy! I was wondering if any forum members who are French aviation specialists could provide more information about it, specifically a complete three-view and dimensions. These might be found in the April 1, 1913 issue of l'Aerophile referenced in the text. Also, have any of Melin's other projects every come up in le Fana or other French aviation history magazines?


Attachments

  • Melin Hydravion Project.jpg
    Melin Hydravion Project.jpg
    432.2 KB · Views: 445

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,811
Reaction score
122
Nothing about André Mélin in the issues 1 to 100
of "Le Fana".
The search is on...


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,557
Reaction score
6,305
Hi,

http://gallica.bnf.fr/ark:/12148/bpt6k97675232.r=document%20aeronautique?rk=21459;2


Attachments

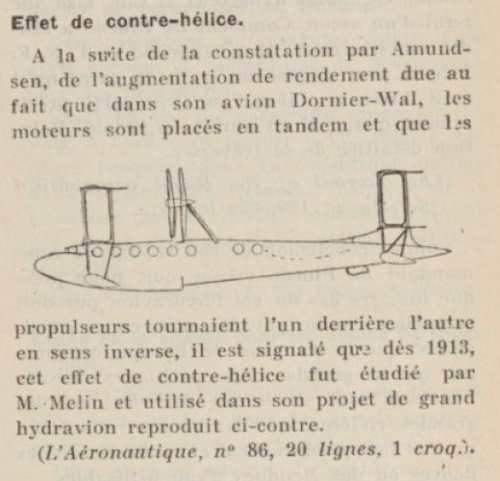

  • 13.png
    414.8 KB · Views: 239
  • a.png
    55.3 KB · Views: 215

Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
2,082
Reaction score
249

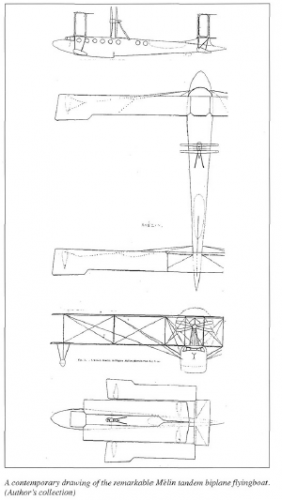

Hesham, what is the source of the second image (the 3 view you posted)?

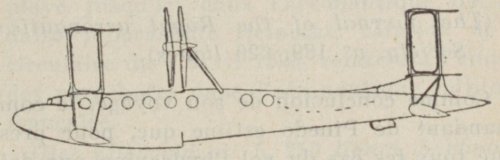

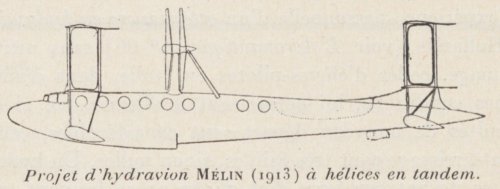

Higher resolution extracts (looks like the same drawing redrawn).

I can't see any evidence of air rudders (it has a water rudder though)!


Attachments

  • Melin2.jpg
    55.3 KB · Views: 109
  • Melin.jpg
    30.3 KB · Views: 105

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,557
Reaction score
6,305
Hi Avimimus,

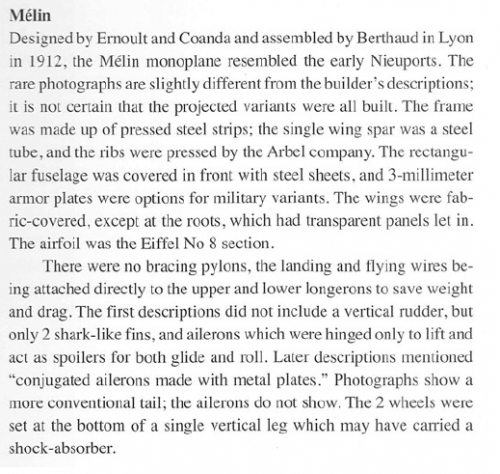

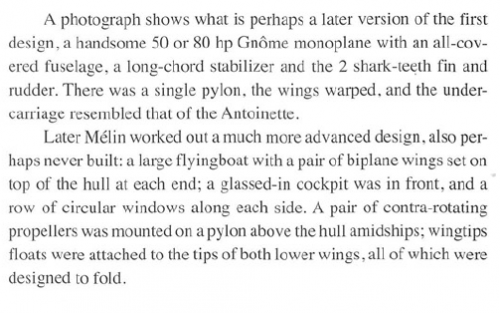

my source is the book, French Aeroplanes before Great War


Attachments

  • 1.png
    183.2 KB · Views: 21
  • 2.png
    96.9 KB · Views: 32

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,557
Reaction score
6,305

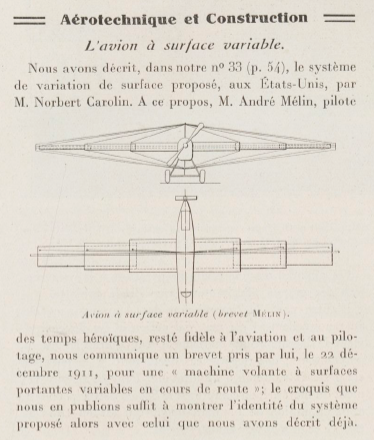

From L'Aeronautique 1922,

anther project patent for Mr. Andre Melin.


Attachments

  • 1.png
    222.8 KB · Views: 20
