And again Morane-Saulnier light aircraft ...

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,233
Reaction score
953
No, I won't give up to bother you with questions about those tiny little
prop driven aircraft, regardless of the overwhelming force of the fraternity
of the fast jet enthusiasts ! ;D

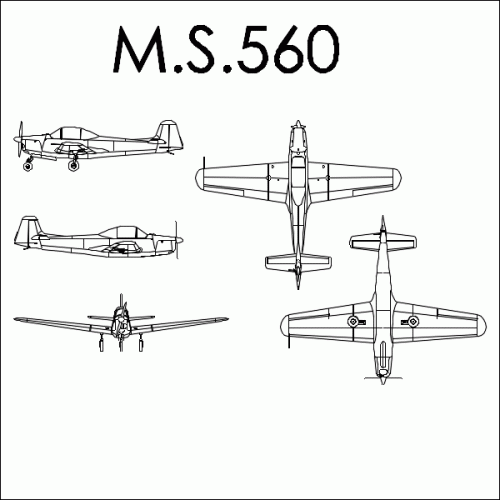

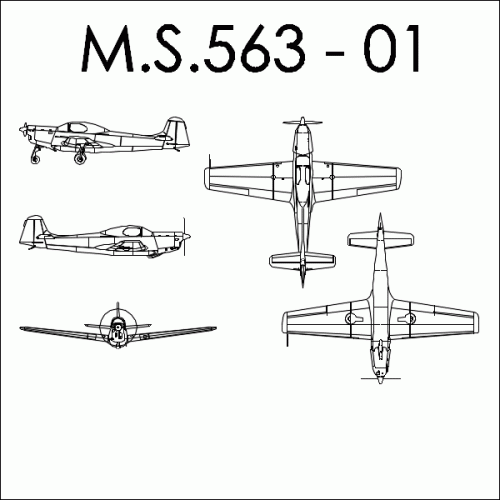

There were the MS.560 single seater with a 75 hp Train 6Do engine and
the MS.563 with a Walter Minor engine, for both I have photographic
evidence, even of two versions/configurations of the 563, but that's
another story.
But J.-C. Fayer mentiones a MS.561 and another source a MS.562 with a
Cirrus Minor engine. Maybe they were the re-configured/re-engined/modified
and re-designated MS.560, something, that seems to have happened several
times to some prototypes, but maybe thes were just projects. If so, they
really were VERY SECRET projects !
Perhaps they were mentioned in one of the Jane's volumes of hte years 1946
to 1950, or in a magazine of those days ... maybe one of you just has used
a page of such a magazine to wrap up his sandwiches for lunch ... so, if you're
just having lunch, please have a look !
There's still a gap between the 560 and the 563 and I want to fill this gap !
I want to catch them all, call this an obsession !


Attachments

  • MS560.GIF
    24.7 KB · Views: 164
  • MS563.GIF
    26.1 KB · Views: 144

Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,031
Reaction score
202
Re: Morane-Saulnier MS.880-02 Rallye prototype......

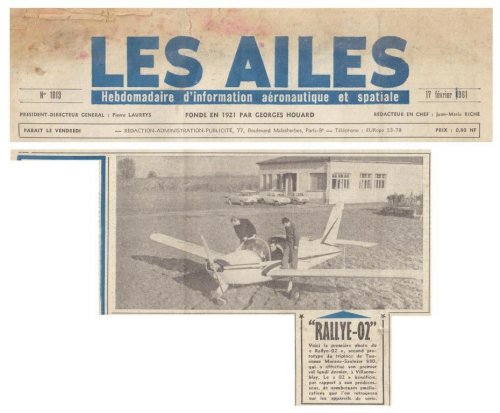

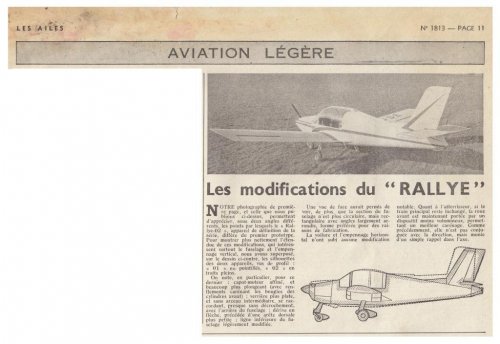

Dear Jemiba, here is are two parts of a piece in French detailing changes made to the second prototype Morane-Saulnier MS.880 Rallye......

They come from the 17th February 1961 issue of Les Ailes......

Terry (Caravellarella)


Attachments

  • Morane-Saulnier MS.880-02 Rallye prototype - Les Ailes - No. 1,813 - 17 Février 1961 1.......jpg
    Morane-Saulnier MS.880-02 Rallye prototype - Les Ailes - No. 1,813 - 17 Février 1961 1.......jpg
    106.9 KB · Views: 62
  • Morane-Saulnier MS.880-02 Rallye prototype - Les Ailes - No. 1,813 - 17 Février 1961 2.......jpg
    Morane-Saulnier MS.880-02 Rallye prototype - Les Ailes - No. 1,813 - 17 Février 1961 2.......jpg
    112.2 KB · Views: 68

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,233
Reaction score
953
Thanks Terry,

seems, that differences between the first prototype and later Rallyes were more
serious, than I thought still yet and not just limited to the angled fin and shape
of the canopy.


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
100

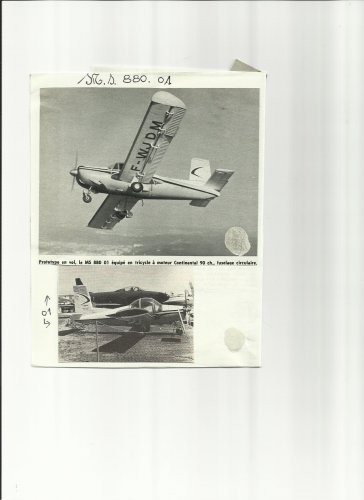

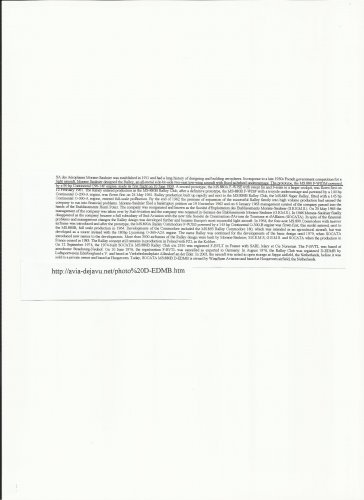

Fro aviation magazine
MS 880.01


Attachments

  • Scan.jpg
    371.8 KB · Views: 56

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
100

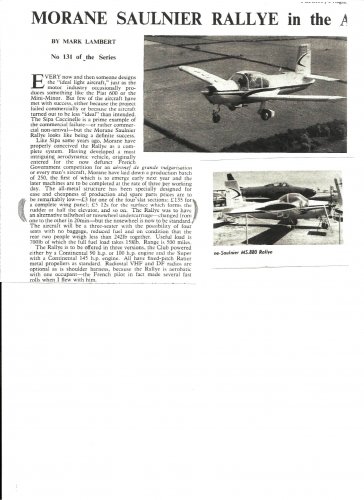

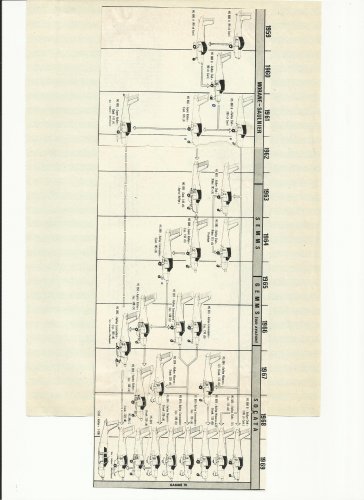

Always from aviation magazine


Attachments

  • Scan.jpg
    459.8 KB · Views: 61

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,233
Reaction score
953
This genealogy is great !
One question: Is there a photographic evidence, that the MS.880A
was actually fitted with tailwheel landing gear ?


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
100
HI jENS
Only this answer from "Flight august 5-1960


Attachments

  • Scan.jpg
    456.7 KB · Views: 27

Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,031
Reaction score
202
Re: Morane-Saulnier MS.880-01 Rallye prototype......

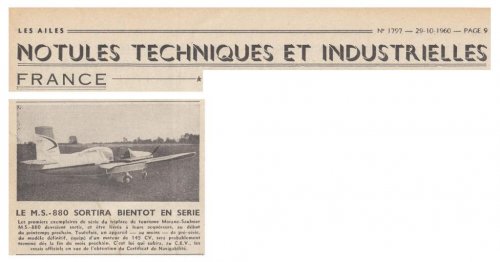

Dear Jemiba, here is a picture with a caption in French of the first prototype Morane-Saulnier MS.880 Rallye

The picture comes from the 29th October 1960 issue of Les Ailes......

Terry (Caravellarella)


Attachments

  • Morane-Saulnier MS.880-01 Rallye prototype - Les Ailes - No. 1,797 - 29 Octobre 1960.......jpg
    Morane-Saulnier MS.880-01 Rallye prototype - Les Ailes - No. 1,797 - 29 Octobre 1960.......jpg
    69.4 KB · Views: 19

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
100
HI Caravellarella.
Thanks. but the problem is that we are unable to see
any photo of the prototype with a tail weel landing gear !
Perhaps this was only foreseen ??
Bye


Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,031
Reaction score
202
toura said:
HI Caravellarella.
Thanks. but the problem is that we are unable to see
any photo of the prototype with a tail weel landing gear !
Perhaps this was only foreseen ??
Bye

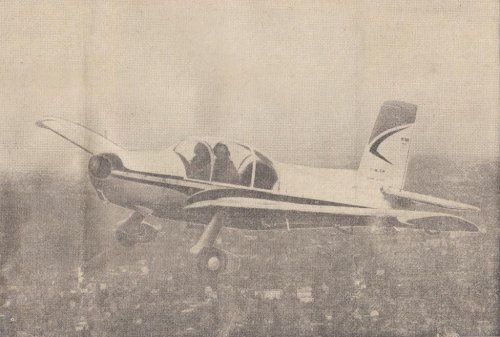

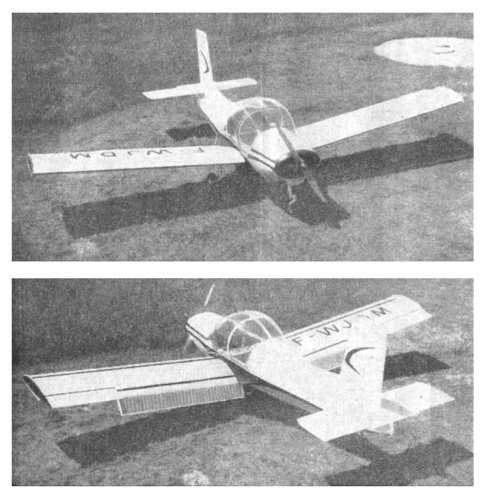

Like this Toura?


Attachments

  • Morane-Saulnier MS.880 Rallye.......jpg
    Morane-Saulnier MS.880 Rallye.......jpg
    196.1 KB · Views: 22

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,233
Reaction score
953
Indeed, that's one of the early prototypes, or: THE prototype !
The "bubble" canopy and unswept fin seem to have been used only on
the MS.880-01, as the changes to the production version are said to have
been incorporated already in the MS.880-02.
Seem's that the answer to our question, thanks Terry !


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
100
Thanks Terry ! This is just what I've never seen
Thanks again
Bye


Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,031
Reaction score
202
Re: Morane-Saulnier MS.880-01 Rallye prototype......

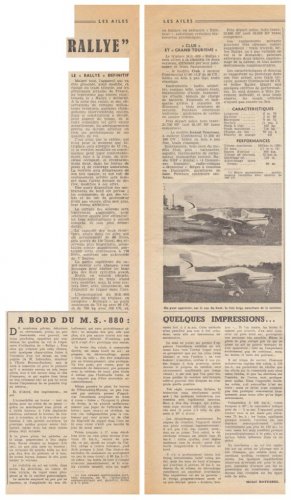

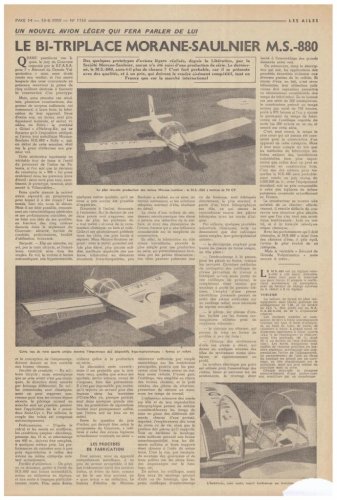

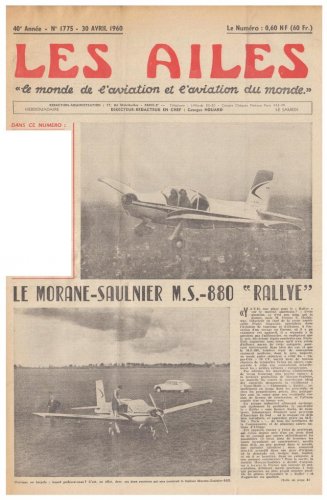

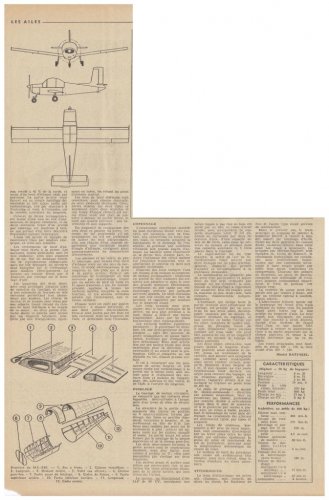

Dear Jemiba and Toura, here is an extensive article in French about the Morane-Saulnier MS.880-01 Rallye prototype. The first picture shows the MS.880-01 prototype (with optional tail undercarriage) in flight; does this mean it isn't a "project"?

The article comes from the 30th April 1960 issue of Les Ailes......

Terry (Caravellarella)


Attachments

  • Morane-Saulnier MS.880-01 Rallye prototype - Les Ailes - No. 1,775 - 30 Avril 1960 1.......jpg
    Morane-Saulnier MS.880-01 Rallye prototype - Les Ailes - No. 1,775 - 30 Avril 1960 1.......jpg
    115.4 KB · Views: 19
  • Morane-Saulnier MS.880-01 Rallye prototype - Les Ailes - No. 1,775 - 30 Avril 1960 2.......jpg
    Morane-Saulnier MS.880-01 Rallye prototype - Les Ailes - No. 1,775 - 30 Avril 1960 2.......jpg
    114.3 KB · Views: 17
  • Morane-Saulnier MS.880-01 Rallye prototype - Les Ailes - No. 1,775 - 30 Avril 1960 3.......jpg
    Morane-Saulnier MS.880-01 Rallye prototype - Les Ailes - No. 1,775 - 30 Avril 1960 3.......jpg
    113.9 KB · Views: 18

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
100
Hi Terry.
Now we know all what we try to know !
with a lot of details and photos !
Thanks you very much Terry.
Bye


Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,031
Reaction score
202
toura said:
Hi Terry.
Now we know all what we try to know !
with a lot of details and photos !
Thanks you very much Terry.
Bye

Can you read the article clearly Toura? I'm using a large monitor so everything looks big and clear to me; but I do wonder how others can see and read what I've scanned......

Terry (Caravellarella)


Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,031
Reaction score
202
Re: Morane-Saulnier MS.880-01 Rallye prototype......

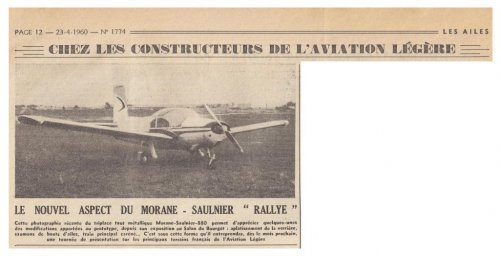

Dear Jemiba and Toura, here is a picture with a caption in French revealing the Morane-Saulnier MS.880-01 Rallye prototype......

The picture comes from the 23rd April 1960 issue of Les Ailes......

Terry (Caravellarella)


Attachments

  • Morane-Saulnier MS.880-01 Rallye prototype - Les Ailes - No. 1,774 - 23 Avril 1960.......jpg
    Morane-Saulnier MS.880-01 Rallye prototype - Les Ailes - No. 1,774 - 23 Avril 1960.......jpg
    84.9 KB · Views: 38

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
100
HI TERRY.
Yes ! I've read !
I've edit and I have a good lens !
So, I see the modifications between the original plane
and its final form. Interesting I don't know all !
THANKS TERRY
Have a good day !
Bye
Paul


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
100

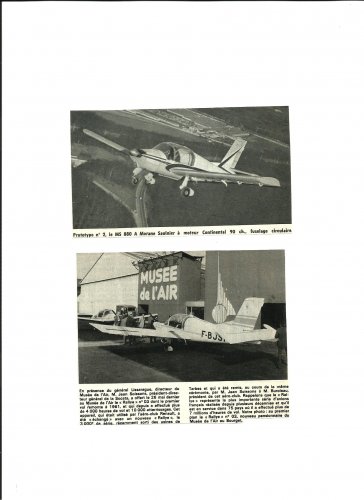

and now the n° 02 and 03


Attachments

  • Scan.jpg
    391.7 KB · Views: 42

Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,031
Reaction score
202
Re: Morane-Saulnier MS.880-01 Rallye prototype......

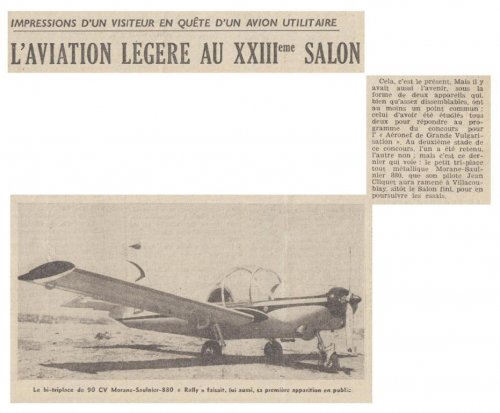

Dear Jemiba and Toura, here is part of an article in French about the Morane-Saulnier MS.880-01 Rallye prototype as exhibited at the 1959 Paris Salon……

The article comes from the 27th June 1959 issue of Les Ailes......

Terry (Caravellarella)


Attachments

  • Morane-Saulnier MS.880-01 Rallye prototype - Les Ailes - No. 1,735 - 27 Juin 1959.......jpg
    Morane-Saulnier MS.880-01 Rallye prototype - Les Ailes - No. 1,735 - 27 Juin 1959.......jpg
    94.9 KB · Views: 34

Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,031
Reaction score
202
Re: Morane-Saulnier MS.880-01 Rallye prototype......

Dear Jemiba and Toura, here is an extensive article in French about the Morane-Saulnier MS.880-01 prototype before it was named Rallye......

The article comes from the 13th June 1959 issue of Les Ailes (the orignal copy is damaged)......

Terry (Caravellarella)


Attachments

  • Morane-Saulnier MS.880-01 Rallye prototype - Les Ailes - No. 1,733 - 13 Juin 1959 1.......jpg
    Morane-Saulnier MS.880-01 Rallye prototype - Les Ailes - No. 1,733 - 13 Juin 1959 1.......jpg
    142 KB · Views: 27
  • Morane-Saulnier MS.880-01 Rallye prototype - Les Ailes - No. 1,733 - 13 Juin 1959 2.......jpg
    Morane-Saulnier MS.880-01 Rallye prototype - Les Ailes - No. 1,733 - 13 Juin 1959 2.......jpg
    120 KB · Views: 24

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
458
Slightly reworked, though I'm not convinced this makes it any better than the initial scan... ::)


Attachments

  • Rallye 01.jpg
    Rallye 01.jpg
    403.7 KB · Views: 15
