AMRAAM-ER

FighterJock

ACCESS: Top Secret
Joined
Oct 29, 2007
Messages
2,070
Reaction score
920
fredymac said:
Off hand I would guess AMRAAM-ER and ESSM are about the same size. They certainly look similar.

You would certainly would have too have a second look, having both missiles side in the photo they look alike.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
14,729
Reaction score
3,698
I would be interesting to see a list of the differences and the reasoning behind them. They probably have the same motor, fins, actuators, etc. Where they differ is in the front ends and guidance methods. (AMRAAM-ER/SLAMRAAM-ER is active and ESSM semiactive.) That said, their back ends don't appear to be identical either. ???


TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,979
Reaction score
2,566
The big difference, AIUI, is that ESSM Block 2 retains a semi-active mode option (in addition to the active mode), while AMRAAM-ER is active-only. That may be necessary for some legacy naval platforms.

Also, I think AMRAAM-ER has only an X-band datalink, through the fire control radar. ESSM has dual S-/X-band links to accommodate different fire control systems.


bring_it_on

I really should change my personal text
Joined
Jul 4, 2013
Messages
2,658
Reaction score
1,009
Not to mention that the AMRAAM-ER is probably plug and play with NASAMS and is therefore a much cheaper path to puruse for Raytheon using internal funding. ESSM Block II is some time away and Raytheon needs the ER to compete in competitions that need systems much before then.


TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,979
Reaction score
2,566
bring_it_on said:
Not to mention that the AMRAAM-ER is probably plug and play with NASAMS and is therefore a much cheaper path to puruse for Raytheon using internal funding. ESSM Block II is some time away and Raytheon needs the ER to compete in competitions that need systems much before then.

This is a good point. ESSM and ESSM Block II look basically the same as Standard Missile from a datalink format perspective -- AEGIS, for example, treats ESSM as a variant of SM-2.


marauder2048

"I should really just relax"
Joined
Nov 19, 2013
Messages
3,158
Reaction score
523
sferrin said:
I would be interesting to see a list of the differences and the reasoning behind them. They probably have the same motor, fins, actuators, etc. Where they differ is in the front ends and guidance methods. (AMRAAM-ER/SLAMRAAM-ER is active and ESSM semiactive.) That said, their back ends don't appear to be identical either. ???

TomS said:
The big difference, AIUI, is that ESSM Block 2 retains a semi-active mode option (in addition to the active mode), while AMRAAM-ER is active-only. That may be necessary for some legacy naval platforms.

Also, I think AMRAAM-ER has only an X-band datalink, through the fire control radar. ESSM has dual S-/X-band links to accommodate different fire control systems.

Yep. ESSM needs a rear antenna to receive the illuminator reference signal.
AMRAAM wouldn't need that but it's possible that the AMRAAM uplink isn't designed to withstand the same thermal environment as the ESSM antenna so it was repackaged elsewhere.


bring_it_on

I really should change my personal text
Joined
Jul 4, 2013
Messages
2,658
Reaction score
1,009
AMRAAM ER destroys drone target in first modified Raytheon missile test

An extended range (ER) version of Raytheon's Advanced Medium-Range Air-to-Air Missile (AMRAAM ER) destroyed a target drone in the new missile's first flight test, validating the weapon's compatibility with Kongsberg's National Advanced Surface to Air Missile System (NASAMS) launcher.

Raytheon and Kongsberg plan to conduct upward of four more test flights to expand the system's envelope, Michael High, AMRAAM ER programme manager for Raytheon said recently.

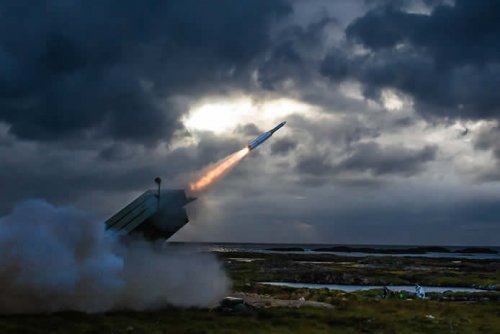

In the 31 August demonstration, an AMRAAM ER, shot from a canister launcher, destroyed a Meggitt Aerial Targets' Banshee 80 target drone. The test occurred at the Andøya Test Center, Andøya Island in northern Norway.

AMRAAM ER, like the legacy AMRAAM, is an all-weather missile with an active seeker. The ER variant uses the guidance section of an AIM-120C-7 and back-end from a RIM-162 Evolved SeaSparrow missile (ESSM), which gives the AMRAAM ER "more than a 50% increase in thrust", High noted.

"Higher speed equals greater manoeuvrability, which gives us capability against a wider range of targets and gives us higher probability of kill once we reach the target," he said.

Both AMRAAM and the ER version can receive updates through an in-flight uplink even though it is an active missile, High noted.

"It continues to receive updates until the seeker goes active," he said.

AMRAAM ER increases the altitude and the range of the legacy missile.

"We know there is a need out there for a medium-range air defence system with proven capability of AMRAAM," High added.

Raytheon also provides the missile interface unit for NASAMS.

NASAMS is a short- to medium-range air defence system, then when combined with AMRAAM, can be used against cruise missiles, hovering targets, fighter aircraft, and unmanned aerial systems, High said.

The NASAMS fire unit includes a Flight Distribution Center (FDC), Sentinel X-band radar that is linked by field wire or radio to the FDC, and the launchers. The FDC is manned by two operators.

For the past 13 years, NASAMS has been providing air defence for the US National Capital Region (NCR), which includes Washington, DC.

"You can have a mixed load out [of AMRAAM and AMRAAM ERs] in NASAMS, so if a country wishes to go [short- or medium-range air defence) from the same system they can do that," High said.

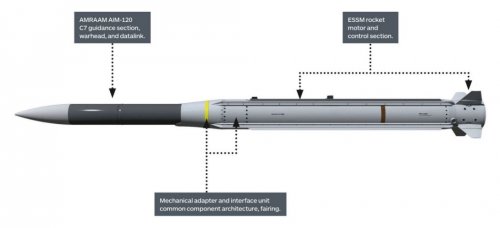

AMRAAM ER is 30.48 cm longer than an AMRAAM. The ER variant is 396.2 cm long, 17.7 cm diameter, and weighs 278.9 kg. AMRAAM is 368.3 cm long, 17.7 cm diameter, and weighs 158.7 kg.

The addition of the ESSM rocket adds 25.4 cm to the ER version's length. The back-end is mated to the AMRAAM missile using an adapter ring, High said.

A single circuit card assembly translates commands from AMRAAM and sends them back to the ESSM fins which control the missile, he added.

"It is relatively low cost and relatively low risk," High said.

Some minor software changes have to be made to the NASAMS' FDC to enable the operators to determine the appropriate range to shoot each missile, when a launcher is loaded with both AMRAAMs and AMRAAM ERs, he said. "That is one change to the FDC."

Minor structural and mechanical changes were also made to the NASAMS canister launcher, High added.

No changes were made to the AN/MPQ-64F1 Sentinel radar, which is the fire-control system for NASAMS.

High added he expects AMRAAM ER to be available in the 2020 timeframe. Raytheon must go through the procedures to make AMRAAM ER available for foreign military sales and the company must be able to fit the ER version into the AMRAAM's production schedule.

COMMENT
Although no decision has been made if the NASAMS units deployed around the NCR will be upgraded to launch AMRAAM ER, Raytheon has offered to conduct live fire demonstrations of the upgraded missile. US Northern Command provides for the support and defence of the NCR.


marauder2048

"I should really just relax"
Joined
Nov 19, 2013
Messages
3,158
Reaction score
523
Was the AIM-120 datalink already repositioned for C7+ ? The previous variants had the datalink in the tail.


litzj

BLOG : http://jaesan-aero.blogspot.com/
Joined
Feb 4, 2012
Messages
277
Reaction score
73
Website
jaesan-aero.blogspot.com
So, it become the "AMRAAM"ilzed version of ESSM...

it has active seeker to save guidance capability of launch platform like MICA based MEADS...

Maybe naval warship like this because of the saving guidance asset of the ship.


icyplanetnhc (Steve)

ACCESS: Secret
Joined
Aug 16, 2015
Messages
267
Reaction score
298
Website
aiaa.seas.ucla.edu
Curious, in terms of capability, what does the AMRAAM-ER offer over the ESSM Block 2, or vice versa, as both have active seekers. As far as I can tell, one is a land-based SAM while the other is ship-based, so there are probably software distinctions.

What's somewhat interesting is that the AMRAAM-ER at 3.96m is a bit longer than the ESSM's 3.66m. I believe the latter was supposed to fit into the same cell as the original Sea Sparrow. The AMRAAM-ER doesn't face a similar constraint, so does the greater length offer better aerodynamic performance (they both have the same motor).


bring_it_on

I really should change my personal text
Joined
Jul 4, 2013
Messages
2,658
Reaction score
1,009
Curious, in terms of capability, what does the AMRAAM-ER offer over the ESSM Block 2, or vice versa, as both have active seekers. As far as I can tell, one is a land-based SAM while the other is ship-based, so there are probably software distinctions.

This will be integrated with NASAMS and ready for export by 2020. ESSM Block 2 based on the SM6 seeker technology (also related) will probably show up for Naval use around then and will most likely be quite a bit more expensive to integrate with the NASAMS without a customer funding the endeavor. Raytheon probably sensed a market for this weapon (such as in Poland for example) as part of the extended range NASAM with customers that did not want to wait or pay for the ESSM block 2 integration which could be years down the road.


marauder2048

"I should really just relax"
Joined
Nov 19, 2013
Messages
3,158
Reaction score
523
bring_it_on said:
Curious, in terms of capability, what does the AMRAAM-ER offer over the ESSM Block 2, or vice versa, as both have active seekers. As far as I can tell, one is a land-based SAM while the other is ship-based, so there are probably software distinctions.

This will be integrated with NASAMS and ready for export by 2020. ESSM Block 2 based on the SM6 seeker technology (also related) will probably show up for Naval use around then and will most likely be quite a bit more expensive to integrate with the NASAMS without a customer funding the endeavor. Raytheon probably sensed a market for this weapon (such as in Poland for example) as part of the extended range NASAM with customers that did not want to wait or pay for the ESSM block 2 integration which could be years down the road.

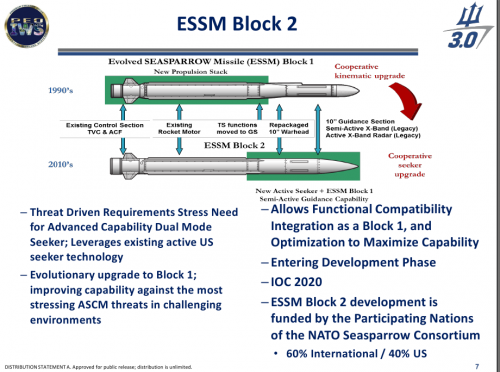

ESSM Block 2 has a larger seeker aperture (10 inches vs. 7 for AMRAAM-ER), a new proximity fuze and a new warhead.

Poland was definitely a motivator for AMRAAM-ER from a workshare perspective: you can't get workshare on ESSM Block 2 without
joining the ESSM consortium and receiving accommodation from the 12 other members i.e. there would be no guaranteed workshare
if you bought ESSM Block II which would hurt Raytheon's competiveness in those RFPs that have workshare requirements.


Attachments

  • essm-block2.png
    182 KB · Views: 669

bring_it_on

I really should change my personal text
Joined
Jul 4, 2013
Messages
2,658
Reaction score
1,009
Interesting update from Jane's regarding Norway's acquisition of the NASAMS II. They appear to be exploring adding another sensor and so far do not have a need for the AMRAAM-ER. They'll probably their upgrade their Improved Sentinels to the US-Army's A4 standard but this appears to be a different sensor altogether.

http://www.janes.com/article/67728/norwegian-army-to-acquire-mobile-air-defence-systems

Hans Christian Hagen, vice president business development, Integrated Defence Systems at KDA, told Jane's that development of the Army Ground Based Air Defence system will see new componentry integrated with existing elements of NASAMS architecture, including the NASAMS Fire Distribution Centre command and control (C2) node, the NASAMS Multi-Missile Launcher, and the AN/MPQ-64 F1 Improved Sentinel 3D X-band radar. Hagen added that the new system could potentially field a complementary radar to the AN/MPQ-64 F1, and did not discount an independent C2 solution for the new system.


bring_it_on

I really should change my personal text
Joined
Jul 4, 2013
Messages
2,658
Reaction score
1,009
...


Attachments

  • air_and_ground_lead_img.jpg
    33 KB · Views: 364

AN/AWW-14(V)

ACCESS: Granted
Senior Member
Joined
May 18, 2019
Messages
476
Reaction score
970
attachment.php


AMRAAM-ER+ render from Nammo



AN/AWW-14(V)

ACCESS: Granted
Senior Member
Joined
May 18, 2019
Messages
476
Reaction score
970
first customer AMRAAM-ER

State Department has made a determination approving a possible Foreign Military Sale to Hungary of sixty (60) AIM-120C-7/C-8 AMRAAMER missiles, and two (2) spare AIM-120C-7/C-8 AMRAAM-ER guidance sections and related equipment for an estimated cost of $230 million


Last edited:

TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,979
Reaction score
2,566
first customer AMRAAM-ER

State Department has made a determination approving a possible Foreign Military Sale to Hungary of sixty (60) AIM-120C-7/C-8 AMRAAMER missiles, and two (2) spare AIM-120C-7/C-8 AMRAAM-ER guidance sections and related equipment for an estimated cost of $230 million


Second, I think, with Qatar being first.



bring_it_on

I really should change my personal text
Joined
Jul 4, 2013
Messages
2,658
Reaction score
1,009

Attachments

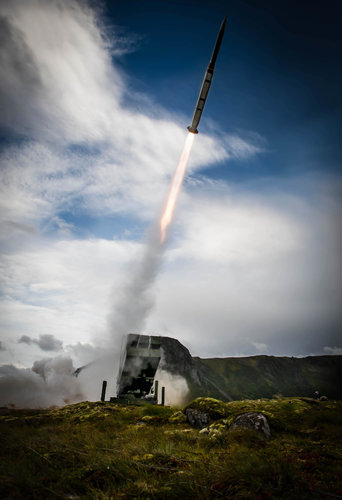

  • AMRAAM_ER_Test.jpg
    321.1 KB · Views: 125
Last edited:

NMaude

ACCESS: Secret
Joined
Mar 12, 2021
Messages
273
Reaction score
227
I'd say that the USAF is going to add the AMRAAM-ER to list AAMs the F-35A can carry.


chestpain

ACCESS: Restricted
Joined
Jan 5, 2021
Messages
4
Reaction score
7
first customer AMRAAM-ER

State Department has made a determination approving a possible Foreign Military Sale to Hungary of sixty (60) AIM-120C-7/C-8 AMRAAMER missiles, and two (2) spare AIM-120C-7/C-8 AMRAAM-ER guidance sections and related equipment for an estimated cost of $230 million


Second, I think, with Qatar being first.


It's still unclear how many missiles Hungary actually ordered last winter and especially how many of the approved 60 ER is on order - and they also ordered regular AMRAAMs, all total around $400M, according to reports.
They are smart, they don't show their hands: they did order NASAMS (III) for $500-600M last fall too but the config is not public and since they plan to rotate off older AMRAAMs from the Gripens to NASAMS launchers by ordering a mix of both AMRAAMs they made it impossible to make any educated guess.
They even fooled the press by making it sound like they are ordering $1B worth of American missiles - but it's actually $1B for NASAMS + options for both AMRAAMs (likely including some of the already-approved 2019 request for 180 AMRAAMs): https://www.globaldefencenews.com/hungary-purchases-1-billion-us-amraam/


NMaude

ACCESS: Secret
Joined
Mar 12, 2021
Messages
273
Reaction score
227
Why not just use AIM-260s? Seems like the only use case is for a foreign customer who can't get cleared for the AIM-260.
The AIM-260 is still long from testing let alone production, the AMRAAM-ER is something that can be tested and put into production quickly as it uses for the most off the shelf components that are already in production.


trose213

ACCESS: Secret
Joined
Jul 29, 2018
Messages
305
Reaction score
151
Why not just use AIM-260s? Seems like the only use case is for a foreign customer who can't get cleared for the AIM-260.
The AIM-260 is still long from testing let alone production, the AMRAAM-ER is something that can be tested and put into production quickly as it uses for the most off the shelf components that are already in production.
The AIM-260 reaches IOC next year. The AMRAAM-ER has a lot more engineering and aerodynamics work to do. Maybe they can get the Emiratis or someone else to pay for it.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
14,729
Reaction score
3,698
So far we know nothing about AIM-260 other than it's not an air-breather. For all we know AMRAAM-EX could be AIM-260.


trose213

ACCESS: Secret
Joined
Jul 29, 2018
Messages
305
Reaction score
151
So far we know nothing about AIM-260 other than it's not an air-breather. For all we know AMRAAM-EX could be AIM-260.
Thought we now it's in a like AMRAAM body or at least very similar. That's also why the it would have such an advantage over the AMRAAM-ER with magazine depth.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
14,729
Reaction score
3,698
So far we know nothing about AIM-260 other than it's not an air-breather. For all we know AMRAAM-EX could be AIM-260.
Thought we now it's in a like AMRAAM body or at least very similar. That's also why the it would have such an advantage over the AMRAAM-ER with magazine depth.
How do we know that?


trose213

ACCESS: Secret
Joined
Jul 29, 2018
Messages
305
Reaction score
151
So far we know nothing about AIM-260 other than it's not an air-breather. For all we know AMRAAM-EX could be AIM-260.
Thought we now it's in a like AMRAAM body or at least very similar. That's also why the it would have such an advantage over the AMRAAM-ER with magazine depth.
How do we know that?
I would advise keeping up to date on the AIM-260 https://www.thedrive.com/the-war-zo...l-require-a-custom-storage-bunker-at-hill-afb


DWG

ACCESS: Top Secret
Joined
Feb 11, 2007
Messages
1,504
Reaction score
1,716
So far we know nothing about AIM-260 other than it's not an air-breather. For all we know AMRAAM-EX could be AIM-260.
Thought we now it's in a like AMRAAM body or at least very similar. That's also why the it would have such an advantage over the AMRAAM-ER with magazine depth.
How do we know that?
I would advise keeping up to date on the AIM-260 https://www.thedrive.com/the-war-zo...l-require-a-custom-storage-bunker-at-hill-afb
"It seems clear that the AIM-260 will have a similar form factor as the AIM-120 to directly take its place on the conformal stations, wingtip pylons, and in the tight confines of the internal weapons bays of the Pentagon's numerous fighter aircraft."

tells us nothing other than that it probably shares existing size constraints (and even that is the author guessing).


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
14,729
Reaction score
3,698
So far we know nothing about AIM-260 other than it's not an air-breather. For all we know AMRAAM-EX could be AIM-260.
Thought we now it's in a like AMRAAM body or at least very similar. That's also why the it would have such an advantage over the AMRAAM-ER with magazine depth.
How do we know that?
I would advise keeping up to date on the AIM-260 https://www.thedrive.com/the-war-zo...l-require-a-custom-storage-bunker-at-hill-afb
Tyler Rogoway. Lol okay.


trose213

ACCESS: Secret
Joined
Jul 29, 2018
Messages
305
Reaction score
151
So far we know nothing about AIM-260 other than it's not an air-breather. For all we know AMRAAM-EX could be AIM-260.
Thought we now it's in a like AMRAAM body or at least very similar. That's also why the it would have such an advantage over the AMRAAM-ER with magazine depth.
How do we know that?
I would advise keeping up to date on the AIM-260 https://www.thedrive.com/the-war-zo...l-require-a-custom-storage-bunker-at-hill-afb
Tyler Rogoway. Lol okay.
The AIM-260 will fit in Sidekick, but OK don't keep up with the premier US AAM for the next 20 years.

Last edited:

sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
14,729
Reaction score
3,698
So far we know nothing about AIM-260 other than it's not an air-breather. For all we know AMRAAM-EX could be AIM-260.
Thought we now it's in a like AMRAAM body or at least very similar. That's also why the it would have such an advantage over the AMRAAM-ER with magazine depth.
How do we know that?
I would advise keeping up to date on the AIM-260 https://www.thedrive.com/the-war-zo...l-require-a-custom-storage-bunker-at-hill-afb
Tyler Rogoway. Lol okay.
The AIM-260 will fit in Sidekick, but OK don't keep up with the premier US AAM for the next 20 years.
"Sidekick"? Is that some fanboi lingo? Also, there's nothing official about size. Just a bunch of blogger speculation.


Dragon029

ACCESS: Top Secret
Joined
Mar 17, 2009
Messages
865
Reaction score
350
"Sidekick"? Is that some fanboi lingo? Also, there's nothing official about size. Just a bunch of blogger speculation.
Sidekick is the weapons bay adapter for the F-35A/C that allows them to carry up to 6x AMRAAMs internally; I personally haven't heard any confirmation that JATM will fit Sidekick, but it would be unfortunate if it couldn't.


trose213

ACCESS: Secret
Joined
Jul 29, 2018
Messages
305
Reaction score
151
So far we know nothing about AIM-260 other than it's not an air-breather. For all we know AMRAAM-EX could be AIM-260.
Thought we now it's in a like AMRAAM body or at least very similar. That's also why the it would have such an advantage over the AMRAAM-ER with magazine depth.
How do we know that?
I would advise keeping up to date on the AIM-260 https://www.thedrive.com/the-war-zo...l-require-a-custom-storage-bunker-at-hill-afb
Tyler Rogoway. Lol okay.
The AIM-260 will fit in Sidekick, but OK don't keep up with the premier US AAM for the next 20 years.
"Sidekick"? Is that some fanboi lingo? Also, there's nothing official about size. Just a bunch of blogger speculation.
Sort of bizarre, that you're complaining about one of the only publications to do original reporting about the AIM-260.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
14,729
Reaction score
3,698
So far we know nothing about AIM-260 other than it's not an air-breather. For all we know AMRAAM-EX could be AIM-260.
Thought we now it's in a like AMRAAM body or at least very similar. That's also why the it would have such an advantage over the AMRAAM-ER with magazine depth.
How do we know that?
I would advise keeping up to date on the AIM-260 https://www.thedrive.com/the-war-zo...l-require-a-custom-storage-bunker-at-hill-afb
Tyler Rogoway. Lol okay.
The AIM-260 will fit in Sidekick, but OK don't keep up with the premier US AAM for the next 20 years.
"Sidekick"? Is that some fanboi lingo? Also, there's nothing official about size. Just a bunch of blogger speculation.
Sort of bizarre, that you're complaining about one of the only publications to do original reporting about the AIM-260.
"Original". Anybody can speculate.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
14,729
Reaction score
3,698
"Sidekick"? Is that some fanboi lingo? Also, there's nothing official about size. Just a bunch of blogger speculation.
Sidekick is the weapons bay adapter for the F-35A/C that allows them to carry up to 6x AMRAAMs internally; I personally haven't heard any confirmation that JATM will fit Sidekick, but it would be unfortunate if it couldn't.
Short of a multistage missile (say a boosted CUDA) I don't see how they could get a significantly greater range than AIM-120D in the same envelope. I got the impression that AIM-260 is something larger.


Moose

ACCESS: Top Secret
Senior Member
Joined
Jul 4, 2010
Messages
1,564
Reaction score
693
"Sidekick"? Is that some fanboi lingo? Also, there's nothing official about size. Just a bunch of blogger speculation.
Sidekick is the weapons bay adapter for the F-35A/C that allows them to carry up to 6x AMRAAMs internally; I personally haven't heard any confirmation that JATM will fit Sidekick, but it would be unfortunate if it couldn't.
Short of a multistage missile (say a boosted CUDA) I don't see how they could get a significantly greater range than AIM-120D in the same envelope. I got the impression that AIM-260 is something larger.
Stretch the fins out into strakes and range will jump. If they're using divert thrusters for terminal maneuvers, like on CUDA, the aerodynamic package can be tailored to range rather than agility.


TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,979
Reaction score
2,566
"Sidekick"? Is that some fanboi lingo? Also, there's nothing official about size. Just a bunch of blogger speculation.
Sidekick is the weapons bay adapter for the F-35A/C that allows them to carry up to 6x AMRAAMs internally; I personally haven't heard any confirmation that JATM will fit Sidekick, but it would be unfortunate if it couldn't.
Short of a multistage missile (say a boosted CUDA) I don't see how they could get a significantly greater range than AIM-120D in the same envelope. I got the impression that AIM-260 is something larger.
Stretch the fins out into strakes and range will jump. If they're using divert thrusters for terminal maneuvers, like on CUDA, the aerodynamic package can be tailored to range rather than agility.

Could you enlarge the fuselage diameter if you didn't need fins at all? Or had tightly folding ones? Even the cropped fins in AIM-120D take up some box space.

Top
