Alternatives to the NAA X-15

Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,020
Reaction score
1,351
Website
www.aerospaceprojectsreview.com
The AP-76 was one of the neatest-looking of the X-15 contenders... and also the poorest performer of the bunch. Looks ain't everything.

BLATANT COMMERCIALISM WARNING....

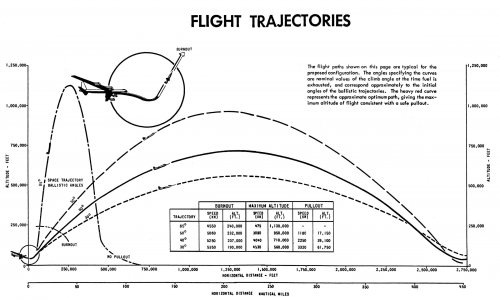

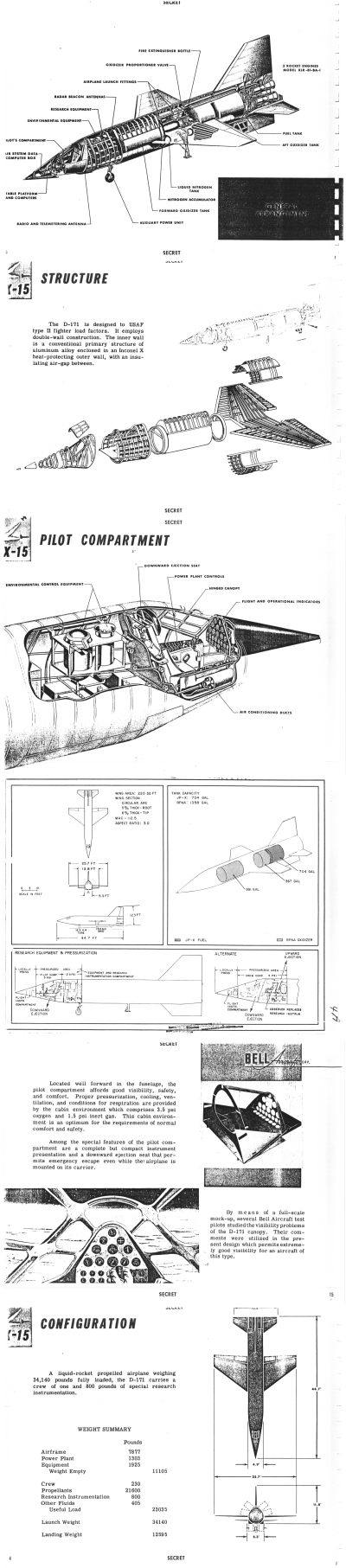

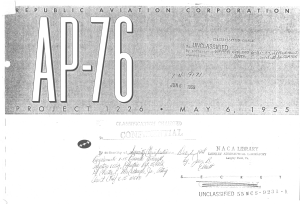

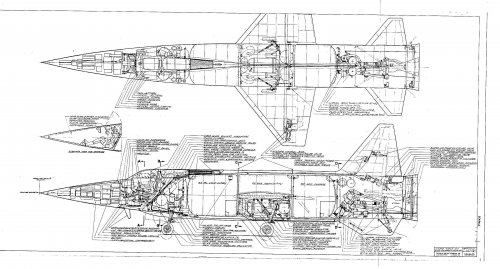

Along with the AP-76, I just added a slew of new items. The AP-76 report is a prime example of how a design *should* be presented... lots and lots of very clear, sizable and well-=rendered drawings, and a big pile of line art to go with it.



http://www.up-ship.com/drawndoc/drawndoc.htm

O

Overkiller

Guest
Oh Yes! Finally! :p

I've been after that brochure for ages! Item duly purchased.

cheers

Duncan


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,578
Reaction score
3,880

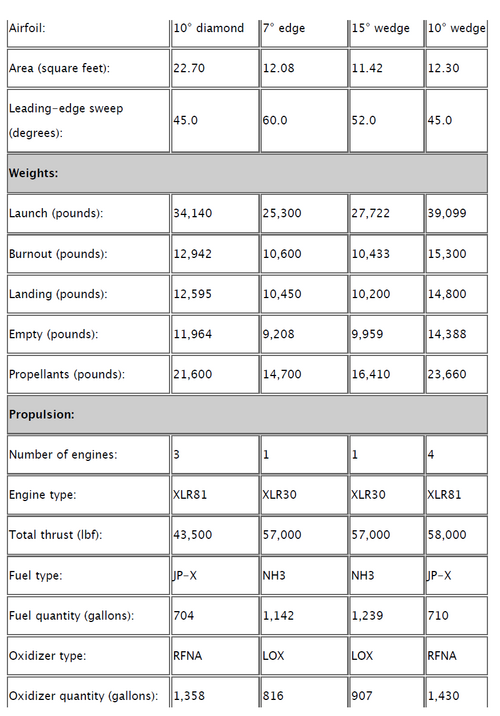

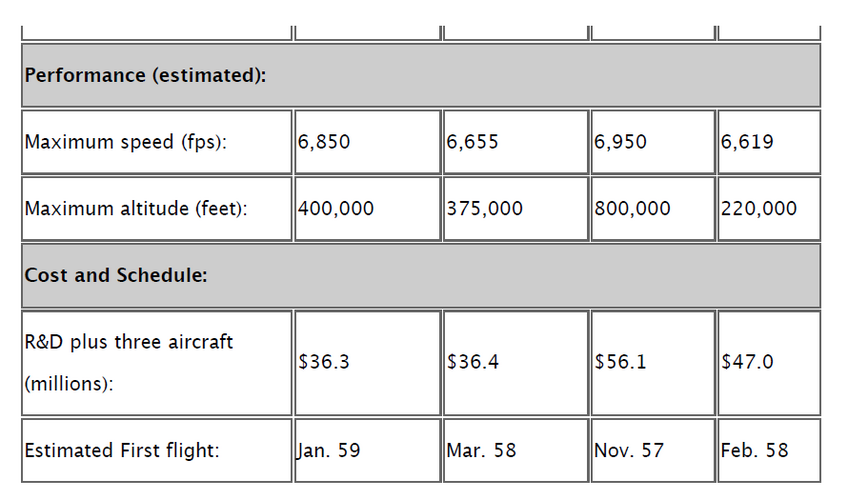

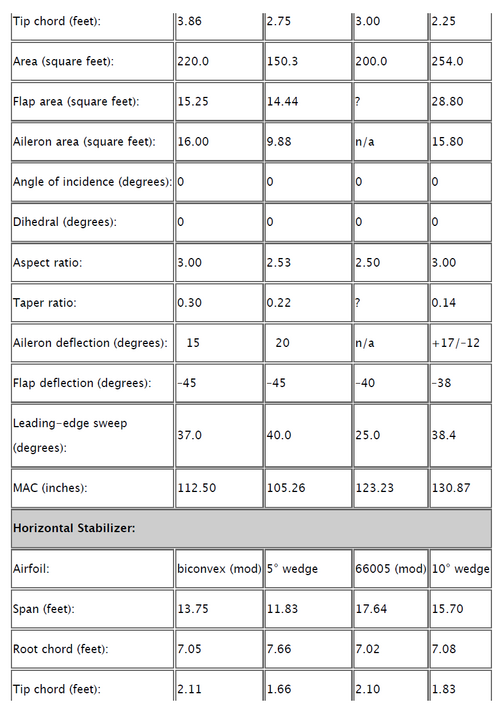

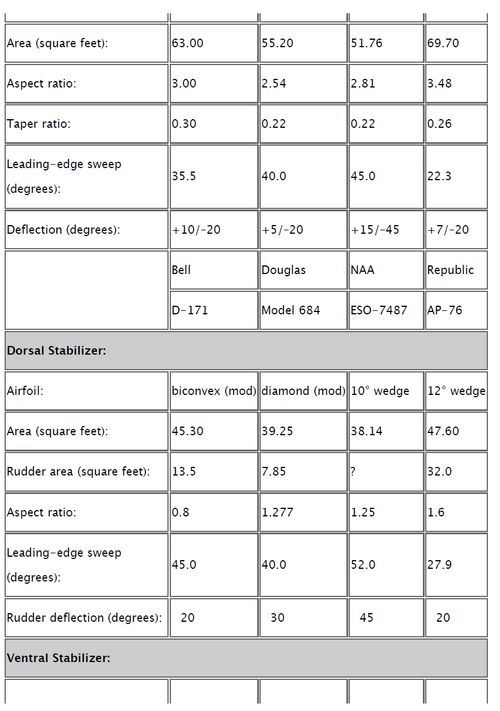

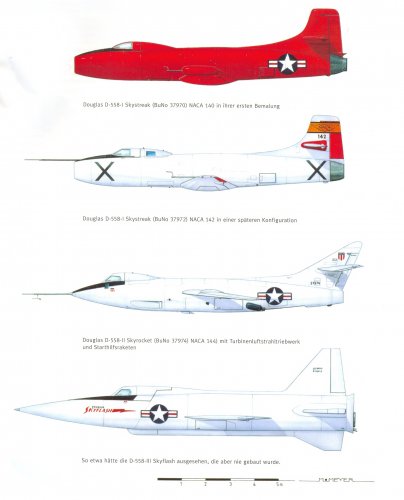

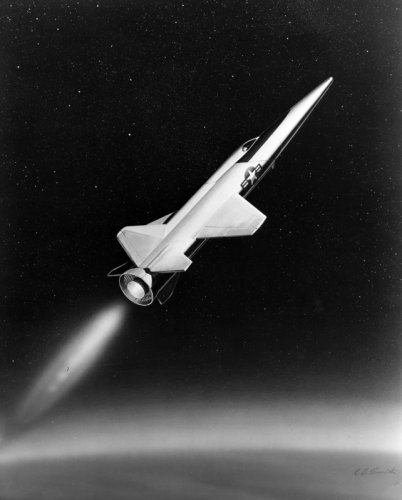

Combining several topics...

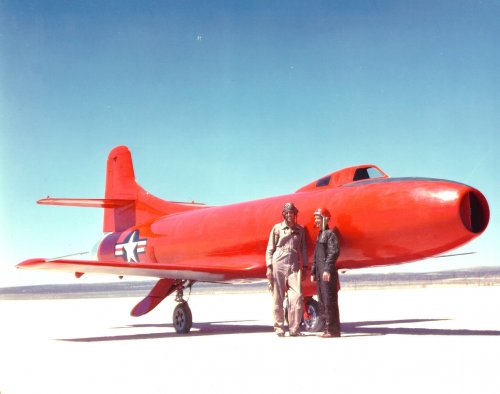

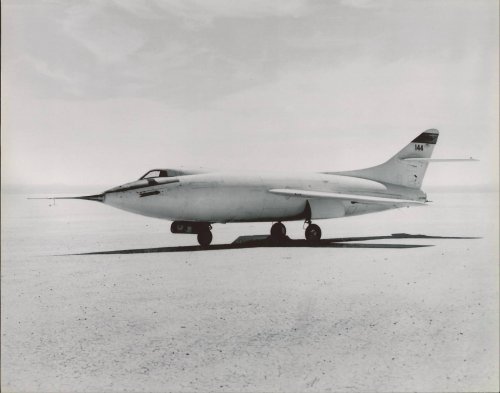

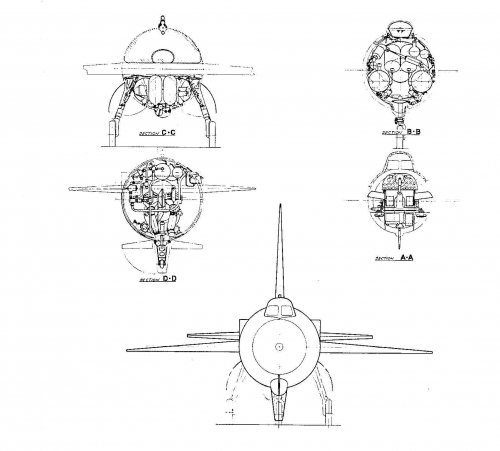

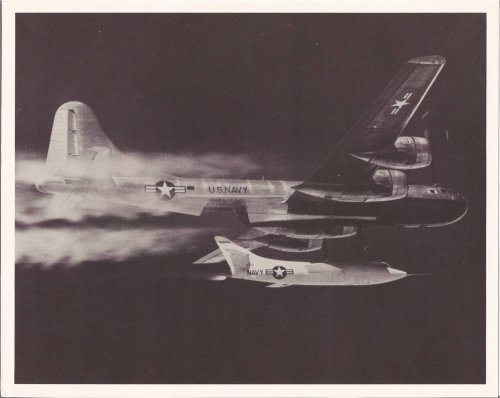

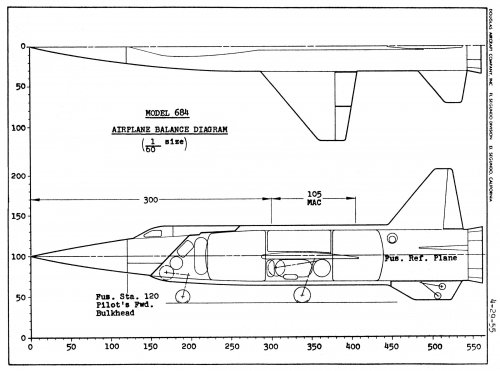

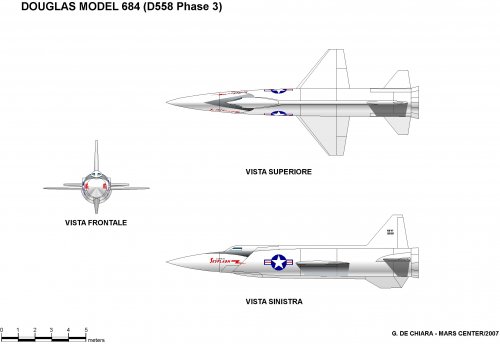

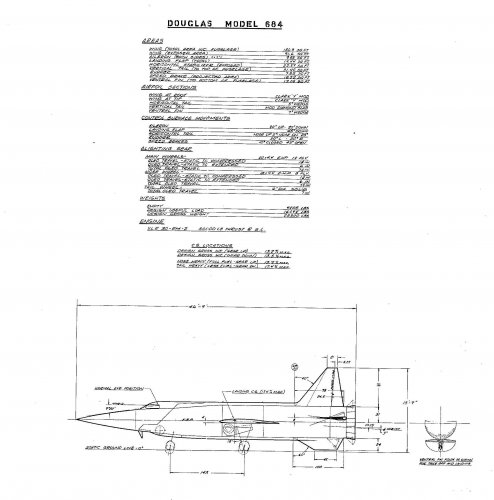

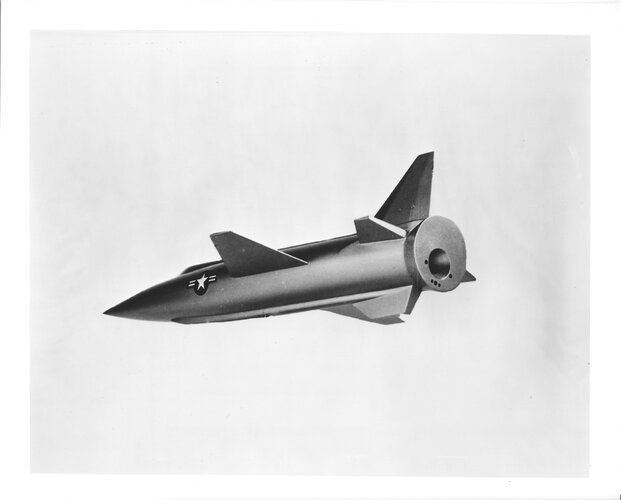

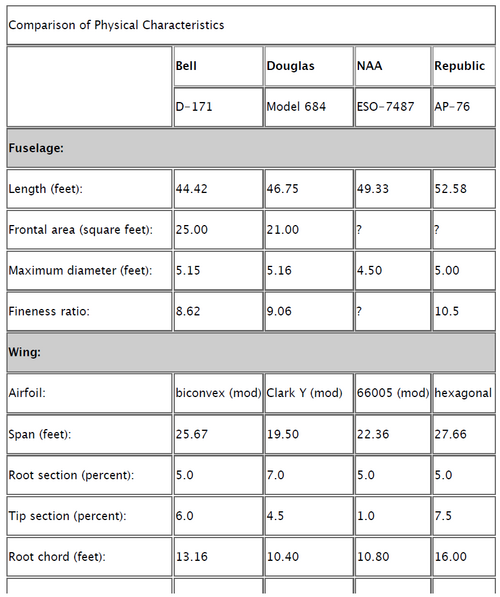

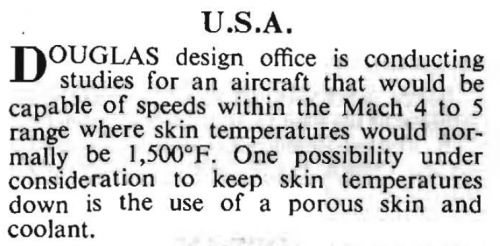

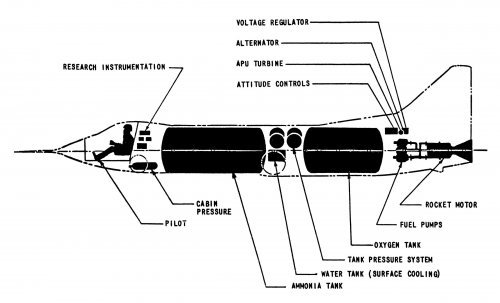

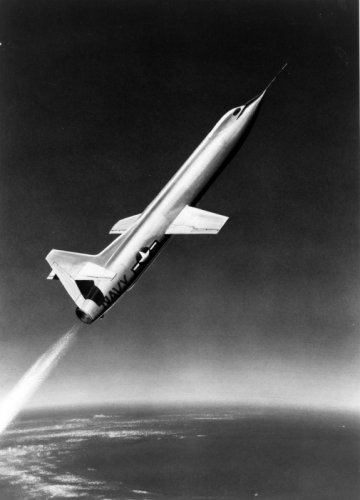

The last competitor is the Douglas Model 684.

Tommy posted a bit about it and a picture here: http://www.secretprojects.co.uk/forum/index.php/topic,3211.msg27045.html#msg27045



hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,076
Reaction score
3,755
Hi,

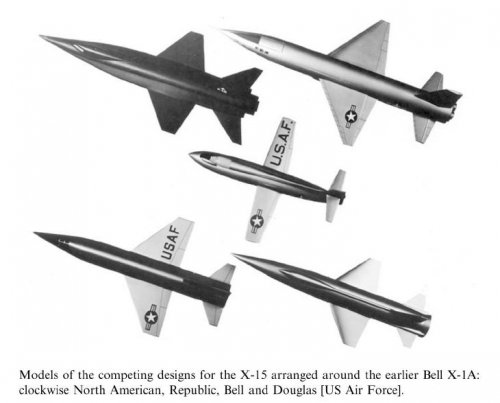

here is the Models of all contenders to X-15 program with Bell X-1A.


Attachments

  • X-15.JPG
    36.5 KB · Views: 1,096

bigvlada

ACCESS: Secret
Joined
Jun 30, 2008
Messages
369
Reaction score
22
Ohh, nice. It shows a resemblance to their first supersonic craft, the X-1.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,076
Reaction score
3,755
Hi,

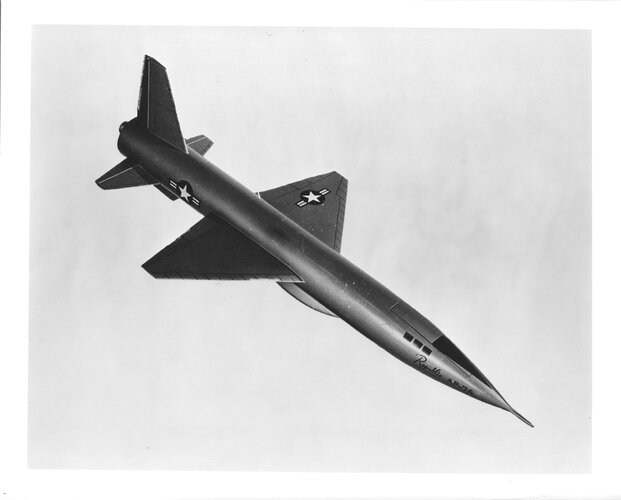

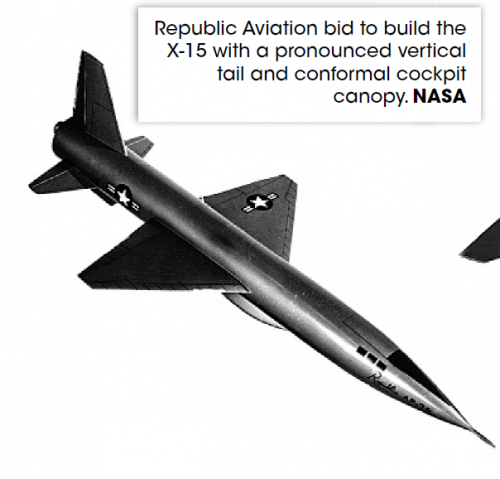

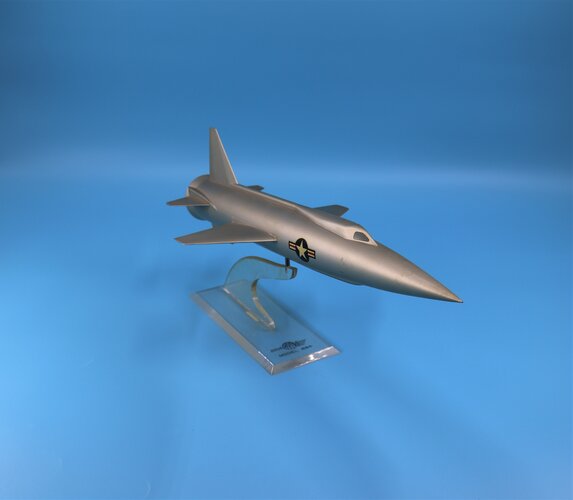

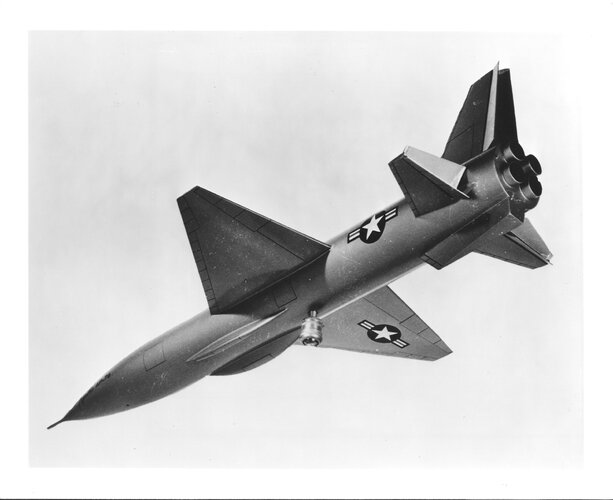

here is a Model to Republic AP-76.


Attachments

  • AP-76.png
    113.3 KB · Views: 112

sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,576
Reaction score
1,600
hesham said:
Hi,


here is the Models of all contenders to X-15 program with Bell X-1A.

The NAA X-15 doesn't even look like it belongs in that picture. Looks a lot more. . .refined/futuristic than the rest of the tube-and-fin designs.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,076
Reaction score
3,755
sferrin said:
The NAA X-15 doesn't even look like it belongs in that picture. Looks a lot more. . .refined/futuristic than the rest of the tube-and-fin designs.


Maybe you are right my dear Sferrin.


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,396
Reaction score
733
Source: http://blog.vintagedocs.com/2015/01/the-x-15-rocket-planes-that-never-were.html


Attachments

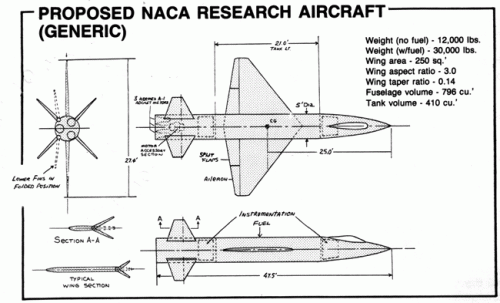

  • Proposed NACA X-15 Aircraft three view.gif
    Proposed NACA X-15 Aircraft three view.gif
    83.6 KB · Views: 92

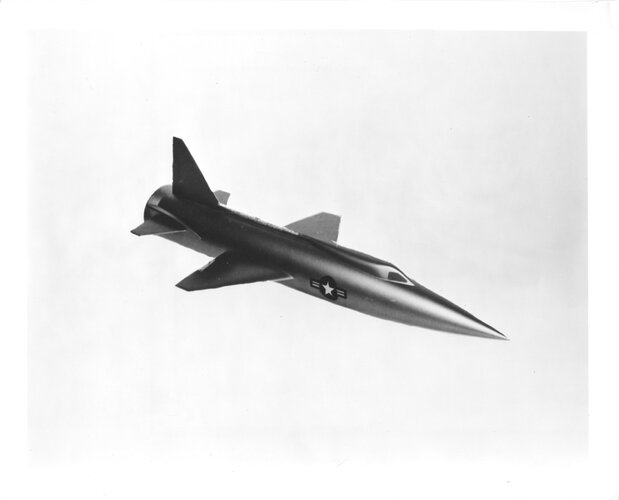

  • Republic AP-76 X-15 proposal three view.gif
    Republic AP-76 X-15 proposal three view.gif
    76.8 KB · Views: 101

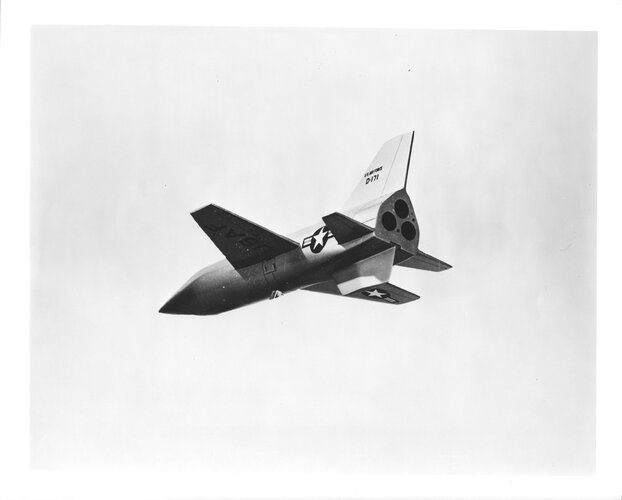

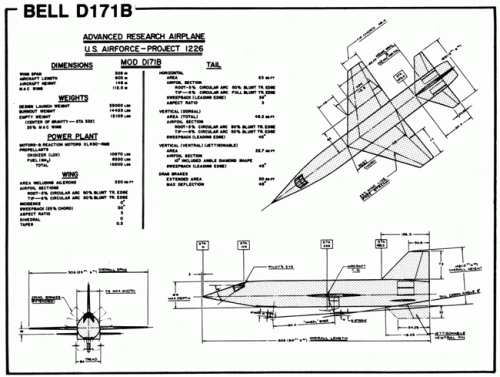

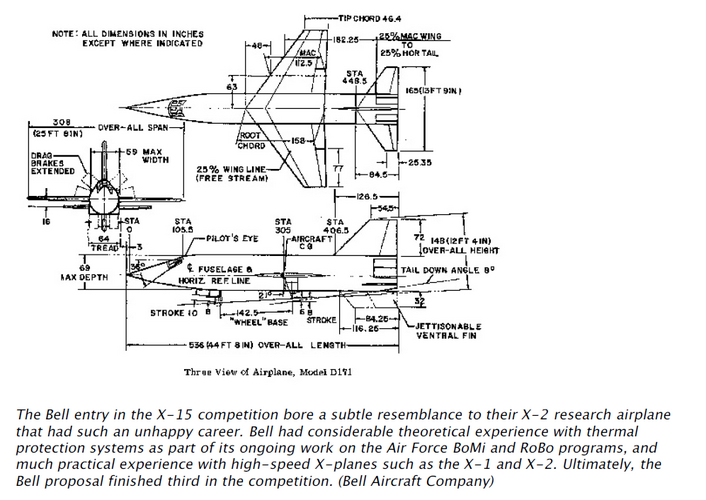

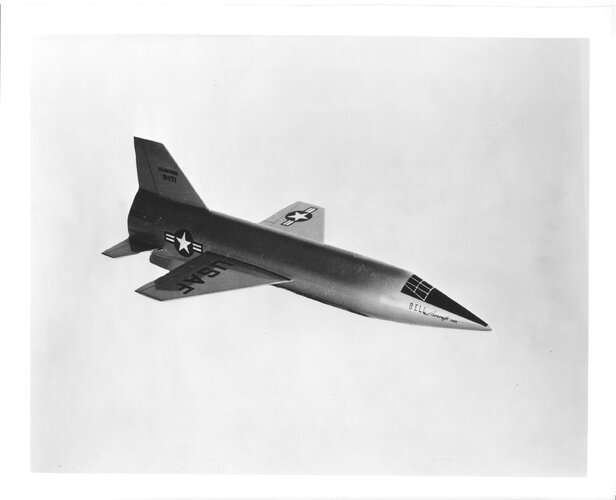

  • Bell D171B three view (X-15 proposal).gif
    Bell D171B three view (X-15 proposal).gif
    97.4 KB · Views: 89

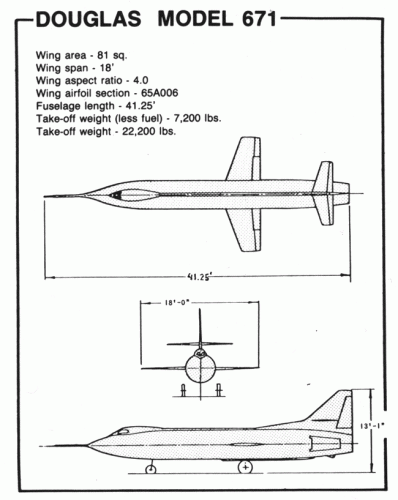

  • Douglas Model 671 three view (X-15 proposal).gif
    Douglas Model 671 three view (X-15 proposal).gif
    110.1 KB · Views: 86

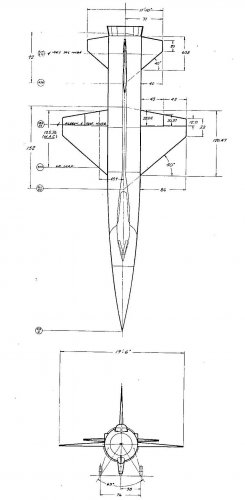

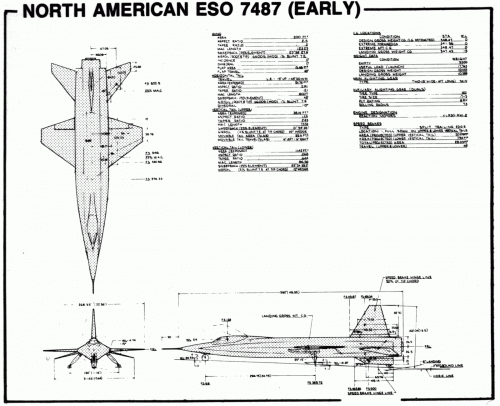

  • NA ESO 7487 (Early X-15 proposal) 3-View.gif
    NA ESO 7487 (Early X-15 proposal) 3-View.gif
    396.4 KB · Views: 114
