Aichi's Heinkel-based single-/two-/three-seat recce seaplanes

[theponja]

Hi

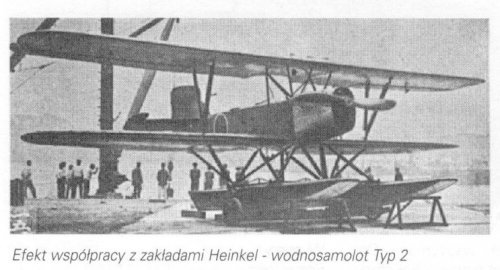

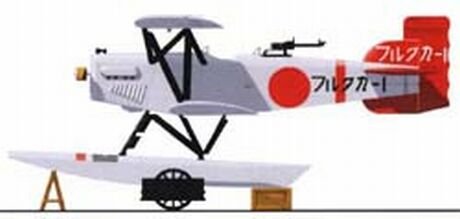

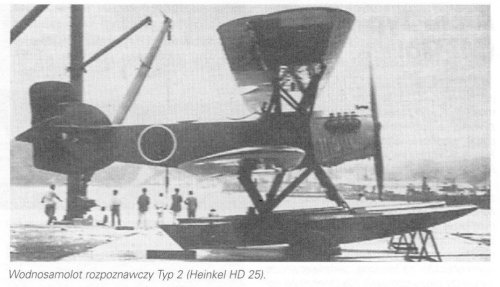

Other rather obscure plane on this period is the heinkel hd-25/Aichi seaplane. I've found just a couple of pictures and a color profile.

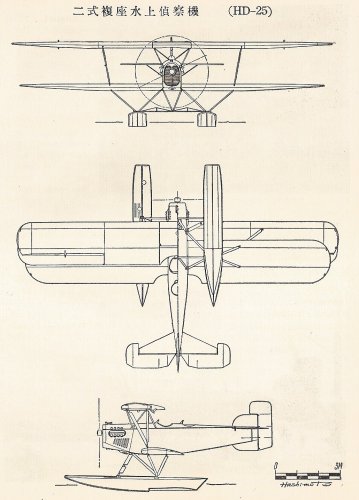

Anyone has more ? Specially one 3d view

Regards
Luis



[blackkite]

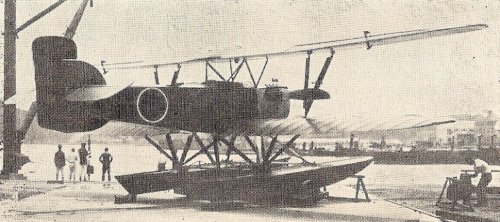

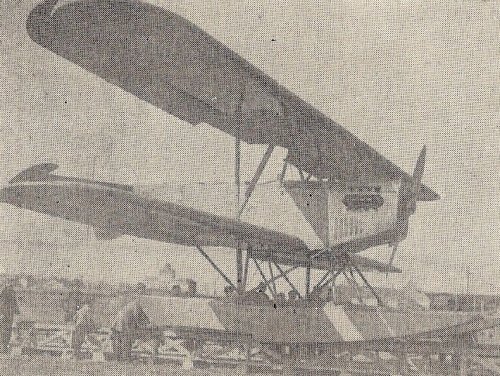

Hi! Enjoy.
Source:My No.2 bible and Imperial Japanese Navy Warplane.Green Arrow ISBN4-7663-3161-3 C0076
I am contacting My No.2 bible(ENCYCLOPEDIA OF JAPANESE AIRCRAFT 1900-1945) publisher(出版協同社(Shuppan Kyodo Publishers)). But they think it's difficult to publish English version.(Sale problem)
Let's ask them to publish English version.
Please give them the ideas how to sell books worldwide

出版協同社(Shuppan Kyodo Publishers) is in 海人社(Kaijin-sha Co.,Ltd).

http://www.ships-net.co.jp/kyodoj.html
（株）海人社： Kaijin-sha
営業課長　山口　肇　： Sales Section manager Hajime Yamaguchi
〒１６２－０８１４
東京都新宿区新小川町１－１４ ：Japan Tokyo-to Shinjuku-ku Shinogawa-cho 1-14
飯田橋リープレックス・ビズ ６階： Iidabashi REEPLEX B's 6th floor
TEL 03-3268-6351
FAX 03-3268-6354
Sales department ： sales@ships-net.co.jp
editorial depart ment ： webmaster@ships-net.co.jp
http://www.ships-net.co.jp



[blackkite]

Hi!

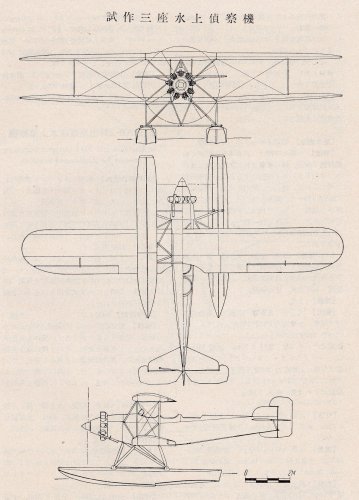

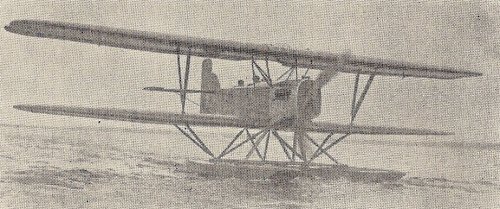

Aichi Experimental Three-seat Reconnaissance Seaplene.
Imported Heinkel HD-28 three seat reconnaissance seaplane had a poor reputation on a power relation, and the sight was bad. Therefore Aichi designed a modification of HD-28 in 1928. A modification version of HD-28 had a Nakajima Jupiter 8 type air-cooled radial 9 cylinder engine(takeoff power 520HP/1870r.p.m), had a little small shape and had forward moved seats. A main fuel tank was installed at upper wing. But the weight was excessive compared with engine powerand this airplane had no chance of practical use.
Span : 14.5m, Length : 10.55m, Height : 4.17m, Wing Area : 55 square meter
Empty weight : 1850kg, Gross weight : 3200kg
Source : ENCYCLOPEDIA OF JAPANESE AIRCRAFT VOL.2
