Agusta A129 variants

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,361
Reaction score
1,599
iverson said:

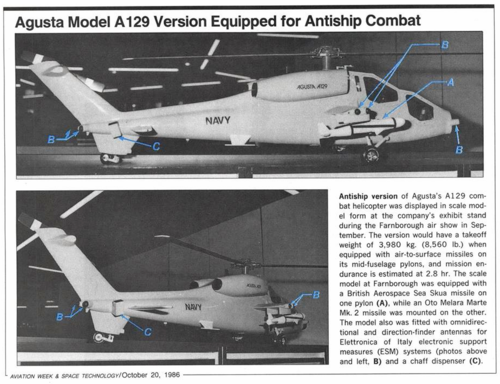

... two Martes might be a bit of a load, especially if the radar also adds weight.

Then maybe we are back at just one ASM and the other side occupied by an auxiliary tank
of lower weight ? The problem of missile fin/landing-gear strut collisions may be solved by
stub wings with a little wider span, I think.


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,550
Reaction score
1,249

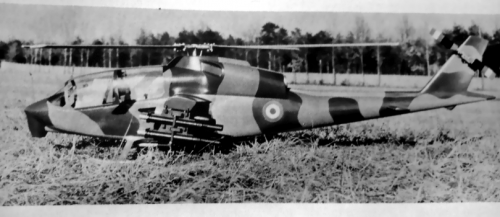

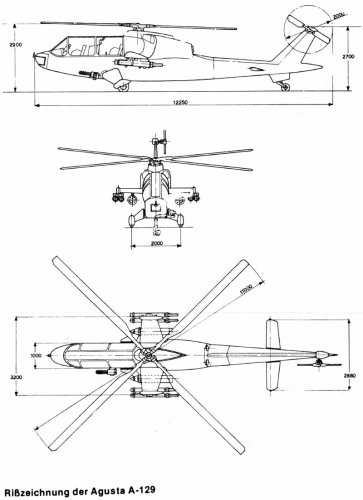

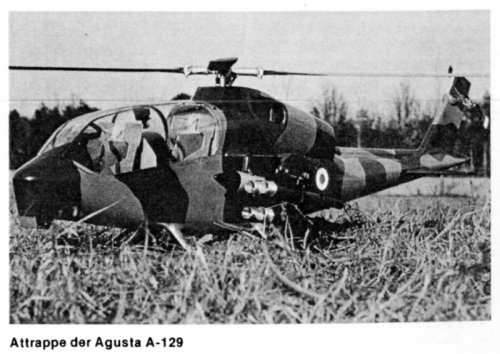

Here a picture and a 3view-drawing of an early mockup of the Agusta A.129 from 1975.
Notice, that this early version had skids.
The 7.62mm machine gun is folded up and to the starboard side during main flight.
Edit:
Yes, robunos,
the caption mentions, that dynamic and structural components of the Agusta A.109A "„Hirundo“ were used.

Source: Interavia Germany, March 1975, page 245


Attachments

  • Agusta_A129_early_mockup_skids_Interavia_Germany_March_1975_page245_810x350.png
    217.9 KB · Views: 623
  • Agusta_A129_early_3view_skids_Interavia_Germany_March_1975_page245_810x456.png
    191.6 KB · Views: 500

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,092
Reaction score
641
Appears to use the same tail end as the Agusta A109, as well as the dynamic components...

cheers,
Robin.

C

CostasTT

Guest
fightingirish said:
The 7.62mm machine gun is folded up and to the starboard side during main flight.
The installation appears to be the Emerson Electric MiniTAT.


RavenOne

ACCESS: Secret
Joined
Jun 18, 2008
Messages
472
Reaction score
829

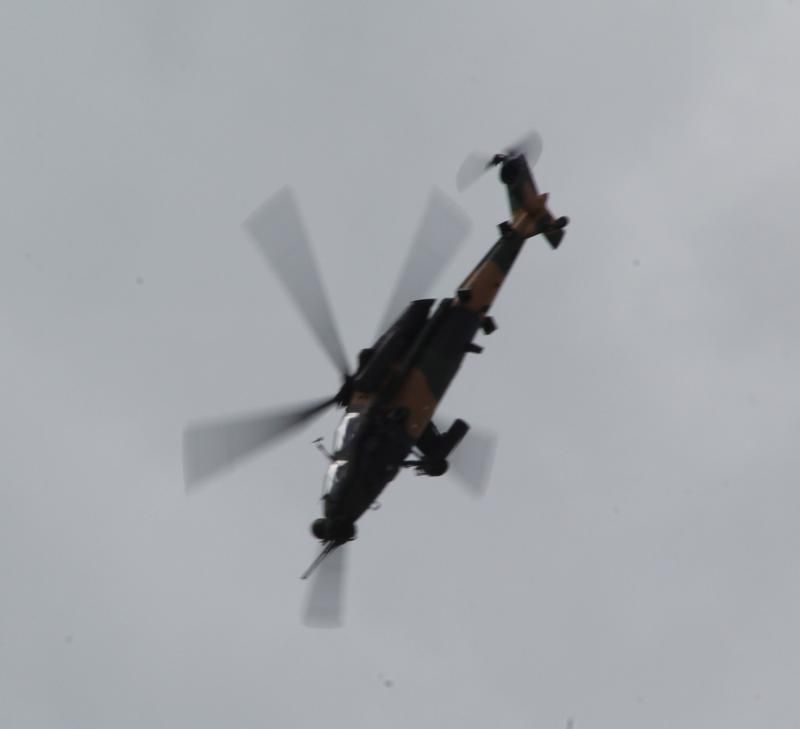

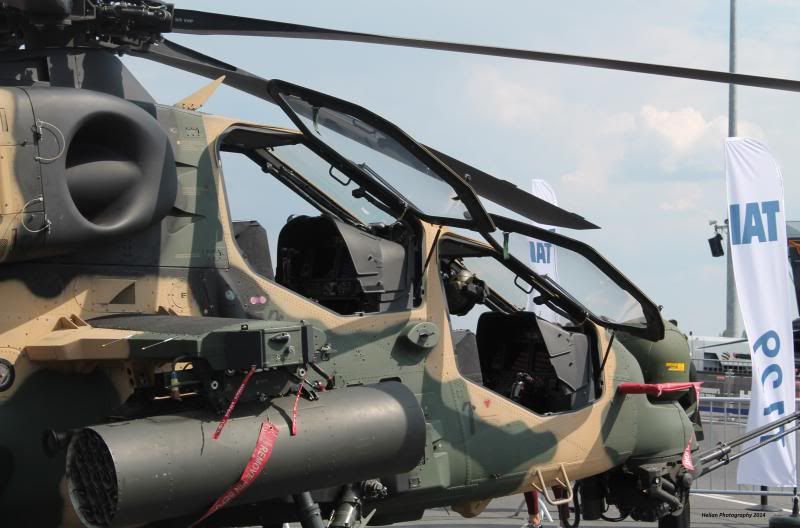

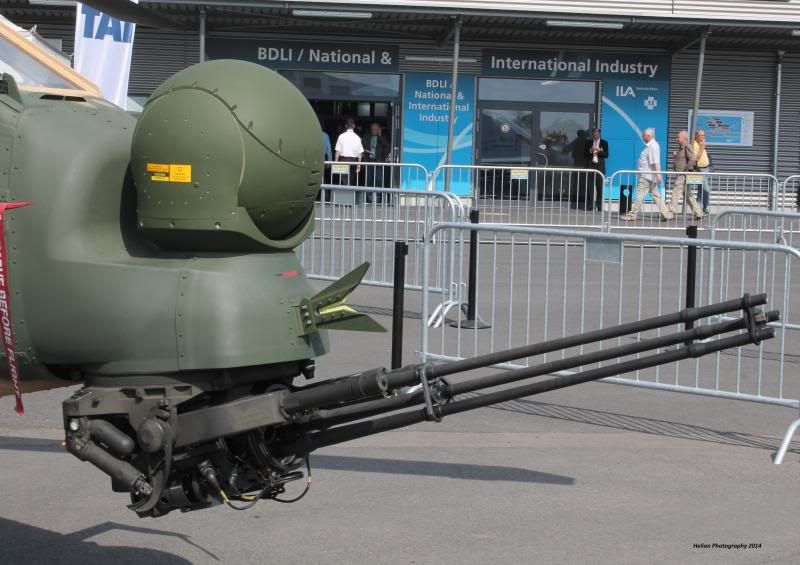

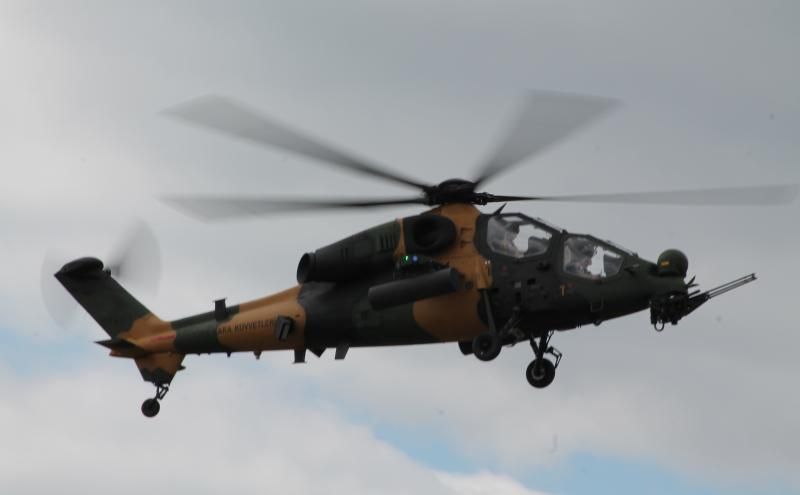

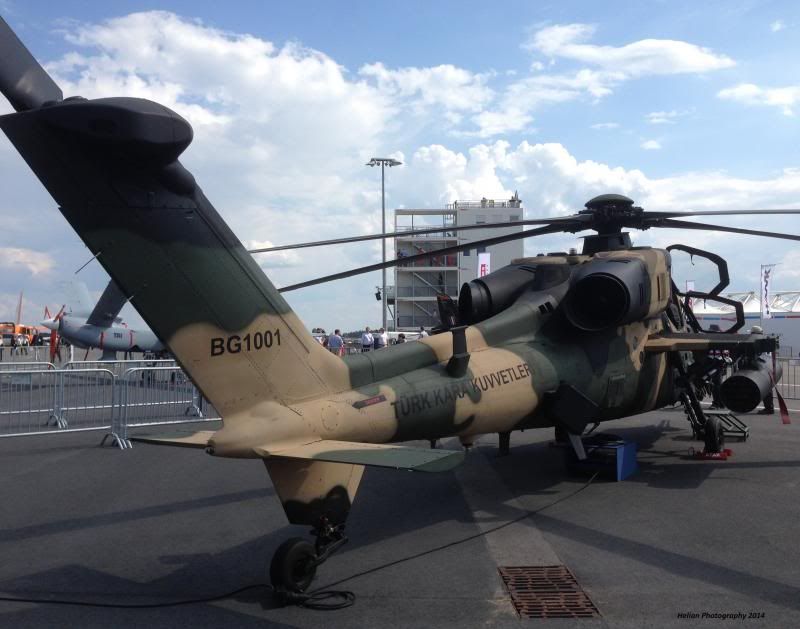

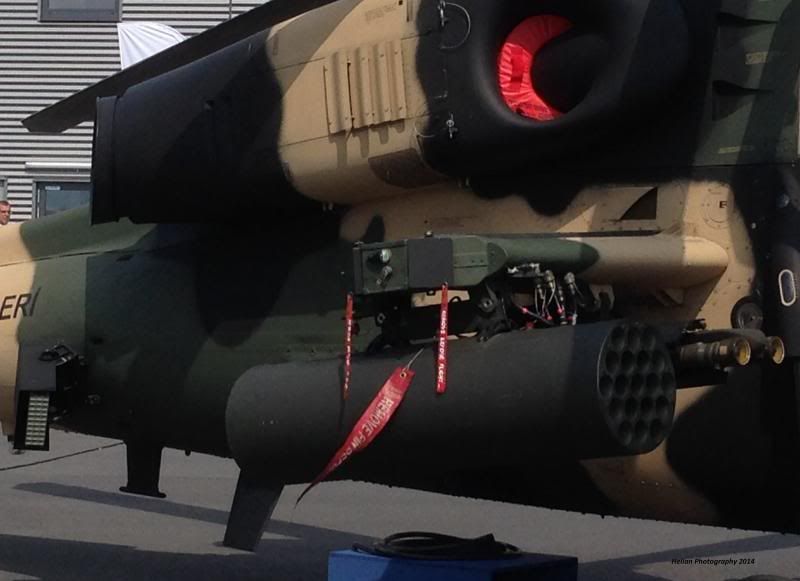

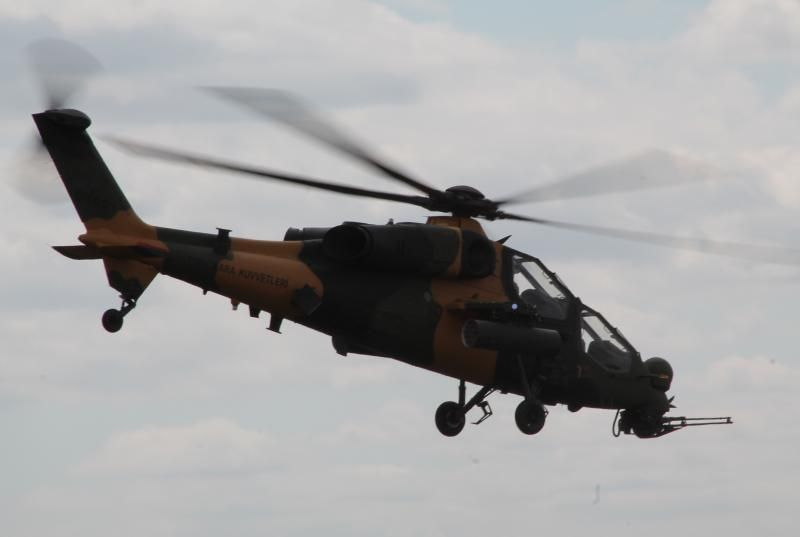

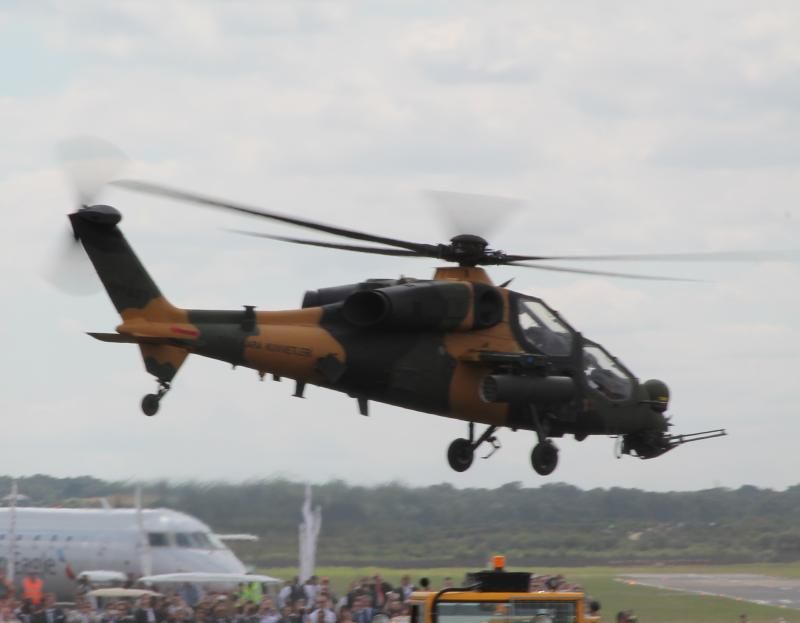

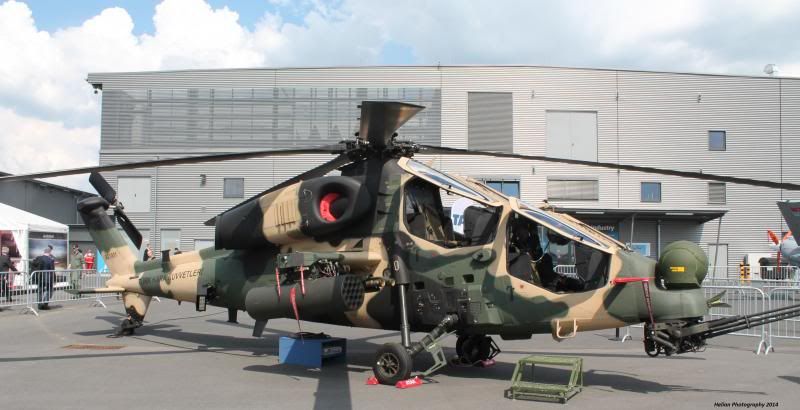

My T-129K ATAK pics as I attended both ILA Berlin and Farnborough Airhsow

ILA:











and Farnborough











cheers


muttbutt

ACCESS: Secret
Joined
Jan 31, 2010
Messages
307
Reaction score
197
Not much to go on yet. I have been told the new helo is called as of now the "AHX-29" and is a development of the Mangusta with more speed and endurance.
Thanks to Whelleuss over on milphotos.

The MoD provisional budget document also lists a handful of new research programs that could lead to procurements. Research work on a new "exploration and escort" helicopter is listed, as is the study and development of a new tilt-rotor aircraft.
http://www.defensenews.com/story/defense/policy-budget/budget/2015/01/13/italy-budget-freccia-satellite-cosmo-skymed/21460287/


Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
938
Reaction score
182
Der Fleiger 9/75


Attachments

  • Agusta A-129 a - Copy.jpg
    Agusta A-129 a - Copy.jpg
    114.5 KB · Views: 1,208
  • Agusta A-129 b - Copy.jpg
    Agusta A-129 b - Copy.jpg
    124.5 KB · Views: 1,134

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,153
Reaction score
687
RavenOne said:
My T-129K ATAK pics as I attended both ILA Berlin and Farnborough Airhsow

ILA:











and Farnborough











cheers

Ah sadly, a similar configuration of this known as the 'Scorpion,' should have had a Kangaroo on it! :mad: Instead, my Army/Gov elected to buy the troublesome and costly Euro Tiger :-[

Regards
Pioneer


yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,903
Reaction score
1,640
Another benefit of this helicopter is that it is much smaller than the AH-64, Tigre or Mi-24/28. It now has a decent power to weight ratio I am told.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,303
Reaction score
1,880
...


Attachments

  • A129 LAH.jpg
    A129 LAH.jpg
    430.9 KB · Views: 193

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,153
Reaction score
687
Would like to see more on the A-129/139 Utility derivative!!

Regards
Pioneer


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,153
Reaction score
687
TinWing said:
pometablava said:
2. A-129 Utility derivative mockup (Le Bourget 1993 I think)

Actually, the utility version was called the A-139. The design was announced in 1985, and it was claimed that Argentina would fund it. That obviously came to nothing, but as late as two or three years ago the same design was resurrected and marketed to Australia...which bought the NH90 instead.

Sorry my friend, but re reading again, can I ask if you have more details to
but as late as two or three years ago the same design was resurrected and marketed to Australia...which bought the NH90 instead.

Regards
Pioneer


stimpy75

Happy Happy,Joy Joy
Joined
Aug 23, 2007
Messages
147
Reaction score
124

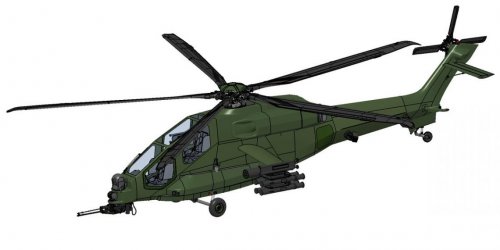

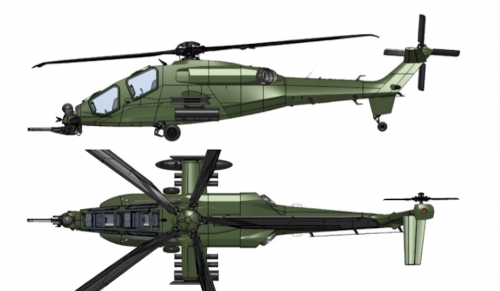

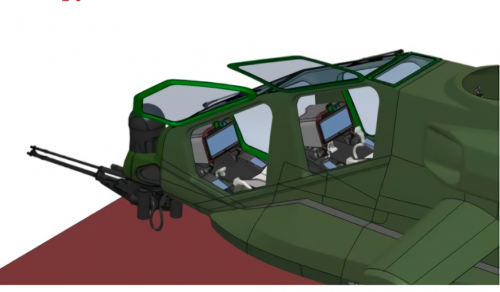

new Agusta model.....don`t know if official or fanmade? but there were talks about a succesor to the A-129


Attachments

  • yz0BM0.png
    385.1 KB · Views: 295
  • zJ06AB.png
    334.2 KB · Views: 259
  • Gy9dYy.png
    401.4 KB · Views: 336
  • 7y6lA5.png
    153.9 KB · Views: 344

TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,974
Reaction score
2,554
Presented by an Italian Army official as a real program (article in Polish):

http://www.defence24.pl/689128,wloski-smiglowiec-szturmowy-nowej-generacji-ah-249-analiza

Edit: It's also mentioned in the Combat Helicopters conference agenda:

http://www.combat-helicopter.com/conference-agenda.php

Developing the Italian Army’s exploration and escort helicopter (AW249) for modern operations
  • Background to the programme and updates so far
  • Lessons identified that have changed requirements during the process
  • Opportunities for assistance from allied nations and solution providers

Lieutenant Colonel Claudio Orioles, Aviation Logistics Chief, Italian Army

And some mention of systems, before the AW249 designation was attached.

https://www.flightglobal.com/news/articles/italy-presses-ahead-with-aw129-attack-helicopter-rep-433209/
The AW129s have been in service since 1990, and Rome believes the age and condition of its Mangusta fleet means the aircraft are no longer suited to the increasing demands placed on them, according to contract documents.

Its replacement – which it calls the new exploration and escort helicopter – will offer more performance than the AW129 in areas such as survivability, offensive capability, digital communications and autonomy.

However, the defence ministry also stipulates the use of already mature technologies, including the TM197B 20mm chin gun, Rafael Spike missile and Toplite targeting system from the AW129, as well as the transmission and main and tail rotors from the AW149 troop transport.


kitnut617

ACCESS: Secret
Joined
Dec 15, 2006
Messages
494
Reaction score
272
I had my own ideas about this


Attachments

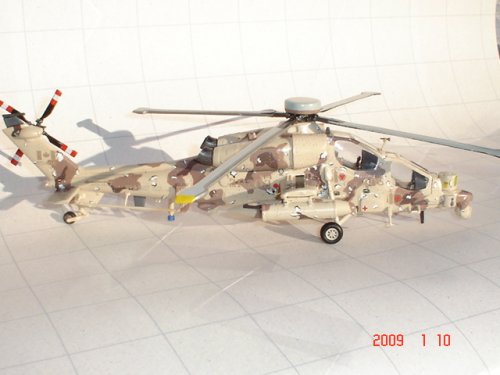

  • Finished CH-151.jpg
    Finished CH-151.jpg
    137.7 KB · Views: 359

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,549
Reaction score
6,281
stimpy75 said:
new Agusta model.....don`t know if official or fanmade? but there were talks about a succesor to the A-129

Nice find Stimpy75;

and the AH-249 is new for me.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,715
Reaction score
1,047
Website
deeptowild.blogspot.com

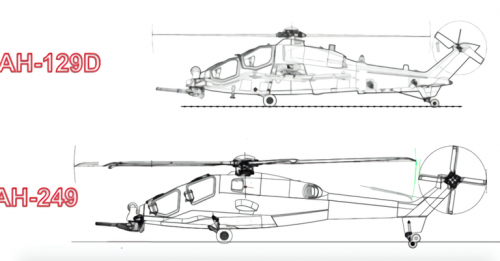

AgustaWestland AH-249

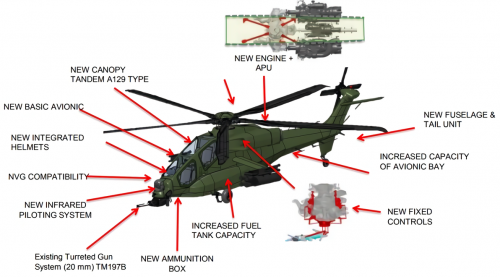

The New Mangusta Is Called AgustaWestland AH-249
(Source: HeliPress.it; posted Nov 02, 2017)

Source:
http://www.defense-aerospace.com/article-view/release/188101/veil-lifted-on-new-italian-army-combat-helicopter.html

The Italian army’s future scout and escort helicopter was unveiled during the Combat Helicopters 2017 conference in Krakow, Poland.

Last year, the mysterious AgustaWestland AW249 was unveiled almost by accident last year by Leonardo's then-CEO, Mauro Moretti. Since then, months of silence, with no official or unofficial news.

Well, the AW249 is no longer mysterious. It exists and will soon be real, as the new-generation military helicopter that, with the new designation AH-249A, will replace the Italian army’s AH-129D (AW129) Mangusta.

AH-249A: SUCCESSOR TO MANGUSTA

The new design, first reported by Defense24.pl, was unveiled at the Combat Helicopters 2017 conference in Krakow, Poland, along with a series of new details on the program. The Scout and Escort helicopter will be fitted with the same powerpack as the AW149 military utility helicopter and will have a maximum take-off weight of between 7-8 tonnes (depending on the version) that will position the new helicopter Italian military slightly above the Airbus Helicopters Tiger (6 tonnes) and just below the Bell AH-1Z Viper (8 tonnes), but far from the flying AH-64E Apache, Mi-28 and Ka-52 flying gunships. (In other words, it will be over 50% larger than the A-129 Mangusta currently in service—Ed.)

Among the main goals of the Mangusta's evolution is the ability to operate at a performance level comparable to the NH90 and CH-47F helicopters currently supplied to the Italian army’s aviation command, something that the AH-129D could no longer guarantee, especially in terms of range.

AH-249A: PERFORMANCE AND STEALTH CAPABILITIES

Greater emphasis was put on performance in extreme conditions. The operating temperature range of the new AH-249A will vary from -40 degrees C to +50 degrees C, and the helicopter will be equipped with components that can protect against dust, sand, snow and corrosion in maritime environments.

Among other details that are still little known is the radar signature. The new Mangusta will certainly not be a stealth aircraft, but as it will be used with scout and reconnaissance missions it will have to be fitted with signature management systems and some ways to reduce its radar cross-section. To this end, the AH-249 will be equipped with infrared signature reduction devices (in particular, for turbine exhaust gases) and a system of active electronic countermeasures and software systems against hacking.

It is also worth mentioning the new helicopter will have the ability to interact with UAVs, both in terms of information exchange and in the management of drones currently in use in the Italian Armed Forces.

-ends-


Attachments

  • Gy9dYy.png
    401.4 KB · Views: 409

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,549
Reaction score
6,281
From JAWA 1988,

the Tonal derivative.


Attachments

  • 1.png
    371.2 KB · Views: 253

TsrJoe

ACCESS: Secret
Senior Member
Joined
Jan 2, 2006
Messages
468
Reaction score
396
Agusta A.129 Mangusta, manufacturers display model, International Helicopter Museum, Weston Super Mare, 2018


Attachments

  • FB_IMG_1545309844758.jpg
    30 KB · Views: 360

RAP

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
706
Reaction score
521
Aviation Week info.


Attachments

  • '[opi.png
    688.2 KB · Views: 261

Angelos_World

ACCESS: Restricted
Joined
Dec 1, 2019
Messages
2
Reaction score
2
Hi guys

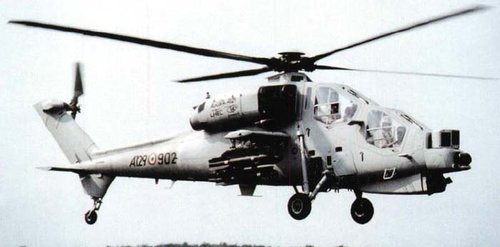

i found this photo of a mangusta which to me looks preatty interesting. It looks like a production version (even if the dark part of the engine make a bit tricky to recognize the T800 from the rolls-royce engine, so it can also be part of the International programm) with something under the fusolage.
An other image from a model kit seems to resemble this particoular 129 with this weird configuration used for the 20mm turret. there are more info about this?


Attachments

  • a129int-8.jpg
    51.9 KB · Views: 204
  • 120_2031.JPG
    52.9 KB · Views: 228

TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,974
Reaction score
2,554
Hi guys
i found this photo of a mangusta which to me looks preatty interesting. It looks like a production version (even if the dark part of the engine make a bit tricky to recognize the T800 from the rolls-royce engine, so it can also be part of the International programm) with something under the fusolage.
An other image from a model kit seems to resemble this particoular 129 with this weird configuration used for the 20mm turret. there are more info about this?

Definitely one with the T800 engine -- I can make out the "LHTEC" marking on the engine fairing.

I suspect this is an early version of an M197 installation with an enclosed turret like the one on the Bell AH-1. The barrel group is either removed or foreshortened because the turret is swiveled toward the camera (as are the optics).


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,153
Reaction score
687

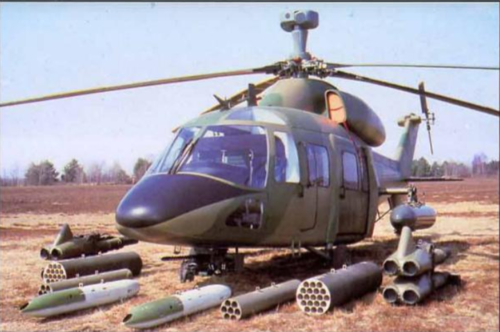

Agusta A129 LBH (Light Battlefield Helicopter) mockup


Regards
Pioneer


Attachments

  • Agusta A129 LBH (Light Battlefield Helicopter).png
    Agusta A129 LBH (Light Battlefield Helicopter).png
    459.8 KB · Views: 231

Angelos_World

ACCESS: Restricted
Joined
Dec 1, 2019
Messages
2
Reaction score
2

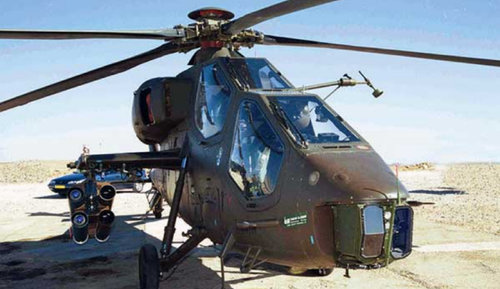

this is a cool one: T800 engines, 5 blades, no turret, spike atms
what do you think was it's purpose? maybe a prototype to test the spike on the platform?


Attachments

  • A129_spike.jpg
    1.9 MB · Views: 194

Erdosain

ACCESS: Confidential
Joined
Mar 10, 2020
Messages
170
Reaction score
611

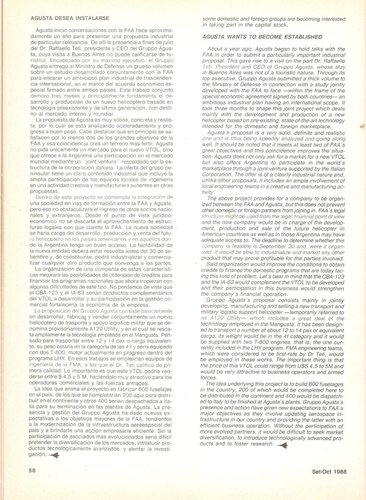

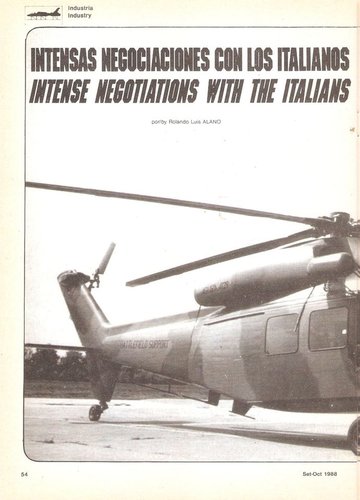

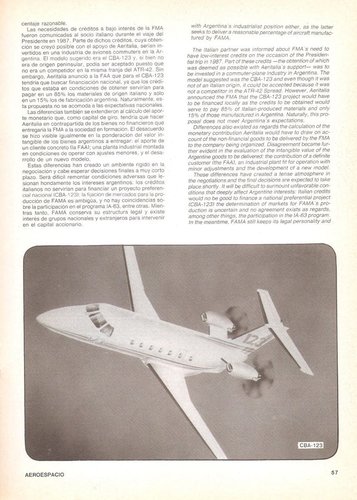

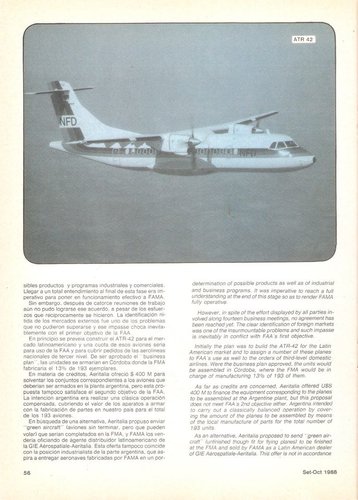

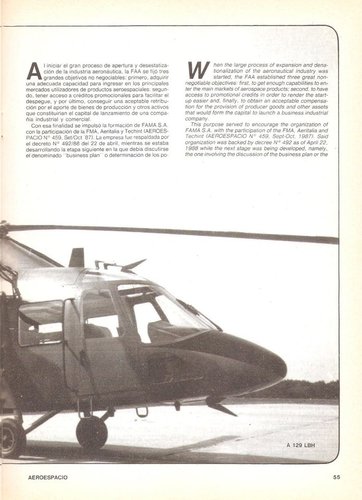

Agusta / FMA A-129 Utility


Attachments

  • A-129_01.jpg
    107.1 KB · Views: 102
  • A-129_02.jpg
    82.8 KB · Views: 85
  • A-129_03.jpg
    91.7 KB · Views: 84
  • A-129_04.jpg
    112.9 KB · Views: 84
  • A-129_05.jpg
    124.9 KB · Views: 78
  • A-129_06.jpg
    171.8 KB · Views: 87

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,153
Reaction score
687
Agusta / FMA A-129 Utility
It seems an extensive article on the A129 Utility. Some serious information on Argentina's involvement? Would be great to know what is says in English

Regards
Pioneer


Erdosain

ACCESS: Confidential
Joined
Mar 10, 2020
Messages
170
Reaction score
611
Agusta / FMA A-129 Utility
It seems an extensive article on the A129 Utility. Some serious information on Argentina's involvement? Would be great to know what is says in English

Regards
Pioneer

It was written in Spanish and English. In each page you can read left column in Spanish, right column in English


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,153
Reaction score
687
Agusta / FMA A-129 Utility
It seems an extensive article on the A129 Utility. Some serious information on Argentina's involvement? Would be great to know what is says in English

Regards
Pioneer

It was written in Spanish and English. In each page you can read left column in Spanish, right column in English
Thank you Erdosain that's embarrassing that I didn't notice that.


Regards
Pioneer


Combat-Master

ACCESS: Secret
Joined
Jul 15, 2020
Messages
471
Reaction score
848

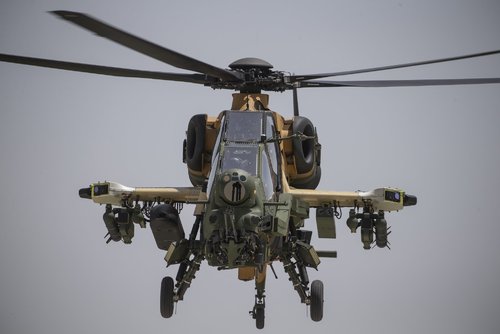

The most up-to-date variant of the 129 platform, modifications by TAI - second phase of T-129 project for Turkish Armed Forces.
Modifications on wings, aft and rear of the platform include Radar Warning Receivers, Radio Frequency Jammers and Laser Warning Receiver


yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,903
Reaction score
1,640
Another fine demonstration of parasite drag.

… and no, I am not saying it is a bad helicopter.


riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,695
Reaction score
1,155
Another fine demonstration of parasite drag.

… and no, I am not saying it is a bad helicopter.

Do they have enough gadgets hanging off that helicopter?

Looks like a salesmans' wet dream?


Foo Fighter

I came, I saw, I drank some tea (and had a bun).
Senior Member
Joined
Jul 19, 2016
Messages
2,444
Reaction score
1,407
There is definitely room for a 'porcelin throne' on there.


TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,974
Reaction score
2,554
Interesting pic. I think it's odd that they feel the need to have flip-up covers over the seekers on the UMTAS antitank missiles (outboard). Bespeaks a lack of confidence in the durability of their seeker windows.

And I assume the big pod under the starboard wing is test instrumentation, given the huge number of cables running into it.


yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,903
Reaction score
1,640
And I assume the big pod under the starboard wing is test instrumentation, given the huge number of cables running into it.

I would agree, but if might be a gun pod of some sort as a second guess.


Racer

ACCESS: Confidential
Joined
Jan 22, 2008
Messages
87
Reaction score
6
Interesting pic. I think it's odd that they feel the need to have flip-up covers over the seekers on the UMTAS antitank missiles (outboard). Bespeaks a lack of confidence in the durability of their seeker windows.

I would expect it has more to do with potential polution during flight. Going through swarms of insects with speed does not do a favour to visibility through windows of seekers.


Similar threads

Top
