AESA elements counting by Japanese

[seruriermarshal]

AESA elements counting by Japanese

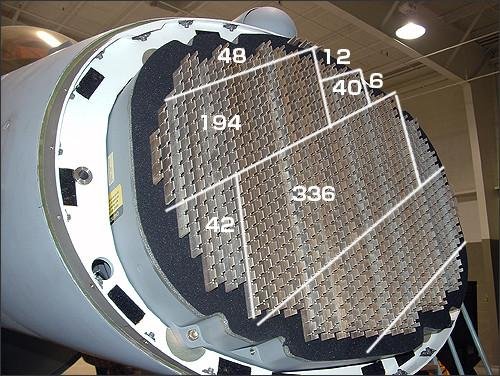

APG80 before data:~1000 elements
counting:1020 elements



[seruriermarshal]

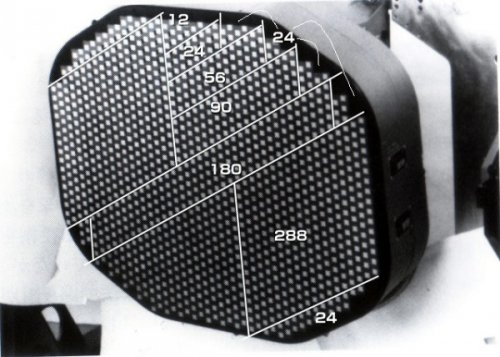

F/A-18E/F APG79 before:~1100
counting:1368



[seruriermarshal]

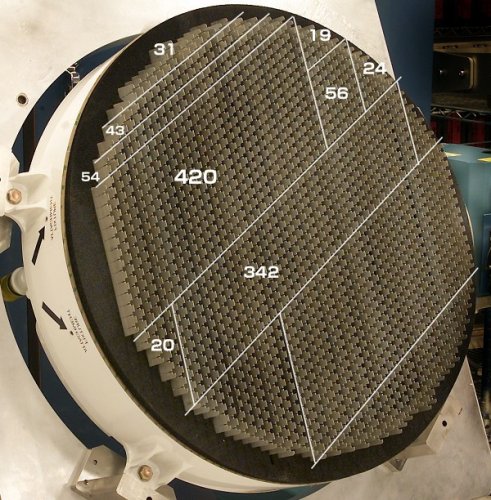

F-35 AN/APG-81

before:1200+
counting:1676



[seruriermarshal]

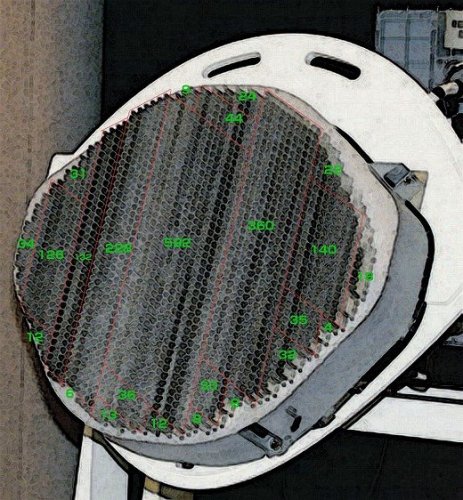

F-22 APG77 before data:~2000 elements
counting:1956 elements



[seruriermarshal]

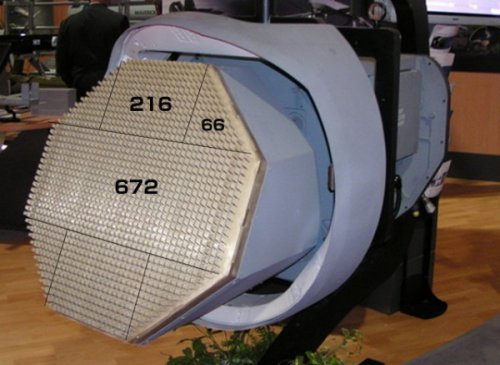

F-2 J/APG-1 before data:~800 elements
counting:1216 elements



[sferrin]

Interesting that the AESA for the F-35 appears to have more modules than the Super Hornet. I wonder what count is for the AESA on the F-15s.



[latenlazy]

Interesting that the AESA for the F-35 appears to have more modules than the Super Hornet. I wonder what count is for the AESA on the F-15s.

If there's going to be a thread for this...

Claimed to be the J-20's radar. Not a complete picture but one can do a decently good estimate.

EDIT: Original intention might not have been clear. Putting the image up in case someone wanted to do a count.
