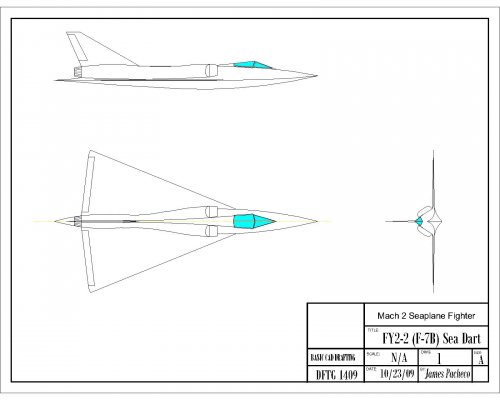

Just for Hesham, done at school on AutoCAD. I know Scott has the actual drawings for sale but as my funds are tight, I simply used pure deduction and three-views of the original Sea Dart and an F-106. Of course I may be wrong.

Moonbat

PS- Moderators, if I put this one in the wrong section again, please feel free to move this as need be.


Attachments

  • SEA DART 2-Model.jpg
    SEA DART 2-Model.jpg
    117.5 KB · Views: 203

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,125
Reaction score
5,638
Thank you my dear XP67_Moonbat very much.


XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,164
Reaction score
99
Hesh, you're very welcome. Justo, muchas gracias!

So my attempt wasn't too far off the mark, I guess. One day, when the funding becomes available, I'll buy the plans from Scott and see just how far off I really was.

BTW, I printed my bird out and realized that the tail contours came outreally skinny. I'll have to fix that at school next chance I get.
