Advanced F-15 and SAAB concept for South Korea

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,001
Reaction score
5,295

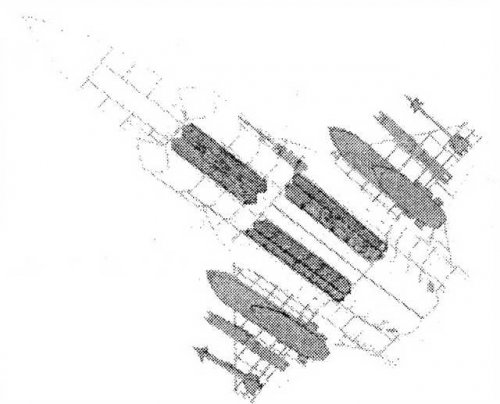

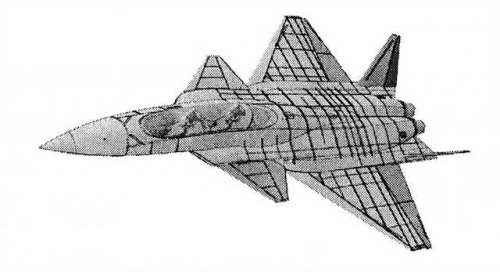

Hi datafuser,

you can put it here.


Attachments

  • KAI.jpg
    36.7 KB · Views: 717
  • SAAB.jpg
    28 KB · Views: 626
  • SAAB2.jpg
    75.2 KB · Views: 577
  • SAAB3.jpg
    31.8 KB · Views: 617

Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,925
Reaction score
956
I'm not sure if they are related but I was quite surprised to find that "bird" on a Chinese forum !! :eek:

AIAA/SAE 1998 World Aviation Congress
1998/09/28 - 1998/09/30

The Vectoria aircraft was designed last year by staff members and students from Linkoping University in Sweden and is a fighter that is designed to play a role similar to the Saab JAS 39 Gripen. The design incorporates many new ideas in aircraft design including stealth and 2D thrust vectoring capabilities. One of the aircraft's prime requirements was to utilize STOL while also maintaining a low radar signature and obtaining fighter performance. The Vectoria was originally designed as a part of a structures project in which all the various components had to be fitted. It was decided that the aircraft should have 2D thrust vectoring in the form of a simple flap, which was the cheapest and easiest way of achieving STOL performance and improved maneuver properties. The configuration was designed so as to achieve engine thrust as close to the center of gravity as possible, thus minimizing trimming balancing requirements while performing STOL maneuvers.
Source: http://www.militaryphotos.net/forums/showthread.php?t=135621

Cheers, Deino


Attachments

  • Saab Vectoria WT-6.jpg
    Saab Vectoria WT-6.jpg
    28.8 KB · Views: 120
  • Saab Vectoria WT-5.jpg
    Saab Vectoria WT-5.jpg
    60.8 KB · Views: 137
  • Saab Vectoria WT-4.jpg
    Saab Vectoria WT-4.jpg
    31.2 KB · Views: 110
  • Saab Vectoria WT-3.jpg
    Saab Vectoria WT-3.jpg
    60.3 KB · Views: 116
  • Saab Vectoria WT-2.jpg
    Saab Vectoria WT-2.jpg
    28.1 KB · Views: 94
  • Saab Vectoria WT-1.jpg
    Saab Vectoria WT-1.jpg
    54.5 KB · Views: 207
  • Saab Vectoria 3-side.jpg
    Saab Vectoria 3-side.jpg
    28.3 KB · Views: 603

AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,335
Reaction score
284
This week's AvWeek has an article on South Korea future aircraft procurement plans. SAAB is offering a stealthy-ish canard, reminescent of some old ATF artist's concepts. The interesting - well, curious at least - bit, is Boeing's revival of a 1990's F-15 mod concept (I had never heard of it).

The article has what looks like a poorly photoshopped picture of a -15, with the vertical fins deleted, and the horizontal tails canted up thirty degrees a la YF-23. It also says the nozzles are thrust vectoring (although in the picture they look like the standard axisymmetric kind).
Additional text boxes say "New flap for collective flap/aileron control", "strengthened wing for high-speed flap", and "FBW flight control system".

The article goes on to say: "the advantage of such an aircraft would be lower radar reflections, weight, and drag".

Funny thing is that the inlets, which are wonderful corner reflectors, with direct sight to the compressor blades, look stock. It reminds me of that saying, about trying to hide an elephant in a strawberry field by painting its toenails red...


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,494
Reaction score
1,051
signatory @ Key Publishing Ltd Aviation Forums said:
...

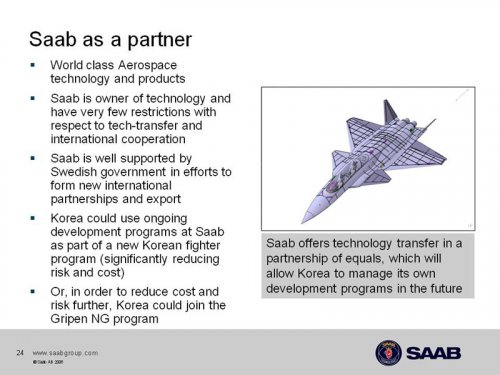

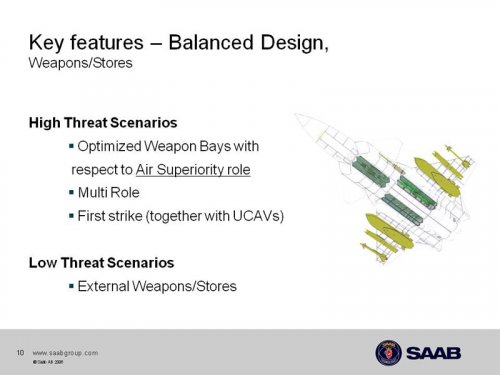

This is from Saab, thanks to murphy for finding them:


Attachments

  • ksaab248oe9.jpg
    103.1 KB · Views: 94
  • ksaab108fi8.jpg
    64.9 KB · Views: 108

fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,494
Reaction score
1,051
Pimp up my ride F-15!

See also thread "Saab's stealth fighter proposal to South Korea" in this forum and "Saab Offers Supercruising Stealth to South Korea" at Key Publishing Ltd Aviation Forums.


Attachments

  • F-15K_mod_for_KODEF_seminar_june2008.jpg
    51.7 KB · Views: 256

sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
14,044
Reaction score
2,470
AeroFranz said:
It also says the nozzles are thrust vectoring (although in the picture they look like the standard axisymmetric kind).

Unless they happen to be positioned off-axis most 3D nozzles look like standard nozzles. See F-16 VISTA, F-15 ACTIVE, Su-30 MKI, Mig-35 etc.





AeroFranz said:
The article goes on to say: "the advantage of such an aircraft would be lower radar reflections, weight, and drag".

Funny thing is that the inlets, which are wonderful corner reflectors, with direct sight to the compressor blades, look stock. It reminds me of that saying, about trying to hide an elephant in a strawberry field by painting its toenails red...

They're probably talking about giving it the Super Hornet kind of RCS reduction treatment. In which case they are correct, it would reduce the RCS. (But it certainly wouldn't be a stealth aircraft by any stretch.)


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,181
Reaction score
1,407
Merged topics.


mz

ACCESS: Top Secret
Senior Member
Joined
May 28, 2007
Messages
676
Reaction score
14
How much do you have working room with a manned stealth fighter anyway?
-snaky air tube so the intakes are on the side / below and the engines on the back,
-trapezoidal wing, angled vertical stabilizers to prevent sharp corners ("armpits"),
-then the only real configuration choice left is no horizontal stabilizers, conventional ones, or canards?


datafuser

ACCESS: Confidential
Joined
Dec 2, 2006
Messages
126
Reaction score
32
AeroFranz said:
This week's AvWeek has an article on South Korea future aircraft procurement plans. SAAB is offering a stealthy-ish canard, reminescent of some old ATF artist's concepts. The interesting - well, curious at least - bit, is Boeing's revival of a 1990's F-15 mod concept (I had never heard of it).

The article has what looks like a poorly photoshopped picture of a -15, with the vertical fins deleted, and the horizontal tails canted up thirty degrees a la YF-23. It also says the nozzles are thrust vectoring (although in the picture they look like the standard axisymmetric kind).
Additional text boxes say "New flap for collective flap/aileron control", "strengthened wing for high-speed flap", and "FBW flight control system".

The article goes on to say: "the advantage of such an aircraft would be lower radar reflections, weight, and drag".

Funny thing is that the inlets, which are wonderful corner reflectors, with direct sight to the compressor blades, look stock. It reminds me of that saying, about trying to hide an elephant in a strawberry field by painting its toenails red...

For those fighters with direct sight to their compressor blades - F-15, F/A-18, X-32, etc - radar blockers can take care of that problem.

Aviation Week & Space Technology 03/19/2001

Stealth Engine Advances
Revealed in JSF Designs
DAVID A. FULGHUM/ORLANDO, FLA. and WASHINGTON

[snip]

"Radar blockers" or "stealth intake devices"have been developed for Boeing's F/A-18E/F and F-22 and are even being improved on the former aircraft. The difference is that the blocker is a separate device on Super Hornet, while it is an integral part of the engine, at least in the Boeing version of the JSF. The F-22 and Super Hornet use a combination of curved inlets and radar blocker technologies.

The first-generation SR-71 used huge inlet spikes to control radar reflections. The second-generation F-117 uses a more primitive grid device over the inlet as a radar blocker. A finer mesh screen was used on Northrop's Have Blue proposal, which would have choked air flow and limited top speed to about Mach 0.65. (AW&ST Feb. 10, 1992, p. 23). These earlier designs were abandoned in response to the demand for supersonic strike aircraft and cheaper, more robust stealth. Keeping radar beams out of the engine is a particular concern for aircraft with a single, large engine inlet.

The F-117's inlet screens, when aligned with the rest of the aircraft's external faceting, help create uniformly conducting electrical surfaces that allow radar waves to flow around the stealth aircraft and exit from its aft-most point. Some stealth specialists worry that these signals, emitted to the rear of the aircraft, could provide the basis for a counter-stealth defense system.

The Boeing JSF's intake radar blocker is built as part of the face of the engine with a bullet-like centerpiece surrounded by angled, radiating vanes. In parallel, the U.S. has developed infrared and radar suppression devices for jet exhausts and these have been flying on stealth aircraft for a number of years. These two types of blockers are generally used in conjunction with one another and the latter has become increasingly sophisticated as researchers find better ways to deal with an environment of extreme exhaust heat.

"We've been using blockers in aircraft exhausts for many years," said a senior aerospace official. "It doesn't significantly affect the engine's airflow [which translates to power] through the exhaust, but [when used in an inlet, a blocker] has the potential to restrict airflow into the engine."

Some stealth specialists say the loss in engine efficiency when using a blocker would be limited to only a few percent, and may be offset by the greater efficiency of a single large engine inlet (Boeing's option) compared to two smaller inlets (Lockheed Martin's design). Others say the effects of a blocker inside an inlet are more pernicious.

"It's physically easier and more robust to build a long, serpentine duct and hide the [engine face], compared to the difficulties of putting in a [blocker] device," said a second stealth specialist with insight into the JSF program. "You've added something else that scatters [radar energy]. You also have to account for the demand on power and subsystems. For example, you have to deice the [blocker] element.

"[Total engine efficiency] depends on the design of the device, the duct, the lips and how the pressure recovery and bleed systems are operating," the second specialist said. "It's fair to say there will be a performance loss when there isn't a nice, shallow, smooth duct. Finally, having something out there that can be hit by a bird or runway debris is not good [for maintaining the stealth signature]."


Lockheed Martin's JSF design has room for the long, spiraling duct because the engine is located well aft in the aircraft. A shaft transfers power from the engine to a lift fan located just behind the cockpit to permit short takeoff and vertical landings (STOVL).

However, Boeing's JSF demonstrator is designed for direct thrust from the engine to provide its STOVL capability. The engineering demands of the system required the engine to be much farther forward in the fuselage, allowing only enough room to hide the upper half of the engine face. Instead, Boeing is using a radar blocker built into the engine's face. The Super Hornet design differs in that it combines slightly curved inlets with a blocking device ahead of and separate from the engine face.

ADVOCATES OF THE BOEING design say new technology makes the short inlet a better bet. "The issue is purely one of how much distance is involved in dealing with the [radar] energy," said an aerospace industry official with long experience in the JSF competition. "While the longer inlets are generally easier to model [and build], they consume a lot of internal volume in the aircraft and often produce aerodynamic or maintenance challenges."

Stealth specialists agree that the choice of longer serpentine ducts versus larger radar blockers is a tradeoff between stealth, cost and aerodynamic performance. In smaller aircraft, the serpentine ducts tend to integrate better "than a big, fat single inlet," said a Northrop Grumman official. But when a larger aircraft is involved, it sometimes becomes more efficient to rely on a larger blocker, he said. There is also the issue of price.

"Anytime you have a [large, complex inlet] front frame, it's more expensive from the aspect of construction and integration costs," the official said. "I know the front frame of the F/A-18 represents a significant development cost. Certainly the inlets on Pegasus [a new unmanned combat air vehicle demonstrator] are one of the most challenging aspects of the aircraft's integration."

It is known that the radar-blocking devices have helped reduce the F/A-18E/F Super Hornet's radar cross section (RCS) to an unprecedented low for non-stealthy aircraft--around 0 dBsm., the equivalent of about a 3-ft.-dia. aluminum ball. That is far smaller than other aircraft that did not start out as stealth designs. By comparison, a human has an RCS of about -10 dBsm.; the JSF, designed from the start for low observability, is to have a stealth signature of -30 dBsm. (about the reflection from a golf ball); and the B-2/F-22 are pegged at -40 dBsm. (about the size of a marble).


F-14D

I really did change my personal text
Senior Member
Joined
Oct 4, 2007
Messages
1,810
Reaction score
271
datafuser said:
It is known that the radar-blocking devices have helped reduce the F/A-18E/F Super Hornet's radar cross section (RCS) to an unprecedented low for non-stealthy aircraft--around 0 dBsm., the equivalent of about a 3-ft.-dia. aluminum ball. That is far smaller than other aircraft that did not start out as stealth designs. By comparison, a human has an RCS of about -10 dBsm.; the JSF, designed from the start for low observability, is to have a stealth signature of -30 dBsm. (about the reflection from a golf ball); and the B-2/F-22 are pegged at -40 dBsm. (about the size of a marble).

Keep in mind that the Super Hornet's radar reduction is primarily frontal and when the aircraft is "clean". When carrying ordnance and the ever-present external fuel, radar is going to see them anyway. Another factor is the "toe out" of the pylons of operational F/A-18E/Fs, which will also increase RCS even if all external stores have been dropped


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,335
Reaction score
284
Ahhh...yeah....Fulghum's excellent (I mean it) article from 2001. I agree that inlet blockers are the way to go if you are starting with a non-LO platform. That being said, the application of inlet blockers on the F-18E/F was accompanied by much more airframe re-working that was possible because Boeing practically redesigned the plane. Everything they could do to keep signature down at a reasonable cost was done. LO, to be effective, needs to lower the signature of all the components. that's what i referred to with the elephant metaphor.
Case in point, for this F-15 mod, it won't do much good to just get rid of RCS spikes of the verticals, if the inlet sides are still at 90 degrees to the emitter and have their own spikes. It won't help to put RCS blockers if there are still tons of reflectors in the frontal quadrant.
You have to submit the whole airframe to the LO treatment, so what i meant to convey was that as shown in that hastily photoshopped picture, that F-15 does not possess a significantly lower RCS.
Can you make a stealthy F-15? sure, the same way you do it with an -18 - you redesign pretty much the whole darn thing.


JAZZ

ACCESS: Secret
Joined
Mar 12, 2006
Messages
296
Reaction score
98
saab-stealth-concept


Attachments

  • SWED- SAAB copy_03.jpg
    SWED- SAAB copy_03.jpg
    34.7 KB · Views: 292

amsci99

ACCESS: Secret
Joined
May 2, 2006
Messages
239
Reaction score
11
Another SAAB concept, the SAAB Snabel Viggen, which was supposed to be based on the Viggen. Nonetheless the associated costs with the structual changes did not go well MBB and they chose to work with their American counterparts which gave us the X-31.



Attachments

  • Snabel-Viggen.jpg
    191.5 KB · Views: 265
