A strange concept for McDonnell F-101 fighter

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,668
Reaction score
3,461
Hi,

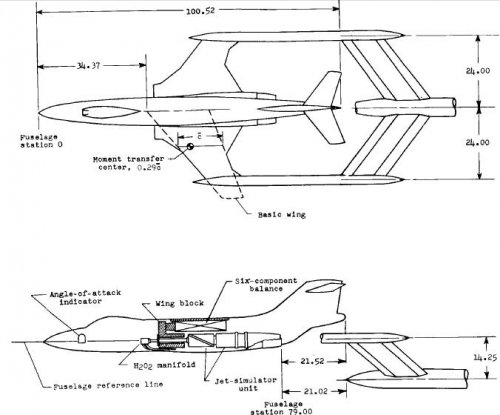

I can't understand this concept from NASA to McDonnell F-101
fighter.
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19660010757_1966010757.pdf


Attachments

  • F-101.JPG
    50.3 KB · Views: 272

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,043
Reaction score
863
These are just aerodynamically shaped supports for a wind tunnel model.
They prevent streamflow interference with model fuselage/exaust combo while these particular experiments being performed.


Tailspin Turtle

ACCESS: Top Secret
Senior Member
Joined
Dec 6, 2007
Messages
695
Reaction score
77
Website
www.tommythomason.com
Could this be an investigation of the F-101's pitch-up departure problem? The wing tips don't need to be there because that was the initiator - sudden tip stall which moved the center of lift forward. Note the angle of attack measurement.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,043
Reaction score
863
Well, paper title says it itself

"EFFECTS OF BOATTAIL AREA CONTOURING AND SIMULATED TURBOJET EXHAUST ON THE LOADING AND FUSELAGE-TAIL COMPONENT DRAG OF A TWIN-ENGINE FIGHTER-TYPE AIRPLANE MODEL"

Also:

The effect of support-system interference on the data is not precisely known but is believed to be small because of the relatively large
distances existing between supporting members and the surfaces of the fuselage-tail component.


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,259
Reaction score
158
flateric said:
These are just aerodynamically shaped supports for a wind tunnel model.
They prevent streamflow interference with model fuselage/exaust combo while these particular experiments being performed.

Gregory's guess seems substantiated by the fact that there are 'jet simulator units' installed on the model. The F-101 and F-4 (which uses same exhaust/tail boom configuration) suffered from high drag in the subsonic regime with afterburner off, so they would be likely candidates for WT testing involving simulated engine exhaust.
Seems like mastering the aft-end shape of supersonic fighters was (and may still be) more of an art than a science. The example of the F-15 comes to mind. The aerodynamics are so bad it doesn't make a difference whether the nozzle 'turkey feathers' are on or off!

Oops...just saw Gregory's reply. I guess that confirms it. :)


Tailspin Turtle

ACCESS: Top Secret
Senior Member
Joined
Dec 6, 2007
Messages
695
Reaction score
77
Website
www.tommythomason.com
flateric said:
Well, paper title says it itself

"EFFECTS OF BOATTAIL AREA CONTOURING AND SIMULATED TURBOJET EXHAUST ON THE LOADING AND FUSELAGE-TAIL COMPONENT DRAG OF A TWIN-ENGINE FIGHTER-TYPE AIRPLANE MODEL"

That would have been my second guess...


shockonlip

ACCESS: Top Secret
Joined
Jan 29, 2008
Messages
605
Reaction score
4
It's a new design from Star Fleet with an F-101 instead of the saucer !
C'mon you know that's it !!

Mr. Sulu, ... canon fire ... Now!

Larry


OM

ACCESS: Top Secret
Joined
Jun 22, 2008
Messages
753
Reaction score
12
Website
www.io.com
shockonlip said:
It's a new design from Star Fleet with an F-101 instead of the saucer !
C'mon you know that's it !!

Mr. Sulu, ... canon fire ... Now!

...Photon Torpedo roll bar, natch.
