Aérospatiale A200, A200A and A200B airliner projects

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,356
Reaction score
6,003
Hi,

Aerospatiale A.200 :short/medium range twin-turbofan transport/airliner
project of 1975,powered by two CFM56 Snecma
engines.


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,342
Reaction score
1,500
Here's the A-200 (from Aviation Week .11.77)


Attachments

  • a-200.JPG
    28.8 KB · Views: 677

TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
893
Reaction score
108
Jemiba said:
Here's the A-200 (from Aviation Week .11.77)

Why does this project look almost identicle to the similiar, equally unbuillt, CFM-56 engined Dassault/McDonnell Douglas Mercure 200?


TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
893
Reaction score
108
Jemiba said:
No, no, no ! It looks almost identical to the later Airbus A320 .... ;D

Sadly, the Mercure 200 would have occupied the exact same market segment as the A320, only it was 5 years too early. It seems like such a waste that all of the investment in the Mercure couldn't have been salvaged?

It seems amazing in retrospect that the CFM-56 sat on the shelf for so long, while the JT8D had a virtual monopoly on the bottom end of the airliner market.


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,342
Reaction score
1,500
"Hell, all civil jets look the same!"

Non not all !
This design of the french engineer I.Labat looks remarkably different.
It's from 1958 and was credited with ultra-short take-off.
(from Luftfahrttechnik .7.58 )


Attachments

  • Aeroblic .JPG
    Aeroblic .JPG
    28.2 KB · Views: 1,231

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,356
Reaction score
6,003
Hi,

of course we know this project very well,but there are two variants,
A-200 A and A-200 B.
http://www.flightglobal.com/pdfarchive/view/1977/1977%20-%202120.html


Attachments

  • A-200.JPG
    53.2 KB · Views: 599

airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,295
Reaction score
144
Website
zeef.com
ma this design of Aereospatiale A-200 remind me
http://en.wikipedia.org/wiki/Airbus

sure, on Airbus there are also Aereospatiale ! ;D ;D

Aereospatiale A-200 or genesis of Airbus B)


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,025
Reaction score
430

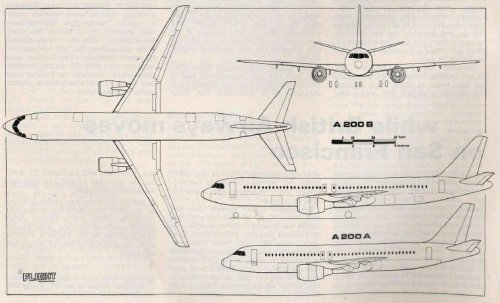

...from AirPictorial´77


Attachments

  • Aerospatiale A-200.jpg
    Aerospatiale A-200.jpg
    160 KB · Views: 517

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804

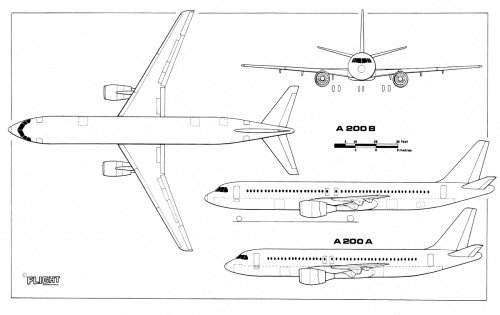

From FLIGHT International, 9 July 1977:


Attachments

  • Airbus A200 small.jpg
    Airbus A200 small.jpg
    286.3 KB · Views: 504

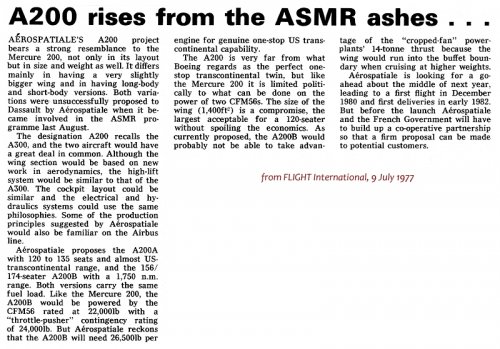

  • Airbus A200 text.jpg
    Airbus A200 text.jpg
    241.8 KB · Views: 109

Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,040
Reaction score
245

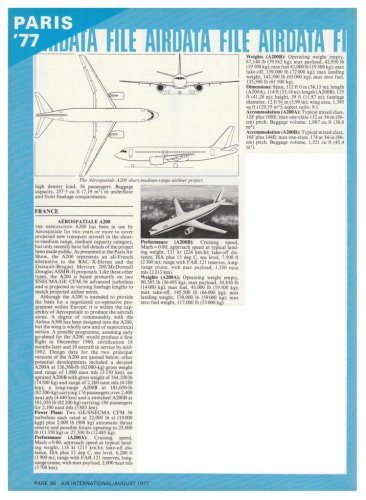

Dear Boys and Girls, here is an article describing the all-new (and non-derivative) Aérospatiale A200A & A200B "projects" for (then) new technology short-medium range jet airliners. The Aérospatiale A200s were not Airbus Industrie designs; they remained "projects" but over the next several years would contribute to and develop into (and through many permutations) the Airbus A320 family of jet airliners......

The article comes from the August 1977 issue of Air International......

Hesham, I think you should retitle this topic to "Aérospatiale A200A and A200B airliner projects".

Terry (Caravellarella)


Attachments

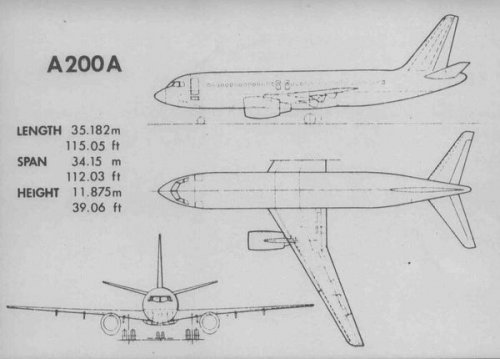

  • Aérospatiale A200A project 3-view drawing - Air International - August 1977.......jpg
    Aérospatiale A200A project 3-view drawing - Air International - August 1977.......jpg
    47 KB · Views: 97
  • Aérospatiale A200A & A200B projects - Air International - August 1977.......jpg
    Aérospatiale A200A & A200B projects - Air International - August 1977.......jpg
    128.1 KB · Views: 85

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,356
Reaction score
6,003
Hi,


may be I don't remember,had we spoken about Aerospatilae AIA.220 a medium transport
aircraft project before ?,of course it was not related to SA.220 or X.220 Super Caravelle.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,356
Reaction score
6,003
hesham said:
Hi,


may be I don't remember,had we spoken about Aerospatilae AIA.220 a medium transport
aircraft project before ?,of course it was not related to SA.220 or X.220 Super Caravelle.


What happen to my memory;


the Aerospatiale/Alenia/British Aerospace AIA.220 was a 100-seat jetliner
for collaboration with China and Singapore,and later incorporated into
Airbus as AE316 and AE317,before dropped and replaced by the A318
aircraft.

Last edited:

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,356
Reaction score
6,003

Attachments

  • AS.200.JPG
    54.3 KB · Views: 158

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,342
Reaction score
1,500

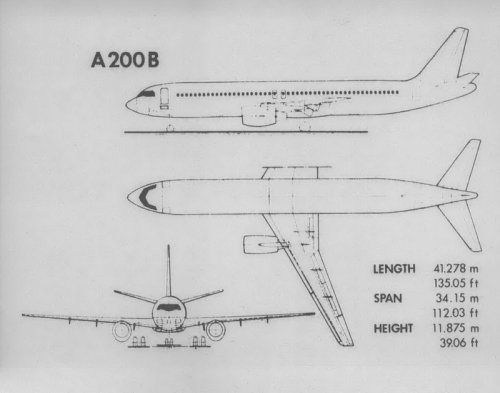

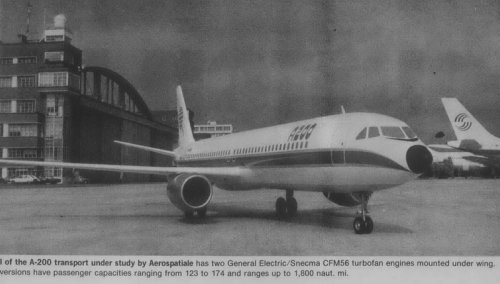

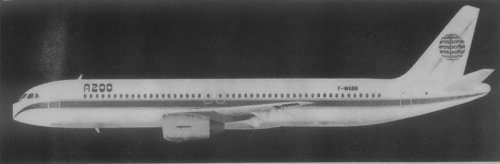

From Aviation Week .11.1977 a 3-view of the A-200B and two artist impressions:


Attachments

  • A-200-01.jpg
    43 KB · Views: 151
  • A-200-02.jpg
    98.9 KB · Views: 145
  • A-200B-01.jpg
    79 KB · Views: 146
