Yak-24K and Yak-24P presidential helicopter projects

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890

Attachments

  • 1.JPG
    40.9 KB · Views: 1,637
  • 2.JPG
    47.9 KB · Views: 1,523

ucon

ACCESS: Top Secret
Joined
Jul 27, 2008
Messages
553
Reaction score
113
Website
www.avicopress.ru
Hi all!

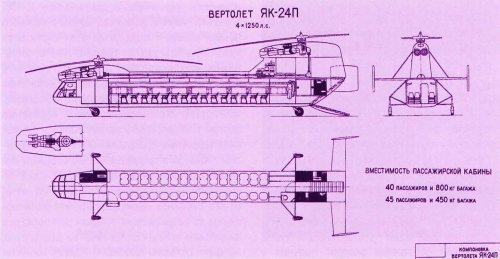

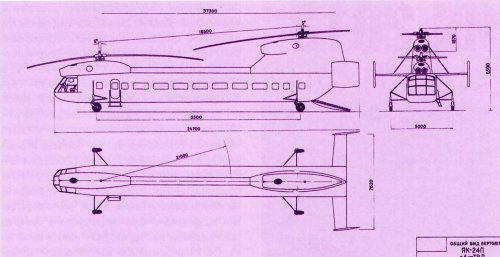

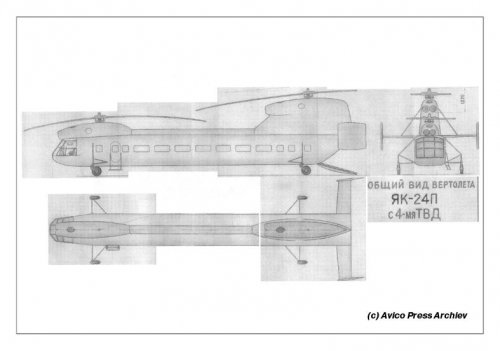

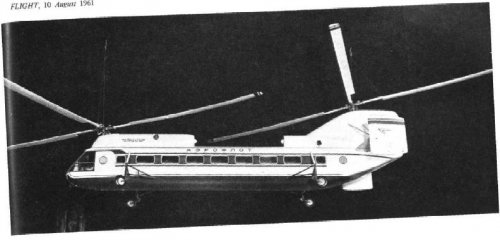

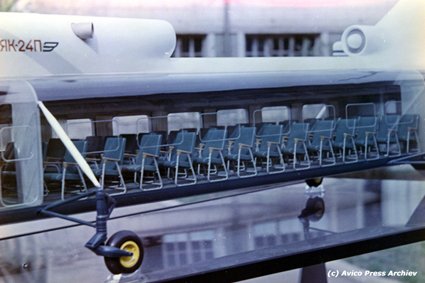

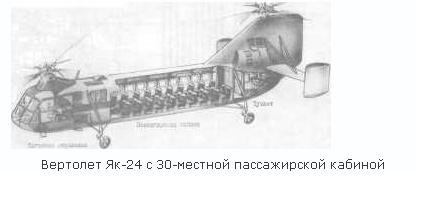

Two more pix of Yak-24P project and UK Prime-minister Harold MaMillan near by model.1961


Attachments

  • Yak-24-03.jpg
    129.6 KB · Views: 1,459
  • Yak-24-04.jpg
    132.7 KB · Views: 1,470
  • Yak-24-05.jpg
    75 KB · Views: 1,326

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,976
Reaction score
394

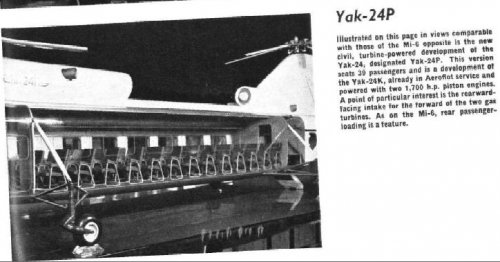

Am I right in thinking that the intake for the front engine faces _backwards_?

cheers,
Robin.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890

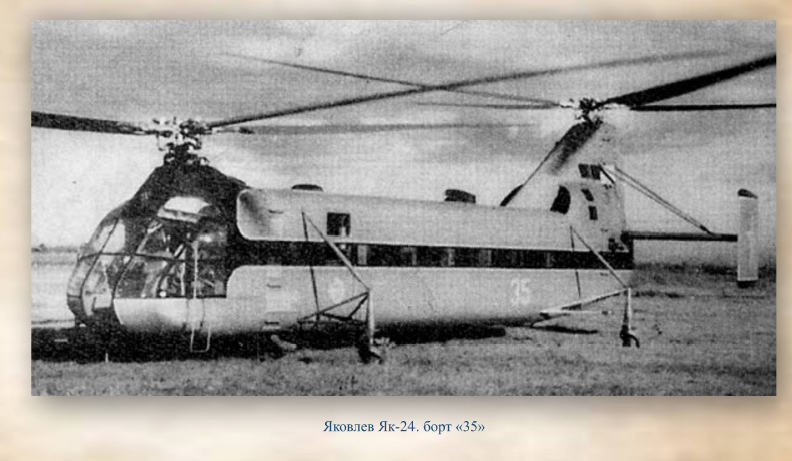

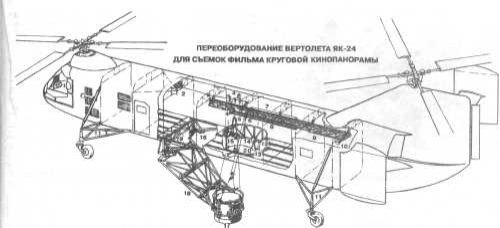

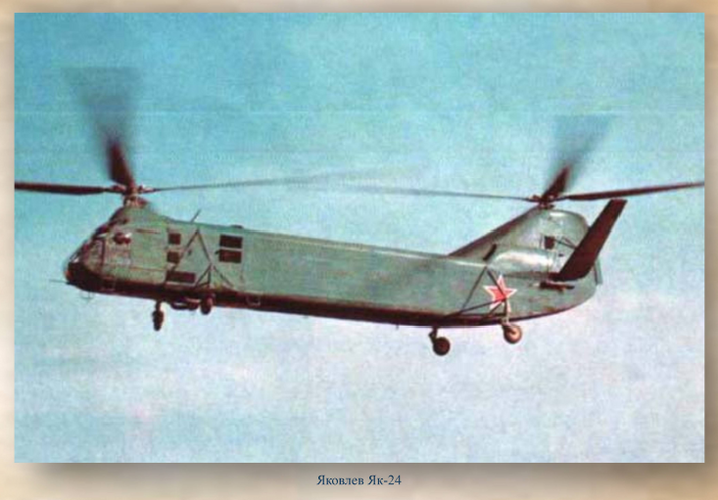

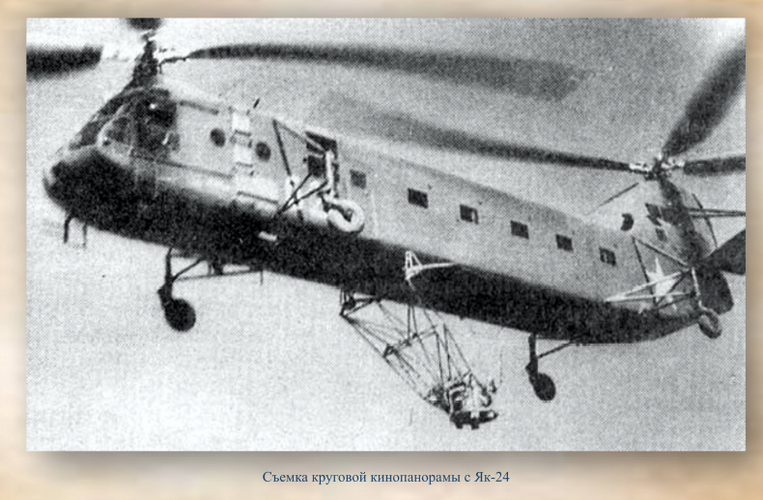

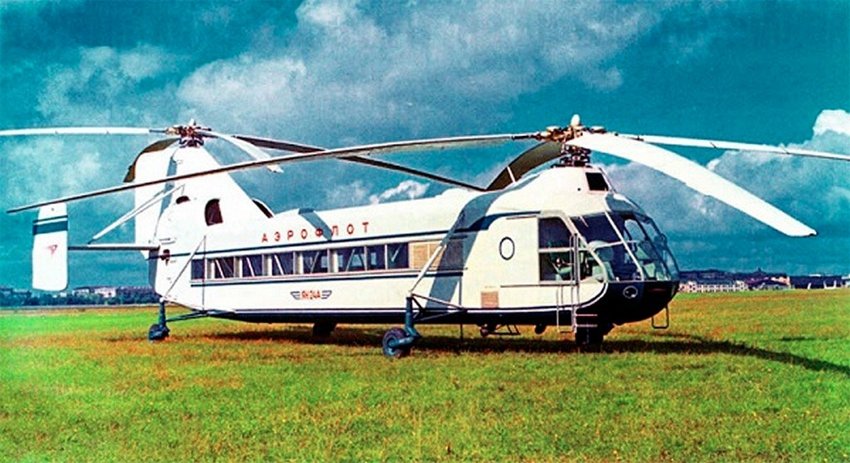

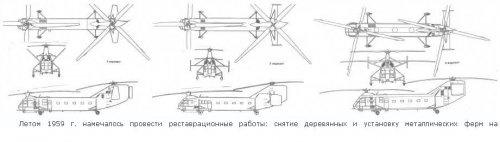

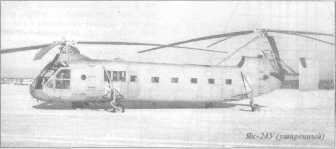

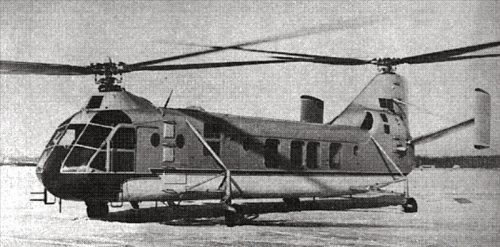

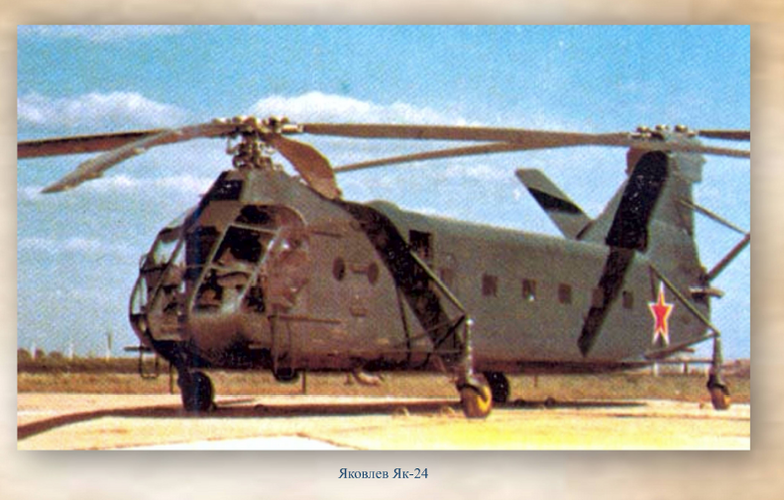

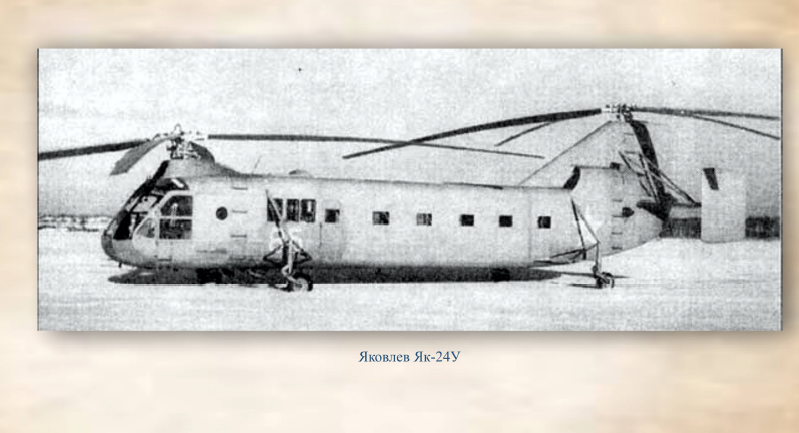

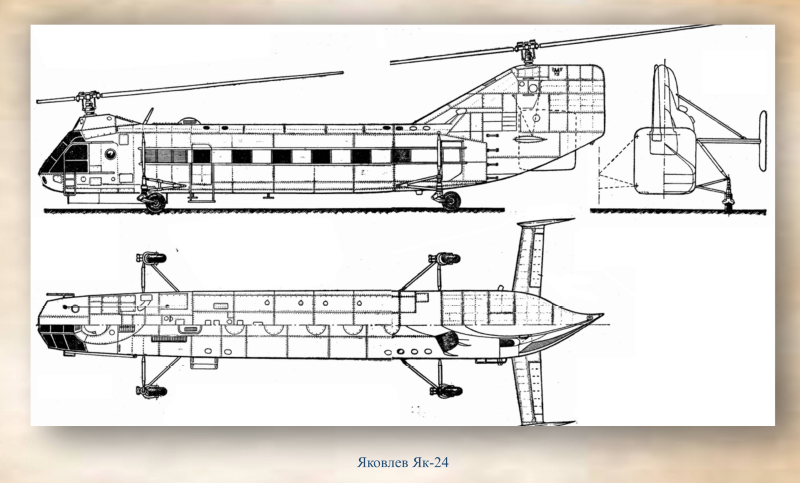

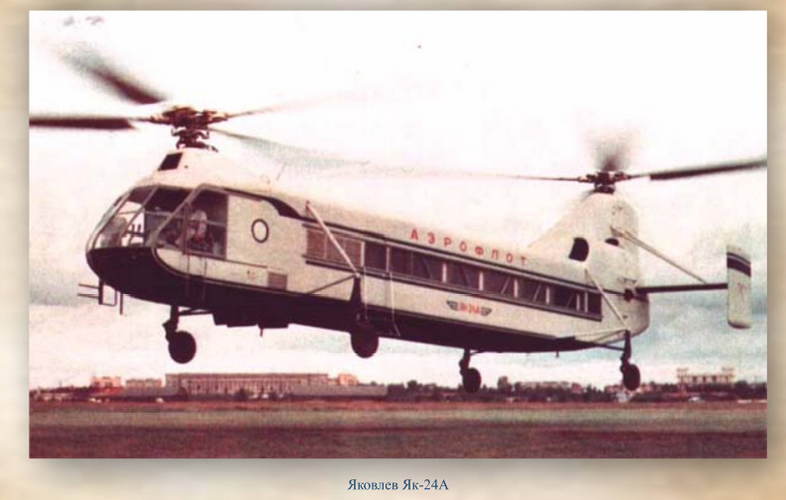

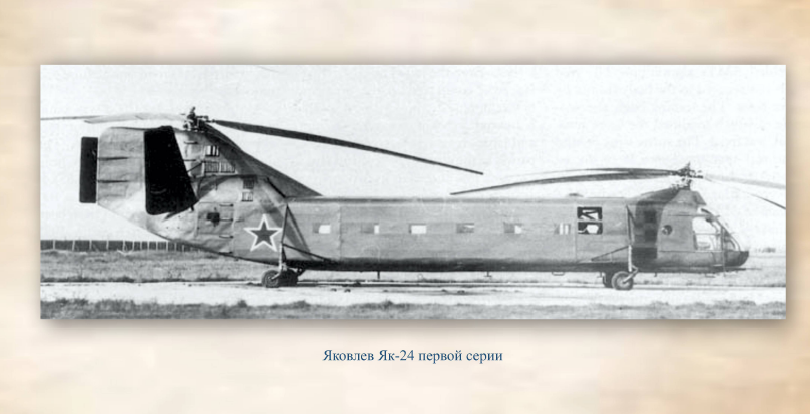

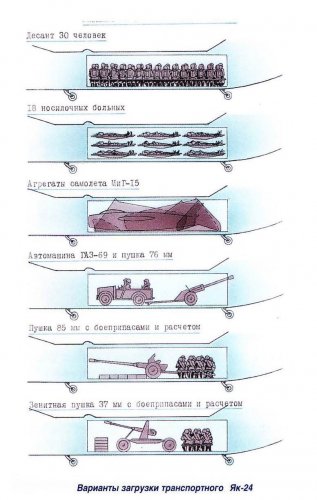

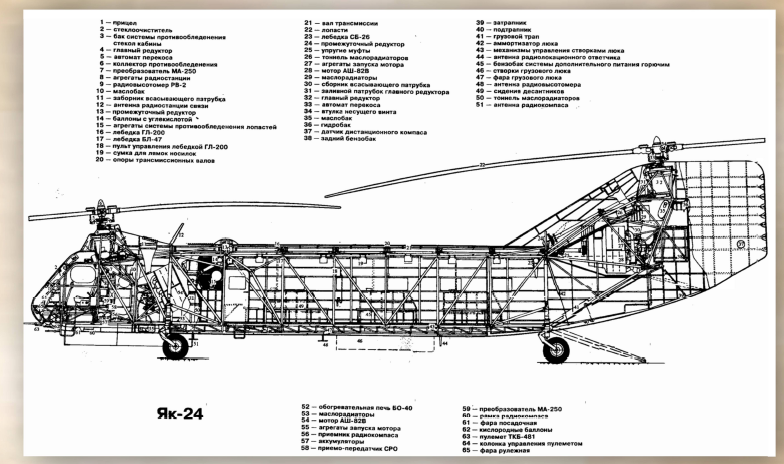

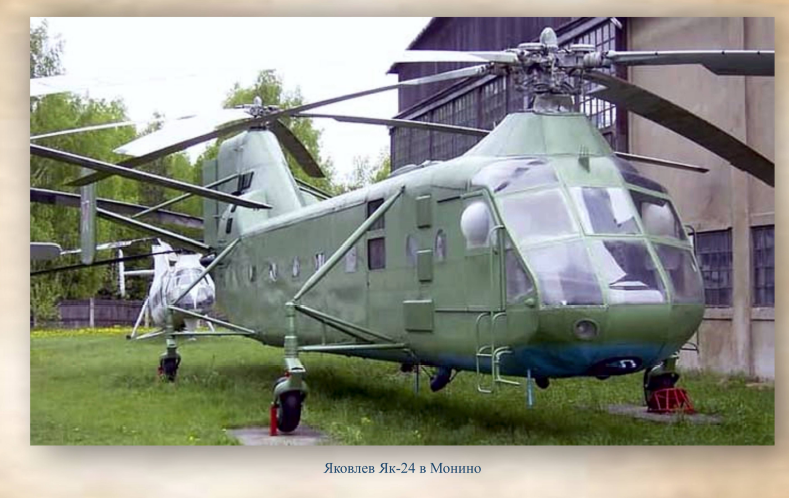

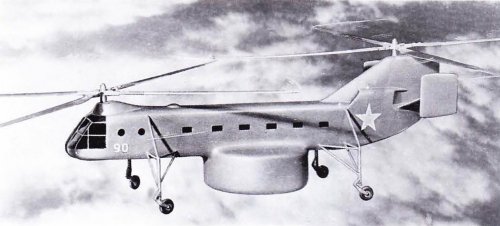

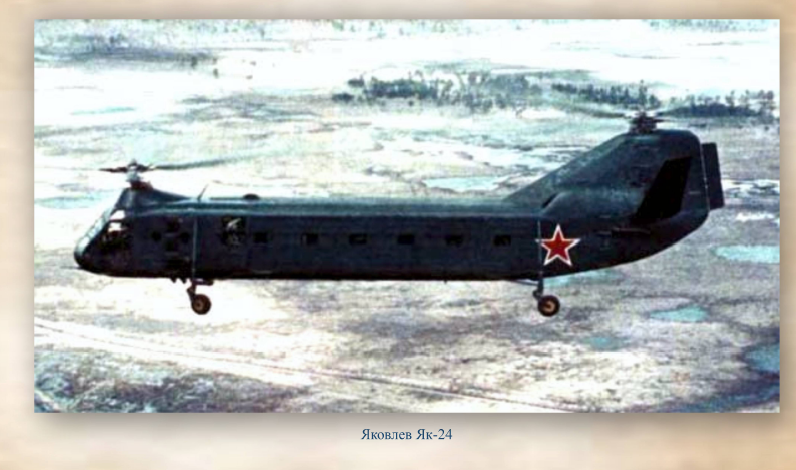

More Yak-24 variants;


http://lib.rus.ec/b/197787/read#t1


Attachments

  • Yak-24  4.jpg
    Yak-24 4.jpg
    13.8 KB · Views: 170
  • Yak-24  3.jpg
    Yak-24 3.jpg
    11.1 KB · Views: 163
  • Yak-24  2.jpg
    Yak-24 2.jpg
    32.8 KB · Views: 176
  • Yak-24  1.jpg
    Yak-24 1.jpg
    5.2 KB · Views: 78

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
802
Website
deeptowild.blogspot.com

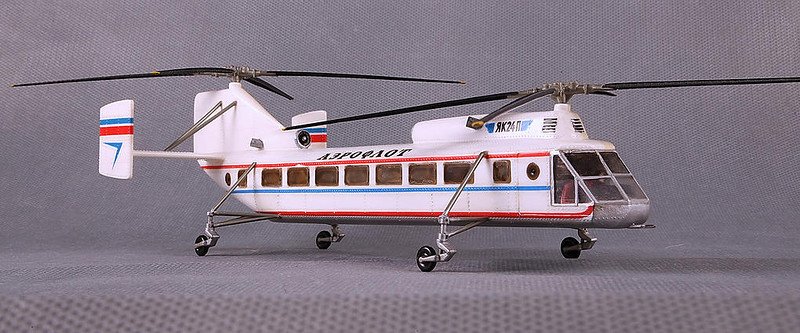

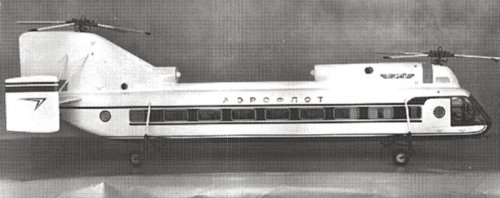

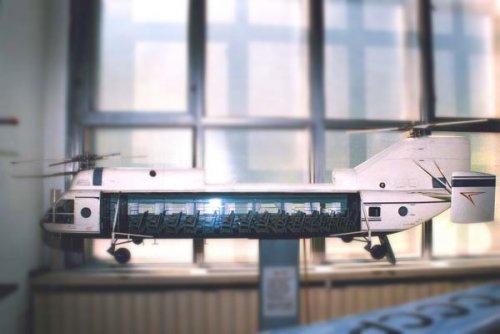

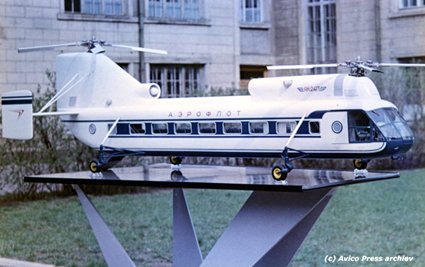

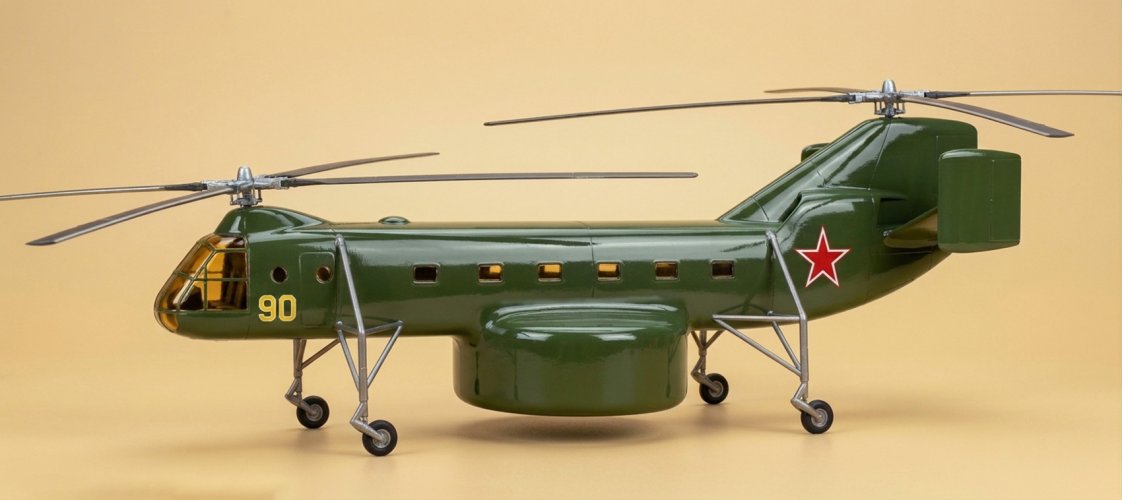

Model of Yakolevy Yak-24P

Source:
http://scalemodels.ru/modules/forum/viewtopic_t_26540.html


Attachments

  • yak_24.jpg
    34.7 KB · Views: 65

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
644

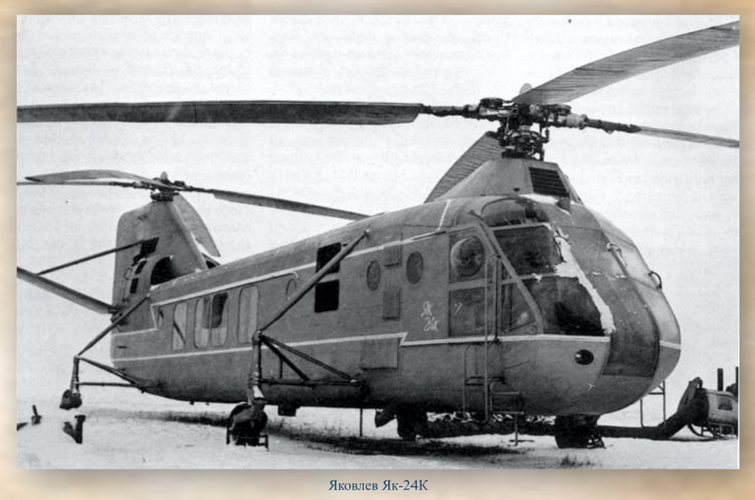

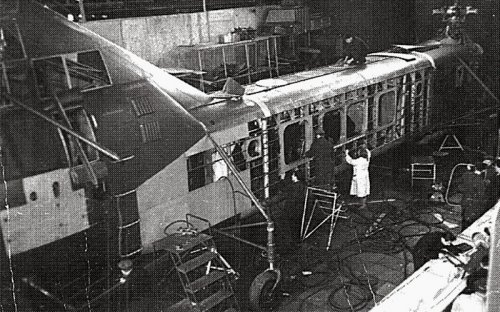

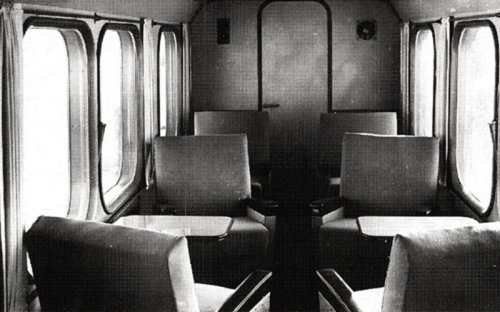

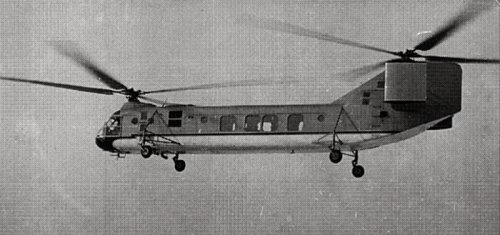

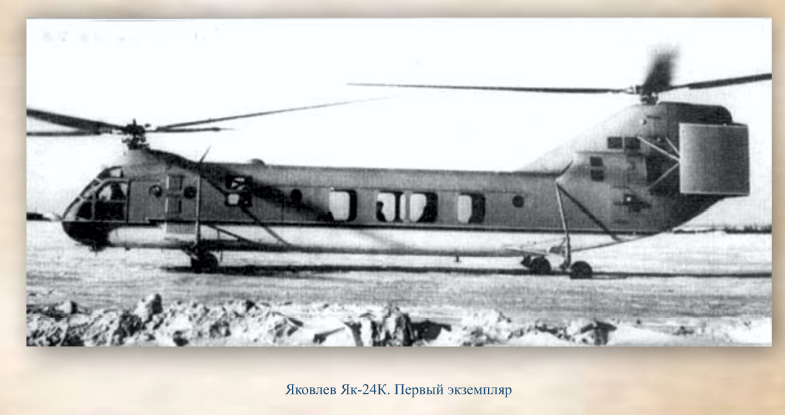

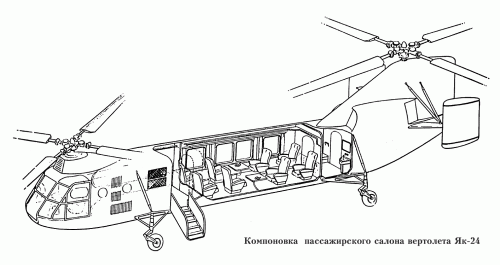

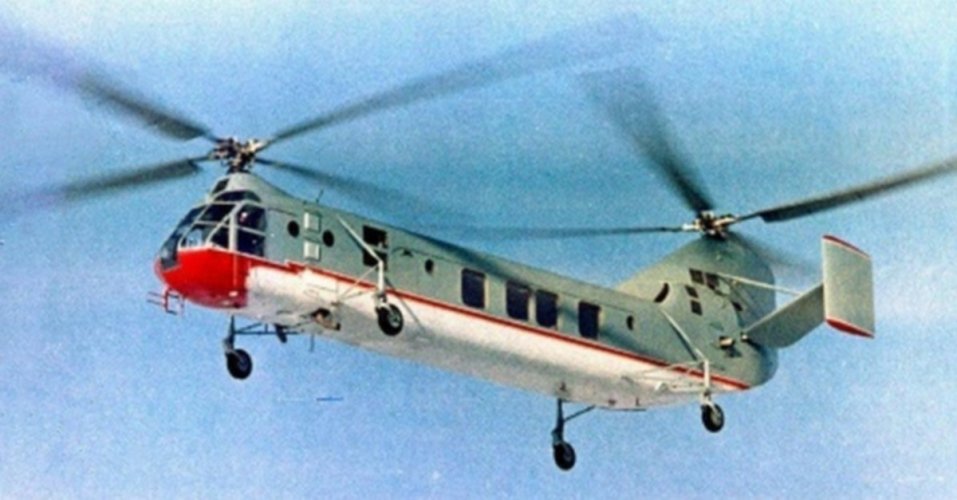

Found an interesting article on the Yak-24K presidential VIP variant, but the text in it won't let itself be copied properly into Google Translation, so I've only been able to translate the captions. Thought the pics were interesting though, despite the lousy quality...

Was the Yak-24K the same as what we called the Yak-24P earlier in this topic? Or were they two distinct VIP versions?


Attachments

  • Yak-24K_layout of passenger compartment.gif
    Yak-24K_layout of passenger compartment.gif
    62.4 KB · Views: 180
  • Yak-24K_desktop model.jpg
    Yak-24K_desktop model.jpg
    169.9 KB · Views: 88
  • Yak-24K_in flight.jpg
    Yak-24K_in flight.jpg
    210.1 KB · Views: 66
  • Yak-24K_running engines.jpg
    Yak-24K_running engines.jpg
    157.7 KB · Views: 74
  • Yak-24K_on tarmac.jpg
    Yak-24K_on tarmac.jpg
    242.8 KB · Views: 66
  • Yak-24K_the comfortable salon.jpg
    Yak-24K_the comfortable salon.jpg
    264.8 KB · Views: 64
  • Yak-24K_group of employees of OKB-115 branch in passenger cabin.jpg
    Yak-24K_group of employees of OKB-115 branch in passenger cabin.jpg
    325.9 KB · Views: 71
  • Yak-24K_assembly at plant N°272.jpg
    Yak-24K_assembly at plant N°272.jpg
    355.1 KB · Views: 59

archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,806
Reaction score
617
Stargazer2006 said:
Found an interesting article on the Yak-24K presidential VIP variant, but the text in it won't let itself be copied properly into Google Translation, so I've only been able to translate the captions. Thought the pics were interesting though, despite the lousy quality...

Was the Yak-24K the same as what we called the Yak-24P earlier in this topic? Or were they two distinct VIP versions?


Yak-24P (Passadzir - Passengers), Yak-24K (??).


ucon

ACCESS: Top Secret
Joined
Jul 27, 2008
Messages
553
Reaction score
113
Website
www.avicopress.ru

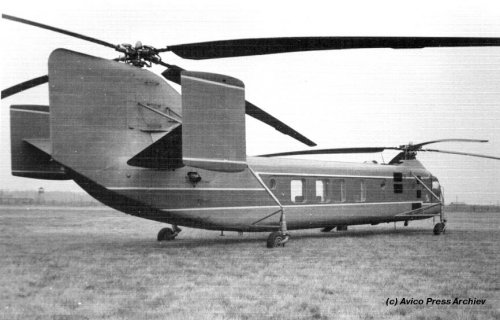

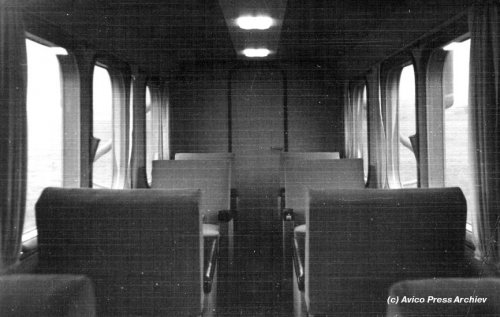

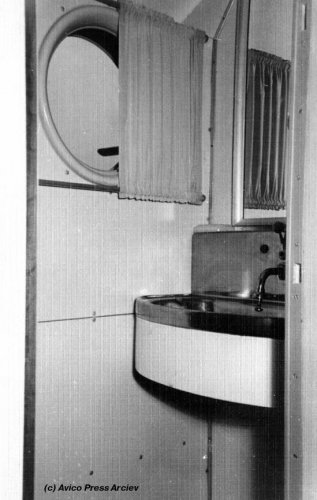

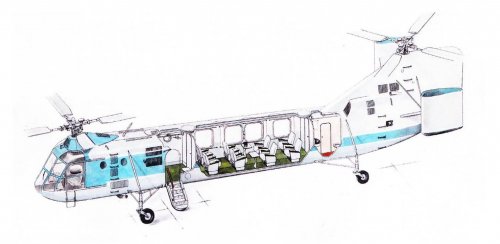

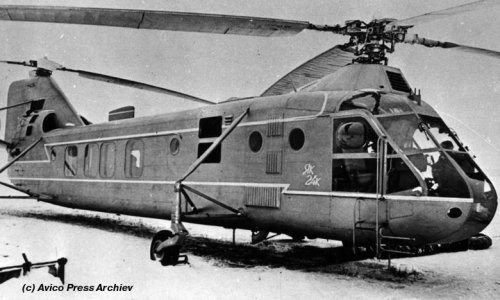

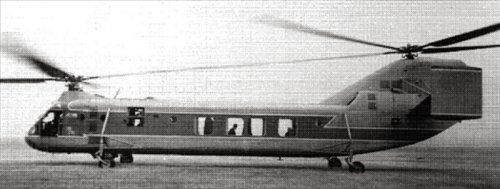

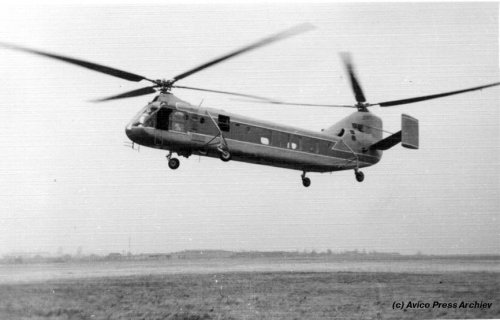

Some more pix of Yak-24K (K - for Kennedy), its interior and project with four turboprop


Attachments

  • Yak-24-18.jpg
    36 KB · Views: 140
  • Yak-24K-011.jpg
    72 KB · Views: 54
  • Yak-24K-010.jpg
    67.5 KB · Views: 57
  • Yak-24K-009.jpg
    76.8 KB · Views: 58
  • Yak-24K-006.jpg
    59.9 KB · Views: 79
  • Yak-24K-004.jpg
    65 KB · Views: 83
  • Yak-24K-001.jpg
    73.7 KB · Views: 69

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
137
archipeppe said:
Yak-24P (Passadzir - Passengers), Yak-24K (??).


Etymology the letter "K" (based on an article in "Aerospace Review" V.Drushlyakov) means - КОМФОРТабельный/COMFORTABLE, ie V.I.P.


Yak-24R (разведчик РЛДН) Recon. AEW
Helicopter complex radar surveillance and observation.



Yak-24T (tanker)
In three tanks - 3200 liters.


Attachments

  • Yak-24  tr.jpg
    Yak-24 tr.jpg
    121.1 KB · Views: 202
  • Yak-24T.jpg
    99.9 KB · Views: 142
  • Yak-24R.jpg
    68 KB · Views: 146
  • Yak-24K.jpg
    95.3 KB · Views: 210
  • Yak-24P  2.jpg
    Yak-24P 2.jpg
    139 KB · Views: 124
  • Yak-24P  1.jpg
    Yak-24P 1.jpg
    130.9 KB · Views: 118

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
644
Fantastic documents!
ucon said:
Some more pix of Yak-24K (K - for Kennedy), its interior and project with four turboprop
borovik said:
Etymology the letter "K" (based on an article in "Aerospace Review" V.Drushlyakov) means - КОМФОРТабельный/COMFORTABLE, ie V.I.P.
Now who's right, who's wrong?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890
Hi,

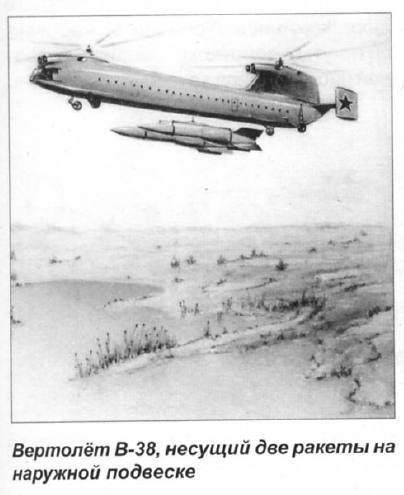

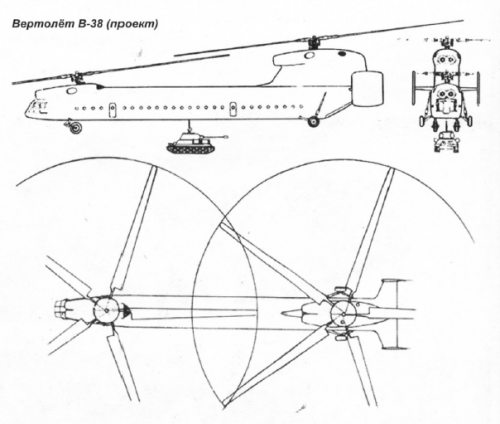

here is a strange Yakovlev Project developed from Yak-24 as a super heavy lift helicopter,
it was V-38 ?.

Вертолёт Як-24. Авиаколлекция 2011-03


Attachments

  • 1.png
    161.5 KB · Views: 137
  • 2.png
    163.3 KB · Views: 146

Stingray

Resident retro rainbow rotorhead nerdy girl, uwu
Senior Member
Joined
Nov 30, 2007
Messages
415
Reaction score
102
Website
sites.google.com
Usually I would use this opportunity to correct as this is better known as the Yak-60, but this designation is purely theoretical based on the number 60 painted on a display model. It was also called Yak-32 by another source. Could V-38 be the correct one, or is it any of the previous ones? I look forward to a day when it can be proven for sure.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
644
Stingray said:
Usually I would use this opportunity to correct as this is better known as the Yak-60, but this designation is purely theoretical based on the number 60 painted on a display model. It was also called Yak-32 by another source. Could V-38 be the correct one, or is it any of the previous ones? I look forward to a day when it can be proven for sure.

How could they use the "V-" prefix on this one, since that was normally used by Mil?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890
My dear Skyblazer,

you are right,that's a mystery,I will send to you the book to check.


riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,353
Reaction score
768
Two possible explanations for aft-pointing engine intakes.

First, it might be structurally expedient to mount engines on the backside of the forward transmission. ... instead of cantilevering them out over the windshield.

Secondly: an aft-facing inlet ingests half as much foreign object debris (e.g. ice shedding off the windshield.)


Stingray

Resident retro rainbow rotorhead nerdy girl, uwu
Senior Member
Joined
Nov 30, 2007
Messages
415
Reaction score
102
Website
sites.google.com
Skyblazer said:
How could they use the "V-" prefix on this one, since that was normally used by Mil?

As far as I can tell the "V" prefix is a Soviet standard designation for certain projects and early development types. Kamov used it as well.


Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
622
Reaction score
314
Stingray said:
Skyblazer said:
How could they use the "V-" prefix on this one, since that was normally used by Mil?

As far as I can tell the "V" prefix is a Soviet standard designation for certain projects and early development types. Kamov used it as well.

'V' usually stood for 'Vertolyot' ie helicopter.

Piotr


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890
In my files,

a little know variant,called Yak-24-2,had a more than takeoff grosser weight,does anyone hear about it before ?.


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,965
Reaction score
369

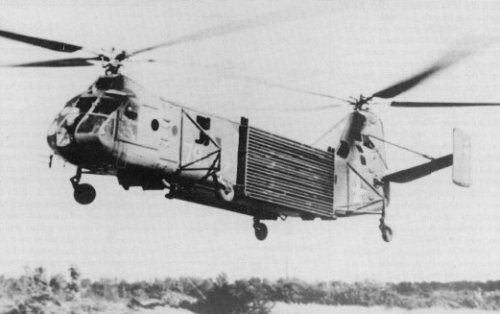

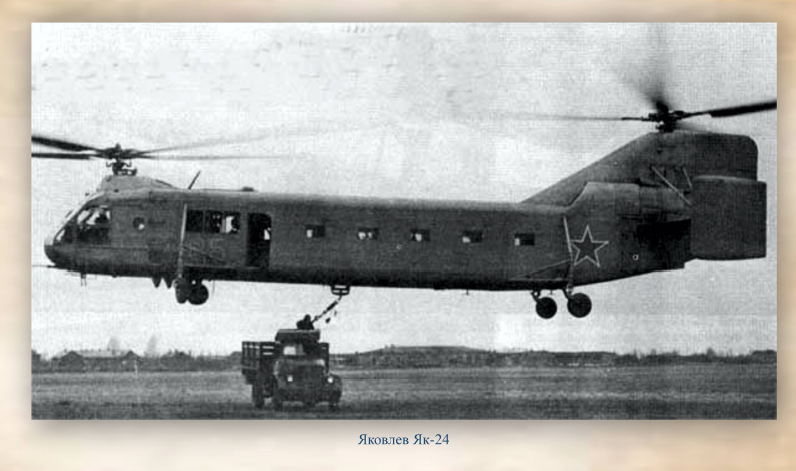

Just been reading about Yak-24 'Nerpa' (just to add to the confusion :eek:)


The source I was reading stating

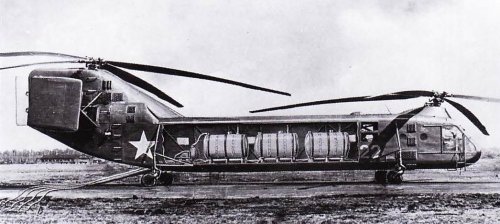

"the helicopter pipelay Yak-24 "Nerpa", created for the construction of a field pipeline PMT-100 for fuel supply to places of deployment of military equipment through impassable for wheeled and tracked vehicles land areas. The sides of the machine serial (serial number 03310) were four tapes in which could be up to 88 tubes (average weight of 30.5 kg of pipe). Take-off weight of the helicopter at all it reached 14 900 kg.

The layout was performed in automatic mode along the chosen route. Before layout (40-50 meters to begin with) from a helicopter dumped "cat" with a rope length of 600-650 m, the rotating drum. Unwinding, twisted rope pulley defining a reset pipe and started to work Putney pointer speed. Planned and emergency discharge pipe without the introduction of "Cats."
During the tests, carried out 49 missions and 159 discharge pipe. During one flight Yak-24 was putting the thread pipeline length 528 meters. Municipal tests pipelay ended March 31, 1958. Leading the testing engineer were SH Atabekyan and test pilot, KD Tayurskiy.

Tests have shown the practical suitability of the Yak-24 for this purpose, with the option to pipe layer could convert at least some production helicopter. Automatic layout of pipes was carried out at heights of 8 to 40 m.

After the test, the helicopter returned to the factory and was converted into a tanker (the theme "Ray"), for this in the cargo cabin has three 1,060-liter tank, or up to 10 200-liter barrels, or 99 20-liter jerry cans. Filling up to 4 sites of equipment could be fit with a four neck and hover with 1st sleeve. Municipal tests (lead — AM Zagordan engineer and test pilot Tayurskiy KD), held from 24 May to 26 June 1958, showed that the strength of the helicopter was in store for the missing perform similar operations, and the question of the adoption of a as tanker and pipelay had to venture after the military trials of Yak-24."

Source: http://survincity.com/2010/05/helicopter-yakovlev-yak-24/



Also note footage of this Yak-24 'Nerpa' laying pipes at Time 45:00 - 45:05 and the Yak-24T ('Tanker') at Time 45:20 - 45:35
https://youtu.be/PFRfuzIwJ8A

Regards
Pioneer


Attachments

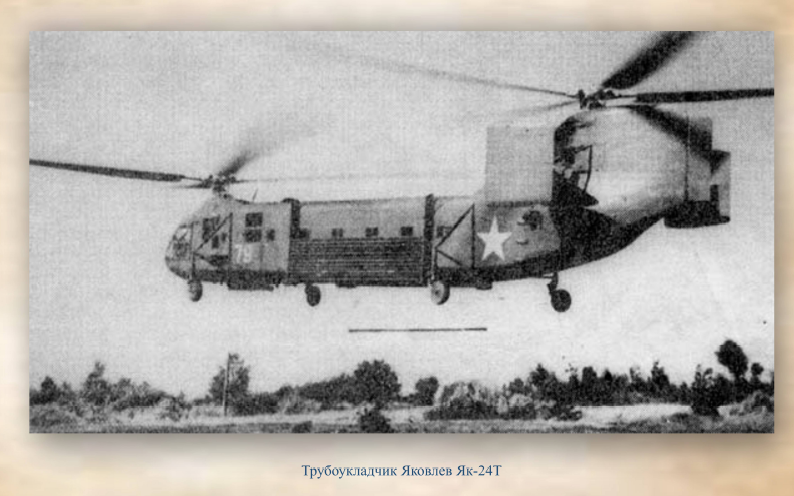

  • Yakovlev Yak-24K ('Horse') pipe layer in December 1959.jpg
    Yakovlev Yak-24K ('Horse') pipe layer in December 1959.jpg
    35.2 KB · Views: 178
