X-RV lifting body from "Marooned" (1969)

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
501
Website
deeptowild.blogspot.com

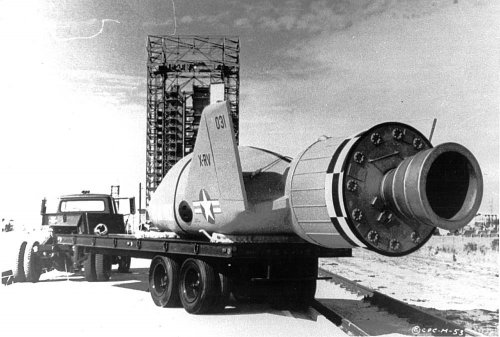

The X-RV lifting body from the Columbia Pictures motion picture Marooned (1969). The fictional craft strongly resembles the Martin Marietta PRIME (Precision Recovery Including Maneuvering Entry) lifting body (SV-5D and X-23). The full-scale prop now resides in the Marshall Spaceflight Center Museum in Huntsville, AL.
http://www.cloudster.com/Sets&Vehicles/Marooned/MaroonedTop.htm


Attachments

  • xrv03.jpg
    95.6 KB · Views: 143
  • xrv02.jpg
    146.6 KB · Views: 134
  • xrv11.JPG
    510.8 KB · Views: 129
  • xrv04.jpg
    30.5 KB · Views: 125
  • xrv01.jpg
    158.7 KB · Views: 127

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
501
Website
deeptowild.blogspot.com

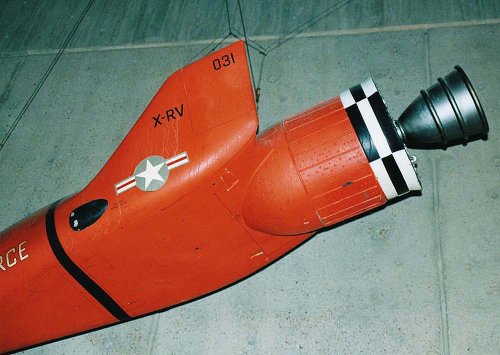

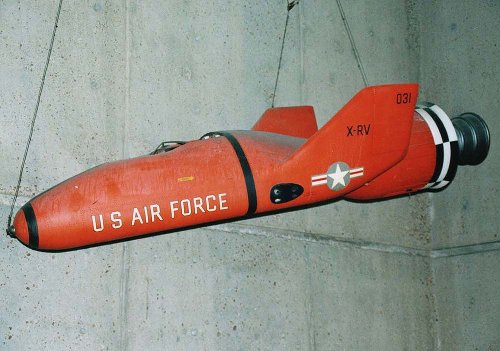

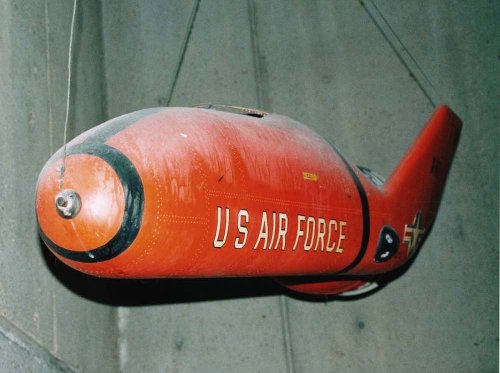

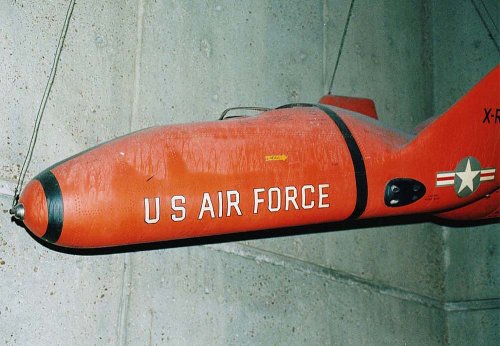

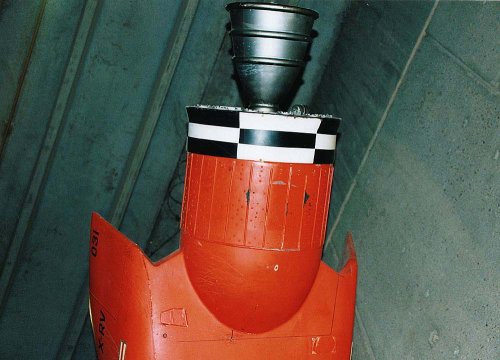

The full-scale X-RV prop as it now appears at the Marshall Spaceflight Center Museum in Huntsville, AL.


Attachments

  • xrv10.jpg
    109.7 KB · Views: 23
  • xrv09.jpg
    102.7 KB · Views: 29
  • xrv08.jpg
    109.8 KB · Views: 27
  • xrv05.jpg
    111.4 KB · Views: 34
  • xrv06.jpg
    74.7 KB · Views: 27

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
Wow... Looked pretty good, especially in the B&W pics, even credible in the eyes of a non-expert!
Could such a design actually have flown in real life, or would it have sunk like a stone?


archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,673
Reaction score
303
My personal contribution about the matter.

Enjoy it!


Attachments

  • XRV_01.jpg
    123.2 KB · Views: 89
  • XRV_02.jpg
    122.7 KB · Views: 81

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
501
Website
deeptowild.blogspot.com
Stargazer2006 said:
Wow... Looked pretty good, especially in the B&W pics, even credible in the eyes of a non-expert!
Could such a design actually have flown in real life, or would it have sunk like a stone?

Author Martin Caidin served as technical adviser for the film. In addition to writing science fiction novels, Caidin was an authority on aeronautics and astronautics and wrote 50 books and 1,000 magazine articles including Fork-Tailed Devil: The P-38, about the P-38 Lightning, and Zero!, about the Mitsubishi Zero. Caidin's other claim to fame is that he is author of the book Cyborg! that became the basis of The Six Million Dollar Man television series.

In the film, a shroud covers the X-RV during launch so that stock footage of a Titan launch could be used in the film. Wikipedia says stock footage of a Titan II launch was used, but I seem to remember it was a Titan IIIC when I last saw the film on DVD. Will need to see the film again to verify which launch vehicle was used.
http://en.wikipedia.org/wiki/Marooned_(1969_film)

NASA and North American Aviation also provided technical assistance to the production and North American Aviation provided an actual Apollo spacecraft to be used for the fictional Ironman One. The space station shown in the film is based on designs of the Apollo Applications Program OWS (Orbital Work Shop) that would later become the Skylab OWS.

The film won an Academy Award for Visual Effects.

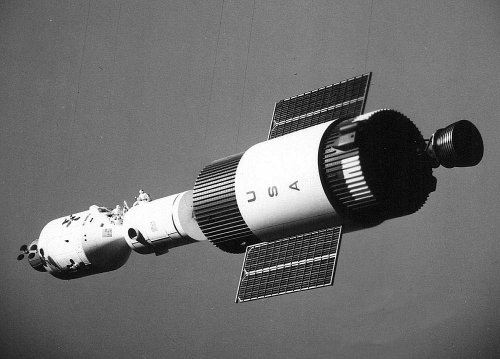

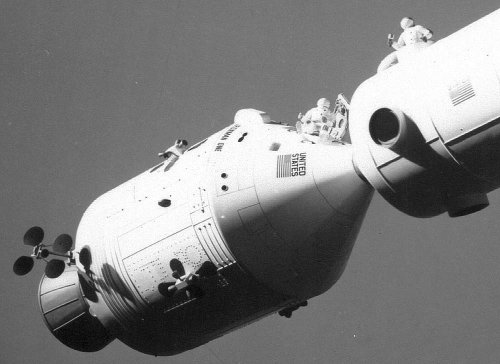

Attached are images of the Ironman One spacecraft and the Apollo OWS seen in the film.

The Turner Classic Movies web site has an interesting history of the film.
http://www.tcm.com/thismonth/article.jsp?cid=152600


Attachments

  • mapollo02.jpg
    52.5 KB · Views: 26
  • mskylab06.jpg
    82.1 KB · Views: 30
  • mskylab05.jpg
    103.3 KB · Views: 33
  • mskylab02.jpg
    128.1 KB · Views: 31

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,895
Reaction score
233
Makes an interesting comparison with the 'Dove' lifting body vehicle from the
'Doppelganger' movie, see here :-

http://www.secretprojects.co.uk/forum/index.php/topic,2250.msg60370.html#msg60370

and here :-

http://www.cloudster.com/Sets&Vehicles/Doppleganger/DopplegangerTop.htm

In the SPF thrread, it's described as being like the 'Spiral' vehicle,
but I think it's more like the M2 shape, with that curved underside...although it does have
a 'Spiral' style single fin, and separate wings...'105-M2', perhaps?


cheers,
Robin.


dannydale

ACCESS: Secret
Joined
May 13, 2007
Messages
222
Reaction score
14
Stargazer2006 said:
Wow... Looked pretty good, especially in the B&W pics, even credible in the eyes of a non-expert!
Could such a design actually have flown in real life, or would it have sunk like a stone?
Overall shape looked pretty good with its rather X24Aish shape, but the big rocket engine makes the CoG look way too far aft, and the blunt bulge of its fairing's front-bottom looks like a really bad spot for stagnation points and shock-shock interactions. The bell looks unprotected from high-AoA reentry flows as well.

I'd have made it a larger vehicle by extending the wing area to the aft end of the rocket module with a flap to protect the bell and smoothing the belly bump, or simply made the engine a separate jettisonable service module like Dynasoar and Kliper. Otherwise, nice try. :D


archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,673
Reaction score
303
dannydale said:
I'd have made it a larger vehicle by extending the wing area to the aft end of the rocket module with a flap to protect the bell and smoothing the belly bump, or simply made the engine a separate jettisonable service module like Dynasoar and Kliper. Otherwise, nice try. :D

I always thought that the rear engine was to be jettisonable. It makes sense....


martinbayer

ACCESS: Top Secret
Joined
Jan 6, 2009
Messages
700
Reaction score
165
The following is a description from http://www.cloudster.com/Sets&Vehicles/Marooned/MaroonedTop.htm, although it doesn't give a source for the information and contains at least some speculation:

"In actual operation the main engine assembly at the rear would only be used for on-orbit maneuvering then it would be jettisoned before re-entry, leaving the fully aerodynamic lifting body to make the final landing. Although not seen in the film, the XRV would also be equipped with retractable landing gear featuring wheels or skids and it would likely have a small engine buried in the tail such as the XLR-11 (the same type used in the X-1 rocket plane). "

Martin
