Mat Parry said:
bobbymike said:

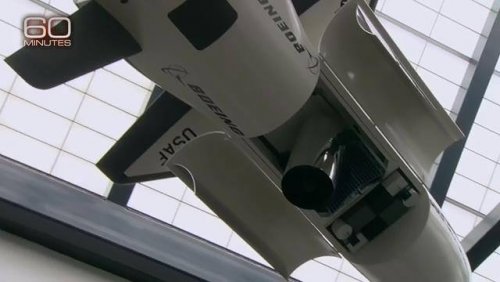

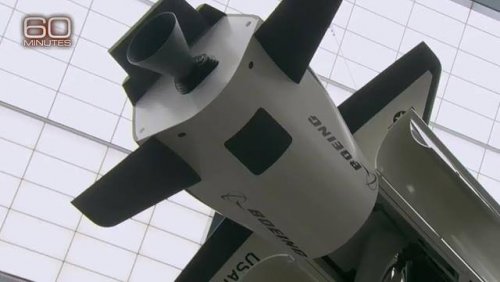

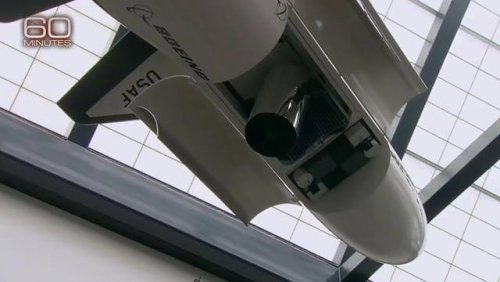

Gen Robin Rand visits at Global Strike Command. Upside down X-37 with something in the bay?
Intriguing!!! may I ask, where did you find this image?
Good place to hide the CCTV cameras in that area. ;)


CJGibson

CLEARANCE: Top Secret
Senior Member
Joined
May 26, 2011
Messages
1,193
Reaction score
59
Good place to hide the CCTV cameras in that area.


RAF Museum, Cosford, hid one in the nose of a Martel a few years ago.

Chris


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,767
Reaction score
186

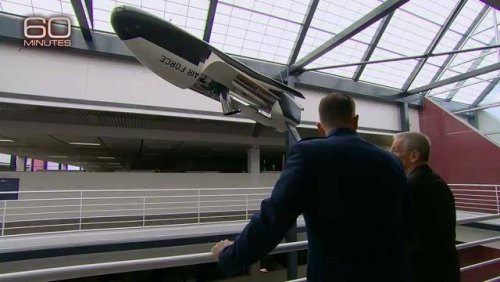

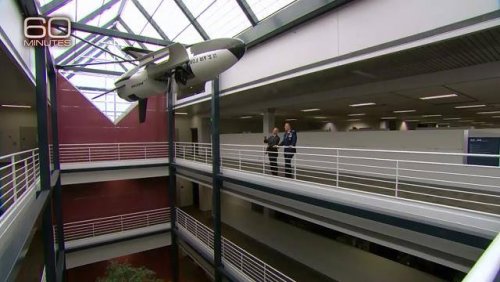

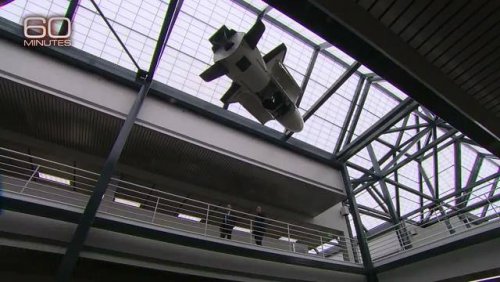

This was on 60 Minutes about two years ago.
https://www.youtube.com/watch?v=3kOy0fI4bB0


Attachments

Mat Parry

CLEARANCE: Secret
Joined
Jan 25, 2011
Messages
417
Reaction score
7
thanks!

I'm much less intrigued now, still it was an interesting watch


LowObservable

CLEARANCE: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,167
Reaction score
22
X-37 aka X-40 aka SMV aka REFLY has been around as a serious idea, with a stable shape (if variable size), for 20 years, so it's hard to discern the vintage of a particular mockup.


Flyaway

CLEARANCE: Top Secret
Joined
Jan 21, 2015
Messages
2,107
Reaction score
232
Some others online have picked up about that model X-37B now.

https://mobile.twitter.com/FG_STrim/status/919941483851079680


Flyaway

CLEARANCE: Top Secret
Joined
Jan 21, 2015
Messages
2,107
Reaction score
232
On the evening of 2017 Nov 02 UTC, Russell Eberst made new observations of the bright UNID he spotted on the morning of 2017 Oct 03 UTC, that we suspect is OTV 5.

The following circular orbit fits Russell's timed positions, one each on Oct 03 and Nov 02:

OTV 5 suspect 403 X 404 km
1 77203U 77203A 17306.77911249 .00000000 00000-0 00000-0 0 08
2 77203 63.5883 190.6553 0001000 0.0010 0.1122 15.54162386 02

It should be recovered easily in the above orbit. The eccentricity could be somewhat greater, in which case there will be small time and cross-track errors.

I would like to perform a bit more analysis to assure myself this is OTV 5, before I assign the ID: OTV 5 (USA 277), 2017-052A / 42932.

OTV 5 most likely was inserted into an approximately 43 deg parking orbit. My guess is that the second stage of its Falcon 9 booster performed the manoeuvre to change the inclination, which I intend to attempt to verify.

Russell's relevant observation reports:

http://satobs.org/seesat/Oct-2017/0007.html

http://satobs.org/seesat/Nov-2017/0007.html

Russell, what was its approximate magnitude on Nov 02, prior to entry into the penumbra?

Ted Molczan
Link.


Flyaway

CLEARANCE: Top Secret
Joined
Jan 21, 2015
Messages
2,107
Reaction score
232
Further to the above.

I did an attempt this evening. Unfortunately, the sky deteriorated rapidly after
sunset. Quite hazy conditions, but stars visible on the photographs and video.

Video (WATEC + 1.8/50 mm) and photo camera registered nothing around the 18:20
UT pass. I had shadow ingress predicted for 50 degrees elevation in the N-NW
near 18:21:00 UT.

If weather cooperates, new attempts tomorrow and the day after tomorrow (when I
should have a good near-zenith pass).

- Marco
http://www.satobs.org/seesat/Nov-2017/0011.html


Flyaway

CLEARANCE: Top Secret
Joined
Jan 21, 2015
Messages
2,107
Reaction score
232
The search orbit I posted for the 63.6 deg inclined OTV 5 suspect is too far
in plane from the estimated 43 deg parking orbit of OTV 5, to have been
manoeuvred there by the Falcon 9 second stage. The burn angle would have
been nearly 45 deg, requiring an orbital manoeuvre with delta-V in excess of
5800 m/s.

Falcon 9 v1.2 is said to be able to send 5500 kg to GTO, with first stage
recovery. Delta-V to GTO is ~2400 m/s.

The mass of X-37B is believed to be about 5000 kg, and OTV 5's Falcon 9
first stage was recovered. Performance to a 43 deg parking orbit would be
less than to 28.5 deg, so I doubt that the available delta-V in parking
orbit would be much more than the 2400 m/s of a GTO launch. Therefore, I do
not believe that a 5800 m/s plane change was feasible. I recall that OTV is
believed to have considerable delta-V of its own, but I doubt it would be
sufficient to make up the ~3400 m/s shortfall of Falcon 9.

Russell Eberst and David Hopkins report that the OTV 5 suspect was a no-show
in the search TLE that I posted, which casts serious doubt on the
reliability of that orbit.

Russell has suggested that his Nov 02 UTC sighting may have been of an old
NOSS object. NOSS 1-7 (E) (86014E / 16624) appears to correlate. I offer the
following search TLE:

1 77777U 77777A 17306.79899306 .00000911 00000-0 10280-3 0 06
2 77777 63.3235 189.6500 0900000 59.0987 43.7000 13.45667686 01

Ted Molczan
http://www.satobs.org/seesat/Nov-2017/0015.html


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,767
Reaction score
186

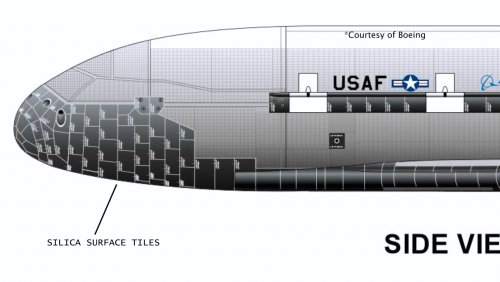

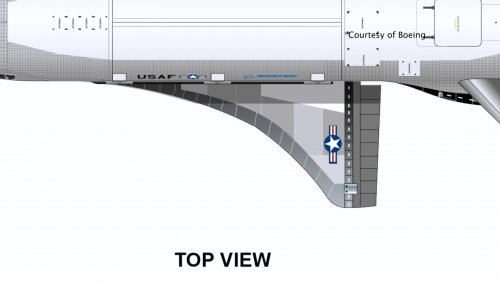

Giuseppe, you are famous now - AF has stole your drawings and labeled 'em as Boeing's!

http://www.af.mil/News/Article-Display/Article/1375714/air-force-tech-report-x-37b/
https://www.youtube.com/watch?v=QPeBvx_oEmE


Attachments

Flyaway

CLEARANCE: Top Secret
Joined
Jan 21, 2015
Messages
2,107
Reaction score
232
And you posted a video that’s been removed. So seemingly has the article as well?


archipeppe

CLEARANCE: Top Secret
Joined
Oct 18, 2007
Messages
1,516
Reaction score
21
flateric said:
Giuseppe, you are famous now - AF has stole your drawings and labeled 'em as Boeing's!

http://www.af.mil/News/Article-Display/Article/1375714/air-force-tech-report-x-37b/
https://www.youtube.com/watch?v=QPeBvx_oEmE
Hi Gregory,

thanks a lot to spotted my artworks in such video, I've missed it.
I have already written to USAF TV media office to report the correct copyright of such illustration.

Thanks again
Ciao
Giuseppe


Flyaway

CLEARANCE: Top Secret
Joined
Jan 21, 2015
Messages
2,107
Reaction score
232
As I said above it appears its already been taken down.


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,767
Reaction score
186
https://www.youtube.com/watch?v=OKFRkQsUKDY


Flyaway

CLEARANCE: Top Secret
Joined
Jan 21, 2015
Messages
2,107
Reaction score
232
https://twitter.com/cgbassa/status/987807215548620801
The secret X-37B/#OTV5 space plane passing over the Netherlands earlier this evening. It changed its orbit earlier in the week, and the amateur satellite tracking network has been hard at work determining its new, lower, orbit.
https://twitter.com/Marco_Langbroek/status/988003409688178688
New blog post: "OTV 5 or Zuma? A brief explanation why this object is OTV 5 and not Zuma"
https://sattrackcam.blogspot.nl/2018/04/otv-5-or-zuma-brief-explanation-why.html
Imaging the X-37B Space Plane OTV 5 post-manoeuvre

https://sattrackcam.blogspot.co.uk/2018/04/imaging-x-37b-space-plane-otv-5-post.html?m=1


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
8,959
Reaction score
168
https://www.space.com/41507-x-37b-space-plane-nears-one-year-orbit.html


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
8,959
Reaction score
168
https://www.space.com/43153-x-37b-military-space-plane-500-days.html


RavenOne

CLEARANCE: Confidential
Joined
Jun 18, 2008
Messages
180
Reaction score
41

Flyaway

CLEARANCE: Top Secret
Joined
Jan 21, 2015
Messages
2,107
Reaction score
232
They are open that’s what the annotated image is showing you.


Sundog

CLEARANCE: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,593
Reaction score
25
O.K., this vehicle is even better than I had originally thought. In this article regarding former SecAF Wilson'd comments on the X-37B, it uses the upper atmosphere to change it's orbit. I thought it just did that through the maneuvering rockets, but it's brilliant to use it that way. She also points out, it changes the timing of it's orbit, so it doesn't show up when they're, whoever we're spying on, expecting it.


coanda

CLEARANCE: Confidential
Joined
Feb 3, 2009
Messages
71
Reaction score
6
Being flexible and adaptable is pretty much its entire value.


Desertfox

CLEARANCE: Confidential
Joined
Feb 26, 2007
Messages
79
Reaction score
14
We know one experiment that's going to aboard this flight.

The Air Force said it intends to continue building “upon its fourth mission collaboration with experiment partners. The mission will carry the Air Force Research Laboratory (AFRL) Advanced Structurally Embedded Thermal Spreader (ASETS-11) to test experimental electronics and oscillating heat pipes in the long duration space environment.”
I worked on that project back in 2011. Nothing too exciting, just a way to make satellites more modular and cheaper. Back then it was going to be flown on Zero-G planes, cool to see it ended up flying on the X-37B. Coincidentally, at the same time I caught one of the X-37Bs on the highway outside of Kirtland AFB.


sublight is back

CLEARANCE: Top Secret
Senior Member
Joined
Aug 25, 2012
Messages
719
Reaction score
7
O.K., this vehicle is even better than I had originally thought. In this article regarding former SecAF Wilson'd comments on the X-37B, it uses the upper atmosphere to change it's orbit. I thought it just did that through the maneuvering rockets, but it's brilliant to use it that way. She also points out, it changes the timing of it's orbit, so it doesn't show up when they're, whoever we're spying on, expecting it.
Wait, not so fast.....



So if the X-37B indeed can use a drop into the upper atmosphere to make use of it wings to significantly change orbital plane, they so far do not seem to have clearly demonstrated this capability.


Sundog

CLEARANCE: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,593
Reaction score
25
Just out of curiosity, how do they know this hasn't been tested? The amateur astronomers who keep track of objects in space?


sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
11,779
Reaction score
199
They'd need a lot of fuel onboard. Every time you slow down / maneuver you're going to need to make the speed back up.


TomcatViP

Hellcat
Senior Member
Joined
Feb 12, 2017
Messages
814
Reaction score
34
It's relative: the Kinetic energy is accumulated outside the atmosphere at less energy cost. If they have a Hall thruster for example and days b/w each shot as they do, it does seems feasible. Then they can use their yoyo manoeuvre to accumulate a lot of potential difference (electricity), hence battery storage time... to feed the thruster.


sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
11,779
Reaction score
199
It's relative: the Kinetic energy is accumulated outside the atmosphere at less energy cost. If they have a Hall thruster for example and days b/w each shot as they do, it does seems feasible. Then they can use their yoyo manoeuvre to accumulate a lot of potential difference (electricity), hence battery storage time... to feed the thruster.

Good point. I was thinking of traditional chemical rockets.


Flyaway

CLEARANCE: Top Secret
Joined
Jan 21, 2015
Messages
2,107
Reaction score
232
Via NSF.

New details about the Air Force’s secretive X-37B spaceplane revealed

Defense News

Published on Jul 30, 2019

Former Secretary of the Air Force Heather Wilson lays out some basic details of the X-37B’s mission during an appearance at the Aspen Security Forum.

(See 1:50 into the video)



sublight is back

CLEARANCE: Top Secret
Senior Member
Joined
Aug 25, 2012
Messages
719
Reaction score
7
Former Secretary of the Air Force Heather Wilson lays out some basic details of the X-37B’s mission during an appearance at the Aspen Security Forum.
Knowingly or unknowingly, she is full of baloney.


edwest

CLEARANCE: Secret
Senior Member
Joined
Nov 9, 2007
Messages
418
Reaction score
32
Why are the men in the background wearing protective suits by the spacecraft?


Flyaway

CLEARANCE: Top Secret
Joined
Jan 21, 2015
Messages
2,107
Reaction score
232
Recent article:


The spacecraft is powered by Gallium Arsenide Solar cells with lithium-ion batteries, and it has thrusters for orbit maneuvering and de-orbiting but has no engines to travel long distances in space or for powered flight through the atmosphere. The spacecraft are controlled by the 3rd Space Experimentation Squadron at Schriever Air Force Base, Colorado.
