WWII era German Hydrofoil projects...

  • Thread starter joncarrfarrelly
  • Start date
J

joncarrfarrelly

Guest
A handful of images and data.

Cheers, Jon


Attachments

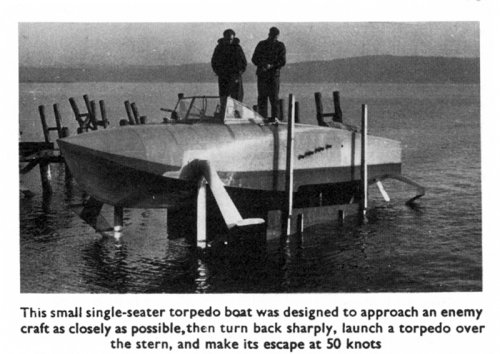

  • VS8_01.jpg
    322.8 KB · Views: 759
  • VS8_02.jpg
    330.2 KB · Views: 645
  • VS10_01.jpg
    496.5 KB · Views: 663
  • HTB_01.jpg
    246.3 KB · Views: 560

red admiral

ACCESS: Top Secret
Joined
Sep 16, 2006
Messages
667
Reaction score
149
Excellent pictures.

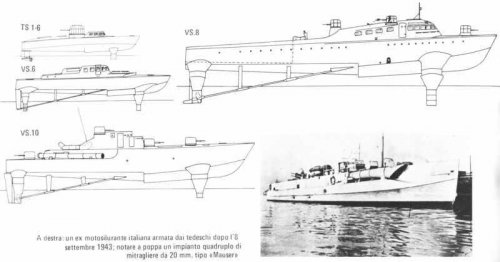

Heres a montage of all the German types.


Attachments

  • vs8_104.jpg
    38.5 KB · Views: 707

moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
456
Reaction score
26
Some more german hydrofoils
Wankel “Zisch” 1945
http://www.der-wankelmotor.de/Wasserfahrzeuge/TES/tes.html
www.akmilitaergeschichte.de/download/zip/NL_27.pdf
Maybe somebody knows more about the
"ZISCH 44" torpedo carrier ?

Schertel Subskimmer !
http://www.jabo109.net/Subskimmer/subskim.html

Thanks and Many greetings


moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
456
Reaction score
26
Some more
http://www.foils.org/sach.htm
http://www.foils.org/trag.htm

Many greetings


moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
456
Reaction score
26
I have heard of a Schertel-Sachsenberg Hydrofoil-Torpedo ?
Maybe someone knows more ?


moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
456
Reaction score
26
To answer my own question
I have found some information about the
Hydrofoil-Torpedo developed by Prof. Dr. Tietjens
The torpedo was jet-powered !

Many greetings


moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
456
Reaction score
26
Please look here
http://www.prismnet.com/~moki/subfiles
More projects
http://www.prismnet.com/~moki/20050322.141703/120tGlidingsub.jpg
http://www.prismnet.com/~moki/20050322.141703/Onemanglider001.jpg
http://www.prismnet.com/~moki/20050322.141703/DivingMTB001.jpg
Many greetings


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
14,412
Reaction score
4,158
According to a section of this interesting report that Johnbr found, the Walther Werke at Kiel carried out a lot of experimental work with rocket propelled hydrofoils (in the form of hydrofoil floats with Walther Engines). They were able to reliably achieve speeds of 50 knots. They also carried out work on rocket propelled landing barges, but I'm uncertain if the two activities were linked, due to the way the report is written.

The floats were described as being fitted with three hydrofoils, two forward and one aft.

Landing barges capable of running up the beach, and in the example shown in the film, of clearing the sand dunes and coming to rest in a field of cows.


XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,162
Reaction score
82
Wonder if that work was tied in to Walter's work on peroxide-powered U-boats. I'm still looking for the book on that (1960's vintage). IIRC it had a mention of the surface work.


Thiel

ACCESS: Confidential
Joined
Jul 18, 2010
Messages
76
Reaction score
3
Fast Fighting Boats 1870-1945 by Harald Foch spends a couple of sections on the these boats.


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,750
Reaction score
3,351
Website
www.amazon.com

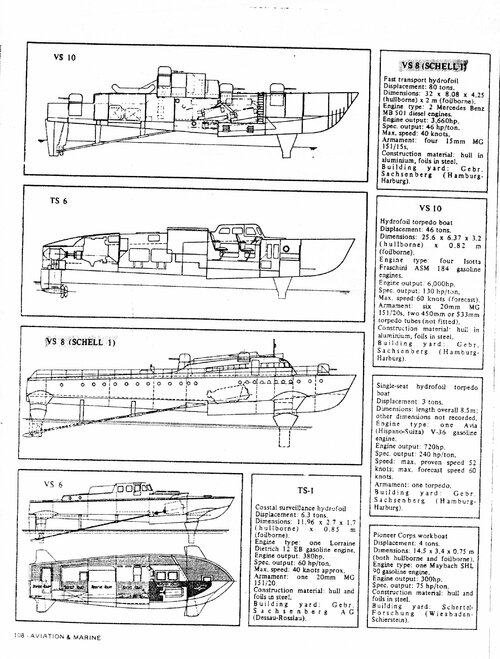

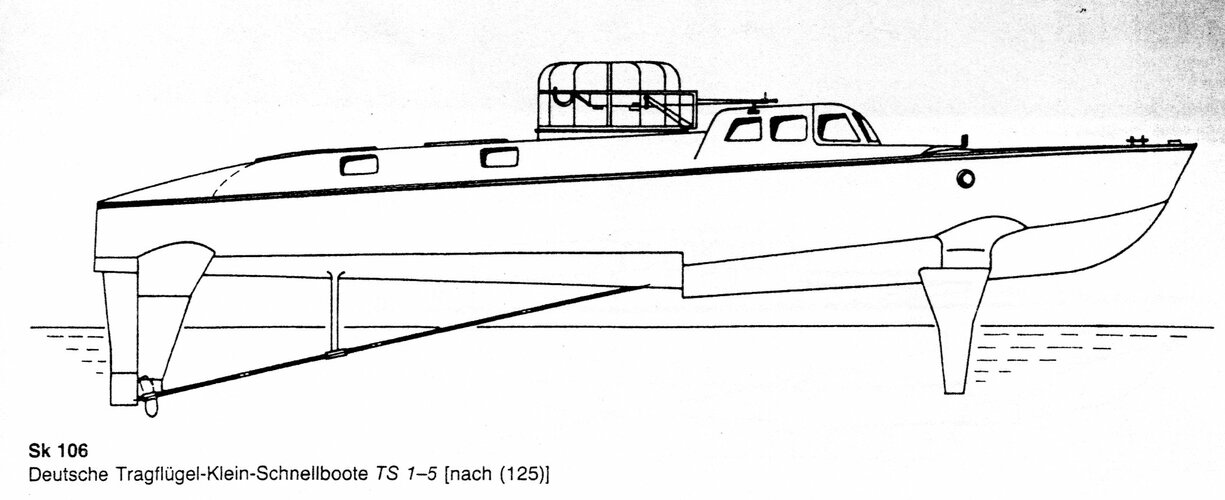

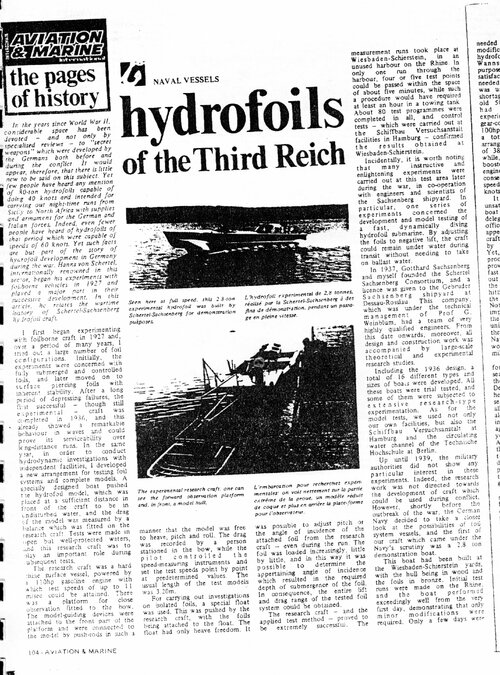

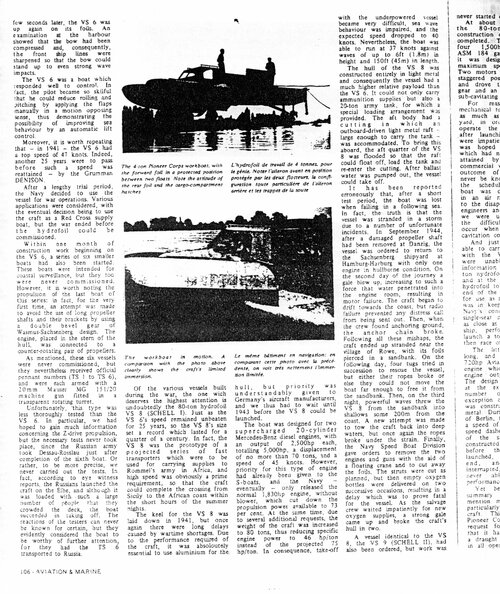

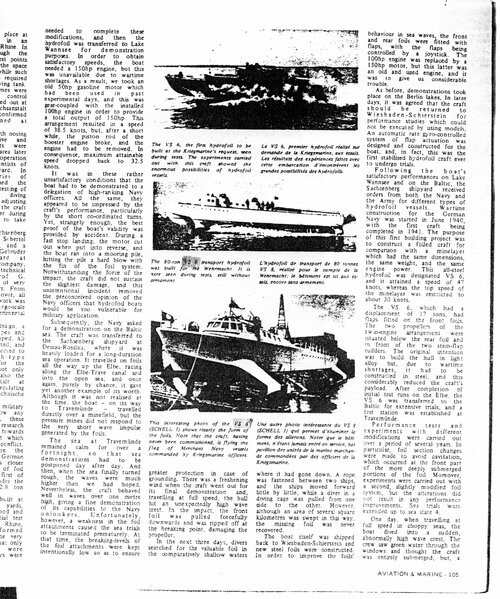

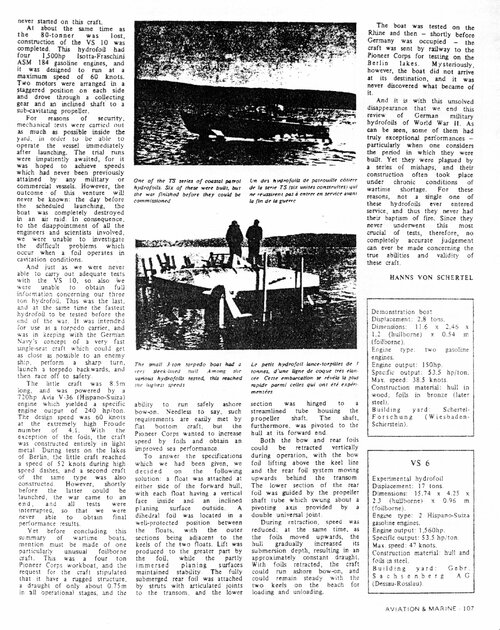

Some additional info


Attachments

  • 415.jpg
    2.1 MB · Views: 36
  • 416.jpg
    2.1 MB · Views: 30
  • 417.jpg
    2.1 MB · Views: 27
  • 418.jpg
    1.9 MB · Views: 26
  • 419.jpg
    1 MB · Views: 33

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,750
Reaction score
3,351
Website
www.amazon.com

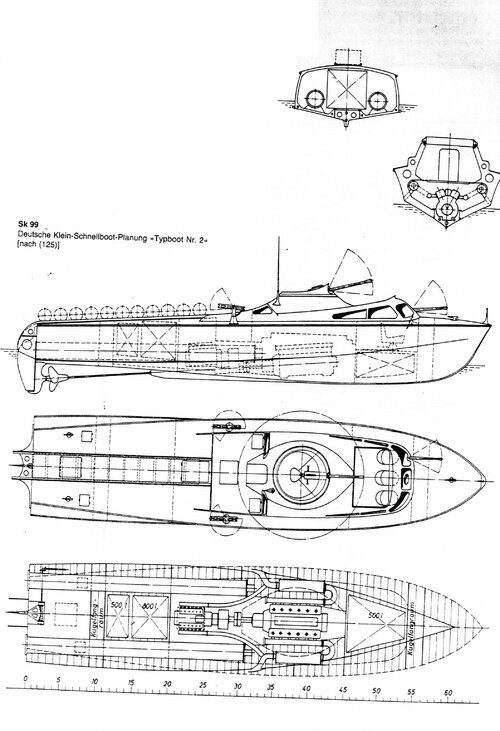

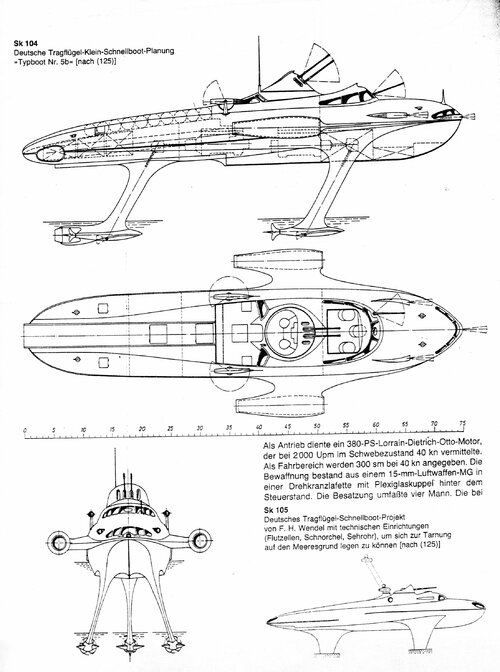

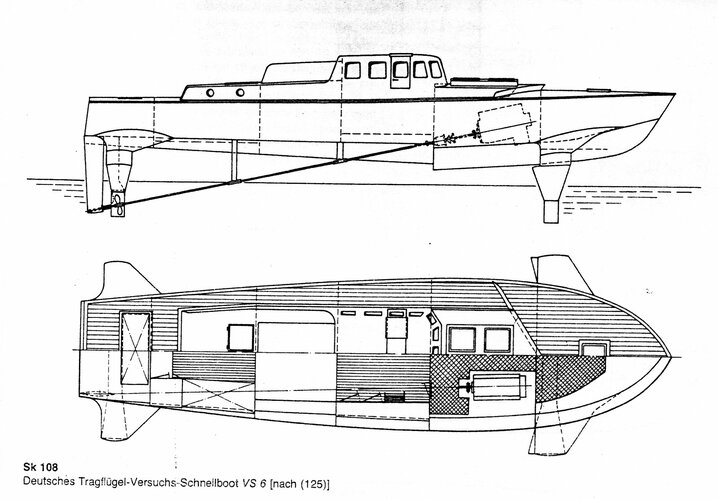

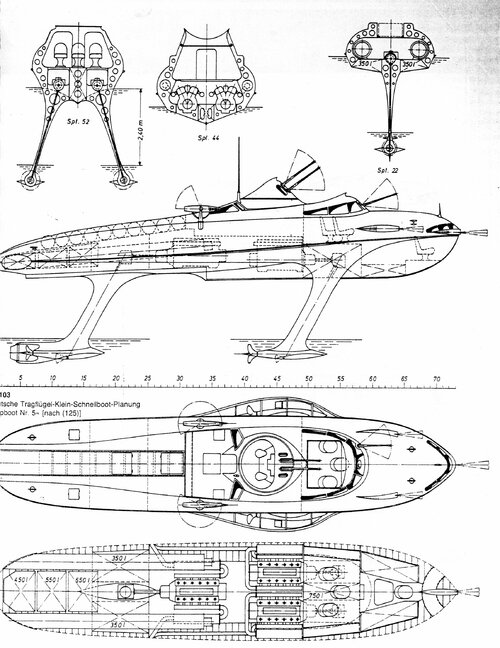

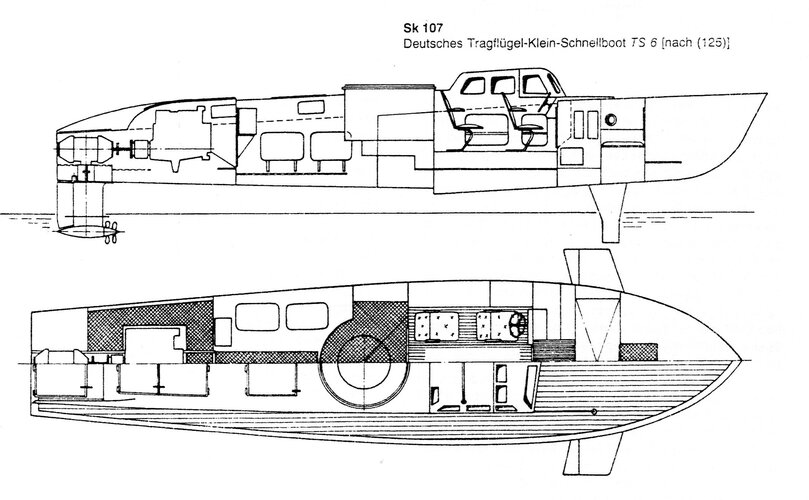

post-2 unknown file, unknown source


Attachments

  • 420.jpg
    208.4 KB · Views: 36
  • 421.jpg
    554.9 KB · Views: 36
  • 422.jpg
    466.1 KB · Views: 37
  • 423.jpg
    1.2 MB · Views: 40
  • 424.jpg
    1.1 MB · Views: 42
  • 425.jpg
    774.9 KB · Views: 39
  • 426.jpg
    343.4 KB · Views: 41
