Which french air-to-air missile ?

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,221
Reaction score
926

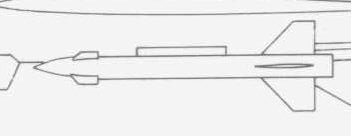

In several of Jean Cunys drawings of french projects, an air-to-air missile is shown.
To my opinion, it's not the Matra M.04 (smaller fins at the tail), nor the R.510/511
(no cruciform fins) or one of the Nord types. So, relates this type to an actual built
or at least designed missile,or is it just, "what an AA-missile could look like" ?


Attachments

  • missile-1.jpg
    4.8 KB · Views: 64

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,221
Reaction score
926

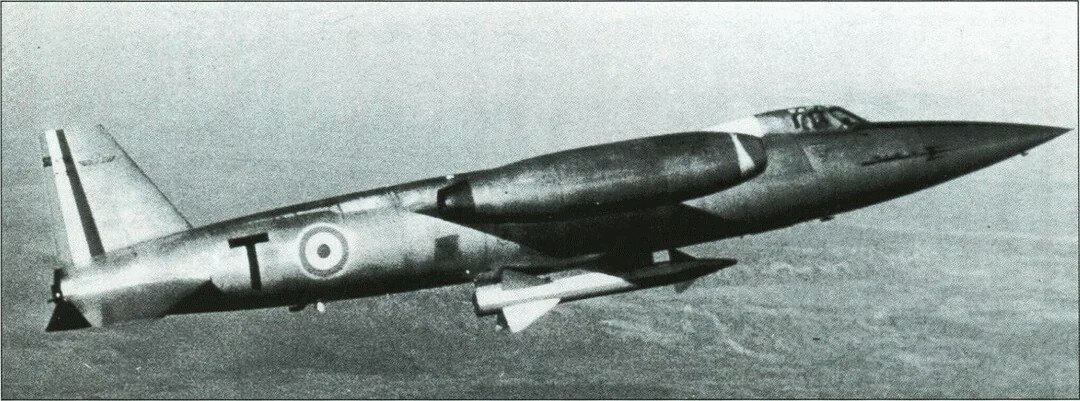

It is shown on the SE 212C and on the MS.1001. Maybe its a variant of
the AA.30, but this had larger, triangular shaped fins and a sleeker
fuselage.
