What Was This German High Altitude Airplane ?

[hesham]

Hi,

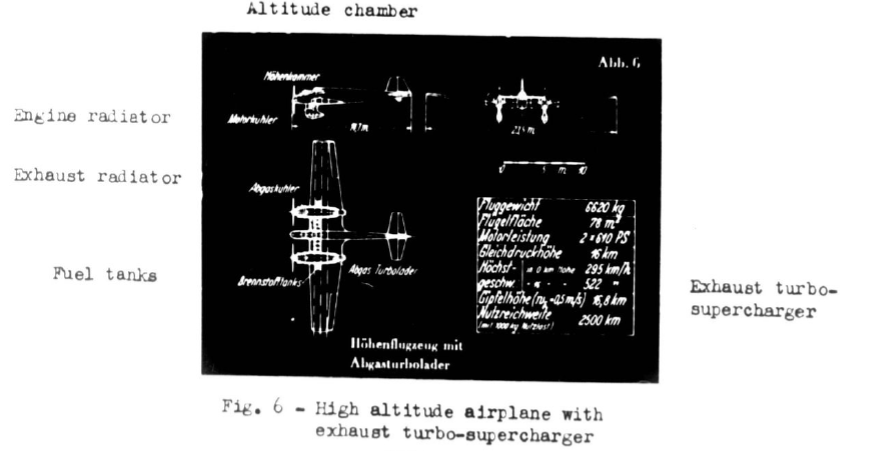

what was this twin engined high altitude airplane,with turbo supercharger motors ?.

Slideshow | NASM.XXXX.0408_ref599



[richard B]

Hi,

what was this twin engined high altitude airplane,with turbo supercharger motors ?.

Slideshow | NASM.XXXX.0408_ref599

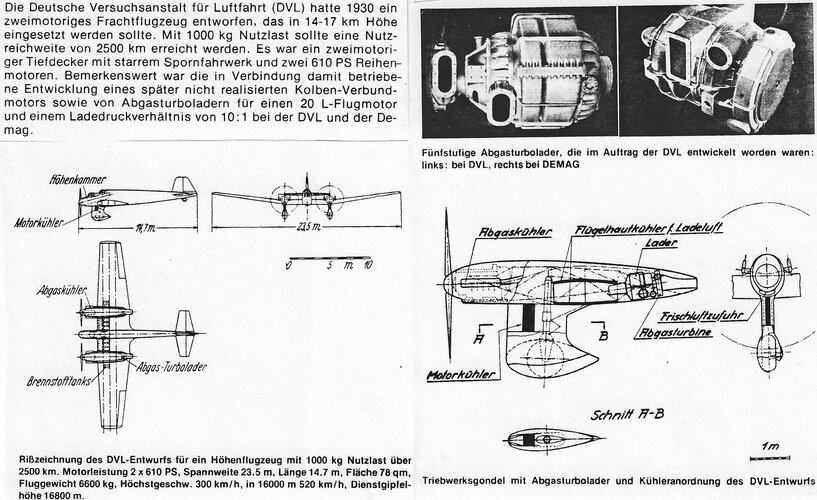

From "Der Flieger 7/1976" :



[Wurger]

Great stuff, Richard! Thanks for sharing.



[Wurger]

Please correct me if I didn`t got it straight: the discharged gases were cooled just after exhaust nozzle exit and channeled into the turbocharger, as in a remote intercooler? How would the wing "skin" cooler admit air, and from where? Regarding the "compound" engine, it does not resembles the future DVL engine I am aware of, sharing, nevertheless, a "slick" appearance.



[athpilot]

According to Volker Koos this was an unnamed design which evolved into the Hs-128. See here: https://adl-luftfahrthistorik.de/dok/henschel-hs-128-hoehenversuchsflugzeug-dvl.pdf
