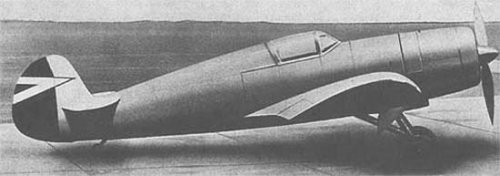

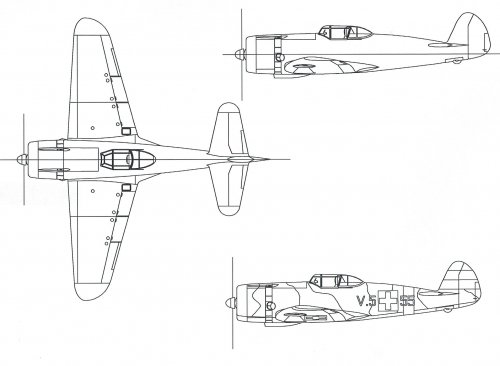

Weiss Manfréd WM-23 "Ezüst Nyíl' "Silver Arrow"

Zizi6785

ACCESS: Secret
Joined
Dec 20, 2006
Messages
319
Reaction score
158

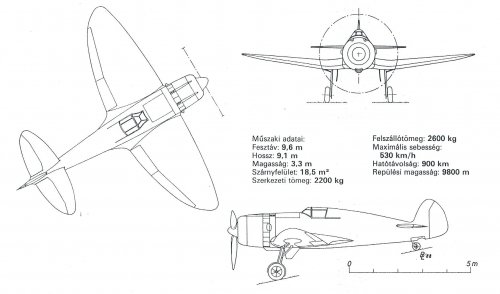

Span: 9.60m,
Length: 9.10m,
Height: 3.10m,
wing area: 23.5 sq.m,
Engine Mfg: Manfred Weiss, Model: WM-K14/B (761 kW) (licence Gnome-Rhone 14Kfrs),
Empty: 2100kg,
Normal Max: 2600kg,
Overload: 3290kg,
Max Speed: 530kph,
Cruise: 472kph,
Rate of Climb: 1000 mpm,
Range: 600km,
2 x 7.62mm MG + 2 x 20mm cannons.


Attachments

  • 01.jpg
    75.7 KB · Views: 422
  • wm23-1_small.gif
    6 KB · Views: 1,181
  • 1151911563.JPG
    12.3 KB · Views: 265
  • 1151911454.JPG
    13.4 KB · Views: 231
  • 73_1_a1.jpg
    23.4 KB · Views: 343
  • 73_1.jpg
    21.1 KB · Views: 350
  • 04.jpg
    69.2 KB · Views: 350
  • 05.jpg
    99.2 KB · Views: 396

Zizi6785

ACCESS: Secret
Joined
Dec 20, 2006
Messages
319
Reaction score
158

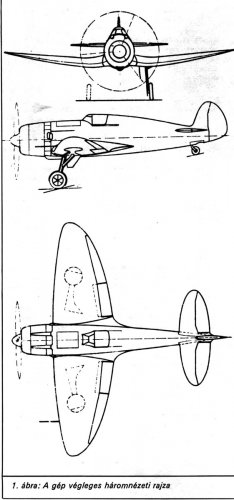

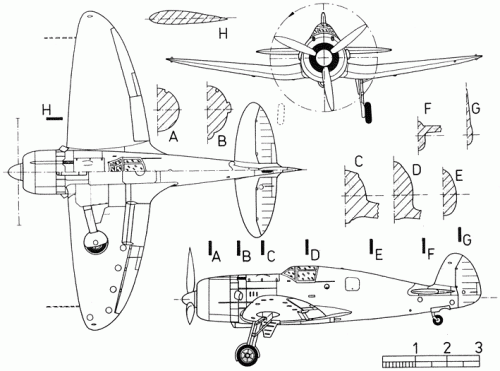

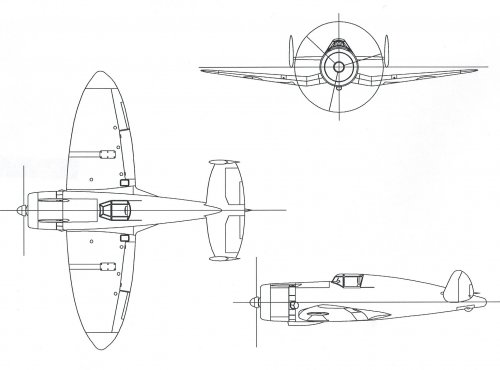

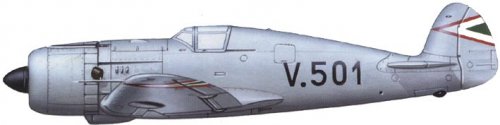

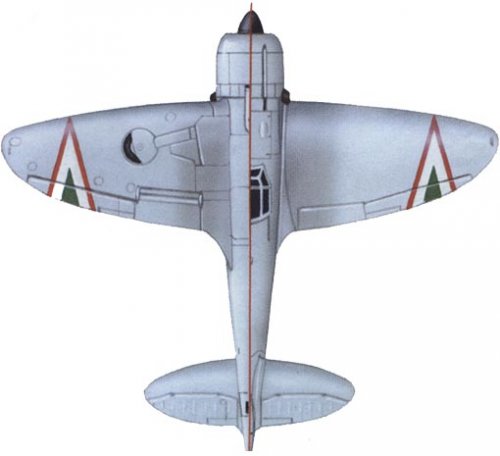

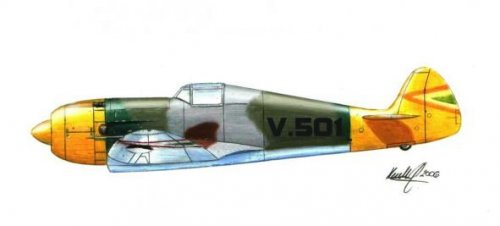

Maybe the most beautiful plane of the world:


Attachments

  • WM-23_rajz.gif
    27 KB · Views: 281
  • wm23-2.jpg
    37.4 KB · Views: 195
  • wm23ezustnyil.jpg
    31 KB · Views: 219

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,793
Reaction score
1,367
airman said:
the project seems was started from core of reggiane 2000 ! ::)

Hungary acquired three He-112B-1/U2s in early 1939. But they also bought 70 Falcos (V-401 - V-470) from Reggiane as the Héja I. Both types were further developed in Hungary.

Perhaps you were thinking of the Hungarian-built Re.2000 derivative with Manfred Weiss-licenced K-14, the MÁVAG Héja II?


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,895
Reaction score
3,823
Website
www.amazon.com
Additional info
Unknown source


Attachments

  • Escanear0007.jpg
    196.4 KB · Views: 255
  • Escanear0006.jpg
    203.2 KB · Views: 233
  • Escanear0005.jpg
    214 KB · Views: 231
  • Escanear0004.jpg
    221.7 KB · Views: 237
  • Escanear0003.jpg
    89.5 KB · Views: 232
  • Escanear0002.jpg
    256.4 KB · Views: 232
  • Escanear0001.jpg
    129.1 KB · Views: 239

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,895
Reaction score
3,823
Website
www.amazon.com
Additional info
Unknown source
Post-2


Attachments

  • Escanear0014.jpg
    139.7 KB · Views: 215
  • Escanear0013.jpg
    143.4 KB · Views: 224
  • Escanear0012.jpg
    144.6 KB · Views: 222
  • Escanear0011.jpg
    164.6 KB · Views: 228
  • Escanear0010.jpg
    90 KB · Views: 232
  • Escanear0009.jpg
    152.3 KB · Views: 239
  • Escanear0008.jpg
    187.2 KB · Views: 233

airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,267
Reaction score
129
Website
zeef.com
thanks Justo : incredible they had studied all possible configurations for WM-23 ! :)


Zizi6785

ACCESS: Secret
Joined
Dec 20, 2006
Messages
319
Reaction score
158
airman said:
thanks Justo : incredible they had studied all possible configurations for WM-23 ! :)

All other configurations are fake.
Only the single seat version were be planned and built.


lucamax

ACCESS: Secret
Joined
Mar 2, 2010
Messages
246
Reaction score
40
Website
www.res-aeronautica.com
Thanks for the information and beautiful drawings. I was just trying to find the story of this interesting airplane. At the end it never came into production?


papacavy

ACCESS: Confidential
Joined
Apr 13, 2006
Messages
103
Reaction score
14

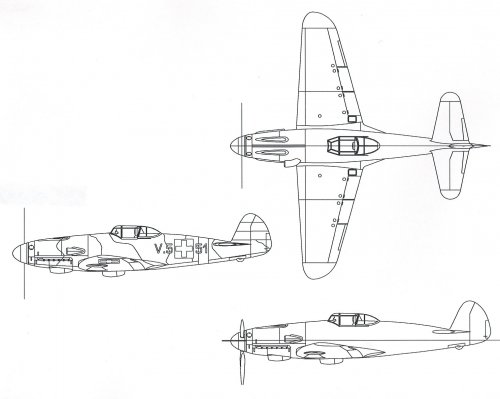

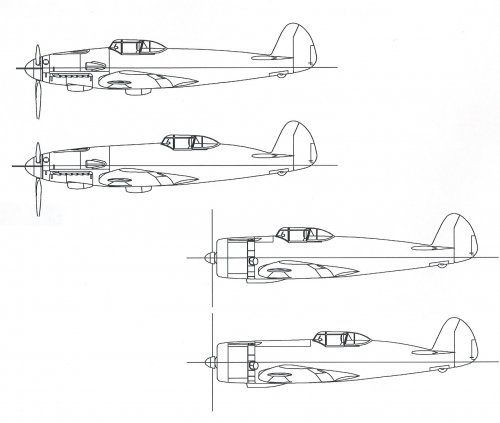

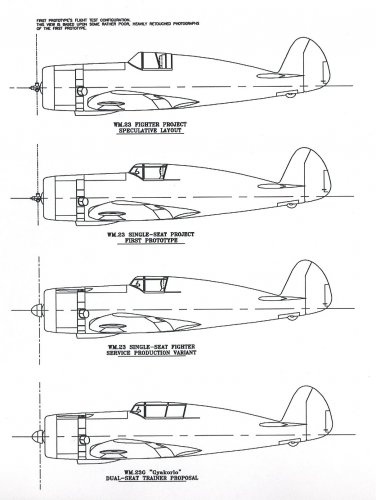

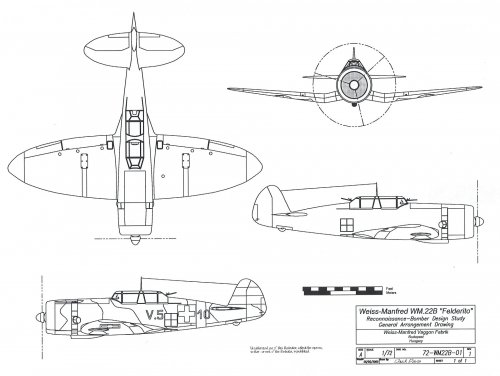

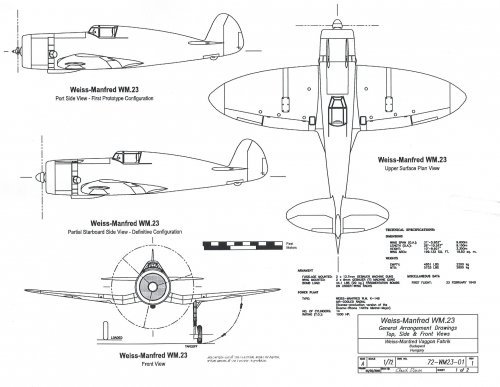

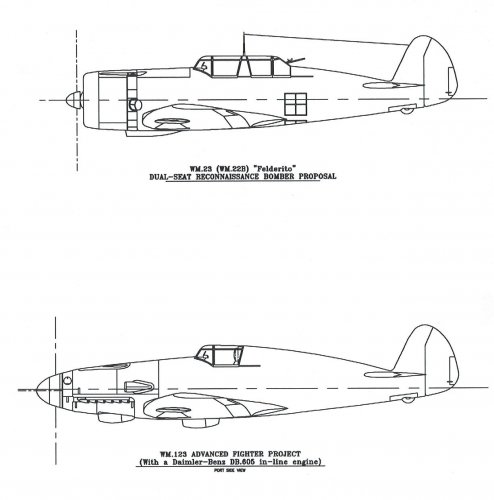

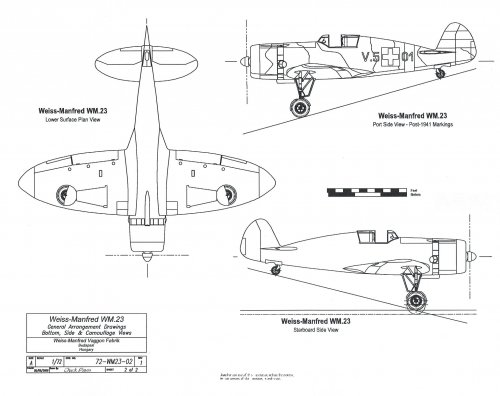

Yeah, those unusual WM.23 configurations are totally fictional. You see, I am the illustrator of the last several WM.23 drawings that Justo posted (I had sent them to him a few years ago for him to use as he wished. Guess he merely forgot who they were from and that's OK). The WM.23 with the Daimler-Benz engine was, according to the sources I had available to me at the time, considered but never really "designed". The 2-seat reconnaissance variant was designed at the same time as the single-seat fighter, but was never considered for production. I do believe that Weiss-Manfred (Manfred-Weiss according to some sources) was considering a German radial for the planned production model (memory wants me to say the BMW-801, but I don't think that that would have been available).

It would be interesting to see what the WM.23 would have been like with a BMW-801, though. Now just let me find the CADD files...

Anyway, all the other "designs" were just my imagination working overtime, as it is wont to do with interesting airplanes.

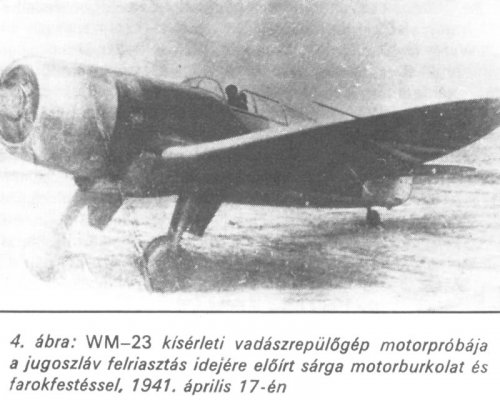

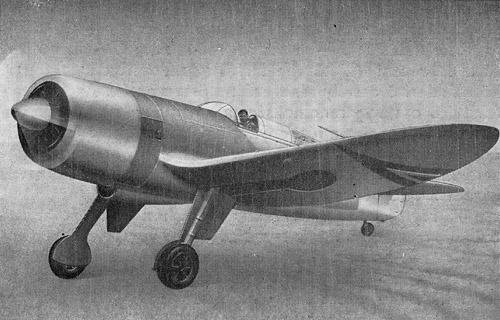

The Hungarians only built ONE WM.23 and that one crashed sometime during the flight test phase.

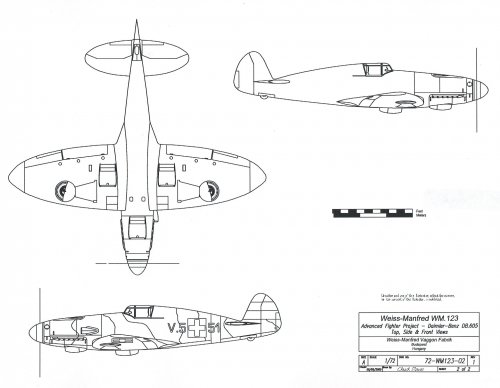

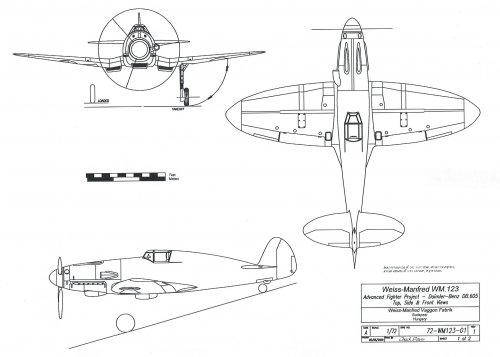

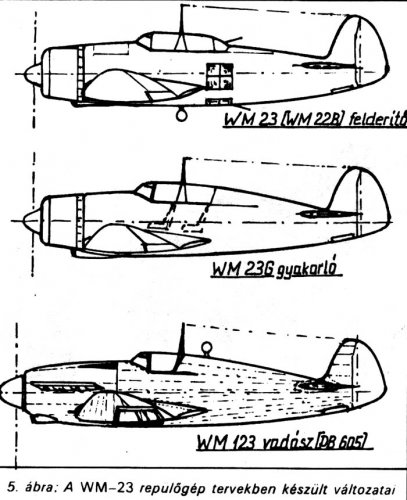

On another note, while some sources designated the Daimler-Benz version as the WM.123, other, more reliable Hungarian sources, state that this variant was probably designated as the WM.22 (or maybe the WM.24? Please correct me if I am wrong).

Last note for Justo: Please my friend, don't think I am accusing you of plagiarism or stealing my drawings. I know you to be an honorable and trustworthy man, and THE BEST DAMNED ILLUSTRATOR I HAVE EVER SEEN!! I may not have put my name of the drawings when I gave them to you. My apologies.


Zizi6785

ACCESS: Secret
Joined
Dec 20, 2006
Messages
319
Reaction score
158

Attachments

  • 5.jpg
    82.6 KB · Views: 311

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
114
It should be interesting to split the "might have been designs"
from the pure fictional ones...


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
47
Website
cmeunier.chez-alice.fr
The WM-123 with DB.605 engine is very beautiful anyway, completing the DB family of 1940s fighter-beauties (He100, Bf109, Pyorremyrsky, Italian ones?). Thanks to have presented it!


Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,587
Reaction score
425
All other configurations are fake.
Only the single seat version were be planned and built.


pictures are numbered 1 to 14, could you please tell me which numbers are fictional please?

Thanks a lot


papacavy

ACCESS: Confidential
Joined
Apr 13, 2006
Messages
103
Reaction score
14

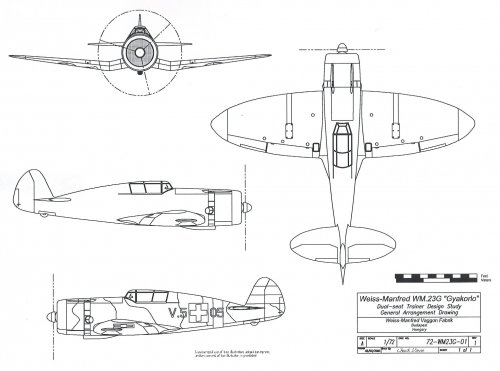

The fictional ones are numbered 11 through 14. Believe me, I could have gotten even more weird than those if I had the time to "play" with the drawings more!


papacavy

ACCESS: Confidential
Joined
Apr 13, 2006
Messages
103
Reaction score
14

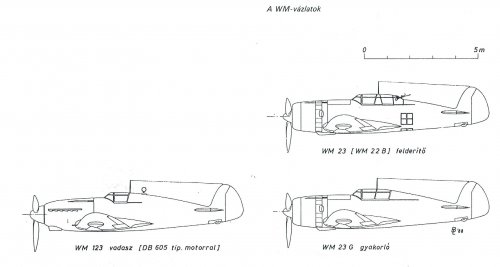

As far as I know, #7, the Daimler-Benz powered WM.23, was a real project, although it never progressed further than the drawing board. Pity.

Now, imagine, if the WM.23 HAD entered full-scale service with Hungary's air force in 1941. How would it have faired against Allied (i.e American & British) planes and how would it have faired against the Soviet Air Force?

Would the Hungarians, after being overrrun by the Soviets, have attempted to use a Soviet radial in the plane?

Ah, the imagination is a terrible thing to waste, but such fun to use!


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,895
Reaction score
3,823
Website
www.amazon.com

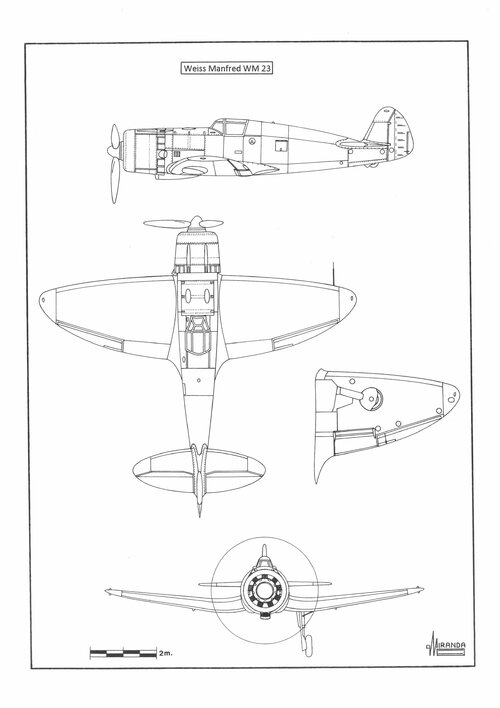

On September 1938 the Hungarian Ministry of War Affairs ordered thirty-six Heinkel He 112B fighters, but the Germans deliberately delayed the fulfilment of the order, for political reasons, and refused to hand over the license for the Jumo 211 engine. Hungary only received two He 112 B-1/U2 demonstrators in 1939 and one He 112 B-1 in 1940.

By the end of 1939 the Hungarian Government took the decision to produce a simplified version of the He 112 adapted to the possibilities of the local aviation industry. The new aircraft, called Weiss Manfréd WM 23 Ezüst Nyil, would be propelled by a 1,000 hp Gnôme & Rhône 14 Kfrs radial engine driving a Hamilton-Standard propeller.

The wings, with Fowler flaps, would have been built in wood/plywood and the fuselage in welded-steel tube with plywood skinning. The armament, installed in the fuselage, would consist of two 8 mm Gebauer machine guns and two 20 mm synchronised Mauser MG 151 cannons. It was just built a prototype (530 kph) that demonstrated good flying characteristics during its first flight on September 1941. It was destroyed in 1942 due to malfunction of the starboard aileron.

The improved version Ezüst Nyil II, with all-metal monocoque fuselage and 1,475 hp DB 605 engine (planned for 1943) was discontinued when the Germans allowed the manufacture under license of the Messerschmitt Bf 109 G.


iverson

ACCESS: Secret
Joined
Sep 24, 2009
Messages
460
Reaction score
340
the project seems was started from core of reggiane 2000 ! ::)
Not! instead a He-112 with Wm K-14 engine....
True, but does anyone know why Hungary was pursuing the He112 when they had the Re2000? The latter was in the same class, seems structurally simpler, and we know, at least with hindsight, that Reggiane airframe could take the DB605G.


ceccherini

In war there is no substitute for victory
Joined
Feb 26, 2015
Messages
127
Reaction score
93
the project seems was started from core of reggiane 2000 ! ::)
Not! instead a He-112 with Wm K-14 engine....
True, but does anyone know why Hungary was pursuing the He112 when they had the Re2000? The latter was in the same class, seems structurally simpler, and we know, at least with hindsight, that Reggiane airframe could take the DB605G.
Reggiane fighters had an extremely complex structure and required a hell of working hours to be produced, that is the key reasons Reggiane's figther were never mass produced and inducted in Italian service even if they were always better than their main direct competitors (mc 200 and G50 for the 2000, MC 202 for the 2001 and G55 and MC205V for the 2005)


iverson

ACCESS: Secret
Joined
Sep 24, 2009
Messages
460
Reaction score
340
the project seems was started from core of reggiane 2000 ! ::)
Not! instead a He-112 with Wm K-14 engine....
True, but does anyone know why Hungary was pursuing the He112 when they had the Re2000? The latter was in the same class, seems structurally simpler, and we know, at least with hindsight, that Reggiane airframe could take the DB605G.
Reggiane fighters had an extremely complex structure and required a hell of working hours to be produced, that is the key reasons Reggiane's figther were never mass produced and inducted in Italian service even if they were always better than their main direct competitors (mc 200 and G50 for the 2000, MC 202 for the 2001 and G55 and MC205V for the 2005)
My understanding was that the He112 structure was heavy, expensive, and complex. I'd have thought that the gull wing alone would create complexities and weight penalties. The main issue with the Re2000 being its integral wing fuel tanks, which were inspired by American practice and thus unfamiliar.

I have structural manuals or excerpts for the Re.2000, G.50, and MC.205V. While I admit that I have never actually built an airplane, the Re.2000 structure does not look significantly more complex--just different: cellular center section and outer wings.

Thoughts?

Last edited:

sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
703
Reaction score
376
the project seems was started from core of reggiane 2000 ! ::)
Not! instead a He-112 with Wm K-14 engine....
True, but does anyone know why Hungary was pursuing the He112 when they had the Re2000? The latter was in the same class, seems structurally simpler, and we know, at least with hindsight, that Reggiane airframe could take the DB605G.
Reggiane fighters had an extremely complex structure and required a hell of working hours to be produced, that is the key reasons Reggiane's figther were never mass produced and inducted in Italian service even if they were always better than their main direct competitors (mc 200 and G50 for the 2000, MC 202 for the 2001 and G55 and MC205V for the 2005)
My understanding was that the He112 structure was heavy, expensive, and complex. I'd have thought that the gull wing alone would create complexities and weight penalties. The main issue with the Re2000 being its integral wing fuel tanks, which were inspired by American practice and thus unfamiliar.

I have structural manuals or excerpts for the Re.2000, G.50, and MC.205V. While I admit that I have never actually built an airplane, the Re.2000 structure does not look significantly less complex--just different: cellular center section and outer wings.

Thoughts?

That is only true of the early 112s. The production version was essentially an all new aircraft, and had gone through an intense production rationalization program. I can't recall the name of the engineer in charge of it, but later on Ernst Heinkel would place blame for the 177 debacle at his feet.


Tzoli

ACCESS: Top Secret
Senior Member
Joined
Feb 1, 2011
Messages
1,677
Reaction score
974
Yes but our country isn't big as well, roughly 600km x 250km (Current size) with the regained territories in WW2 it was 750km x 350km with a number of airbases and airfields around the country, basically in almost every major city.


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,895
Reaction score
3,823
Website
www.amazon.com
the project seems was started from core of reggiane 2000 ! ::)
Not! instead a He-112 with Wm K-14 engine....
True, but does anyone know why Hungary was pursuing the He112 when they had the Re2000? The latter was in the same class, seems structurally simpler, and we know, at least with hindsight, that Reggiane airframe could take the DB605G.
Reggiane fighters had an extremely complex structure and required a hell of working hours to be produced, that is the key reasons Reggiane's figther were never mass produced and inducted in Italian service even if they were always better than their main direct competitors (mc 200 and G50 for the 2000, MC 202 for the 2001 and G55 and MC205V for the 2005)
My understanding was that the He112 structure was heavy, expensive, and complex. I'd have thought that the gull wing alone would create complexities and weight penalties. The main issue with the Re2000 being its integral wing fuel tanks, which were inspired by American practice and thus unfamiliar.

I have structural manuals or excerpts for the Re.2000, G.50, and MC.205V. While I admit that I have never actually built an airplane, the Re.2000 structure does not look significantly more complex--just different: cellular center section and outer wings.

Thoughts?
The Italians did not adapt well to Seversky's manufacturing methods and the result was excessive structural complexity.
