Vultee XP-54 "Swoose Goose"

Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
54
Any good pictures/drawings out there? Googleing didn't help much.


verner

ACCESS: Restricted
Joined
Dec 5, 2009
Messages
42
Reaction score
1

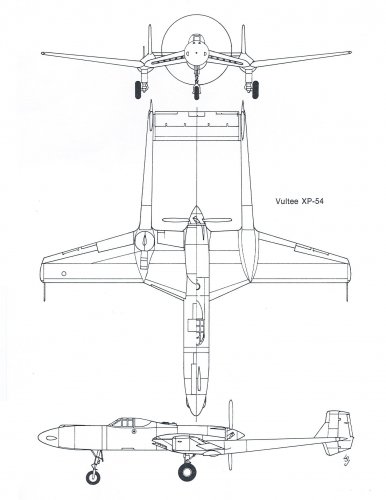

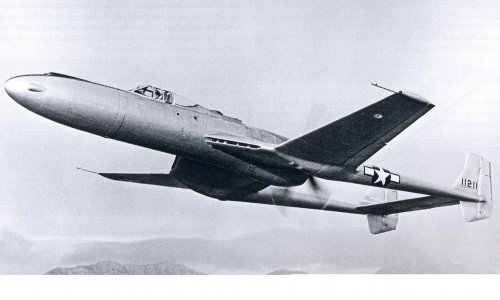

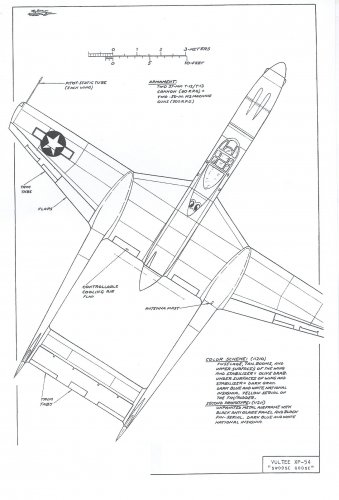

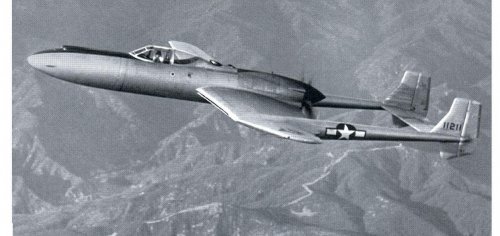

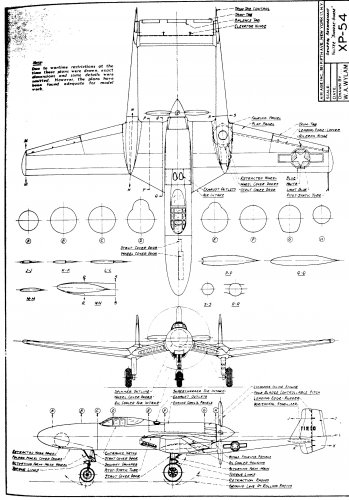

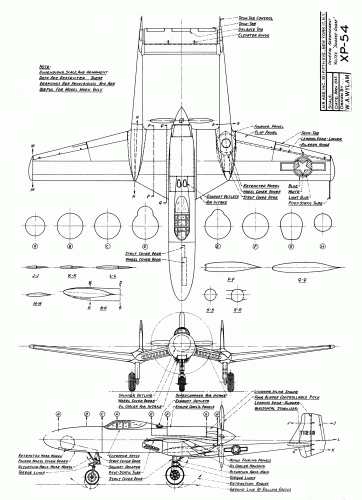

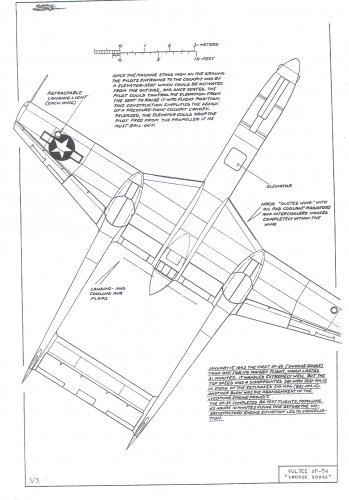

Don't have any real good pics but this drawing may do. Cheers


Attachments

  • p-54.jpg
    833 KB · Views: 553

Artie Bob

ACCESS: Confidential
Joined
Jan 6, 2008
Messages
171
Reaction score
39
When in the Civil Air Patrol, I attended a summer encampment at Wright Patterson, IIRC during the summer of 1951. While there we were given a fire fighting demonstration, complete with 50 gallons or so of 100/130. The fire fighting hulks included part of a B-36 and the fuselage of an XP-54, which I climbed around and even managed to pull off a small piece (carried it around for many years, but it finally has disappeared). My main memories are the inverted "Y" control yoke needed to span the floor opening for the pilot's elevator. The rudder pedals were the same as a BT-13, which our CAP squadron flew.

Best regards,

Artie Bob


Bailey

ACCESS: Secret
Joined
Jul 24, 2009
Messages
308
Reaction score
11

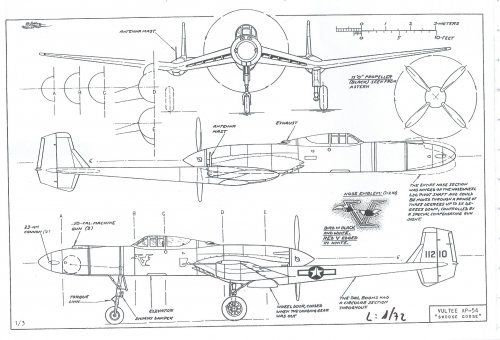

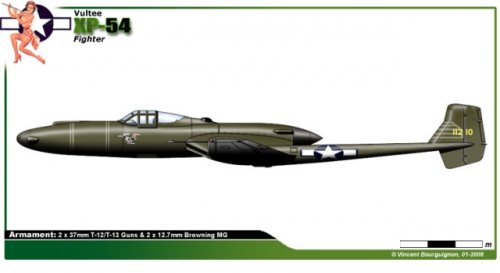

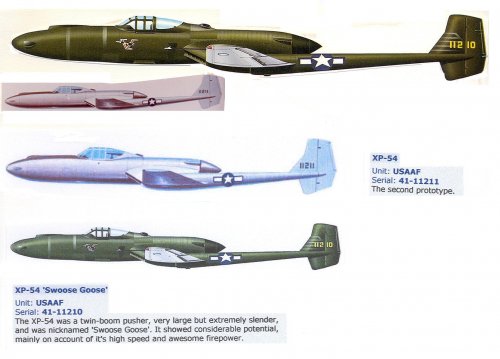

Colour profile from the pen of Vincent Bourguignon.

Regards Bailey.


Attachments

  • Vultee XP-54.jpg
    Vultee XP-54.jpg
    58.7 KB · Views: 365

Bailey

ACCESS: Secret
Joined
Jul 24, 2009
Messages
308
Reaction score
11
U.S Patent D138795 Stoughton Airplane. Became the XP-54 Swoose Goose.

Regards Bailey


Attachments

  • D138795_STOUGHTON_AIRPLANE.pdf
    89.1 KB · Views: 53

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,750
Reaction score
3,348
Website
www.amazon.com

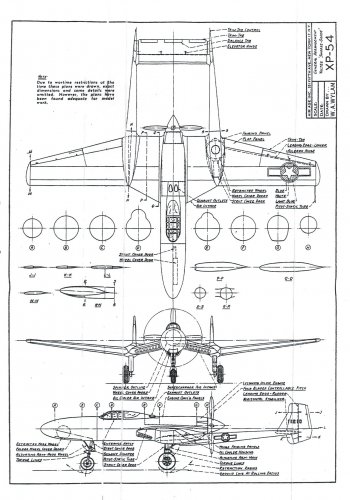

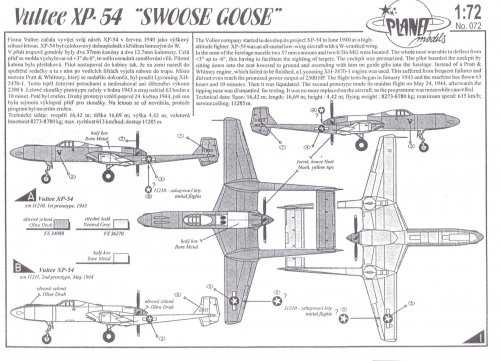

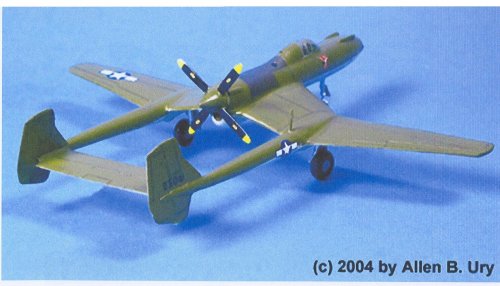

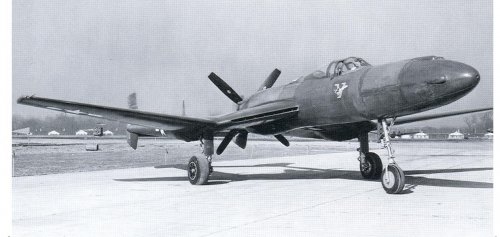

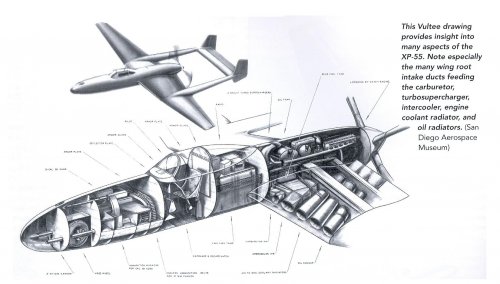

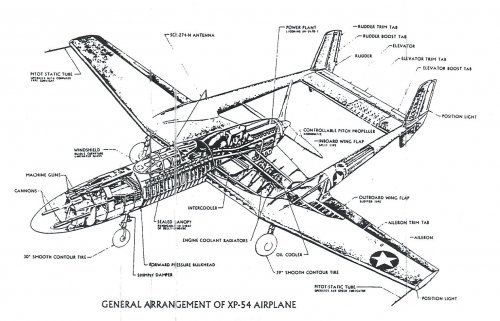

Some additional info here-Post-1
From
-Aviation History,september 2003
-Scale Masters File 56
-Air Age Inc.
-Planet Models Nº72
-Aircam unknown issue
-Model-Aire International
-U.S. Experimental & Prototype Aircraft Projects ,by Bill Norton , 2008
-Fantastic Plastic


Attachments

  • Escanear0006.jpg
    188.1 KB · Views: 155
  • Escanear0005.jpg
    211.3 KB · Views: 175
  • Escanear0004.jpg
    225.8 KB · Views: 127
  • Escanear0003.jpg
    270.9 KB · Views: 336
  • Escanear0002.jpg
    204 KB · Views: 400
  • Escanear0001.jpg
    292.6 KB · Views: 354

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,750
Reaction score
3,348
Website
www.amazon.com
Some additional info here-Post-2
From
-Aviation History,september 2003
-Scale Masters File 56
-Air Age Inc.
-Planet Models Nº72
-Aircam unknown issue
-Model-Aire International
-U.S. Experimental & Prototype Aircraft Projects ,by Bill Norton , 2008
-Fantastic Plastic


Attachments

  • Escanear0012.jpg
    151 KB · Views: 100
  • Escanear0011.jpg
    316.1 KB · Views: 105
  • Escanear0010.jpg
    273.1 KB · Views: 131
  • Escanear0009.jpg
    333 KB · Views: 172
  • Escanear0008.jpg
    205.6 KB · Views: 144
  • Escanear0007.jpg
    395.4 KB · Views: 122

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,750
Reaction score
3,348
Website
www.amazon.com
Some additional info here-Post-3
From
-Aviation History,september 2003
-Scale Masters File 56
-Air Age Inc.
-Planet Models Nº72
-Aircam unknown issue
-Model-Aire International
-U.S. Experimental & Prototype Aircraft Projects ,by Bill Norton , 2008
-Fantastic Plastic


Attachments

  • Escanear0013.jpg
    343.8 KB · Views: 112
  • Escanear0014.jpg
    649.2 KB · Views: 131
  • Escanear0015.jpg
    286.1 KB · Views: 117
  • Escanear0016.jpg
    221.6 KB · Views: 144

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
644
Great scans, as usual. Thanks!

Worthy of notice is the erroneous USAAF serial number 42-1211.

The XP-54 was the winning design against the Curtiss XP-55 and Northrop XP-56. It was to have resulted in a production version but this did not happen. I'd be thrilled to see pics of the proposed V-78 "Shrike" and V-84 "Tornado" (XP-68) developments of the "Swoose Goose".


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
44
Website
cmeunier.chez-alice.fr
Stargazer2006 said:
I'd be thrilled to see pics of the proposed V-78 "Shrike" and V-84 "Tornado" (XP-68) developments of the "Swoose Goose".

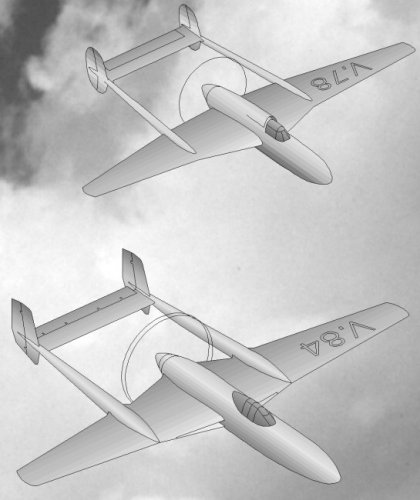

The V.78 picture is on my site http://cmeunier.chez-alice.fr/update_FG.htm
I don't remember which source, probably dear Lark's.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
644
Tophe said:
Stargazer2006 said:
I'd be thrilled to see pics of the proposed V-78 "Shrike" and V-84 "Tornado" (XP-68) developments of the "Swoose Goose".
The V.78 picture is on my site http://cmeunier.chez-alice.fr/update_FG.htm
I don't remember which source, probably dear Lark's.

Thanks Tophe! Of course I DID know your line art versions of these designs, quite nice! But what I want is genuine Vultee material...


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
44
Website
cmeunier.chez-alice.fr

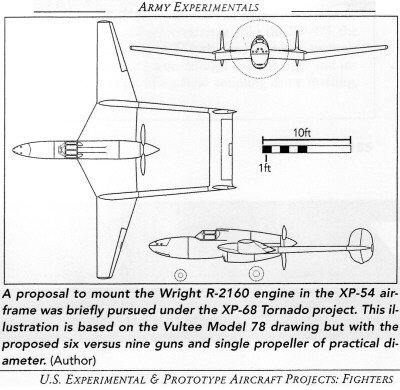

from the Specialty Press book "U.S. Experimental & Prototype Aircraft Projects: Fighters 1939-1945" by William Norton, much reduced here:


Attachments

  • r_xp68_.JPG
    48.4 KB · Views: 562

redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
519
Reaction score
62
Hi all!
Maybe somebody can help with any photos/pictures of XP-54 cockpit?


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
802
Website
deeptowild.blogspot.com

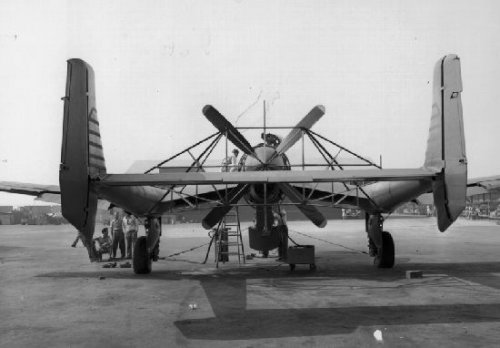

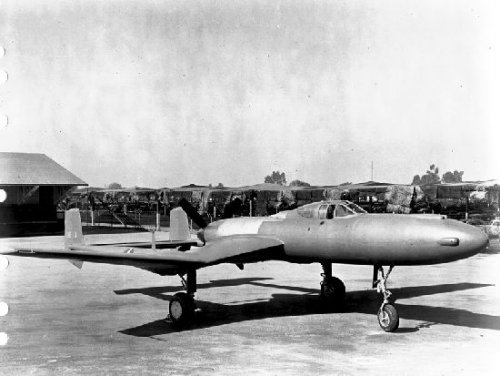

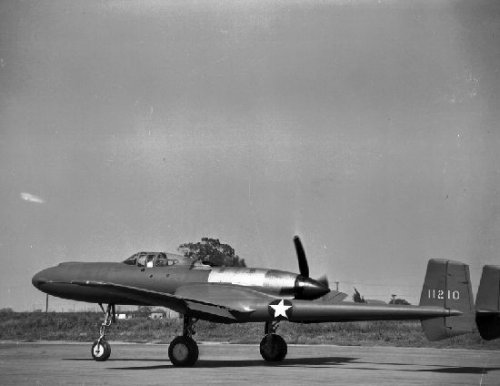

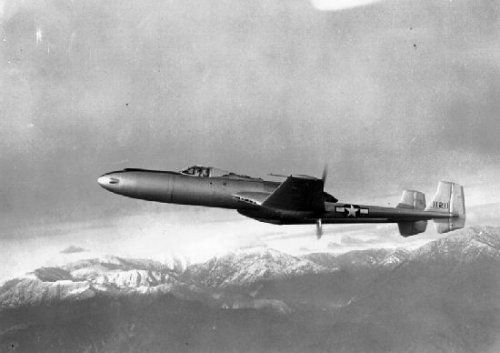

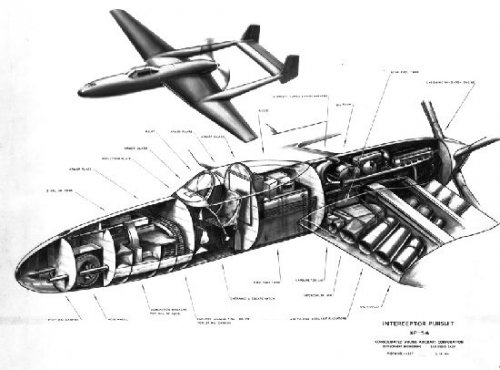

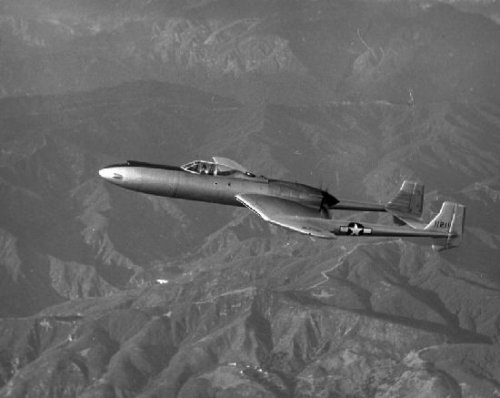

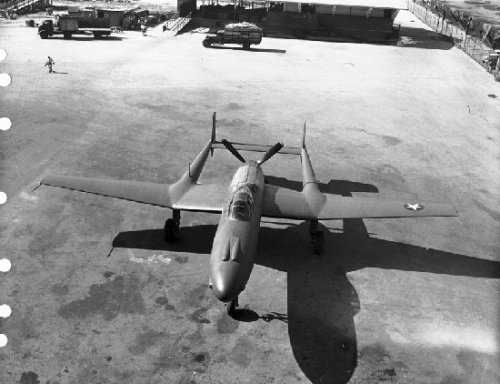

The San Diego Air and Space Museum Archive on Flickr has a wonderful selection of Vultee XP-54 "Swoose Goose" drawings and photographs. Perhaps you could write or call them if you need a high resolution image for an article?

URL: http://www.flickr.com/search/?q=swoose&w=49487266%40N07

Sources:
http://www.flickr.com/photos/sdasmarchives/4556605454/
http://www.flickr.com/photos/sdasmarchives/4556605500/
http://www.flickr.com/photos/sdasmarchives/4556605838/
http://www.flickr.com/photos/sdasmarchives/4555977151/
http://www.flickr.com/photos/sdasmarchives/4555977435/
http://www.flickr.com/photos/sdasmarchives/4556606144/
http://www.flickr.com/photos/sdasmarchives/4555976325/
http://www.flickr.com/photos/sdasmarchives/4556605990/


Attachments

  • 4556605990_1f285b4575_o.jpg
    25.3 KB · Views: 74
  • 4555976325_7bd8471c94_o.jpg
    29.2 KB · Views: 68
  • 4556606144_134b3ab631_o.jpg
    39 KB · Views: 79
  • 4555977435_d45b6f4c61_o.jpg
    45.4 KB · Views: 77
  • 4555977151_2b1f32cf2b_o.jpg
    27.5 KB · Views: 77
  • 4556605838_ab0f227ec7_o.jpg
    29.3 KB · Views: 89
  • 4556605500_241f230c5b_o.jpg
    39.9 KB · Views: 426
  • 4556605454_31885f426d_o.jpg
    28.4 KB · Views: 427

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
802
Website
deeptowild.blogspot.com
Vultee XP-54 Swoose Goose

The XP-54 Swoose Goose, Vultee Model 70, was designed as a fast interceptor using the Pratt & Whitney X-1800-4AG engine. When the engine program was canceled, the aircraft was redesigned for the Lycoming XH-2470 and redesignated Vultee Model 84. The first of two XP-54s built made its initial flight on Jan. 15, 1943, and flew 86 times before it was grounded by engine problems. The second aircraft flew only once.

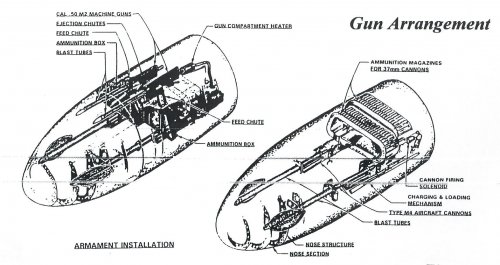

The XP-54 nose section had a very unusual design. It tilted slightly upward when firing its 37mm cannon to increase the firing range while the .50-cal. machine guns were tilted down at the same time.

Technical Notes
Armament: Two 37mm cannon and two .50-cal. machine guns
Engine: Lycoming XH-2470 of 2,200 hp
Maximum speed: 381 mph at 28,500 ft.
Service ceiling: 37,000 ft.
Range: 500 miles
Span: 53 ft. 10 in.
Length: 54 ft. 9 in.
Height: 13 ft. 0 in.
Weight: 15,262 lbs. empty/18,233 lbs. gross

Remarks
Two built. Pusher aircraft (S/N 41-1210 and 42-108994)

Source:
http://www.nationalmuseum.af.mil/factsheets/factsheet.asp?id=2258


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
644
Triton said:
Two built. Pusher aircraft (S/N 41-1210 and 42-108994)

Yeah. But the second aircraft, for some reason, never sported the correct serial... It had 41-1211 instead, which seemed logical since it followed after the first prototype's own...

One thing that is sadly forgotten about this odd but beautiful aircraft is that it was actually the WINNER of the competition against the much better known Curtiss XP-55 Ascender and Northrop XP-56 Silver Bullet/Black Bullet. In fact it was meant to be produced with a more powerful Tornado engine as the Model 84 (and procured as the P-68) but this never came to be, and the Air Force reverted to more "conventional" types (if the Twin Mustang can be called that...). An intermediary version called the Model 78 Shrike has also been quoted, but I do not know much about it. Info or graphics, anyone?


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
44
Website
cmeunier.chez-alice.fr
The V.78 is depicted in my book "Forked Ghosts" (freely downloadable at http://cmeunier.chez-alice.fr/Free_EoFG_MV.htm )
and the preliminary V.70 is on my update site http://cmeunier.chez-alice.fr/update_FG.htm
A Shrike (another one?) was a Northrop twin-boom before the XP-61 (source: Airpower, Der Deutsche Sportflieger).


Attachments

  • r_v78.JPG
    66.8 KB · Views: 30

Hammer Birchgrove

ACCESS: Top Secret
Joined
May 13, 2009
Messages
583
Reaction score
9
Reminds me of the Saab J/A 21.

http://en.wikipedia.org/wiki/Saab_21

I assume Vultee had similar reasons for the twin boom pusher design: freeing up space for guns in the nose and improving forward view (at the expense of having no 360 degrees vision).


sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
686
Reaction score
344

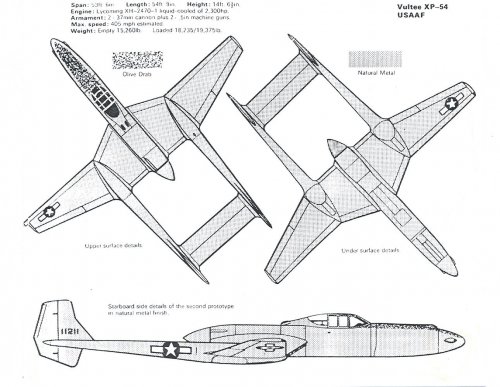

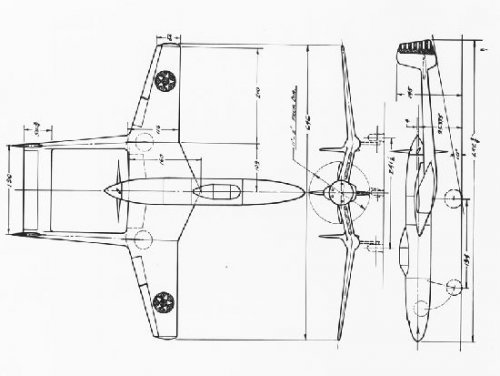

From American Secret Pusher Fighters of World War II: XP-54, XP-55, and XP-56, by Gerald Balzer

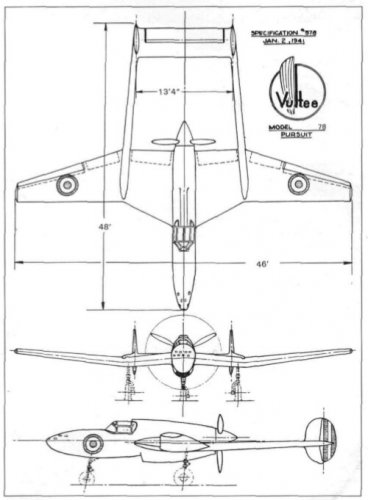

First drawing is one of the early model 70 designs

The other two are the model 78

Lots of other good stuff on this bird in that book


Attachments

  • tmp_1039-IMG_20150930_1123191467161334.jpg
    53.8 KB · Views: 86
  • tmp_1039-IMG_20150930_112250-612367211.jpg
    44.9 KB · Views: 85
  • tmp_1039-IMG_20150930_112354450680292.jpg
    74.2 KB · Views: 72

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,740
Reaction score
3,325
Hi!
https://www.youtube.com/watch?v=hTK0frRRWsI


Attachments

  • Vultee-XP-54.gif
    214.1 KB · Views: 86

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,740
Reaction score
3,325
How about move this topic to the Early Aircraft Projects board.


Johnbr

ACCESS: Top Secret
Joined
May 6, 2007
Messages
758
Reaction score
192

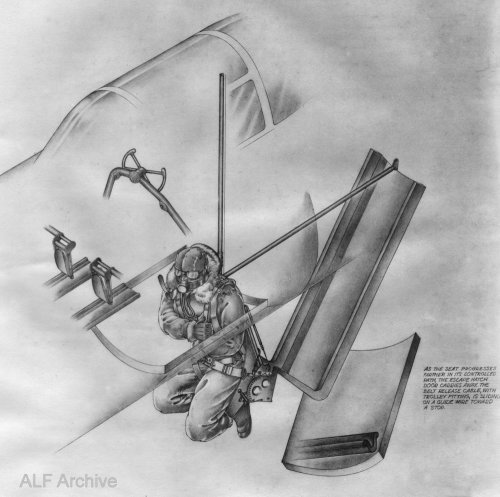

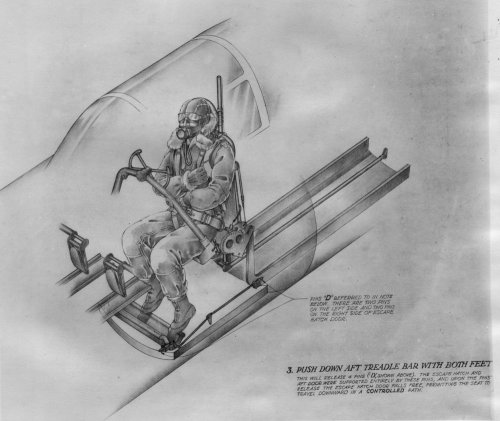

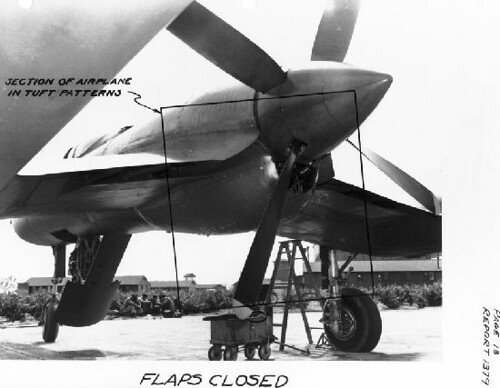

Great photos here of the xp-54.

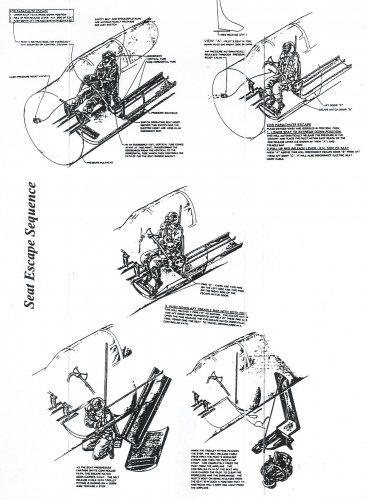

http://aerospacelegacyfoundation.com/new-page/


Attachments

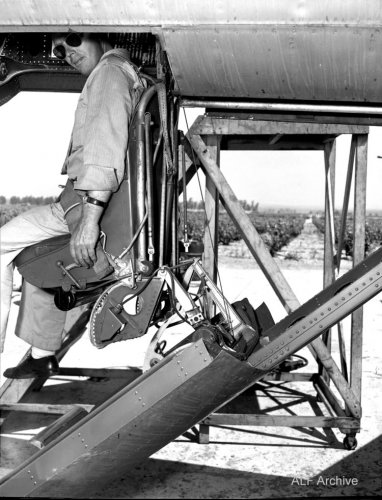

  • Vultee+XP-54 seat. out.jpg
    Vultee+XP-54 seat. out.jpg
    167.5 KB · Views: 49
  • Vultee+XP-54 seat.jpg
    Vultee+XP-54 seat.jpg
    138.1 KB · Views: 46
  • Vultee+XP-54-seat out down.jpg
