Hi,

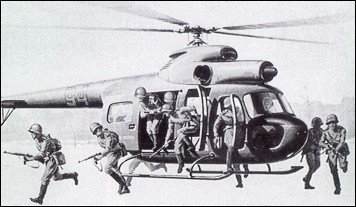

the Mil Mi-22 originally was a project for light utility
helicopter of 1965,has anyone more informations
about Myasishchev M-150 cargo-passenger aircraft ?.


Attachments

Just call me Ray

CLEARANCE: Top Secret
Joined
Aug 26, 2007
Messages
680
Reaction score
0
hesham said:
Hi,

the Mil Mi-22 originally was a project for light utility
helicopter of 1965,has anyone more informations
I can only guess, but it looks like a single turbine version of the Mi-2, only with a much larger turbine than the ones that power the Mi-2 (which is continuously criticized for being underpowered, maybe the large turbine would've solved that)


Apophenia

CLEARANCE: Top Secret
Joined
Jul 25, 2007
Messages
2,106
Reaction score
37
Exactly right. The Mi-22 was indeed to have been a single-engined Mi-2. But notice too that the Mi-22 finally got rid of the Mi-1 dynamics and had a new four-bladed rotor. A pit that we can't see the tail rotor in that image.

"At the same time [as design work was done on Mi-24], Mil was working on the Mi-22 lighter helicopter project on its own initiative. It was to be powered by a single 1,250 HPGTD-10 engine and was to have a take-off weight of 4.3 tons. Work on this project proceeded until the first Mi-24 was flown. Then the "Mi-22" designation was reassigned to an airborne command post based on the Mi-6 heavy helicopter ["Hook C"]."

Source: Michal Fiszer, The mighty Mi-24: the world's most widely used combat helicopter soldiers on, Journal of Electronic Defense, May 2005

By the way, I believe that the HPGTD-10 still exists in a way as the core of the Saturn GPA-4 gas-pumping unit. http://www.airshow.ru/expo/380/prod_599.htm


Just call me Ray

CLEARANCE: Top Secret
Joined
Aug 26, 2007
Messages
680
Reaction score
0
Apophenia said:
Exactly right. The Mi-22 was indeed to have been a single-engined Mi-2. But notice too that the Mi-22 finally got rid of the Mi-1 dynamics and had a new four-bladed rotor. A pit that we can't see the tail rotor in that image.

"At the same time [as design work was done on Mi-24], Mil was working on the Mi-22 lighter helicopter project on its own initiative. It was to be powered by a single 1,250 HPGTD-10 engine and was to have a take-off weight of 4.3 tons. Work on this project proceeded until the first Mi-24 was flown. Then the "Mi-22" designation was reassigned to an airborne command post based on the Mi-6 heavy helicopter ["Hook C"]."
Huh, that's interesting. IMHO, they would've been better off with something like the Mi-22, since a pure troop transport slotting below the Mi-8 (like our own Huey) was something they sorely lacked.


Apophenia

CLEARANCE: Top Secret
Joined
Jul 25, 2007
Messages
2,106
Reaction score
37
Just call me Ray said:
Huh, that's interesting. IMHO, they would've been better off with something like the Mi-22, since a pure troop transport slotting below the Mi-8 (like our own Huey) was something they sorely lacked.

"The Mi-2 was the USSR's answer to the US Bell UH-1 Huey."
http://www.vectorsite.net/avmil4.html

If so, avery underpowered Soviet Huey analogue!

BTW, according to Michal Fiszer, the Mi-22 was killed by changing requirements for greater speed and some armour protection for the cabin. In other words, the Soviets wanted the Mi-24 instead.


frank

CLEARANCE: Top Secret
Joined
May 20, 2006
Messages
617
Reaction score
3

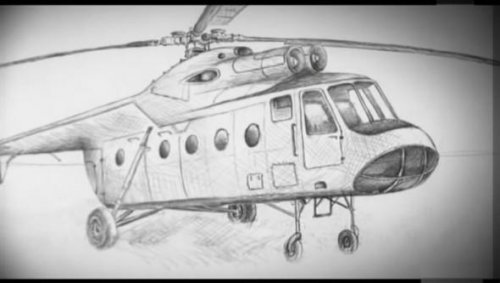

And the original Mi-24 design looked very similar to the Huey.


Just call me Ray

CLEARANCE: Top Secret
Joined
Aug 26, 2007
Messages
680
Reaction score
0
Apophenia said:
"The Mi-2 was the USSR's answer to the US Bell UH-1 Huey."
http://www.vectorsite.net/avmil4.html
Yeah, not really. I'd dare to say that the Mi-2 is more a LongRanger analogue, two engines or not.


Apophenia

CLEARANCE: Top Secret
Joined
Jul 25, 2007
Messages
2,106
Reaction score
37
Just call me Ray said:
Yeah, not really. I'd dare to say that the Mi-2 is more a LongRanger analogue, two engines or not.
The Mi-2 was certainly less capable than the Huey. But I'm not sure that I'd agree that "Hoplite" was a LongRanger analogue. The Mi-2 appears a decade after the Bell 204 but almost ten years before the LongRanger.

The initial Bell 206L had almost half the power of a Mi-2. But it's more about the size.

Some numbers:

Aircraft rotor dia. disc area empty MTOW Troops

Bell 204 Huey 14.63 m 168 m2 2414 kg 4765 kg 10
Mi-2 Hoplite 14.60 m 167 m2 2370 kg 3700 kg 8
Bell 206L 11.28 m 100 m2 1031 kg 2008 kg 5

So, the Mi-2 isn't really a great analogue of either US helicopter. To my eye, there is more similarities to the 204 than to the 206L


Just call me Ray

CLEARANCE: Top Secret
Joined
Aug 26, 2007
Messages
680
Reaction score
0
I know, I was just saying that in reality given how much power it has, it's probably practically closer to the LongRanger than the Huey. Neither the Mi-2 nor 206 have great density altitude performance.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,629
Reaction score
626
Hi,

also in that Russian site,a many Mil helicopter projects;

Heavy lift a project of heavy lift helicopter with rotor
diameter 60m,1950s.
M-3 two-seat helicopter (not related to Mi-3).
V-50 heavy assault transport helicopter powered by one
ASH-62 engine,led to Mi-6.
Plant 329 light helicopter powered by turbojet engine.
Mi-26 early project with four D-136 engines.
Mi-383 military Mi-38.

http://www.militaryparitet.com/nomen/russia/avia/data/ic_nomenrussiaavia/8/

http://www.militaryparitet.com/nomen/russia/avia/data/ic_nomenrussiaavia/9/

http://www.militaryparitet.com/nomen/russia/avia/data/ic_nomenrussiaavia/60/


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,739
Reaction score
150
Hesham, are you going to repost all contents of http://www.militaryparitet.com here?


Petrus

CLEARANCE: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
509
Reaction score
18

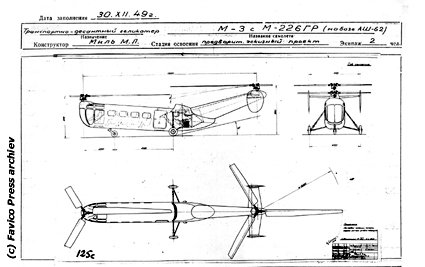

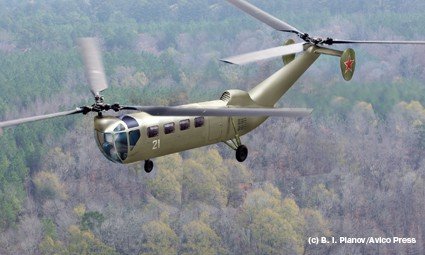

Just as a footnote to the history of Mil desings, a project of a two-rotor (!) helicopter whose designation was M-3. It was to have a M-226GR engine (derived from the ASh-62 engine). Its all-up weight was to be 4100 kg.

A drawing (unfortunately very small) of the desing attached.

(Perhaps somebody knows more about it?)

Best regards,
Piotr

EDIT: In some Russian sources the design is also referred to as the GM-3 (and its engine as the AI-226). According to the sources the helicopted was a six-seater and it had rotors (perhaps including rotor heads) from the Mi-1.

Here you've got a link to a chapter on early Soviet helicopters from the "History of Aircraft Construction in the USSR 1951-1965" (in Russian) where you may find brief info on the GM-3.

http://www.airwar.ru/other/shawrov/htmls/glava11.html


Attachments

Nik

CLEARANCE: Secret
Joined
Jul 15, 2009
Messages
382
Reaction score
0

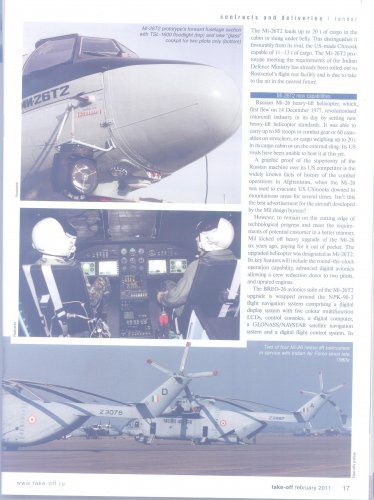

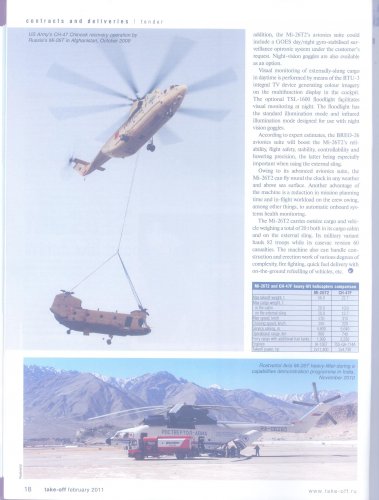

Had a '???' moment there: The 26T2-2 piccy, seen at a glance, appears to show an 'Osprey' tilt-rotor design...

Optical illusion, of course...
;)


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,629
Reaction score
626
Petrus said:
Just as a footnote to the history of Mil desings, a project of a two-rotor (!) helicopter whose designation was M-3. It was to have a M-226GR engine (derived from the ASh-62 engine). Its all-up weight was to be 4100 kg.

A drawing (unfortunately very small) of the desing attached.

(Perhaps somebody knows more about it?)

Best regards,
Piotr

From my dears Ucon and Stingray;
http://stingraysrotorforum.activeboard.com/t51041603/mil-m-3-helicopter-project/


Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
51
Topic consolidated with posts from older thread. Please use this for post-war projects that are insufficiently documented for now to have their own topic.


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
7,976
Reaction score
91

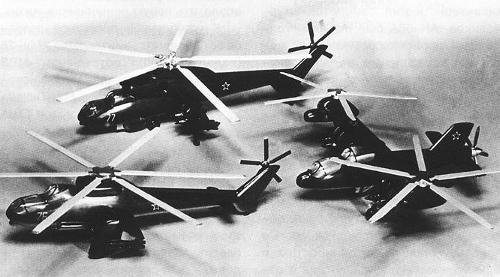

The twin rotor pre-project for the Mi 28 from the photo posted by hesham:


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,629
Reaction score
626
Great drawing my dear Jemiba.


foiling

CLEARANCE: Secret
Joined
Aug 12, 2007
Messages
274
Reaction score
1

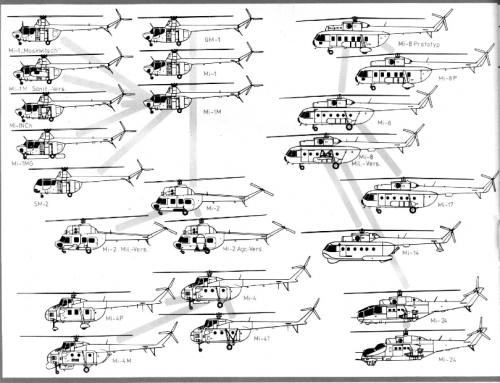

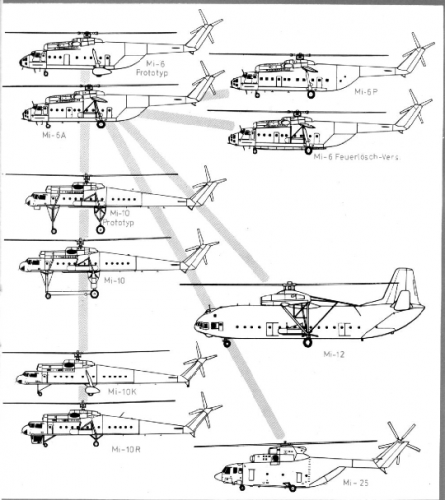

Great drawings of the Mi-28, Jemiba. Unusual-looking craft, And, thanks for the side views of the various Mil helicopters - love them.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,629
Reaction score
626
Hi,


the Mil Mi-5 was a project of light helicopter powered by one 750 hp engine and
had a takeoff weight of 2400 kg,developed from Mi-1 in 1957.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,629
Reaction score
626
For the mil Mi-3,


there is was two projects for it;


Mi-3 was developed from Mi-2 With the increase in cross section of the fuselage,
the rear cargo doors of the cab. Project, 1964 (with two GTD-350 engines).


Mi-3 was light multipurpose,together with Poland-based development of the Mi-2. Project 1971
(with two GTD-850 engines).


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,629
Reaction score
626
Does anyone hear or has a drawings to those projects;


Mi-30 with three engines,TV7-117 or D-27.


Mi-34M1 & M2 twin turbine six-seat helicopter.


http://www.militaryparitet.com/nomen/russia/avia/data/ic_nomenrussiaavia/60/


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,629
Reaction score
626

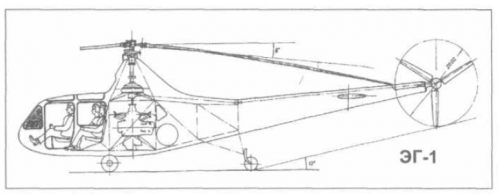

From Kryl'ya Rodone 12/2002,


here is the Mil EG-1 project of 1945,which led to develop Mi-1.


Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
51
hesham said:
here is the Mil ZG-1 project of 1945,which led to developed Mi-1.
This doesn't say "ZG-1" but "EG-1".


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,629
Reaction score
626
OK my dear Skyblazer,


I will correct it.


athpilot

Fly me to the moon...
Joined
Nov 18, 2012
Messages
241
Reaction score
4

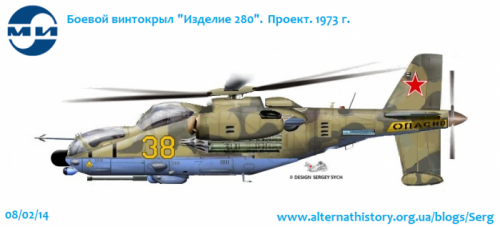

Yes. It´s just a rendering (by Sergey Sych) of the twin rotors you and Jemiba showed in other pictures before.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,629
Reaction score
626
Thank you Athpilot.


igor-mich

CLEARANCE: Confidential
Joined
May 10, 2010
Messages
183
Reaction score
8
The greater request!
To not use the information from a site ' alternathistory.org.ua '. There children dream much and if you badly know Russian can accept this delirium for the truthful information.


Antonio

CLEARANCE: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,363
Reaction score
28
Dear forum members,

Please do not post here everything you find in internet.

This forum is for real unbuilt projects, nothing else.

There are forums for whatif and alternate concepts and there are forums for pure artist, both serious and funny aircraft concepts. There are even people inventing fictional countries. Everything's right but just one thing: do not mix fiction with reality because that makes a trouble for the serious historian research.

This should be a forum for historical research otherwise it will loose its value.

Please do not flood the forum with posts. "Posting" isn't an olympic competition. Take your time and decide if your finding is really valuable to be added to this forum. And always remember that source citation is capital for research purposes.

In the next days I'm going to start deleting pure fictional drawings


athpilot

Fly me to the moon...
Joined
Nov 18, 2012
Messages
241
Reaction score
4
I only use this drawing etc. from the mentioned site than I´m sure that they are not fictional. I made it clear above. Look at the graphics posted by Jemiba and hesham. This is just an artwork of it. No need to cry. We had this talk so much often before here. Do you speak russian?


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,266
Reaction score
414
athpilot said:
I only use this drawing etc. from the mentioned site than I´m sure that they are not fictional. I made it clear above. Look at the graphics posted by Jemiba and hesham. This is just an artwork of it. No need to cry. We had this talk so much often before here. Do you speak russian?

Sorry but, no, you are wrong.


Any artwork not created by the manufacturer or a reputable artist for a magazine or book is a "User Artwork" and we have a section for that. You should not pollute the main Projects sections with artwork of dubious provenance.


If you don't like this answer, please note it is my forum and the rules are quite clearly stated.


athpilot

Fly me to the moon...
Joined
Nov 18, 2012
Messages
241
Reaction score
4
PaulMM (Overscan) said:
athpilot said:
I only use this drawing etc. from the mentioned site than I´m sure that they are not fictional. I made it clear above. Look at the graphics posted by Jemiba and hesham. This is just an artwork of it. No need to cry. We had this talk so much often before here. Do you speak russian?

Sorry but, no, you are wrong.


Any artwork not created by the manufacturer or a reputable artist for a magazine or book is a "User Artwork" and we have a section for that. You should not pollute the main Projects sections with artwork of dubious provenance.


If you don't like this answer, please note it is my forum and the rules are quite clearly stated.
Hmm... this is your answer to an serious meant contribution? ??? OK if you want it... it´s your room, you´re the boss.


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,266
Reaction score
414
I could draw a picture of a Hawker P.1121 and post it. Its a drawing of a "real project", but I suck at drawing. The picture is inaccurate. People then post that picture elsewhere, saying its a picture of the P.1121 and cite the forum as a source. That isn't good.


There is a separate section for User Artwork. This is a much better home for any fan-art.


The forum has been going successfully for more than 9 years operating on these principles.


boxkite

CLEARANCE: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
818
Reaction score
25

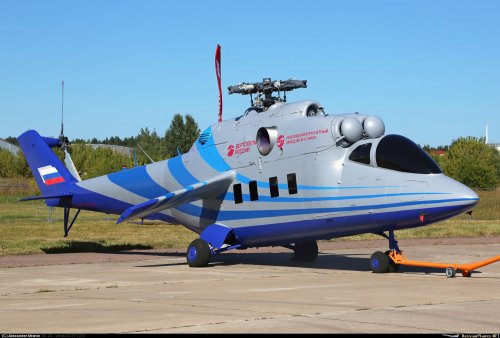

Maybe this Mi-24 mock-up(?) will be presented at MAKS 2015 - any idea of its purpose? Mi-X3 testing?

Source: http://russianplanes.net/id171315


Attachments

yasotay

CLEARANCE: Top Secret
Senior Member
Joined
Oct 19, 2006
Messages
1,954
Reaction score
51
It was the test bed for high speed rotorcraft research which was just cancelled this week. If not cancelled then in hibernation.
