Various Douglas airliner and transport projects

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,971
Reaction score
5,260
Dear Archibald,

you forget also Douglas D-956 was a big airliner as D-950 and D-952.


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
5,772
Reaction score
3,990
Even better!! As i mentionned, I know these project only via Science&Vie... and they only mentionned D-950 952. I really want to see a 3-view of these monsters!!


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,971
Reaction score
5,260
Hi,

We know the Douglas model D-1925 and later D-2086 were became DC-9,

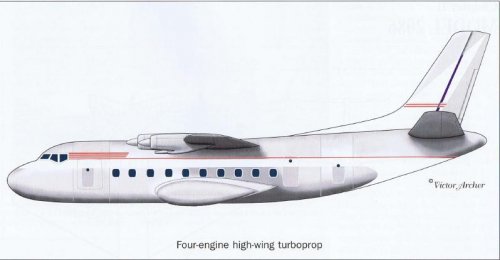

the Douglas D-1940 was a four engined high wing light transport aircraft
project intended to replace the DC-3,it was powered by RR Dart engines.

The Douglas Model-1906 & 1906A were carrier-based light transport
and multi-purpose aircraft project and

The Douglas D-1881 and D-1910 were also airliner projects.


Attachments

  • Douglas D-1940.JPG
    Douglas D-1940.JPG
    26 KB · Views: 1,667

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,971
Reaction score
5,260
Hi,

I know we spoke about Douglas Model-950 and Model-952 before
but there is only their drawings.


Attachments

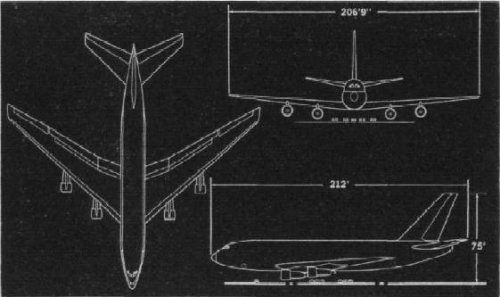

  • Model-950.JPG
    25.4 KB · Views: 1,514

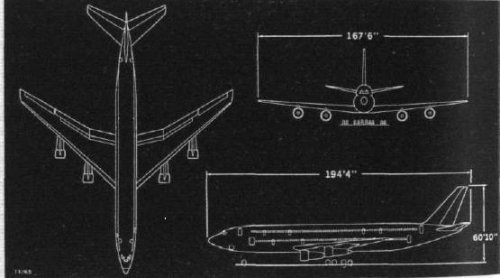

  • Model-952.JPG
    28.8 KB · Views: 1,477

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
708

Attachments

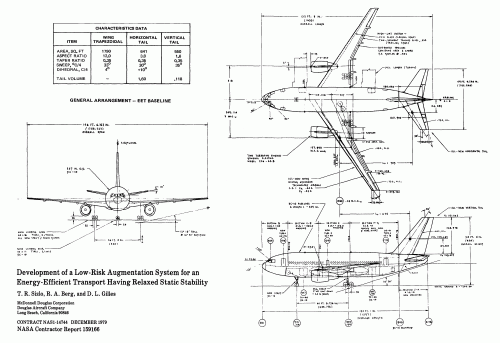

  • Energy-Efficient Transport (EET).gif
    Energy-Efficient Transport (EET).gif
    232.7 KB · Views: 474

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
708

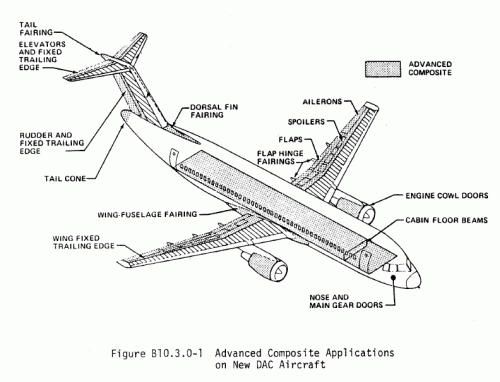

While going through a Douglas Aircraft Company report dated August 1982, I came across this design:

Figure B10.3.0-1 indicates the composite applications to be considered for new DAC transport aircraft. Primary structures made from composites are still in the development stages. The usage of composites to replace production components on in-service DAC aircraft has been considered.

Has anyone seen this design before? And does anyone know if it was purely hypothetical, or if it corresponds to a projected McDonnell Douglas airliner?


Attachments

  • New DAC Aircraft (August 1982).gif
    New DAC Aircraft (August 1982).gif
    36.6 KB · Views: 123

carsinamerica

ACCESS: Confidential
Joined
Feb 19, 2010
Messages
113
Reaction score
22
Stargazer2006 said:
While going through a Douglas Aircraft Company report dated August 1982, I came across this design:

Figure B10.3.0-1 indicates the composite applications to be considered for new DAC transport aircraft. Primary structures made from composites are still in the development stages. The usage of composites to replace production components on in-service DAC aircraft has been considered.

Has anyone seen this design before? And does anyone know if it was purely hypothetical, or if it corresponds to a projected McDonnell Douglas airliner?

I would bet that you're looking at the MDF-100, a hybrid of the Fokker F-29 design with input from McDonnell Douglas. The F-29 dates to 1978-ish, and the MDF-100 to 1981.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,971
Reaction score
5,260
Hi,


an artist drawing to Douglas Model-1940.


Attachments

  • Model-1940.JPG
    30.4 KB · Views: 715

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
708
hesham said:
The Douglas D-1881 and D-1910 were also airliner projects.

We'd need some proof to back it up, but my list has D-1881 as the inhouse designation for the DC-8, while DTS-1910A (DC-8-1910A) was an unspecified variant, possibly a project only. DTS-1915 was a Type Specification for a version of the DC-8 as a high-speed transport for MATS.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,971
Reaction score
5,260
hesham said:
I know we spoke about Douglas Model-950 and Model-952 before
but there is only their drawings.

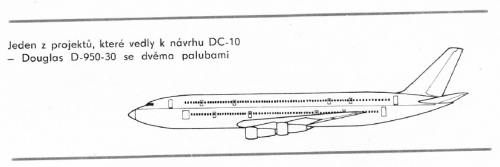

Here is the D-950-30.

Civilni Letadla 2


Attachments

  • D-950-30.png
    140.7 KB · Views: 102
