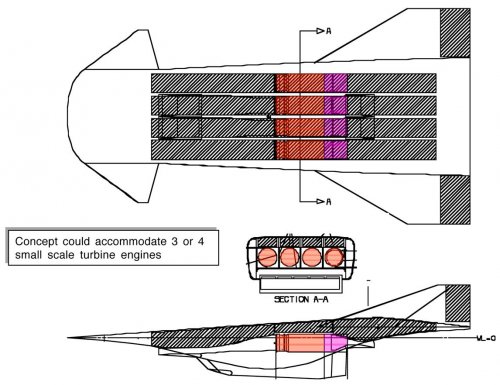

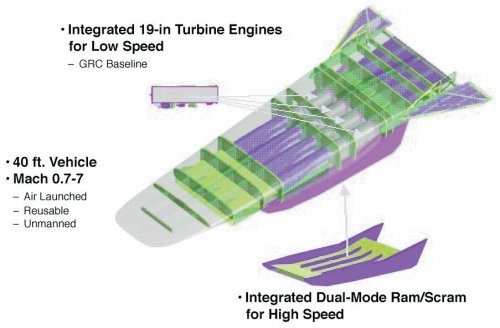

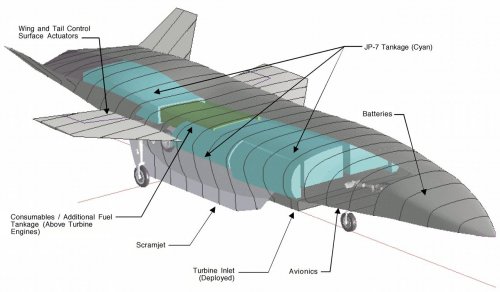

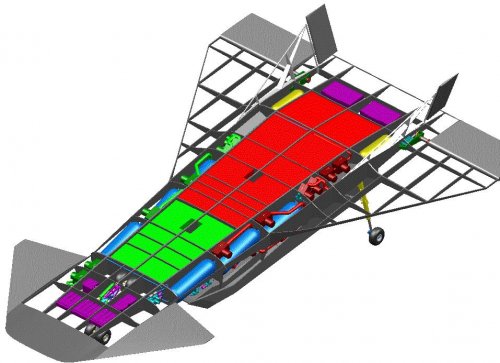

As you probably know, Reusable Combined Cycle Flight Demonstration (RCCFD) Project, known as the X-43B, 'would demonstrate an engine capable of operating in several modes. The X-43B’s combined cycle engine would function as a normal turbojet at low altitudes and switch to scramjet mode at high altitudes and speeds. Planned X-43B flights were to occur sometime in 2009 after the completion of another Hyper-X test vehicle, the X-43C.'

X-43B was cancelled. Boeing's contender (canard) was a preffered concept. Bot how other did look like?

Source
NASA HYPERSONIC FLIGHT DEMONSTRATORS — OVERVIEW, STATUS, AND FUTURE PLANS
by Paul L. Moses, Vincent L. Rausch, Luat T. Nguyen, and Jeryl R. Hill
NASA Langley Research Center, Hampton, VA, USA

54th International Astronautical Congress of the International Astronautical Federation,
the International Academy of Astronautics, and the International Institute of Space Law
29 September - 3 October 2003, Bremen, Germany


Attachments

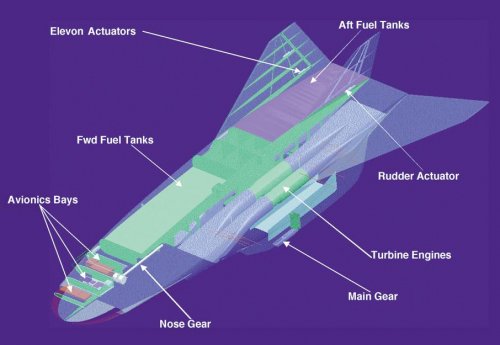

  • RCCFD Boeing.jpg
    RCCFD Boeing.jpg
    133 KB · Views: 145
  • RCCFD Boeing1.jpg
    RCCFD Boeing1.jpg
    275.5 KB · Views: 155
  • RCCFD Boeing2.jpg
    RCCFD Boeing2.jpg
    12.1 KB · Views: 123

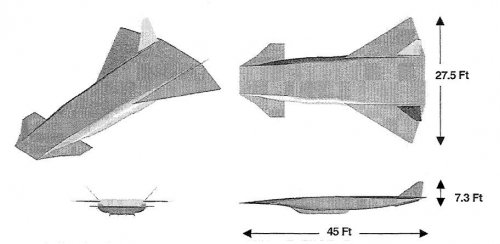

  • RCCFD Lockheed.jpg
    RCCFD Lockheed.jpg
    50.1 KB · Views: 134

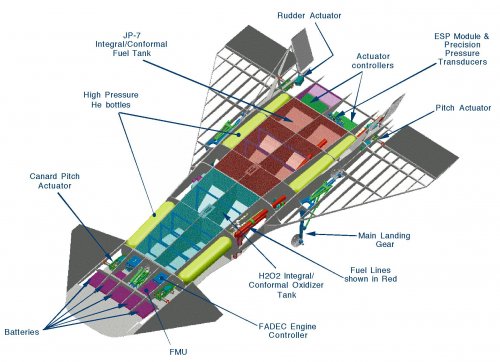

  • RCCFD NG.jpg
    RCCFD NG.jpg
    86.1 KB · Views: 136
  • RCCFD NASA Glenn Research Center.jpg
    RCCFD NASA Glenn Research Center.jpg
    51 KB · Views: 70

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,085
Reaction score
982

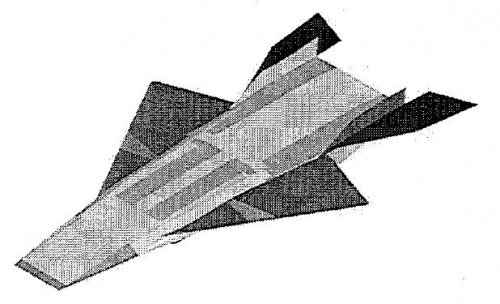

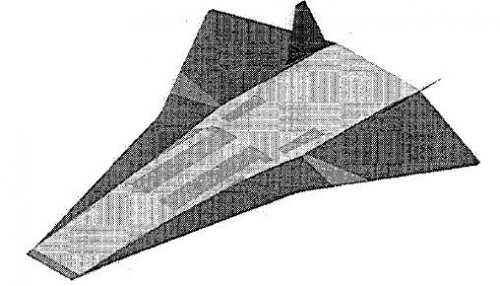

...And that's how Boeing's RCCFD proposal has evolved from semi-classical NASP-type shape (with hard MDC roots) into canard wing configuration till 2001.

Source
CONFIGURATION DEVELOPMENT FOR A HYDROCARBON FUELED HYPERSONIC CRUISE VEHICLE
Donald B. Johnson, Thomas J. Bogar
The Boeing Company, St. Louis, MO
James L. Hunt
NASA Langley Research Center, Hampton, VA


Attachments

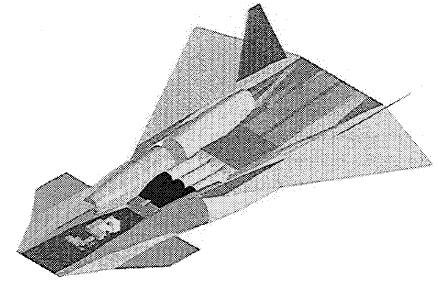

  • RCCFD Boeing evo 5b.jpg
    RCCFD Boeing evo 5b.jpg
    24.5 KB · Views: 56
  • RCCFD Boeing evo 5a.jpg
    RCCFD Boeing evo 5a.jpg
    50.5 KB · Views: 57

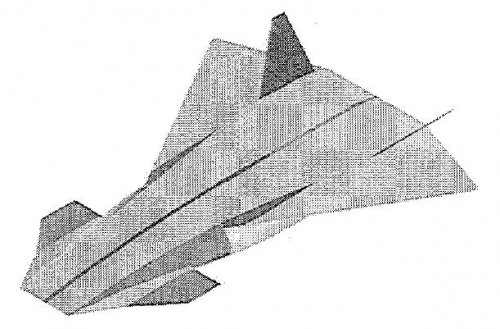

  • RCCFD Boeing evo 5.jpg
    RCCFD Boeing evo 5.jpg
    51.9 KB · Views: 43
  • RCCFD Boeing evo 4.jpg
    RCCFD Boeing evo 4.jpg
    44.1 KB · Views: 40

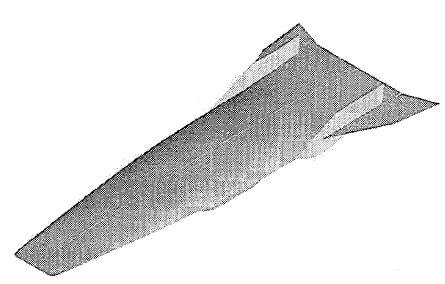

  • RCCFD Boeing evo 3.jpg
    RCCFD Boeing evo 3.jpg
    30.9 KB · Views: 48
  • RCCFD Boeing evo 1.jpg
    RCCFD Boeing evo 1.jpg
    16.9 KB · Views: 40

KJ_Lesnick

ACCESS: Top Secret
Joined
Feb 13, 2008
Messages
1,036
Reaction score
30
Re: Various Contractors Reusable Combined Cycle Flight Demonstrator (X-43B) conc

The turbojet duct gets closed off at ramjet speeds right?

KJ Lesnick


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,085
Reaction score
982

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,085
Reaction score
982

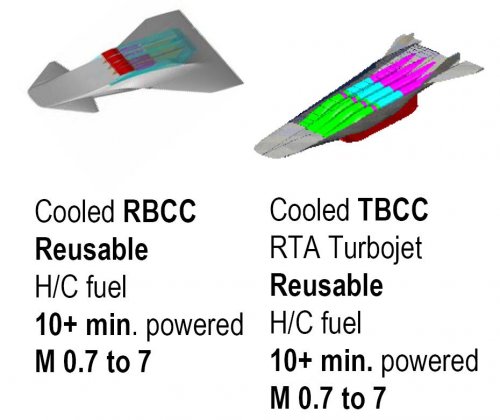

well, citing - I was right for TBCC and wrong for RBCC

Two different engine systems are being considered for the X-43B.

The first is a rocket based combined cycle (RBCC) engine, which is a scramjet with rockets imbedded in the internal flow-path. With this engine approach, the rockets are operated initially, up to a flight speed of Mach 3 or 4. The rockets are then turned off, and the engine is operated in ram/scramjet mode to Mach 7-8 for hydrocarbon fuel, or Mach 12-15 for hydrogen fuel.

The second is a turbine based combination cycle (TBCC) system, which uses separate low and high-speed engines. Hydrocarbon-fueled
turbojet or turbo-ramjet engines are used for flight up to Mach 4, and then separate ram/scramjet engines are used for flight up to Mach 7-8 (hydrocarbon fuel) or Mach 12-15 (hydrogen fuel).


Attachments

  • X-43B RBCC.jpg
    X-43B RBCC.jpg
    98.7 KB · Views: 39
  • X-43B TBCC.jpg
    X-43B TBCC.jpg
    109.3 KB · Views: 44
  • X-43B RBCC_TBCC.jpg
    X-43B RBCC_TBCC.jpg
    60.7 KB · Views: 35

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,085
Reaction score
982

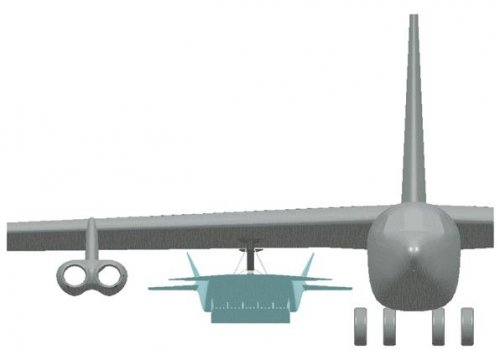

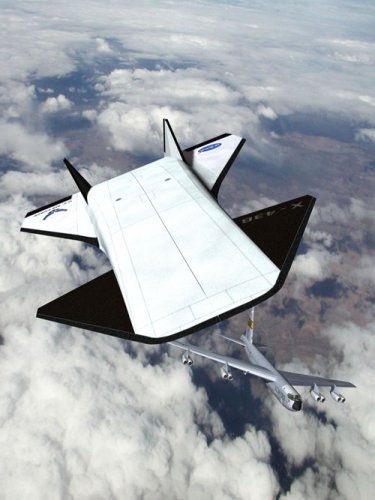

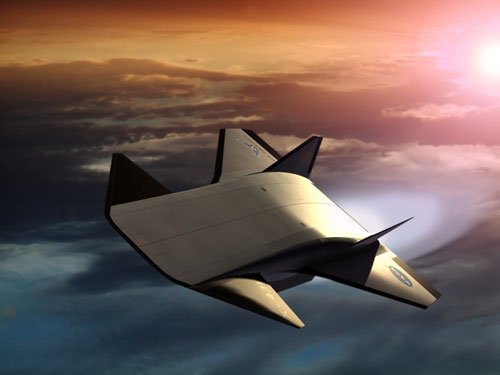

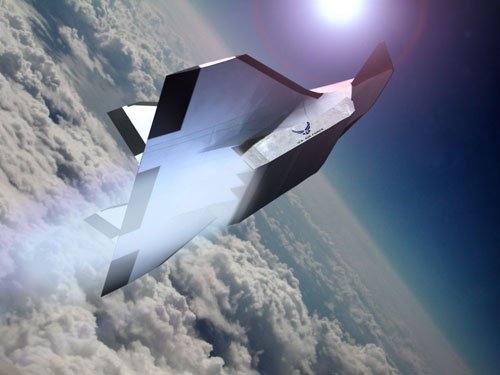

Artist's impressions of X-43B
Hi-res images available at http://www.msfc.nasa.gov/news/news/photos/2002/photos02-182.html


Attachments

  • x-43b-sunset2_m.jpg
    22.9 KB · Views: 36
  • x-43b-aft_m.jpg
    31.8 KB · Views: 39
  • x43b_b52_m.jpg
    59 KB · Views: 43

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
562
Website
deeptowild.blogspot.com

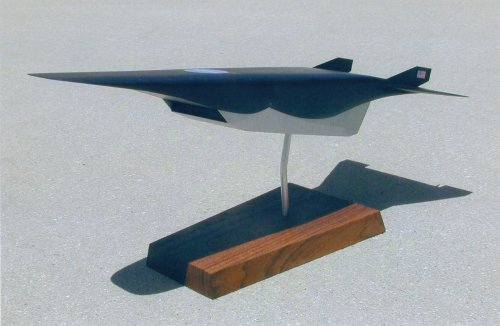

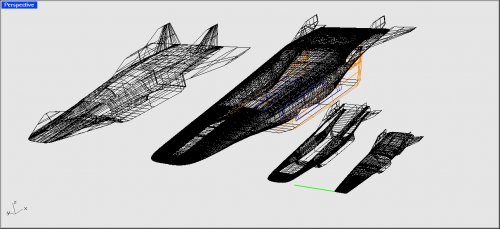

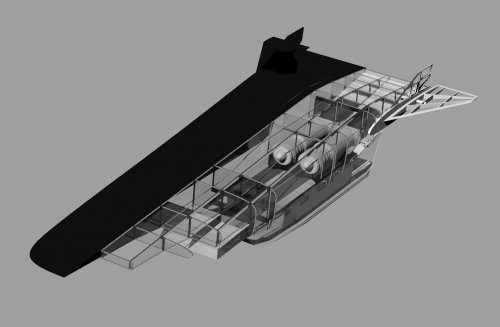

Attachments

  • $(KGrHqZHJCYF!Io-260mBQeNPf(htQ~~60_57.JPG
    401.9 KB · Views: 61
  • $T2eC16dHJI!E9qSO9)KFBQeNPj)DYw~~60_57.JPG
    133.9 KB · Views: 62
  • $(KGrHqNHJDkFBjY4PYeJBQeNPpVW,g~~60_57.JPG
    239.6 KB · Views: 63
