Hi guys!

Let me try this again. Having seen material alluding to the US Navy testing the P-51 for carrier usgae I came up with this profile:



As I understand it the project was shelved because of costs of converting the Mustang to carrier use and the fact that it was a liquid cooled engine.

D


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,893
Reaction score
3,811
Website
www.amazon.com
Re: USN P-51D

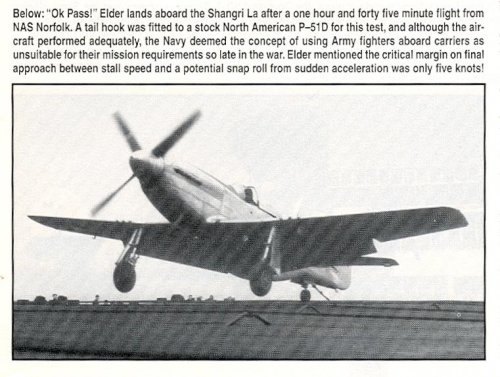

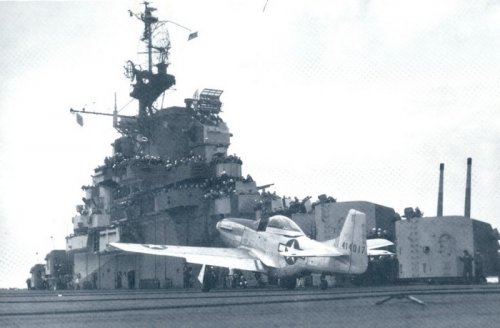

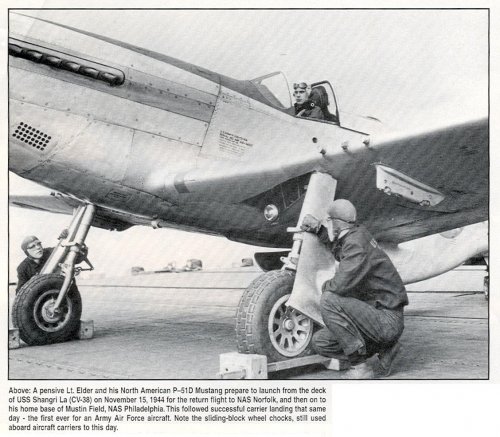

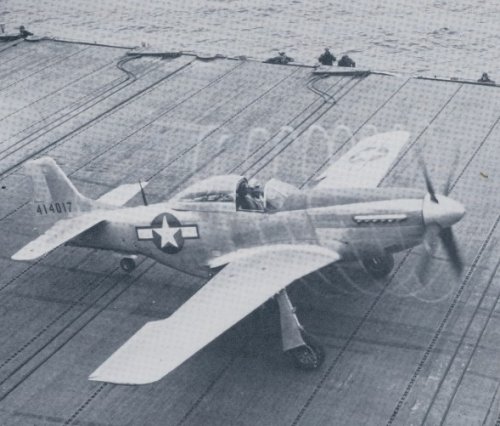

Some info here


Attachments

  • Escanear0001.jpg
    613.8 KB · Views: 527
  • Escanear0002.jpg
    212 KB · Views: 516
  • Escanear0003.jpg
    84 KB · Views: 518
  • Escanear0004.jpg
    64 KB · Views: 544

damian2

ACCESS: Restricted
Joined
Oct 8, 2009
Messages
36
Reaction score
5
Re: USN P-51D

Thanks for that!! I wonder what the designation would have been? ETF-51D seems like a mouthful :p

D


frank

ACCESS: Top Secret
Joined
May 20, 2006
Messages
617
Reaction score
20
Re: USN P-51D


USN? Most likely FJ-1.

damian2 said:
Thanks for that!! I wonder what the designation would have been? ETF-51D seems like a mouthful :p

D


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
763
Re: USN P-51D

Indeed, since the Fury was not even in the early stages, a navalized Mustang would most likely have been the FJ. In that case the Fury would have been the F2J...


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
3,254
Reaction score
1,065
Website
beyondthesprues.com
Re: USN P-51D

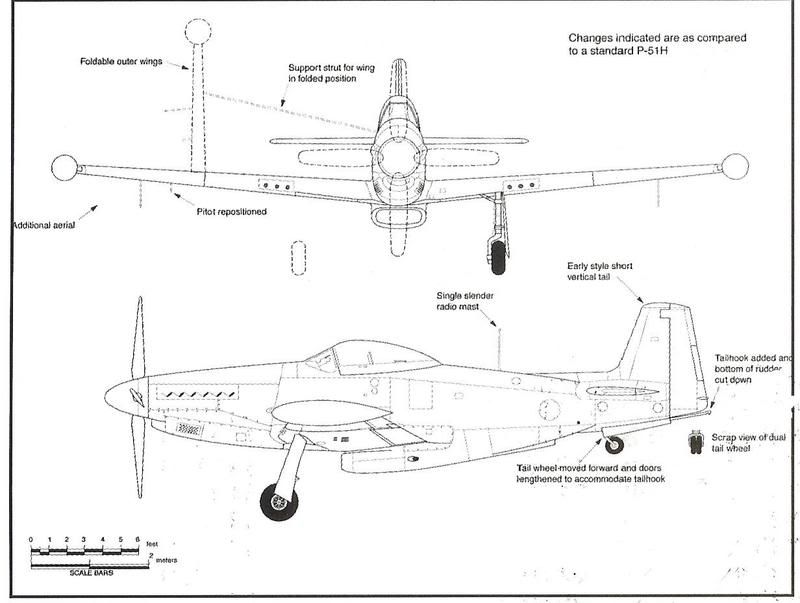

Speaking of Naval Mustangs, here is a drawing showing the proposed NA-133, Navalised P-51H:



Regards,

Greg


BSG-75

You can teach monkies to fly better than that!
Joined
Jul 30, 2008
Messages
18
Reaction score
0
Re: USN P-51D

damian2 said:
As I understand it the project was shelved because of costs of converting the Mustang to carrier use and the fact that it was a liquid cooled engine.

D

I simply think the US Navy didn't need the P-51, liquid cooled or not. The Corsair and Hellcat were both outstanding aircraft and the US had the industrial capacity to build differing types.


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
3,254
Reaction score
1,065
Website
beyondthesprues.com
Re: USN P-51D

Tailspin Turtle said:
GTX said:
Speaking of Naval Mustangs, here is a drawing showing the proposed NA-133, Navalised P-51H:

Regards,

Greg

Very interesting. Where did it come from?

I believe it was in an old Air Enthusiast - I will try to find the exact copy so as to be able to give you the reference information.

Regards,

Greg


Tailspin Turtle

ACCESS: Top Secret
Senior Member
Joined
Dec 6, 2007
Messages
701
Reaction score
135
Website
www.tommythomason.com
Re: USN P-51D

GTX said:
Tailspin Turtle said:
GTX said:
Speaking of Naval Mustangs, here is a drawing showing the proposed NA-133, Navalised P-51H:

Regards,

Greg

Very interesting. Where did it come from?

I believe it was in an old Air Enthusiast - I will try to find the exact copy so as to be able to give you the reference information.

Regards,

Greg

Could it be Unknown North Americans by Jared Zichek, Air Enthusiast magazine, Issue n°101, September/October 2002?


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
3,254
Reaction score
1,065
Website
beyondthesprues.com
Re: USN P-51D

It could be - unfortunately, my copies aren't readily available at the moment for me to check.

Regards,

Greg


damian2

ACCESS: Restricted
Joined
Oct 8, 2009
Messages
36
Reaction score
5
Re: USN P-51D

Thanks for that scan Greg!! The other pics I've seen of the trialed P-51 show an added tailhook but it's simply a bolted on affair and doesn't look like anything that would be on a production fighter. I've followed the F1J-5 (NA-133) example with the F1J-4 (navalised P-51D) where there's a semi-exposed tailhook in a lengthened tail wheel well under rudder with a cut down bottom. For the NA-133 I redrew the the tail to cut it down in line with the proposal.

I'll be following these metal blanks up with some colour profiles soon :)

1. F1J-4:



2. F1J-5:



Sorry guys no colours tonight :(

D


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
6,056
Reaction score
4,453
Re: USN P-51D - added reworked F1J-4 and F1J-5...

Great thread, great pictures, great aircrafts. Love them all.


RyanC

Crazy Researcher
Top Contributor
Senior Member
Joined
Dec 19, 2006
Messages
879
Reaction score
211
Website
www.alternatewars.com
Re: USN P-51D - added reworked F1J-4 and F1J-5...

Question Greg, what program do you use for your color profiles?


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,007
Reaction score
480
Re: USN P-51D - added reworked F1J-4 and F1J-5...

Could it be Unknown North Americans by Jared Zichek, Air Enthusiast magazine, Issue n°101, September/October 2002?

Yep.....just found my copy out, pp. 2-8 :)

cheers,
Robin.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
763
Re: USN P-51D - added reworked F1J-4 and F1J-5...

Sorry for spoiling the fun... but why imagine NON-STANDARD designations? The "1" was never used by the Navy for a manufacturer's first type!


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,586
Reaction score
423
Re: USN P-51D - added reworked F1J-4 and F1J-5...

I agree with Stargazer, the North American Fury was FJ instead F1J, thus the appropiate designation for the USN Mustang would have been FJ.


airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,266
Reaction score
129
Website
zeef.com
Re: USN P-51D - added reworked F1J-4 and F1J-5...

North American NA-133 cool navalized P-51 B)


Tailspin Turtle

ACCESS: Top Secret
Senior Member
Joined
Dec 6, 2007
Messages
701
Reaction score
135
Website
www.tommythomason.com
Re: USN P-51D - added reworked F1J-4 and F1J-5...

Ryan Crierie provided me with some BuAer and NAA documentation on the NA-133. In summary, there was a Navy military requirements conference in July 1944 which produced "performance characteristics for future VF (fighter) types". It specifically requested that proposals be solicited for a liquid-cooled engine interceptor that met those requirements, probably over continued concern about the kamikaze threat. The requirements seem unlikely to be fulfillable: among other things, the time to climb to 30,000 feet was only five minutes, quicker than the F8F Bearcat or F2G could get to 20,000 feet. The BuAer engineering division responded a month later with a request for more specifics on the request, such as armament and armor details, engine ratings to be used for the interceptor climb requirement, stall speed, etc. Reading between the lines, the response suggests that the engineering division wasn't impressed by the feasibility of the product from the conference. The response also stated that the proposal request would not be limited to liquid-cooled engines, but would solicit air-cooled engine designs and ones with a piston engine combined with a jet.

At the same time as the engineering division response, George Spangenberg appears to have drafted a letter that the BuAer Chief sent to the Chief of Naval Operations stating that the Bureau would solicit proposals for a liquid-cooled engine fighter but comparative studies "indicated that the use of an air-cooled engine resulted in a superior airplane to meet current carrier requirements." In any event, the Grumman F8F Bearcat had just flown, representing the pinnacle of interceptor performance with existing supercharging.

The North American Detail Specification is dated 14 October 1944. It includes a simplified three-view drawing basically identical to the one that Greg posted: The tail hook installation relative to the rudder is a bit different and the position of the wing when folded is not shown. North American also submitted a proposal for a fighter, NA-134, powered solely by a jet engine. BuAer elected to contract for the jet as the FJ-1, although the NA-133 design was considered "very attractive in certain respects."

It now is clear that the P-51D evaluation aboard Shangri-La in November 1944 was in support of this activity.


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,586
Reaction score
423
Re: USN P-51D - added reworked F1J-4 and F1J-5...

damian2, why F1J-4 and F1J-5 instead of FJ-1 and FJ-2?


damian2

ACCESS: Restricted
Joined
Oct 8, 2009
Messages
36
Reaction score
5
Re: USN P-51D - added reworked F1J-4 and F1J-5...

RyanCrierie said:
Question Greg, what program do you use for your color profiles?

:D I use Paint.NET

D


damian2

ACCESS: Restricted
Joined
Oct 8, 2009
Messages
36
Reaction score
5
Re: USN P-51D - added reworked F1J-4 and F1J-5...

pometablava said:
damian2, why F1J-4 and F1J-5 instead of FJ-1 and FJ-2?

Sorry for spoiling the fun... but why imagine NON-STANDARD designations? The "1" was never used by the Navy for a manufacturer's first type!

Seeing as it wasn't very clear on the first pagfe weather it should be FJ1, F1J or FJ-1 I went with the Hellcat/Corsair/Tigercat/Bearcat/ name USN WWII fighter, bomber, torpedo bomber here

I am open to a better, decisive naming convention.

Damian


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
763
Re: USN P-51D - added reworked F1J-4 and F1J-5...

Tsk tsk... It's always been very clear how Navy designation worked!

Fighter = F
First type = (no number)
North American = J
First variant = -1

... hence: FJ-1 ! (the simplest possible kind of Navy designation).

If you had tried to create a third experimental bomber torpedo type for Douglas, with a second variant used for early warning, you would have ended up with...

Experimental = X
Bomber Torpedo = BT
Third type = 3
Douglas = D
Second variant = -2
Early warning = W

= XBT3D-2W, which was becoming kind of complicated...


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,007
Reaction score
480
Re: USN P-51D - added reworked F1J-4 and F1J-5...

damian2, why F1J-4 and F1J-5 instead of FJ-1 and FJ-2?

at least it makes it fairly obvious that these are what-ifs........


cheers,
Robin.


damian2

ACCESS: Restricted
Joined
Oct 8, 2009
Messages
36
Reaction score
5
Re: USN P-51D - added reworked F1J-4 and F1J-5...

Stargazer2006 said:
Tsk tsk... It's always been very clear how Navy designation worked!

Fighter = F
First type = (no number)
North American = J
First variant = -1

... hence: FJ-1 ! (the simplest possible kind of Navy designation).

If you had tried to create a third experimental bomber torpedo type for Douglas, with a second variant used for early warning, you would have ended up with...

Experimental = X
Bomber Torpedo = BT
Third type = 3
Douglas = D
Second variant = -2
Early warning = W

= XBT3D-2W, which was becoming kind of complicated...

See what happens when your main interest lies after '65? Thanks for that!!! :) At least they now have proper names!!!

D


RyanC

Crazy Researcher
Top Contributor
Senior Member
Joined
Dec 19, 2006
Messages
879
Reaction score
211
Website
www.alternatewars.com
Re: USN P-51D - added reworked F1J-4 and F1J-5...

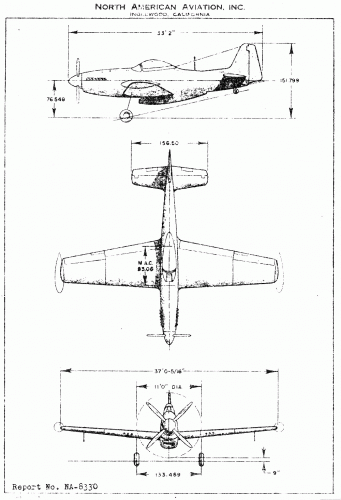

Here's the general view drawing from what I found entirely by accident at the NHC, I think it was misfiled or under something not incredibly descriptive.


Attachments

  • P-51H_Navy.gif
    68.1 KB · Views: 493

damian2

ACCESS: Restricted
Joined
Oct 8, 2009
Messages
36
Reaction score
5
Re: USN P-51D - added reworked F1J-4 and F1J-5...

Hi All!!

Here's the FJ-1 with some paint on. The eagle eyed among you will notice it's VF-3 again <_<





D


Navy Brat

I really should change my personal text
Joined
Aug 3, 2011
Messages
1
Reaction score
0
My dad was a Navy pilot and said the Navy loved the P-51 because of its range mostly. The main reason he said the navy didn't adopt the p-51 was that they could get two corsairs or hellcats in the space of one p-51. Just thought I'd throw in my 2 cents.


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
6,056
Reaction score
4,453
Ah Photobucket, you asshole... biggest theft in Internet history... idiots.


RAP

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
697
Reaction score
485
Sorry Archibald?


RAP

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
697
Reaction score
485
I cut the name off when I scanned the photo which had the initials J.B. in the bottom right hand corner. I assume this is Reynold Brown which is the name on another photo I posted of what appears to be an early TF-51 over on the Mustang Variant thread.


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,688
Reaction score
780
I cut the name off when I scanned the photo which had the initials J.B. in the bottom right hand corner. I assume this is Reynold Brown which is the name on another photo I posted of what appears to be an early TF-51 over on the Mustang Variant thread.

Nice art - thanks. Possibly P-51H based?

That's my kind of used bookstore! Mark
