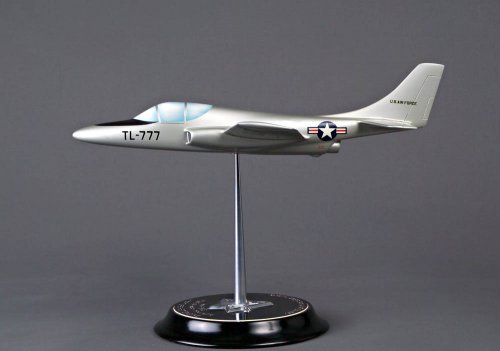

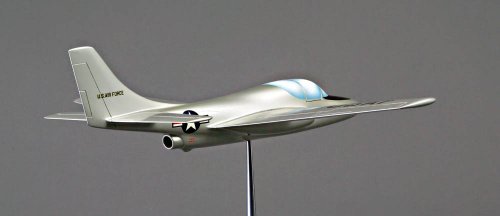

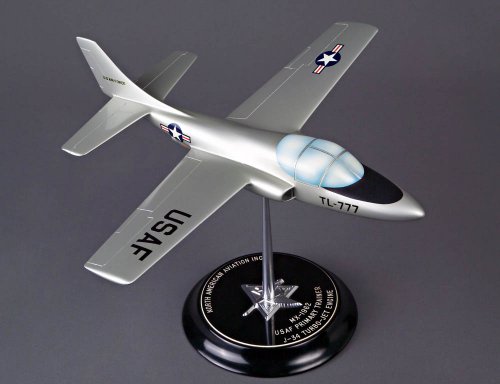

MX-1962 was a USAF primary trainer program, which apparently (and oddly) did not specify what type of powerplant should be used. Both reciprocating and jet engine configurations were submitted, and possibly turboprops. Seating, however, had to be side-by-side. The attached proposal model photos show an MX-1962 entry by North American Aviation, equipped with a single J-34 turbojet.

Any additional details on MX-1962, such as dates, scope of requirements and participating manufacturers, would be appreciated.


Attachments

  • NAA MX-1962 J-34 01.jpg
    NAA MX-1962 J-34 01.jpg
    74.8 KB · Views: 713
  • NAA MX-1962 J-34 03.jpg
    NAA MX-1962 J-34 03.jpg
    38.8 KB · Views: 631
  • NAA MX-1962 J-34 02.jpg
    NAA MX-1962 J-34 02.jpg
    51.3 KB · Views: 625

aim9xray

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Feb 20, 2007
Messages
657
Reaction score
478
Excellent! Wow! Thank you!

I would imagine that after Cessna got the contract for the T-37, this basic design was booted over the fence from LAD to Columbus where it morphed into the J34 powered T2J-1 Buckeye for the Navy several years later.

Some interesting trivia: The J34 for the T2J-1 was the last production contract for Westinghouse's jet engine operation. After the Navy said no mas, North American was obligated to find a new powerplant for the T2J. There was nothing that quite fit the bill, so North American had to go to two Pratt & Whitney J60s in the T2J-2 / T-2B.

This worked for a while until Pratt [allegedly] increased J60 pricing beyond either NAA or the Navy's pain threshold (possibly after production of the T-39A/D Sabreliner ended), whereupon the T-2C came out with two General Electric J85s.

Extra trivia: The T2J wing was reportedly very closely derived from that of the original FJ-1 Fury. This is unconfirmed although there is a FJ-1 and A T-2A on display at Yanks and Planes of Fame (respectively) at Chino Airport, California.

Back to the subject, the basic jet trainer competition was apparently in 1953; the serial number of the first XT-37 was 54-0716 (implying assignment in Fiscal Year 1954 which started 1 July 1953, and the XT-37 first flew on 12 September 1954).


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,158
Reaction score
241
Thank you aim9xray for the fascinating trivia. I always wondered what the story was behind the twin-engined Buckeyes, assuming it had to do with safety issues. Now I know! So, can I infer from your post that MX-1962 was won by the T-37, or was it something entirely different?


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,158
Reaction score
241

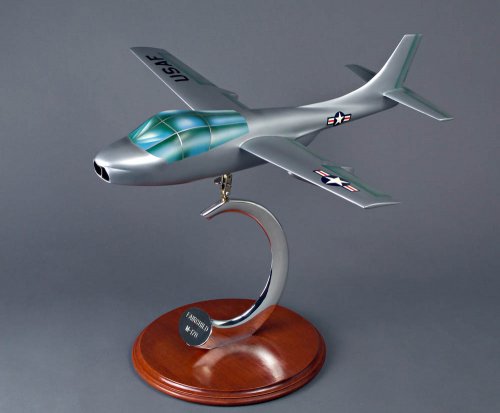

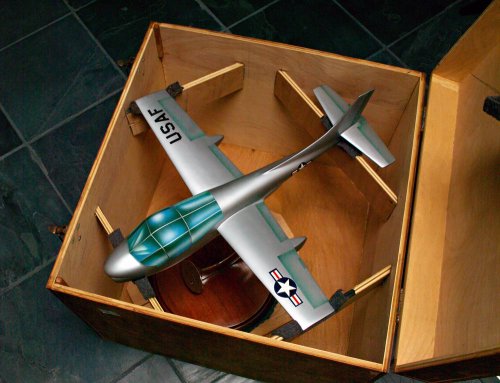

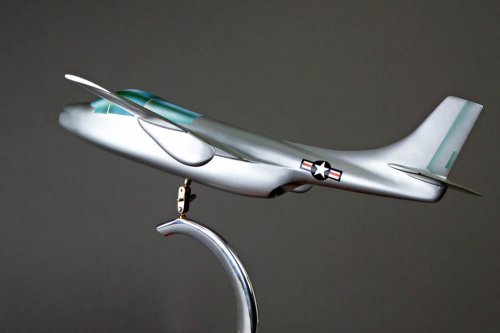

Many years before the ill-fated T-46, Fairchild participated in MX-1962 with their Model M-178 basic trainer. As shown in this factory presentation model, the M-178 was to be powered by a single turbojet, presumably the same Allison J-34 as the NAA proposal.

I have never found any document or reference to this Fairchild project, anywhere -- a hint for those of you with file drawers full of M-178 drawings and artist renderings...


Attachments

  • Fairchild M-178 • MX-1962 01.jpg
    Fairchild M-178 • MX-1962 01.jpg
    68.7 KB · Views: 631
  • Fairchild M-178 • MX-1962 03.jpg
    Fairchild M-178 • MX-1962 03.jpg
    52.7 KB · Views: 591
  • Fairchild M-178 • MX-1962 02.jpg
    Fairchild M-178 • MX-1962 02.jpg
    145.7 KB · Views: 87

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,056
Reaction score
462
What a great find circle-5. THANKS for posting.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
891
:eek: :eek: :eek: :eek: :eek: :eek: :eek: :eek: :eek: :eek: :eek: :eek: :eek: :eek: :eek: :eek: :eek: :eek: :eek: :eek: :eek: :eek: :eek: :eek: :eek: :eek: :eek:

circle-5, thanks for bringing a smile back on my face after a difficult day!

These are not only jet trainers (which I have always been very fond of) but they also come from two of my all-time favorite manufacturers!! ;D

I cannot even DARE to begin to imagine all the neat stuff in your collection that still remains to be uncovered... ::)


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,158
Reaction score
241

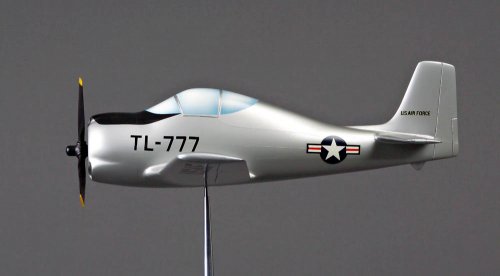

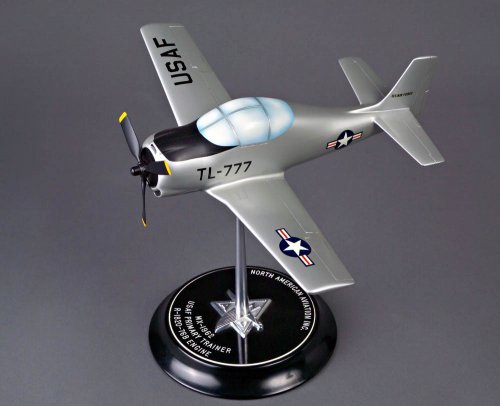

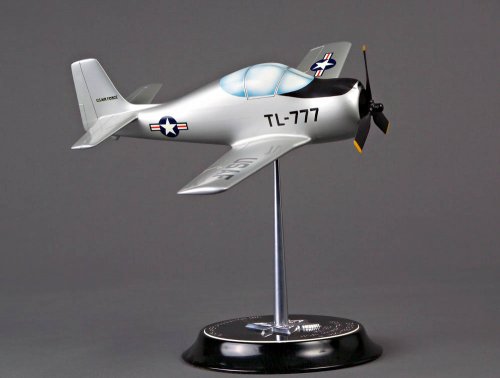

Here's where the MX-1962 specification becomes a bit unconventional. North American Aviation also proposed this modified T-28 Trojan with side-by-side seating. The standard 1,425 hp Wright Cyclone R-1820-76B radial piston engine was carried over from the T-28B.

It would be interesting to see how MX-1962 is worded: could a reciprocating engine developed in the early 1930s be an acceptable substitute for a turbojet? Enquiring minds want to know.


Attachments

  • NAA MX-1962 R-1820 03.jpg
    NAA MX-1962 R-1820 03.jpg
    60.2 KB · Views: 82
  • NAA MX-1962 R-1820 02.jpg
    NAA MX-1962 R-1820 02.jpg
    45.1 KB · Views: 102
  • NAA MX-1962 R-1820 01.jpg
    NAA MX-1962 R-1820 01.jpg
    81.5 KB · Views: 104

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
891
Weird indeed that this could be proposed in the very same competition as the XT-37!! ???


cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,412
Reaction score
176
Website
cluttonfred.info
What a neat design! Presumably, those are rearward-reatracting main landing gear on the wings. I can already see the light attack derivative with those landing gear fairings extended forward to house a couple of machine guns each. Thanks for sharing.

circle-5 said:
Many years before the ill-fated T-46, Fairchild participated in MX-1962 with their Model M-178 basic trainer. As shown in this factory presentation model, the M-178 was to be powered by a single turbojet, presumably the same Allison J-34 as the NAA proposal.

I have never found any document or reference to this Fairchild project, anywhere -- a hint for those of you with file drawers full of M-178 drawings and artist renderings...


royabulgaf

ACCESS: Top Secret
Joined
Dec 29, 2008
Messages
578
Reaction score
166
I think the operative concept is side-by-side. Someone who wrote the specifications decided that this was the New Big Thing and wanted a system that would take students from primary through fast jet training.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
891

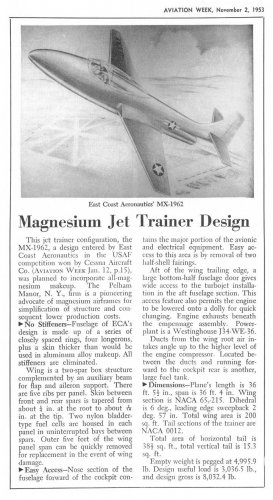

A previously unseen entry for MX-1962 was this contender by an obscure company called East Coast Aeronautics:


Attachments

  • East Coast MX-1962.jpg
    East Coast MX-1962.jpg
    206.1 KB · Views: 137

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,377
Reaction score
1,664
circle-5 said:
... a hint for those of you with file drawers full of M-178 drawings and artist renderings...

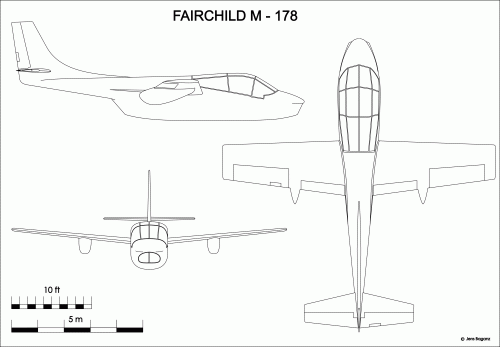

Nothing like that, but additionally to those model photos already posted, I've got more of them by
circle-5 and a lot of advise by him and by aim9xray. Really many thanks for that !
Depicted are all details recognisable on that model. Adding the landing gear was itching and the
main gear principally is clear, determined in wheel size and length by the underwing nacelles.
But for the nosewheel it's not clear, so I did without it. Maybe we'll get more information one day.


Attachments

  • Fairchild_M-178 print.gif
    Fairchild_M-178 print.gif
    196.9 KB · Views: 122

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,377
Reaction score
1,664
... and as it is said, not to paint everything black and white ....
The M-178 wasn't a direct contender to the T-37, nevertheless I used a Tweety Bird
paint scheme as a pattern. Or would a T-33 scheme fit better ?


Attachments

  • Fairchild M-178 CP.jpg
    Fairchild M-178 CP.jpg
    98 KB · Views: 261

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
891
Jemiba said:
... and as it is said, not to paint everything black and white ....
The M-178 wasn't a direct contender to the T-37, nevertheless I used a Tweety Bird
paint scheme as a pattern. Or would a T-33 scheme fit better ?

Splendid!!! But why do you say the M-178 wasn't a "direct contender"? It was submitted to MX-1962 just like the Cessna Model 318, right?


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,733
Reaction score
1,021

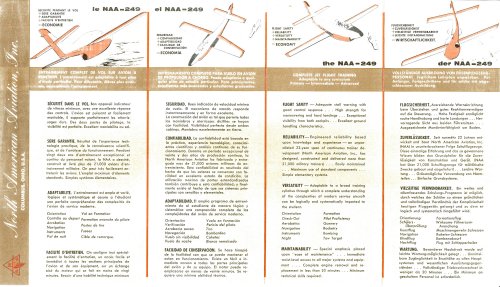

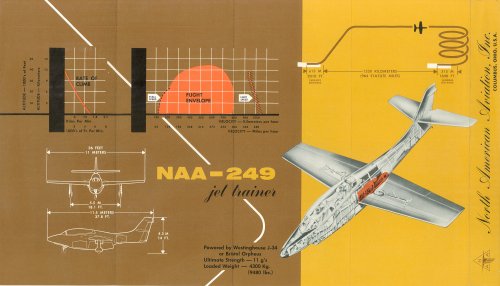

A recent EPay buy that shows the T2J-1 was pitched to prospective customers across the Atlantic.

Enjoy the Day! Mark


Attachments

  • zNAA-249 Jet Trainer Brochure - Multi-Lingual - 1.jpg
    zNAA-249 Jet Trainer Brochure - Multi-Lingual - 1.jpg
    817.9 KB · Views: 161
  • zNAA-249 Jet Trainer Brochure - Multi-Lingual - 2.jpg
    zNAA-249 Jet Trainer Brochure - Multi-Lingual - 2.jpg
    1 MB · Views: 151
