US Pratt & Whitney/Curtiss-Wright SST Engines

Delta Force

ACCESS: Confidential
Joined
May 23, 2013
Messages
76
Reaction score
4

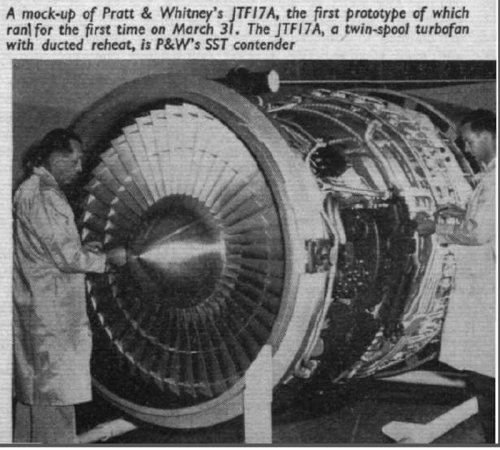

I've been trying to find information (specifications and possibly images) on the Pratt & Whitney JTF-17A and the Curtiss-Wright design submitted for the US SST program in the 1960s. While there is a wealth of information on the GE4, I haven't been able to find much on these other engine designs searching here or on the wider internet. I haven't even been able to find out the designation for the Curtiss-Wright submission. I'm not even sure if the Curtiss-Wright design was a turbojet/turbofan, I've seen some indications that it may have involved ramjet technologies (perhaps a J58 type hybrid design).


GeorgeA

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2006
Messages
709
Reaction score
75
DTIC has quite a bit of info on the JTF17, mostly the contractor reports.

Suggest this topic be moved to Propulsion.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,064
Reaction score
4,150

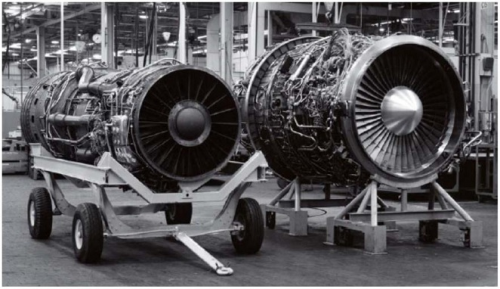

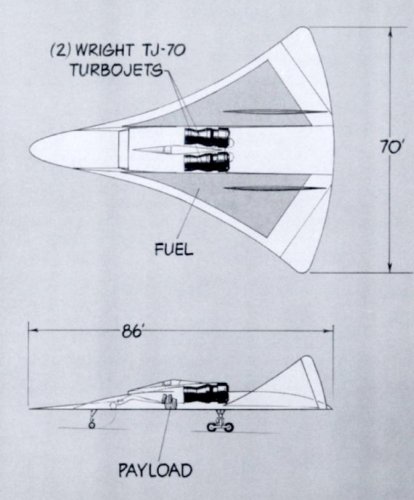

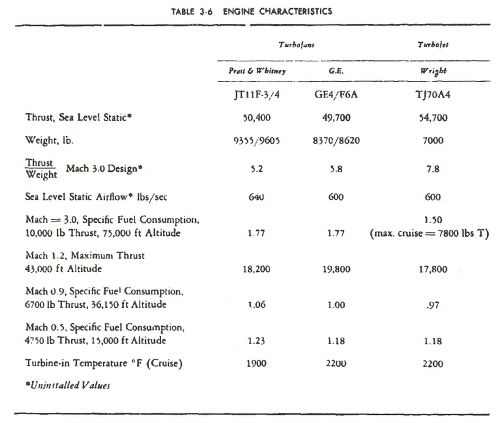

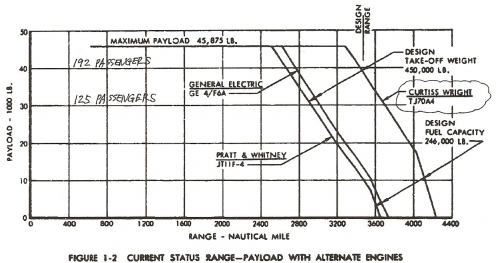

Mighty TJ-60 engine?

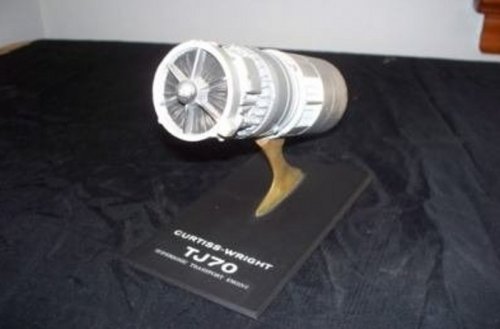

TJ-60 engine → TJ-70 engine?


Attachments

  • THE SKY IS NO LONGER THE LIMIT.jpg
    THE SKY IS NO LONGER THE LIMIT.jpg
    154.7 KB · Views: 127
  • TJ60_ENGINE.jpg
    96.6 KB · Views: 96

Delta Force

ACCESS: Confidential
Joined
May 23, 2013
Messages
76
Reaction score
4
Thanks for the excellent resources and quick responses. Where do you guys manage to find all of these resources?

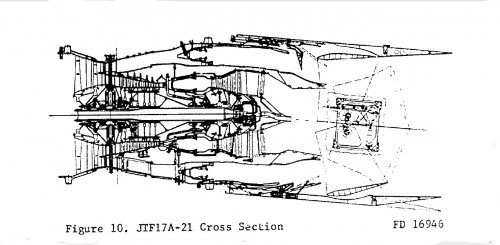

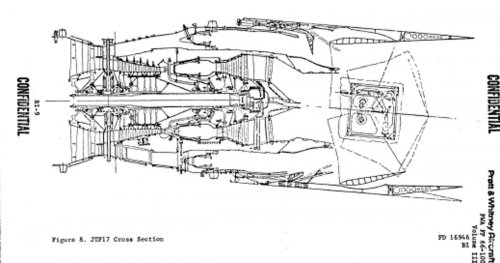

Also, why is the JTF-17 diagram marked confidential? Was that a confidential corporate document or was the SST engine program at one point under US national security secrecy regulations? To some extent that would make sense due to the advanced propulsion technologies involved, but America's SST was going to be exported to NAM and even Soviet aligned nations such as Algeria and India. Why would an early document for a publicly funded commercial aircraft propulsion system be under security regulation?


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,064
Reaction score
4,150
Delta Force said:
Thanks for the excellent resources and quick responses. Where do you guys manage to find all of these resources?

Also, why is the JTF-17 diagram marked confidential? Was that a confidential corporate document or was the SST engine program at one point under US national security secrecy regulations? To some extent that would make sense due to the advanced propulsion technologies involved, but America's SST was going to be exported to NAM and even Soviet aligned nations such as Algeria and India. Why would an early document for a publicly funded commercial aircraft propulsion system be under security regulation?
Hi! I can't answer your questions exactly.
All my resources are this high class SPF member's posts(mainly Shockonlip's and skybolt's post) and internet sites.(Google)
I want to see Curtiss Wright TJ-60 and TJ-70's cross section drawings.
Any way, FAA, Lockheed and Boeing knows everything and still keep every documents now. ;)


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,064
Reaction score
4,150
In 1962, the company received a Federal Aviation Agency (FAA) contract to study compressor, turbine, and computer technologies for supersonic transport jet engines and began competing for a major government contract to develop and produce a supersonic commercial airliner engine. During the mid-1960s, the company sold its electronic fittings and components division at a time when it was plowing about $15 million of its own funds into the development of a supersonic transport plane engine.
Curtiss-Wright lost its bid to produce the supersonic engine, and, by 1967, the company had abandoned Berner's goal to build complete aircraft engines, opting to become a first-tier supplier, or subcontractor, for other companies involved in aerospace and other fields.

http://www.referenceforbusiness.com/history2/11/Curtiss-Wright-Corporation.html

And
http://www.abebooks.com/TJ60-Lightweight-Flexible-Turbojet-Supersonic-Transport/6116090059/bd


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,064
Reaction score
4,150

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,064
Reaction score
4,150

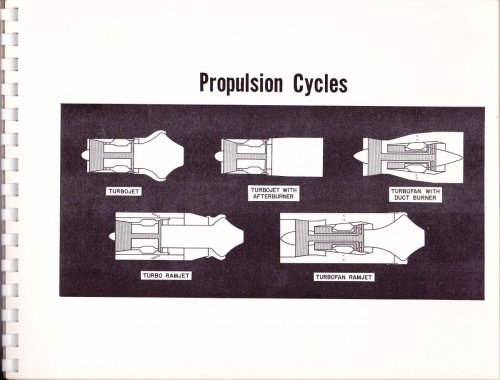

Hi! I imagine that TJ70 engine had a almost same cross section shape of TJ60 engine.


Attachments

  • TJ60_0007.jpg
    87.6 KB · Views: 88
  • TJ60_0006.jpg
    85.5 KB · Views: 84
  • TJ60_0005.jpg
    144.1 KB · Views: 147
  • TJ60_0004.jpg
    215.7 KB · Views: 156
  • TJ60_0003.jpg
    125.9 KB · Views: 128
  • TJ60_0002.jpg
    186.9 KB · Views: 144
  • TJ60_0001.jpg
    277.1 KB · Views: 143
  • TJ60.jpg
    147.8 KB · Views: 94

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,064
Reaction score
4,150

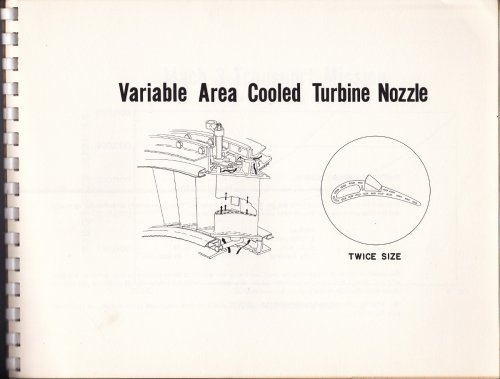

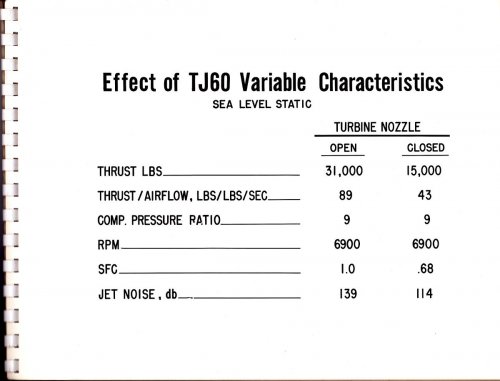

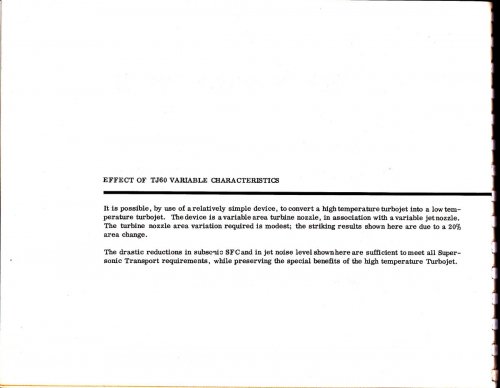

Key technology of this engine was variable area turbine nozzle.
Is this technology same as variable angle of attack turbine inlet stator?


Attachments

  • TJ60_0008.jpg
    87.2 KB · Views: 95
  • TJ60_0009.jpg
    120 KB · Views: 92

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,064
Reaction score
4,150

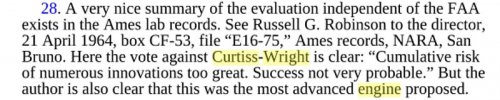

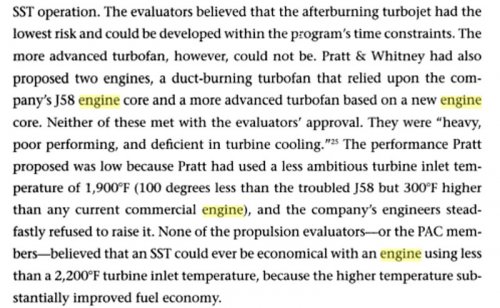

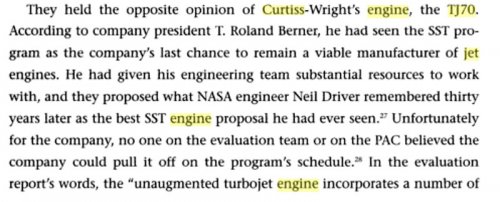

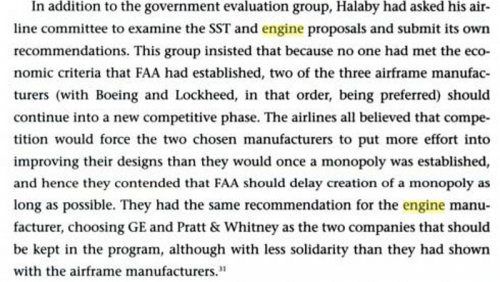

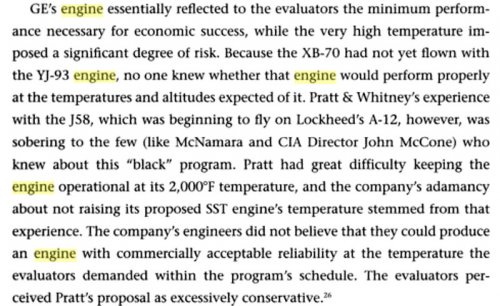

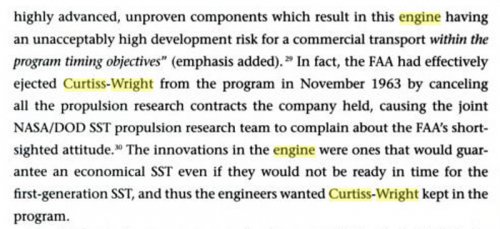

Hi! From "High speed dreams"


Attachments

  • high speed dreams 5.jpg
    high speed dreams 5.jpg
    103.2 KB · Views: 79
  • high speed dreams 4.jpg
    high speed dreams 4.jpg
    78 KB · Views: 73
  • high speed dreams 3.jpg
    high speed dreams 3.jpg
    66.4 KB · Views: 72
  • high speed dreams 2.jpg
    high speed dreams 2.jpg
    103.1 KB · Views: 76
  • high speed dreams 1.jpg
    high speed dreams 1.jpg
    100.9 KB · Views: 81

charleybarley

ACCESS: Confidential
Joined
Dec 7, 2012
Messages
78
Reaction score
19
Key technology of this engine was variable area turbine nozzle.
Is this technology same as variable angle of attack turbine inlet stator?

I guess the technology would much more difficult for the variable AoA stator but the end result basically the same, ie change in area, although the TJ60 looks a very crude way to change area. Also the blade is cooled but the blockage flap doesn't seem to be.
The TJ60 variable turbine is the gas gen turbine and very hot.
The only variable turbine stators I have read about are for power turbines (marine, industrial) so are somewhat cooler.


GeorgeA

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2006
Messages
709
Reaction score
75
blackkite said:

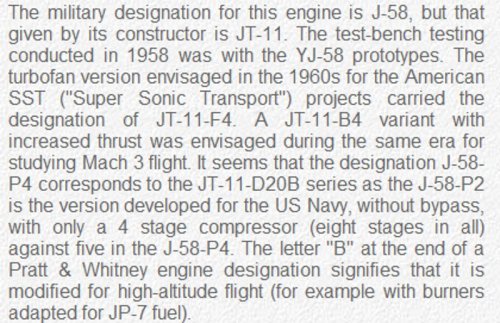

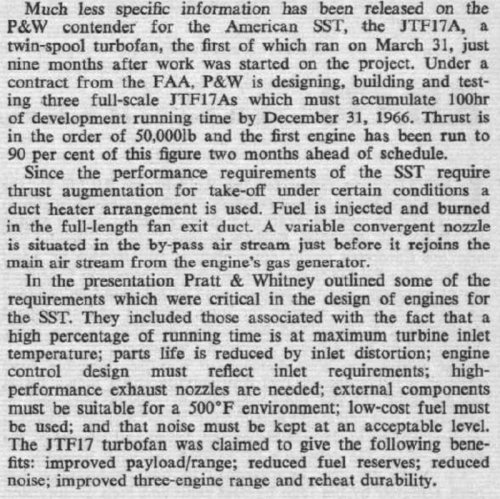

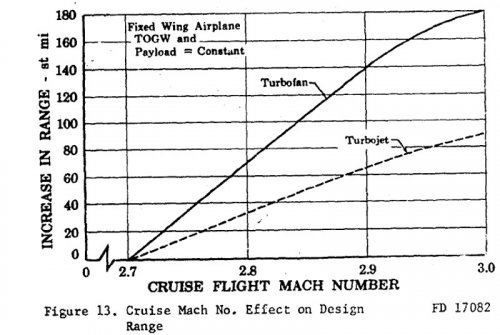

Hi! P&W JT-11- F4 SST turbofan engine.

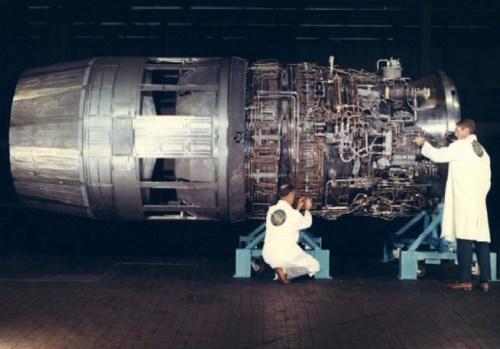

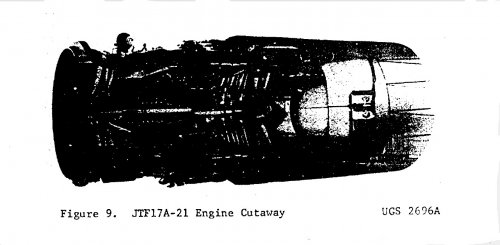

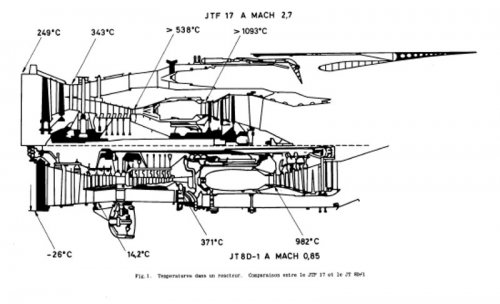

P&W submitted a duct-burning turbofan design for the for the SST, the JTF17. It was designed about a decade after the J91, which was the Pratt B-70 candidate engine and the direct ancestor of the original Navy J58, the J58-P-2. The JTF17 had about double the mass flow of the J58.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,064
Reaction score
4,150
Thank you gentlemen! Nice informations. :)


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,064
Reaction score
4,150

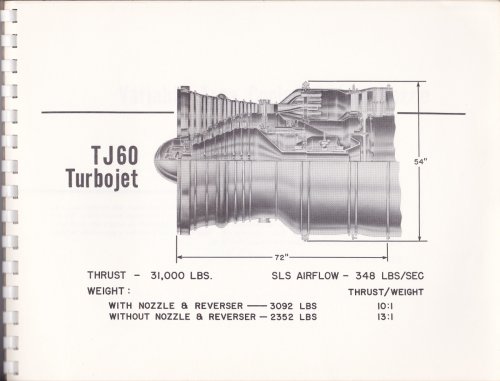

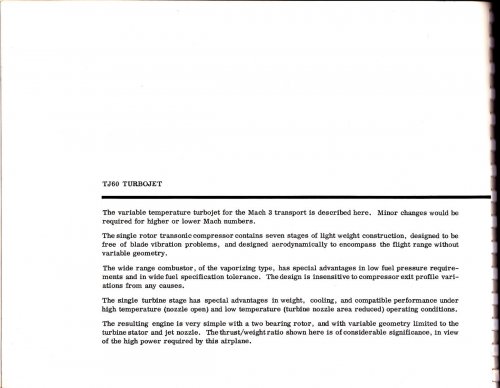

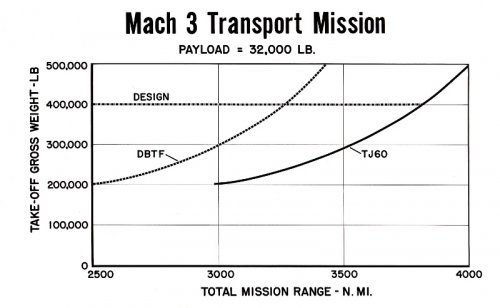

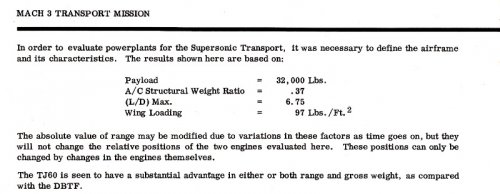

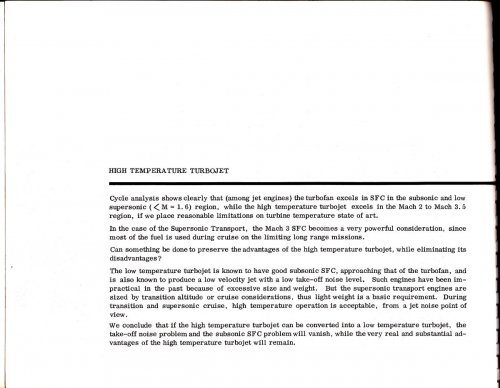

Hi! TJ60 from Curtiss Wright document. I will post all of document. Please enjoy.
DBTF means duct burning turbo fan engine.


Attachments

  • TJ60.jpg
    92.2 KB · Views: 158
  • TJ60_0001.jpg
    82.9 KB · Views: 156

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,247
Reaction score
1,656
https://apps.dtic.mil/dtic/tr/fulltext/u2/377971.pdf


Attachments

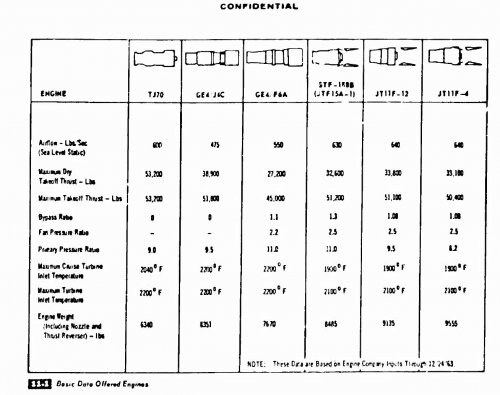

  • SST_offered_engines_through_Dec24_1963.jpg
    266.7 KB · Views: 158

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,064
Reaction score
4,150

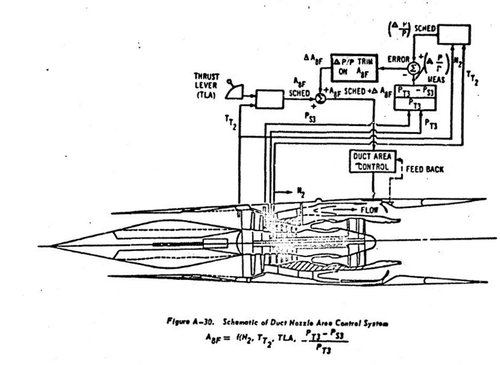

Hi! JTF17 engine nacelle shape.
Source : Boeing 2707 engine evaluation.


Attachments

  • JTF17.JPG
    130.3 KB · Views: 94

Me me

ACCESS: Restricted
Joined
Jun 1, 2021
Messages
2
Reaction score
0
Hi could I get a pic of a jtf17 but a diagram with arrows pointing to parts with text and labels


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,441
Reaction score
7,088
Hi could I get a pic of a jtf17 but a diagram with arrows pointing to parts with text and labels
Sure you can. Download a diagram, add arrows with text labels in an editing program.

Feels a bit like you want someone to do your university assignment for you?


Me me

ACCESS: Restricted
Joined
Jun 1, 2021
Messages
2
Reaction score
0
Hi could I get a pic of a jtf17 but a diagram with arrows pointing to parts with text and labels
Sure you can. Download a diagram, add arrows with text labels in an editing program.

Feels a bit like you want someone to do your university assignment for you?
Haha I'm not in uni yet but I want to learn about so I can optimize my engine design
