US ALS (Advanced Launch System) / NLS (National Launch System) Studies

Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,980
Reaction score
1,353
and a concepts from Boeing,General Dynamics and Martin Marietta/McDonnell Douglas.

that are the ALS/NLS. Proposal from 1987-1989
http://www.astronautix.com/lvs/als.htm


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
5,415
Reaction score
3,476
Geocities will close this summer, so hurry up, download this page before it disapear... :'(


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
818
Website
deeptowild.blogspot.com
Archibald said:
Geocities will close this summer, so hurry up, download this page before it disapear... :'(

Thanks for the information Archibald.

The "Comet" launch vehicle for the First Lunar Outpost (FLO) (1993).


Attachments

  • flo_vab1.jpg
    33.4 KB · Views: 538

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,803
Reaction score
4,969
Hi,

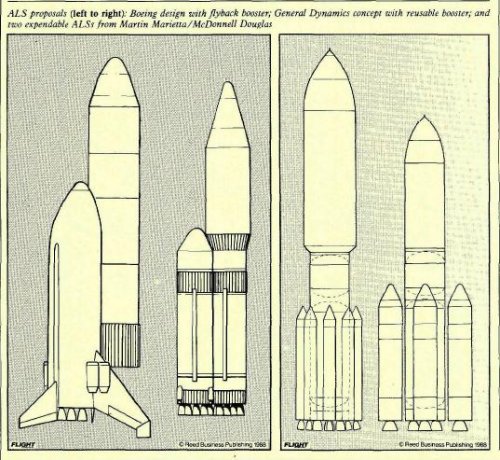

http://www.flightglobal.com/pdfarchive/view/1989/1989%20-%200215.html


Attachments

  • ALS.JPG
    70.9 KB · Views: 520

CFE

ACCESS: Secret
Joined
Sep 1, 2007
Messages
259
Reaction score
3
Triton said:

It's interesting to note that the DIRECT vehicle, which is the "Son of NLS," chose a very different arrangement for their core engines. I suspect that the DIRECT guys were designing with a bit of conservatism after finding out about SRB heating on the core engine nozzles. Then again, the NLS guys designed around the STME, an engine which never came to fruition, and its ability to withstand SRB heating unverified.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
818
Website
deeptowild.blogspot.com

Attachments

  • GeneralDynamicsALSproposal.JPG
    43.7 KB · Views: 60
  • GeneralDynamicsALSFlyback.JPG
    57 KB · Views: 72

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
818
Website
deeptowild.blogspot.com
Artist's impression of Martin Marietta one-and-a-half-stage Advanced Launch System concept.

Source: "Saturn V's Successor" Popular Mechanics January 1990


Attachments

  • ALS.JPG
    36.7 KB · Views: 62

CFE

ACCESS: Secret
Joined
Sep 1, 2007
Messages
259
Reaction score
3

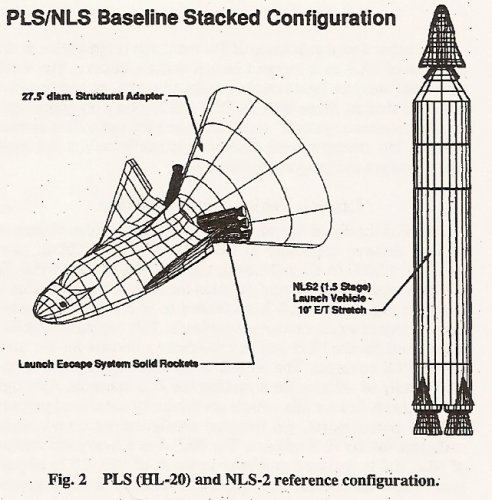

Here's a line drawing of the "NLS-2" configuration with HL-20 payload. Booster used six STME's for propulsion, four of which were jettisoned during ascent.

Source: "Evaluation of the National Launch System as a Booster for the HL-20," Journal of Spacecraft & Rockets, V30 N5 (Sep-Oct 1993)


Attachments

  • nls+hl20.jpg
    109.9 KB · Views: 49

CAIR67

ACCESS: Restricted
Joined
Nov 30, 2009
Messages
45
Reaction score
9

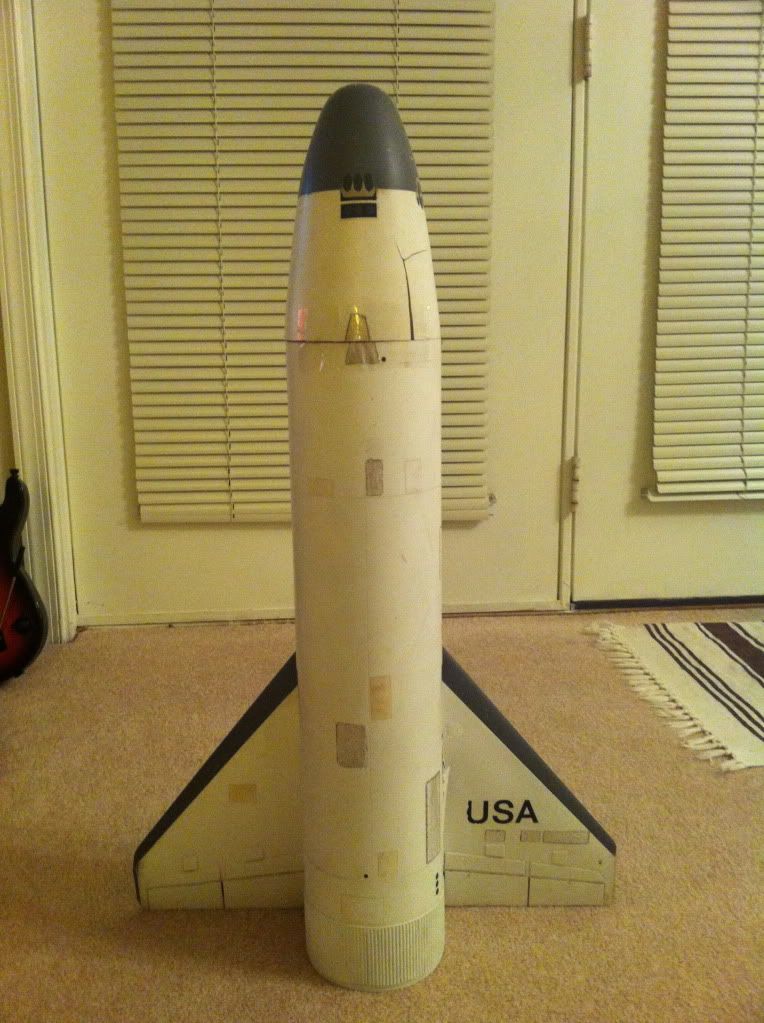

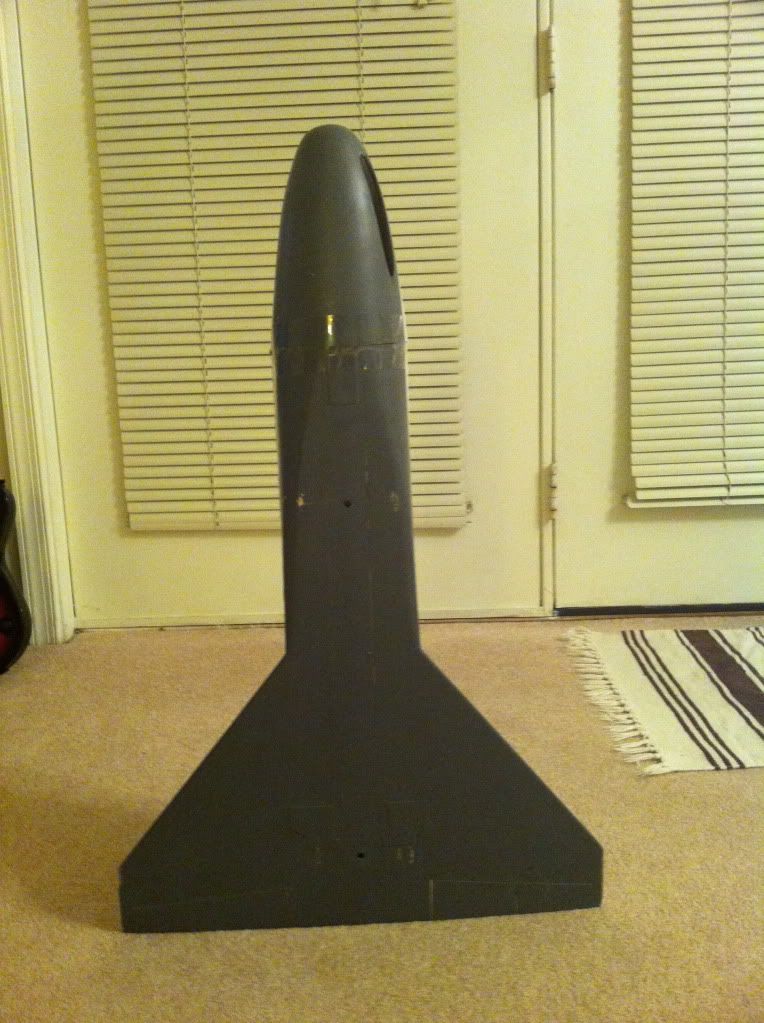

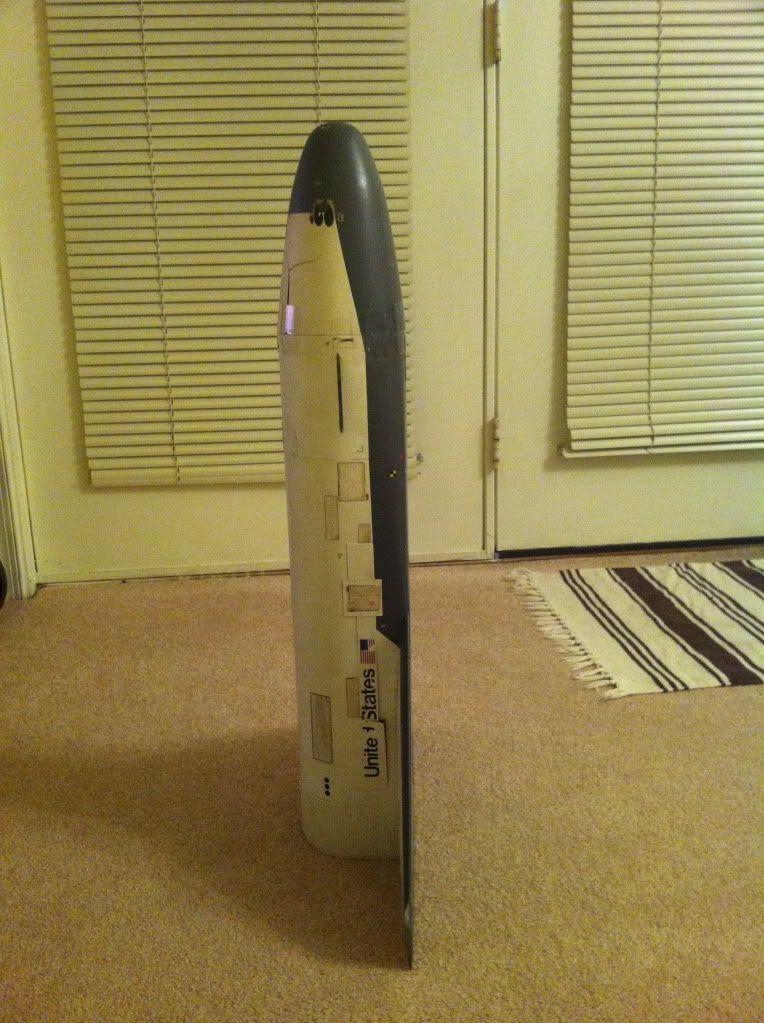

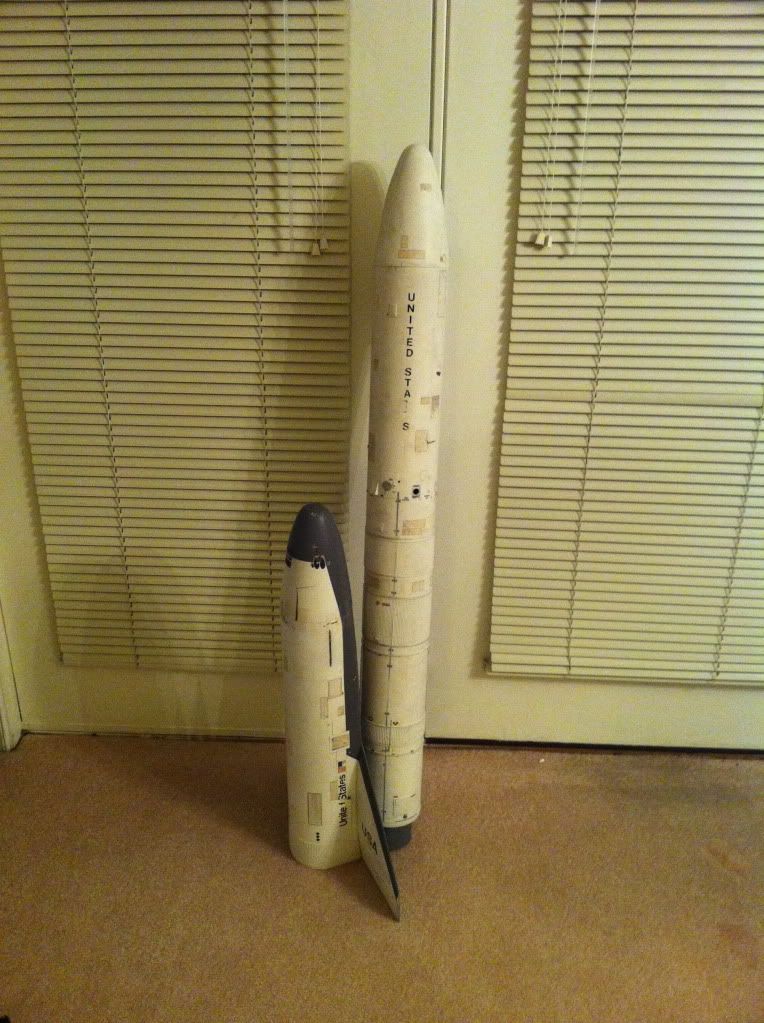

I would be interested in getting more information on this design. The only information I have received is a possible ALS proposal. Looks almost like a booster made from an MX missile. This model has been banged around a bit, I hope to fix it up. The vehicle never had a tail but it did have winglets. Also on the side of the fuselage there might have been canards.













Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
14,570
Reaction score
4,299
http://www.dtic.mil/dtic/tr/fulltext/u2/a274781.pdf


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
818
Website
deeptowild.blogspot.com

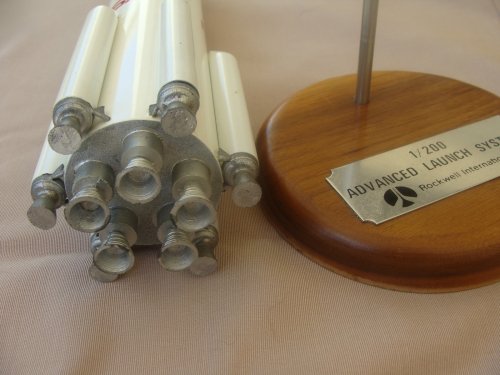

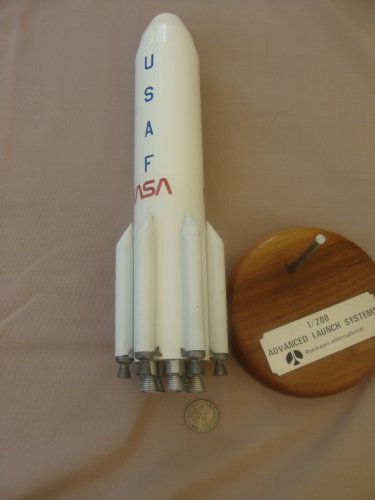

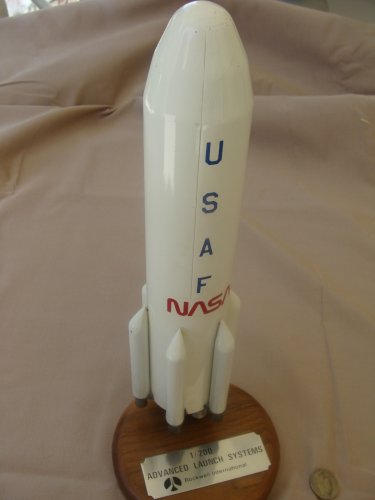

Model of Rockwell International Advanced Launch System (ALS) concept found on eBay.

Seller's description:
THIS AUCTION IS FOR A ROCKWELL INTERNATIONAL ADVANCED LAUNCH SYSTEMS METAL ROCKET MADE BY MICROWEST, INC. IN ORANGE CA. IT IS 13 1/2 INCHES HIGH AND IS NUMBER 1 OF 200 MADE. THE CONDITION IS EXCELLENT, ONLY A SLIGHT RUB ON THE TOP AND A PIN SIZE DOT ON ONE OF THE ROCKET BOOSTERS.
Source:
http://www.ebay.com/itm/ROCKWELL-USAF-NASA-ADVANCED-LAUNCH-SYSTEMS-1-200-DESK-MODEL-METAL-ROCKET-/321119016110?pt=LH_DefaultDomain_0&hash=item4ac42f54ae


Attachments

  • $(KGrHqV,!qMFGBdUgLn9BRgeQB1nN!~~60_57.JPG
    287.3 KB · Views: 43
  • $T2eC16R,!zUE9s38+HeRBRgeRGIdng~~60_57.JPG
    252.5 KB · Views: 33
  • $T2eC16F,!ykE9s7tw!R7BRgeQZiKkg~~60_57.JPG
    520.1 KB · Views: 28
  • $(KGrHqN,!lcFFyqSoN0UBRgeRc5)Gw~~60_57.JPG
    355.1 KB · Views: 35

circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
179

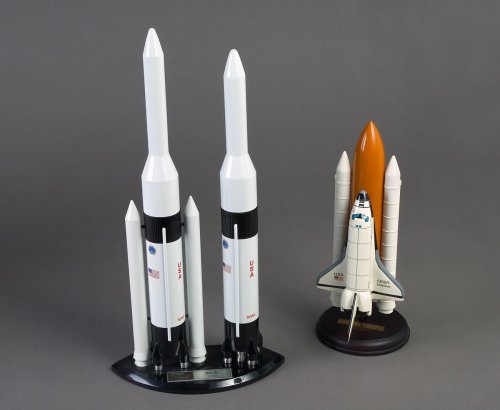

Model of the National Launch System (NLS) heavy-lift vehicles, ca. 1989. This model was made for DoD by NASA Marshall Space Flight Center model shop (Huntsville, Alabama).

Variants shown are NLS-1 (left) and NLS-2 (right). The STS model is included for scale.

NLS-1 would be equipped with (Qty.4) STME liquid-fueled engines and (Qty.2) SRBs. Payload capacity: 100,000 lbs to a 220 nautical-mile orbit (as anticipated for Space Station Freedom).

NLS-2 would be equipped with (Qty.6) STME liquid-fueled engines only. Payload capacity: 50,000 lbs to LEO as required by DoD for NRO missions.

Estimated development cost for the NLS was $10.5 to $12 billion, including new launch pads and $2 billion for the STME (Space Transportation Main Engine, 650,000 lbs of thrust). The NLS program (a.k.a. New Launch System) was terminated in 1991. Replaced by Boeing EELV, which used SSMEs.
