unknow Mars Project by Korolev ?

Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,962
Reaction score
1,311
on ForumAstronautico.it i found is this topic

Sergei Korolev had planed 1964 a Mars mission for year 1974
build from Soyuz and Lunar Hardware launch in 70-90 ton piece with N-1 rocket
called MPRKK (Marsjanski pilotirujemy raketno-kosmitscheski kompleks), with 3 cosmonauts on board
together with launch stage MRK (Meshplanetny raketny kompleks) its weight 600-500 tons
the mission module is a TMK(Tjasholy meshplanetny korabl) with 5 decks
MPRKK use aerodynamic Braking at Mars
the Mars Excursion Module is a modified LK called MPK
the 3 cosmonauts return on board of Soyuz capsule back, as TMK make flyby at earth

the German author Gerhard Kowalski takes this book as reverence

Wladimir Bugrow: »Marsianski projekt S. P. Koroljowa«. Verlag Russkije Witjasi Moskau 2007/Archiv Kowalski

question, is this real from Sergei Korolev ? or came this only from his design office ?

source in Italian:
http://www.forumastronautico.it/index.php?topic=7768.msg74070#msg74070
they source PDF in German
http://www.wissenschaft-online.de/artikel/961384&_wis=1

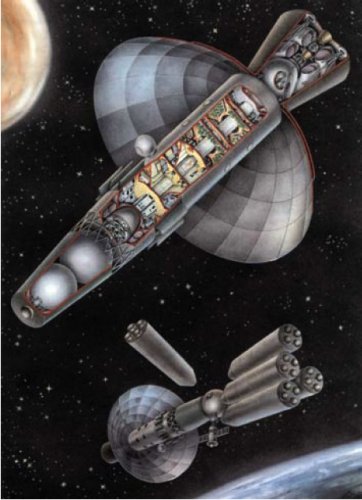

Picture from extracted PDF


Attachments

  • KM1.jpg
    104 KB · Views: 1,086
  • Km2.jpg
    73 KB · Views: 1,133

Igor B

ACCESS: Restricted
Joined
Oct 26, 2009
Messages
27
Reaction score
6

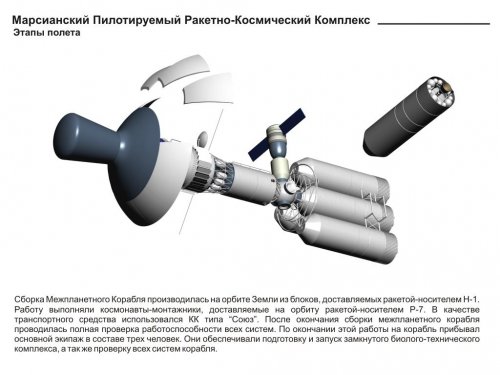

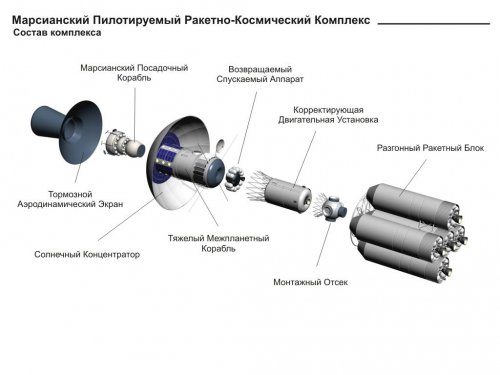

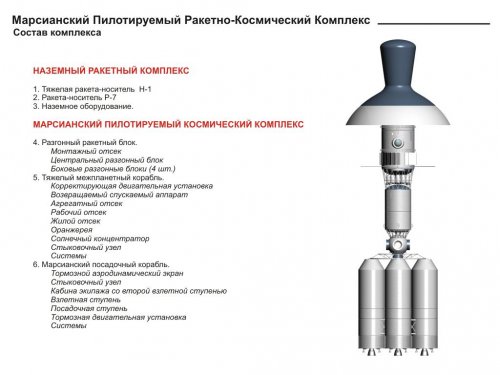

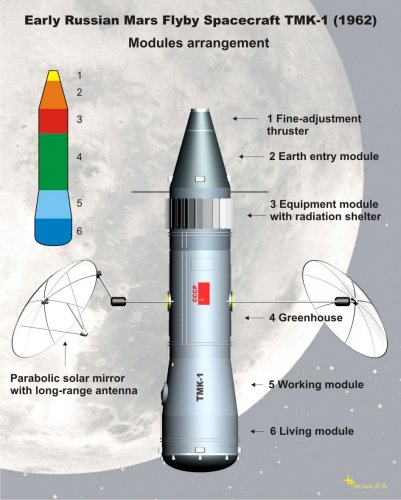

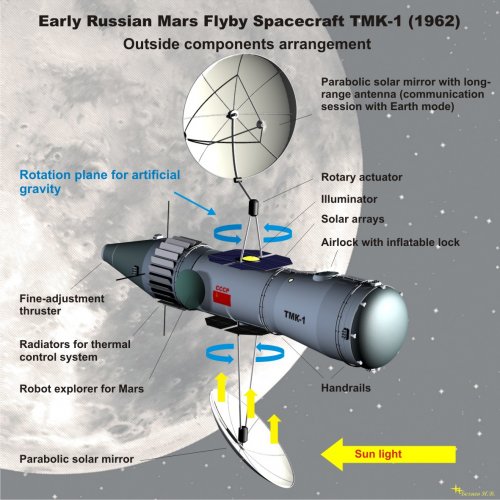

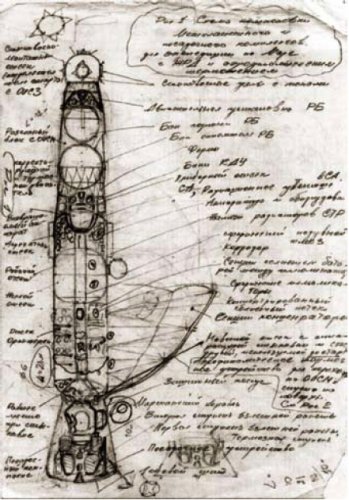

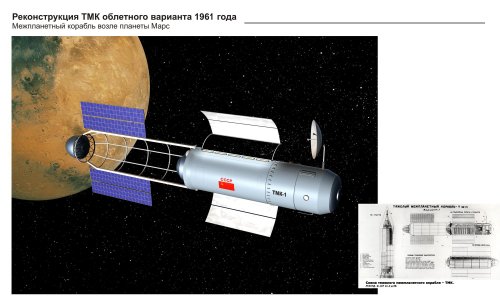

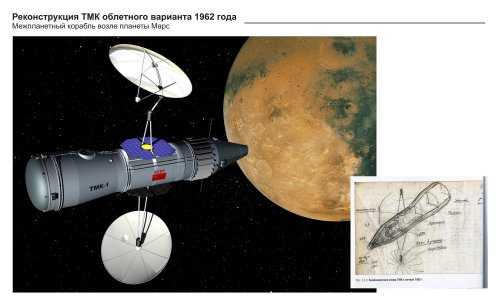

I study that theme about two years and I can say it is true. I met the author of the book “Marsianski projekt S. P. Koroljowa” – Vladimir Bugrow. He was as main engineer (lead engineer) in OKB-1 on that project during 1961-1964. He detailed explain evaluation of mars ship TMK to MPRKK. I made some illustrations about that theme. You can see it below. Many illustrations now not finished – I want show all steps of mars expedition. That work is in development.
Also I want make focus on one important think: at first in OKB-1 was project of Manned Mars Expedition 1960-1964 (N1-TMK/MPRKK). Then was project of Manned Lunar Expedition 1964-1974 (N1-LK3). From 1966 (the Korolev died) the Manned Mars Expedition project moved from OKB-1 to NII-88. Those projects called “MAVR” and “AELITA”.
My illustrations regarding that theme (DRAFT, NOT FINISHED! so, please not use in any publications!) ONLY FOR SECRET PROJECT FORUM:


Attachments

  • 07_MPRKK_1964.jpg
    84.8 KB · Views: 147
  • 06_MPRKK_1964.jpg
    63.6 KB · Views: 142
  • 05_MPRKK_1964.jpg
    81.1 KB · Views: 139
  • 04_MPRKK_1964.jpg
    280.5 KB · Views: 142
  • TMK_arrangement_02.jpg
    321.1 KB · Views: 117
  • TMK_arrangement_01.jpg
    233.3 KB · Views: 786
  • 02_TMK_1962.jpg
    1 MB · Views: 859
  • 01_TMK_1961.jpg
    251.6 KB · Views: 905

Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,962
Reaction score
1,311
THX for picture


OM

ACCESS: Top Secret
Joined
Jun 22, 2008
Messages
752
Reaction score
20
Website
www.io.com
Michel Van said:
THX for picture

...Seconded! Excellent work, with information that Mark Wade would probably love to have forwarded to him once you've completed your research, if you're interested. I understand Encyclopedia Astronomica is finally back up, and it looks like Mark's been doing some site tweaking as well.


unclejim

ACCESS: Confidential
Joined
Dec 7, 2010
Messages
77
Reaction score
0
Yes much thanks on the pictures. One thing I am wondering-was the Soviet plan to not land on the moon first, rather land on Mars, a planet, instead? That might explain the Soviets playing catch-upin the "Moonrace"


Igor B

ACCESS: Restricted
Joined
Oct 26, 2009
Messages
27
Reaction score
6
I want to make clear something:

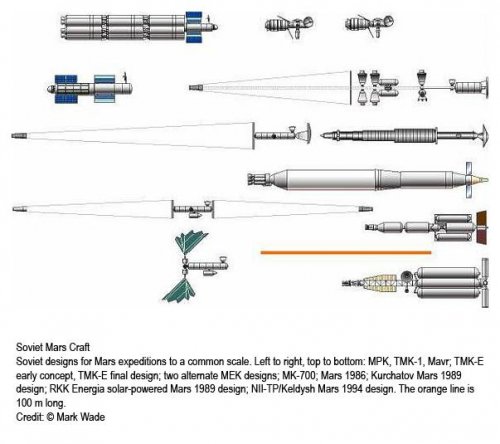

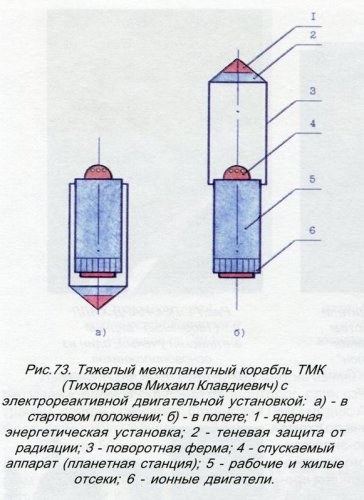

1. On Mark's illustration there are no some variants of the ships. That I presented above I add one more concept. It is the ship with a nuclear reactor and ion engines which was studied in 9 department of OKB-1 in sector of Adamovich. This illustration is taken from his book. The draft project was ready in 1962 and described the ship in a general view. This ship no concern to TMK-E of Feoktistov.

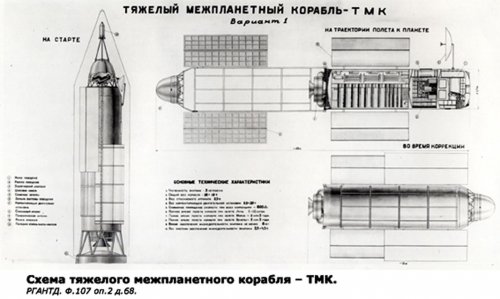

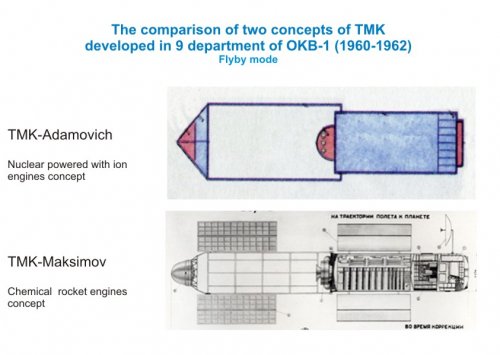

2. One of the ship Mark called "TMK-E early concept". But it is not so correct. Simply it is similar to TMK-Adamovich ship and I suppose Mark mixed the ships (TMK-E means electric ship with ion engines). Actually it is the concept of ТМК ship studied during the same period in sector of Maksimov. That TMK have to departure from Earth orbit to Mars by chemical rocket engines. The comparison of that ships presented below.

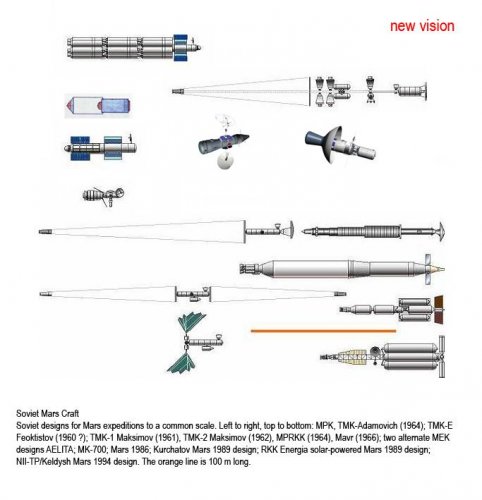

So, I updated Mark's illustration. It will be more exact. It is my vision and can be not finally.


Attachments

  • new_variant.jpg
    52.4 KB · Views: 156
  • first_variant.jpg
    43.9 KB · Views: 132
  • TMK_comparison.jpg
    82.4 KB · Views: 111
  • TMK_Maksimov.jpg
    107.3 KB · Views: 117
  • ТМК_Adamovich.jpg
    73 KB · Views: 65

Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,962
Reaction score
1,311
OMG original russian data about TMK

Zillion THX, Igor Bezyaev

with wat rocket had be TMK be launch, N1 or UR-700 ?


Pat Flannery

ACCESS: Restricted
Joined
Sep 18, 2011
Messages
14
Reaction score
1
TMK was to be launched by the N-1, and in fact was partially responsible for setting the payload specifications of that rocket:
http://www.astronautix.com/craft/tmk1.htm


OM

ACCESS: Top Secret
Joined
Jun 22, 2008
Messages
752
Reaction score
20
Website
www.io.com
unclejim said:

...Hope that helps. I know there's a couple of people here who don't care for Mark's site, but I've yet to see them offer a "more accurate" alternative. If you've never visited astronautix.com, about the only complaint I've ever gotten over referring it to someone is when someone chews my ass out of having gotten hooked into reading the site content, and spending several days straight reading as much as they can before fatigue finally sets in. God/Yahweh/Roddenberry knows that's exactly what happened to me the first time I came across the site, and that was over a decade ago when it was about -half- the size it currently is.


Igor B

ACCESS: Restricted
Joined
Oct 26, 2009
Messages
27
Reaction score
6

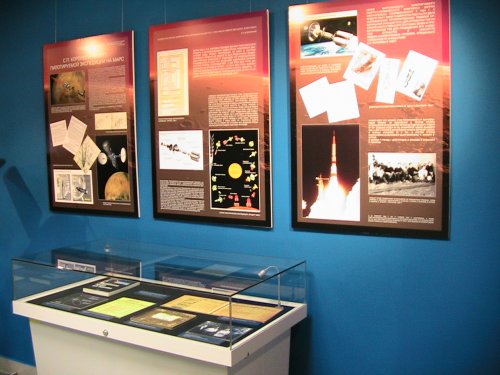

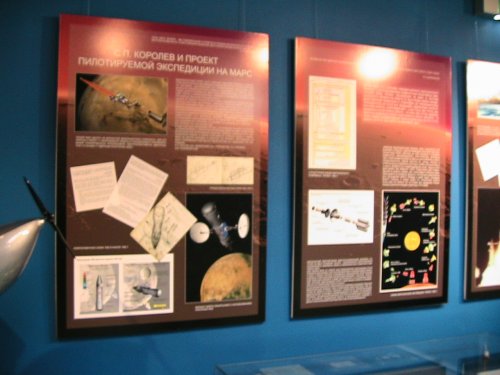

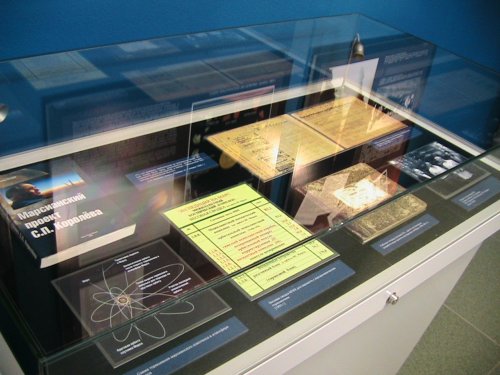

1-st September in Moscow in the Memorial MUSEUM OF COSMONAUTICS there is presented some exhibition "Forward to Mars!" (Âïåðåä íà Ìàðñ!). There are 3 of 15 stands show the Soviet project of manned expedition to Mars developed by S. Korolev (1959-1974). Unfortunately I have photos with poor quality.


Attachments

  • IMG_0212.JPG
    351.7 KB · Views: 42
  • IMG_0213.JPG
    380 KB · Views: 43
  • IMG_0218.JPG
    402 KB · Views: 41

mz

ACCESS: Top Secret
Senior Member
Joined
May 28, 2007
Messages
676
Reaction score
12
The design with the hinge is interesting, to get the reactor away from the crew I presume?


miraglia

ACCESS: Restricted
Joined
May 13, 2009
Messages
33
Reaction score
0
Website
www.minifoguete.com.br
Very interesting project.

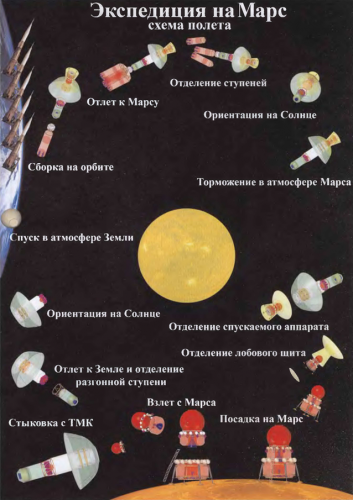

The following image: stages of the mission.

Miraglia
www.edgeofspace.org


Attachments

  • 070712_1255_4 (1).png
    070712_1255_4 (1).png
    612.1 KB · Views: 22
