Unbuilt Rutan/Scaled Composites designs

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,043
Reaction score
865

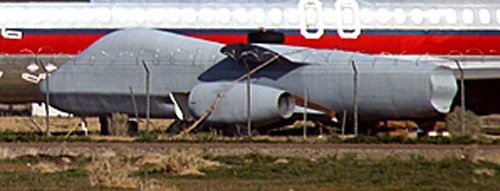

Mothballed at Mojave Airport is unsuccesfull Burt Rutan's Global Hawk contender. (c) Andy Martin, Airliners.Net


Attachments

  • Rutan-Tier-II+.jpg
    44.2 KB · Views: 1,096

Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,903
Reaction score
1,136
Website
www.aerospaceprojectsreview.com
Interesting. You don't often see too much from Scaled that's not a full-fledged aircraft. Aviation Week ran some Rutan drawings of a VTOL fighter (tailsitter) a decade or so ago, and I stumbled across some propritary drawings of the "Maliboo" carrier aircraft, basically a big-ass Proteus-style airplane for carryign spaceplanes, dating from the early '90's.

But generally Scaled Composites keeps their designs to themselves.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,043
Reaction score
865
Orionblamblam said:

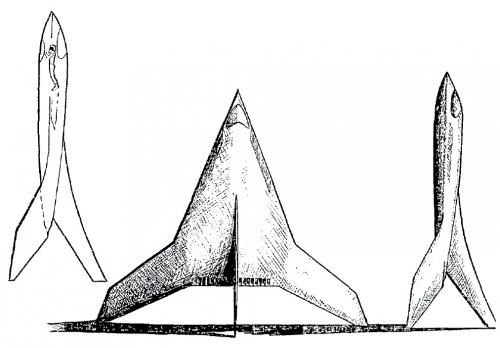

[...]Aviation Week ran some Rutan drawings of a VTOL fighter (tailsitter) a decade or so ago [...]

For those who didn't see that stuff Scott talking about

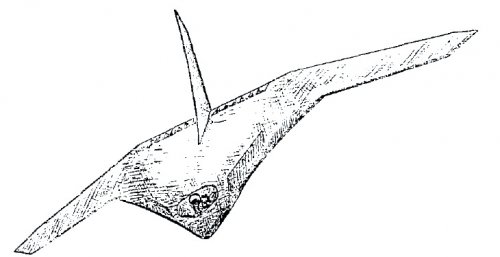

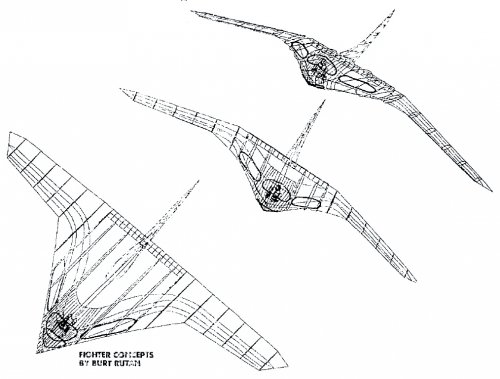

AW&ST August 3, 1998 Rutan's scetches


Attachments

  • rutantailsitter-1.jpg
    146.6 KB · Views: 821
  • rutantailsitter-2.jpg
    48.3 KB · Views: 745
  • rutantailsitter-3.jpg
    138.4 KB · Views: 733
  • rutantailsitter-4.jpg
    132.3 KB · Views: 729

cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,382
Reaction score
98
Website
cluttonfred.info
There must be hundreds of these, so open the floodgates, who has sketches and pics of unbuilt designs by Burt Rutan, whether back in his Rutan Aircraft Factory days or at Scaled Composites?


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,043
Reaction score
865
you must know that SC keeps it secrets tight than your NSA (tiny staff -> easy to trace a leak source)
we had Rutan's Tier III competitor somewhere at the forum...and I don't know much more besides that


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,259
Reaction score
158
All I think of offer is a high-altitude UAV research airplane built in collaboration with NASA. It would have featured a short central boom with a tractor prop engine featuring triple(?) turbocharging, a medium aspect ratio untapered wing, and outboard short booms carrying outboard horizontal stabilizers. A friend has a framed picture in his office.
Does anyone know what i am talking about?
Other than that, as Flateric said, Scaled is very secretive about its projects. The only reason i know about this high altitude UAV was that it was a collaboration.


Just call me Ray

ACCESS: Top Secret
Joined
Aug 26, 2007
Messages
676
Reaction score
10
AeroFranz said:
featuring triple(?) turbocharging

Three-stage turbocharging, or I guess even simpler terms, it has three turbochargers (so the air gets compressed three times)


Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,819
Reaction score
266
IMHO, that MUVR design shown by Northrop at the Paris Airshow presentation looks like a Scaled Composites design to me; remember, Northrop purchased them. You can see a pic of it at the Ares blog.


quellish

I am not actually here.
Senior Member
Joined
Aug 6, 2007
Messages
2,149
Reaction score
158
Mole said:
There must be hundreds of these, so open the floodgates, who has sketches and pics of unbuilt designs by Burt Rutan, whether back in his Rutan Aircraft Factory days or at Scaled Composites?

Ones I can think of off the top of my head, though not all unbuilt:
- Toyota monoplane (built, a few photos exist)
- Tier II+ competitor (unbuilt)
- MIPCC Powered Vehicle (unbuilt?) for RASCAL program
- Another high-mach concept, don't know much about it.
- Several missile projects

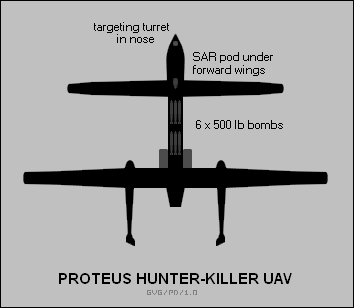

- Unmanned Proteus for the Hunter-Killer program
- Various civil space projects, such as AirLaunch LLC's carrier aircraft, t/Space carrier aircraft, etc.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,903
Reaction score
1,136
Website
www.aerospaceprojectsreview.com
Floating around I have (off the top of my head):
1) A Tailsitter fighter design (though it may have been little more than a scribble on Rutans part)
2) A twin-fuselage carrier plane for a much-enlarged Pegasus launch vehicle ("Maliboo" or some such)
3) A canard airliner

I'll try to dig them up.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,043
Reaction score
865
Merged existing Rutan/Scaled unbuilt projects threads


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,382
Reaction score
1,422
I seem to recall reading Scaled did a 1/2 scale pole model of the B-2 back in the day.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,382
Reaction score
1,422
Mole said:
I think the B-2 model was for some sort of radar testing and not flyable in any way.

"1/2 scale pole model "


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,382
Reaction score
1,422
Riding a plane like a HORSE??? That's gotta be a first.


Attachments

  • raptor08.jpg
    32.7 KB · Views: 431

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,457
Reaction score
187
Great links Luc, thanks

Antonio


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,043
Reaction score
865
Great stuff here, thanks!


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,903
Reaction score
1,136
Website
www.aerospaceprojectsreview.com

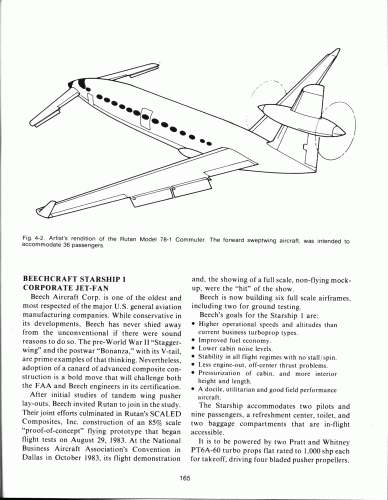

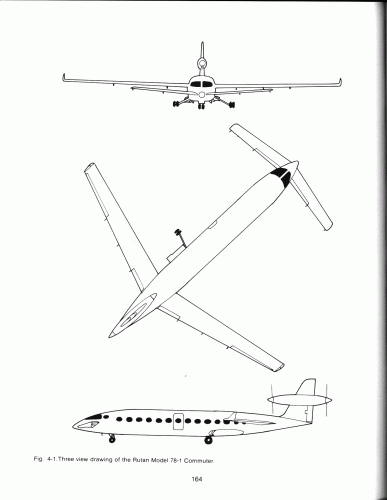

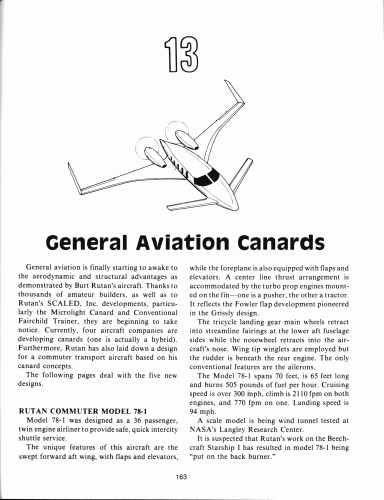

From "Canard, A Revolution In Flight." I've only ever seen the book once, and that was when I bought it.


Attachments

  • model78c.gif
    156.9 KB · Views: 386
  • model78b.gif
    66.6 KB · Views: 393
  • model78a.gif
    142.4 KB · Views: 348

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
Hi! I'm Stephen and I'm the webmaster of the Stargazer website you mentioned above.
I am honored that you quoted my work and find it a valuable source, and happy you found interesting stuff there!
In return, I want to thank Orionblamblam for the scans of the Rutan Commuter... I'd been searching for this for ages!!!


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,903
Reaction score
1,136
Website
www.aerospaceprojectsreview.com
Stargazer2006 said:
Hi! I'm Stephen and I'm the webmaster of the Stargazer website you mentioned above.
I am honored that you quoted my work and find it a valuable source, and happy you found interesting stuff there!
In return, I want to thank Orionblamblam for the scans of the Rutan Commuter... I'd been searching for this for ages!!!

Prepare to be bombarded with requests for higher resolution versions of the Tacit Blue diagrams you posted on your site. See here:
http://www.secretprojects.co.uk/forum/index.php/topic,278.15.html

If you've got 'em, you've found an audience that wants to see 'em.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
Just a small word to tell you all that the STARGAZER has known its first update since 2006 !
A handful of new files have been added, mostly on the suggestion (and help on the article stubs*) by Walter van Tilborg. The main menu has also been revised and made clearer and more coherent. Lots of work remains to be done (notably the news which is no longer "new"... LOL) but this is a good start I guess...
Looking forward to your feedback in any form!

*EDIT: by stubs, I mean that Walter provided for each type a little summary in a few lines from his personal files which I then expanded by researching the aircraft types on my own.


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,616
Reaction score
116
Website
www.hitechweb.genezis.eu

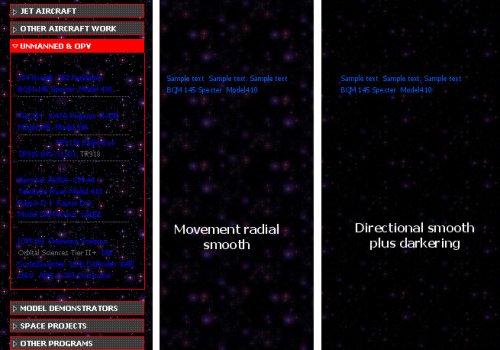

Just one for now - you should lower the contrast of the background. Small blue characters in the menu are almost unreadable because of it.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
This is strange but it might be the result of using a laptop computer as opposed to a desktop (I develop my sites from my desktop computer and always notice that laptop user get very different colors).
As for the contrast, I always make sure to choose an average and have used an online tool that is supposed to verify if contrast is correct on your computer... and it was!
This being said, if more people end up having the same problem, I'll see what I can do to improve it. But I would think that lowering the contrast will make the background more visible, which will make the reading of the text even more difficult...


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
Orionblamblam said:
the "Maliboo" carrier aircraft, basically a big-ass Proteus-style airplane for carryign spaceplanes, dating from the early '90's.

Just found this, which I think sheds some big light on what the Maliboo project was:

"At that meeting, C.C., Burt and I sketched a vary large, liquid-powered air launched manned booster system (the rocket was code-named "Maliboo", the carrier aircraft "Grasshopper"; Max and C.C. designed the spacecraft, a small, two-seat winged thing). Burt wanted to put rocket engines on the carrier aircraft to increase its flight path angle and avoid a wing in the rocket. I wanted a wing on the rocket and no rocket engines on the aircraft. A substantially modified 1/4 to 1/3 scale version of Grasshopper flew many years later under the name "White Knight"."

Source : http://forum.nasaspaceflight.com/index.php?topic=606.375


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,616
Reaction score
116
Website
www.hitechweb.genezis.eu
I have the professional desktop graphic computer (for the obvious reasons) with the independent hardware calibration monitor (ICC profile), so I think it should work OK. But I think that I didn't express correctly what I thought, so instead of describing it, just take a look. Take it as you wish, this is just my personal opinion/suggestion ;)


Attachments

  • example.jpg
    116.4 KB · Views: 300

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
Ooooookay!!!!

Now I see the problem... There is an extra GIF file for the box's texture that doesn't appear in your capture. It is gray and allows for the text to show very clearly!

Try and do a refresh on the whole page (Ctrl + R) and see what happens. The lost file somehow evaded page loading the first time round!


AL

ACCESS: Confidential
Joined
Nov 3, 2007
Messages
159
Reaction score
6
How about the reference for ASALT(Senior Citizen) for DARPA!!


FutureSpaceTourist

ACCESS: Top Secret
Joined
Mar 11, 2010
Messages
589
Reaction score
13
Stargazer2006 said:
Orionblamblam said:
the "Maliboo" carrier aircraft, basically a big-ass Proteus-style airplane for carryign spaceplanes, dating from the early '90's.

Just found this, which I think sheds some big light on what the Maliboo project was:

"At that meeting, C.C., Burt and I sketched a vary large, liquid-powered air launched manned booster system (the rocket was code-named "Maliboo", the carrier aircraft "Grasshopper"; Max and C.C. designed the spacecraft, a small, two-seat winged thing). Burt wanted to put rocket engines on the carrier aircraft to increase its flight path angle and avoid a wing in the rocket. I wanted a wing on the rocket and no rocket engines on the aircraft. A substantially modified 1/4 to 1/3 scale version of Grasshopper flew many years later under the name "White Knight"."

Source : http://forum.nasaspaceflight.com/index.php?topic=606.375

Sorry just picked-up on this thread - I guess 'Grasshopper' may also have evolved into the Custom Launch Aircraft referenced in http://www.secretprojects.co.uk/forum/index.php/topic,3413.msg88099.html#msg88099 ?




Update: corrected link (topic merge happened since) and add second CLA picture


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,673
Reaction score
3,465
Orionblamblam said:
From "Canard, A Revolution In Flight." I've only ever seen the book once, and that was when I bought it.

The Model 78-1;
http://books.google.com.eg/books?id=0dQDAAAAMBAJ&pg=PA203&dq=rutan+78-1&hl=ar&ei=5XmXTLXzHeWhOL2d0YgJ&sa=X&oi=book_result&ct=result&resnum=1&ved=0CCMQ6AEwAA#v=onepage&q&f=true


Attachments

  • 78-1.JPG
    43.3 KB · Views: 1,099

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
A great find! I have to add this to the Commuter page of my Stargazer website some time!


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
I have created a new web page which is a thumbnail gallery (later to be clickable) of all the designs that Burt Rutan and/or Scaled Composites are known to have been associated with. There may be a couple of things missing here and there, but this is a great way to start for someone who wants to get the jist of Rutan's work and design evolution!

Please give some feedback if you can!!

http://stargazer2006.online.fr/gallery/index.htm


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
501
Website
deeptowild.blogspot.com
From Aviation Week:

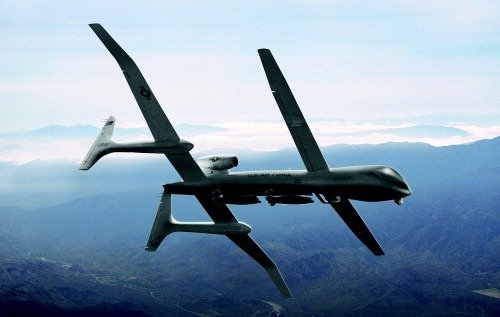

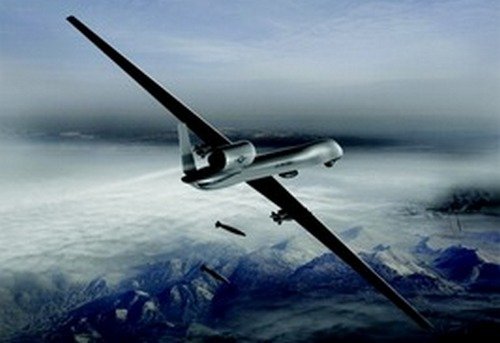

First flown in 2010, Firebird is not the first UAV Scaled has designed for Northrop. Back in 2004, Rutan's outfit produced two concepts for the company, for the US Air Force's then-emerging Hunter-Killer requirement. The Model 395 was an unmanned derivative of Scaled's Proteus high-altitude research aircraft; the Model 396 was a scaled-down Global Hawk. In the end, Hunter-Killer become the MQ-9 Reaper and the rest is history.

Scaled Composites Model 395




Scaled Composites Model 396



Source:
http://www.aviationweek.com/blogs.aspx?plckblogid=blog:a68cb417-3364-4fbf-a9dd-4feda680ec9c&plckpostid=blog%3Aa68cb417-3364-4fbf-a9dd-4feda680ec9cpost%3A9c82730d-6bca-4e1d-b970-c010accd2043


Attachments

  • 0d39a147-b718-423a-8c34-4e381f8c5949.Full.jpg
    38.3 KB · Views: 2,015
  • a67af6dc-003c-4958-9465-3be3c1b853fb.Full.jpg
    33.6 KB · Views: 2,000

Hobbes

ACCESS: Top Secret
Senior Member
Joined
May 9, 2008
Messages
854
Reaction score
220
AeroFranz said:
All I think of offer is a high-altitude UAV research airplane built in collaboration with NASA. It would have featured a short central boom with a tractor prop engine featuring triple(?) turbocharging, a medium aspect ratio untapered wing, and outboard short booms carrying outboard horizontal stabilizers. A friend has a framed picture in his office.

Just call me Ray said:
Three-stage turbocharging, or I guess even simpler terms, it has three turbochargers (so the air gets compressed three times)

(dragging up a really old post...)

Three-stage turbocharging seems kind of unlikely. Two-stage turbocharging can get you at least 10 bar of overpressure which is way more than you need. Adding another stage just complicates the plumbing for no apparent gain.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
501
Website
deeptowild.blogspot.com
Would the Proteus Hunter-Killer also have hardpoints on the wings? The concept artwork only portrays 500 lb. bombs mounted underneath the fuselage.


GeorgeA

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2006
Messages
791
Reaction score
121
Hobbes said:
Three-stage turbocharging seems kind of unlikely. Two-stage turbocharging can get you at least 10 bar of overpressure which is way more than you need. Adding another stage just complicates the plumbing for no apparent gain.


I am pretty sure the Phantom Eye has three-stage compound turbocharging (albeit with H2). This issue is not boost pressure but recovering as much waste heat from the exhaust as possible.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,673
Reaction score
3,465

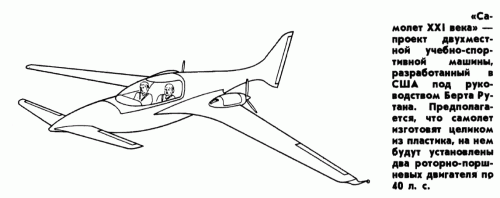

Hi,


http://www.flightglobal.com/pdfarchive/view/1983/1983%20-%201770.html


Attachments

  • Rutan pusher.JPG
    Rutan pusher.JPG
    83.5 KB · Views: 597

Similar threads

Top
