Tu-95 Crew "Ejection" system

GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
2,998
Reaction score
496
Website
beyondthesprues.com
Hi folks,

I've read that the Tu-95 Bear's crew at the front of the aircraft (six people - excluding the gunner in the tail) use a unique system: On the floor of the flightdeck, there is a conveyor belt about 3 feet wide and 7 feet long. In the case of having to bale out, the escape hatch in nosewheel bay (landing gear lowered obviously) is opened which starts up the conveyor belt. The crew are supposedly to role out of their seats onto the conveyor belt which then 'conveys' them to the hatch and out of the aircraft.

If anyone has pictures of this conveyor belt I'd be very appreciative.

Regards,

Greg


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
2,998
Reaction score
496
Website
beyondthesprues.com
*Bump*

Thought I'd see if anyone has anything on this this time around.

Regards,

Greg


scorp

ACCESS: Restricted
Joined
Mar 4, 2006
Messages
24
Reaction score
5
It can be seen (partially) in Koku-Fan Magazine No. 85 (a Special Issue on Modern Russian Military Aircraft), dating from 1995. Unfortunately, I no longer have it myself, but maybe this info. will help you out. Good luck.


Dew

ACCESS: Restricted
Joined
May 2, 2007
Messages
21
Reaction score
8

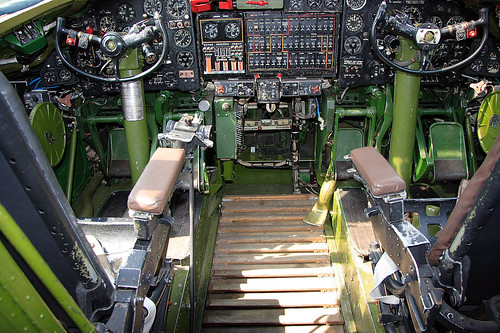

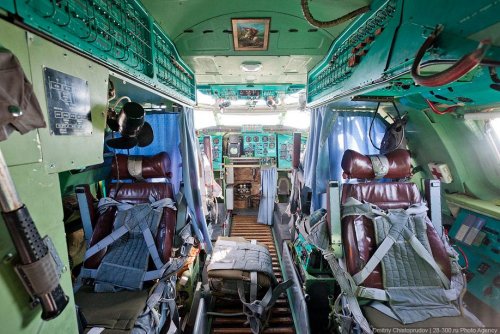

I have seen this system first hand, and have attached a shot I took below of the slatted 'conveyor'....



How's that? :)


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
2,998
Reaction score
496
Website
beyondthesprues.com
Thankyou - that's the first picture I've seen of this unique system.

Regards,

Greg
