The Verticopter

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,760
Reaction score
4,874
Hi,

http://forums.x-plane.org/index.php?showtopic=32391&st=20


Attachments

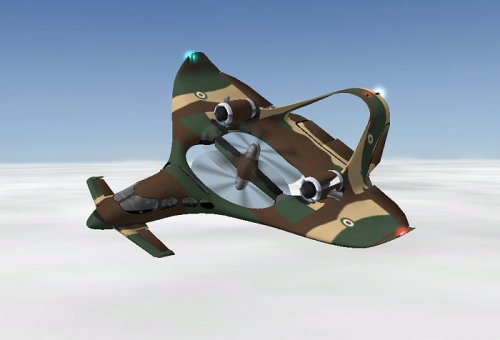

  • 3166.jpg
    77.4 KB · Views: 251

Demon Lord Razgriz

ACCESS: Confidential
Joined
Nov 1, 2008
Messages
189
Reaction score
2
Clearly fictional, and I think I might know who made that. Looks very close to a drawing a friend of mine did last year for an RP.


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,317
Reaction score
245
I thought there was a similarly-shaped small UAV designed by an Italian small company...The pics I saw showed a black paint job...don't remember much else, but it did have the buried lift fan in the center of the fuselage and was a canard IIRC.


ouroboros

ACCESS: Secret
Joined
Feb 2, 2008
Messages
353
Reaction score
8
Considering the Excalibur UCAV is functionally similar, and that's in early flight testing now, This concept is not entirely in the realm of fantasy. The only problem being the variable weight of passengers being so far from the CG. With the Excalibur, at least an attempt is made to deal with the CG issue by having three edge fans.


saturncanuck

Any landing you can walk away from, is a good one.
Joined
Jan 14, 2009
Messages
299
Reaction score
8
Website
www.aerofile.ca
ouroboros said:
Considering the Excalibur UCAV is functionally similar, and that's in early flight testing now, This concept is not entirely in the realm of fantasy. The only problem being the variable weight of passengers being so far from the CG. With the Excalibur, at least an attempt is made to deal with the CG issue by having three edge fans.

Oh, I agree. I just feel that these kinda things never see the light of day.


shedofdread

ACCESS: Secret
Joined
Nov 14, 2009
Messages
475
Reaction score
124
The biggest challenge with projects like this are the financial ones. Small business has a devil of a job taking on the 'big boys'. Even if your ideas are better than theirs, you still have to overcome their marketing and lobbying power.

Whilst an unconventional airframe / configuration, I can't see any significant conceptual problems. However, how do they acheive roll and pitch control whilst in the hover? Yaw, I presume is by torque splitting the lift fans. I couldn't see any evidence of control fans (Excalibur style).

S


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,669
Reaction score
695
Hi All -

There's a video on YouTube of the Garrow Aircraft Verticopter:

https://www.youtube.com/watch?v=mJc6TX7Reoo

Enjoy the Day! Mark
