The AMRAAM contenders

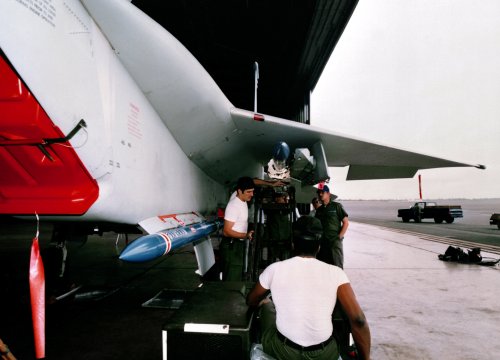

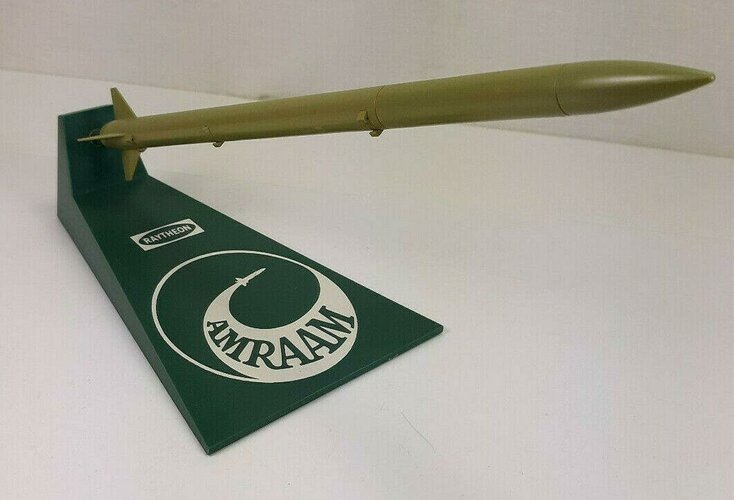

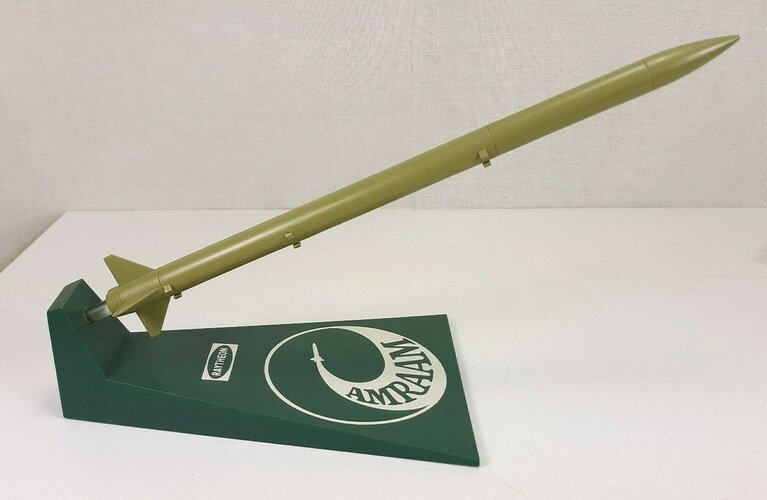

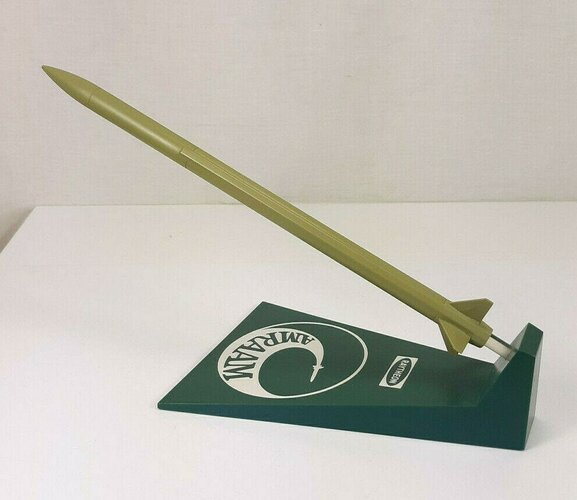

Here are a few of pictures of the Raytheon AMRAAM mock-up found at the back of the F-15A section of www.defenseimagery.mil
Interestingly, an adapter was used on the semi-conformal AIM-7 wells on the F-15.

Location: EGLIN AIR FORCE BASE
Date Shot: 3/13/1981


Attachments

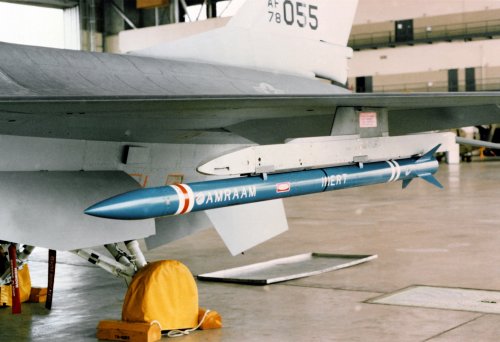

  • Raytheon_AMRAAM_F-16.jpg
    937.2 KB · Views: 604

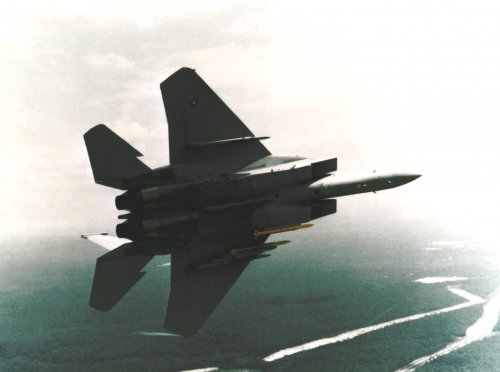

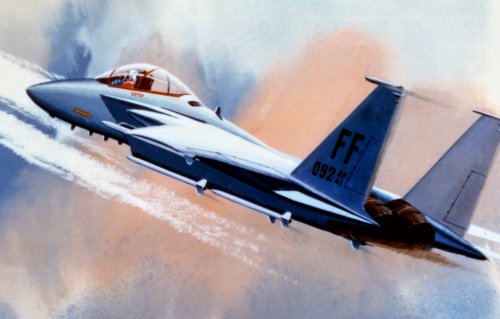

  • F-15_inflight_w-Raytheon_AMRAAM.jpg
    750.6 KB · Views: 525
  • Raytheon_AMRAAM_mockup.jpg
    865.6 KB · Views: 501
The AMRAAM requirement was established by a Joint Service Operational Requirement ( JSOR ) dated September 1976. Following a DSARC decision in November 1978 to approve program initiation, five contractors submitted prototype proposals. In February 1979, the Air Force awarded validation contracts to Hughes Aircraft Company, also the primary contractor for the AIM- 54 PHOENIX missile, and to Raytheon, the primary contractor for the AIM-7SPARROW and AIM- 9 SIDEWINDER missiles, to develop a complete systems design approach, and to build and test prototype missiles to demonstrate the AMRAAM concept. The effort included missile test firing and demonstration of air vehicle and air vehicle subsystem functions.

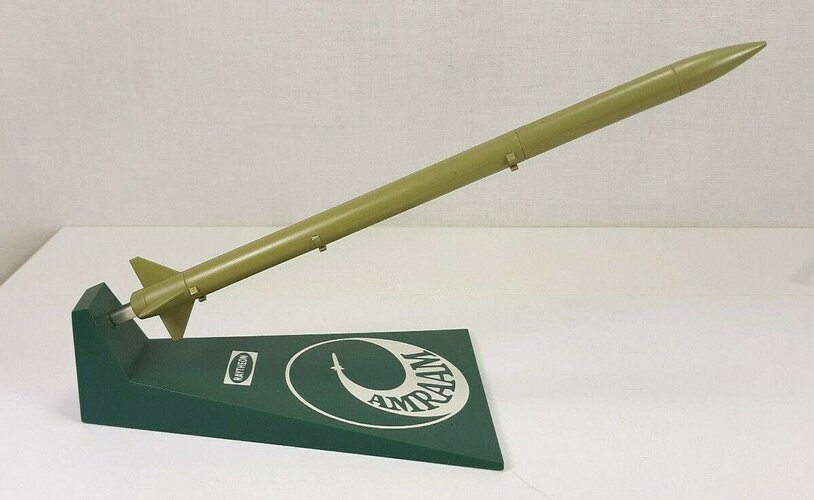

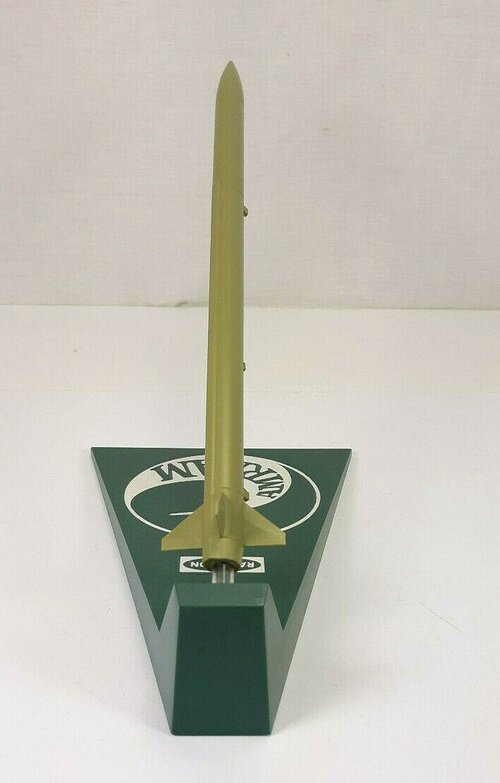

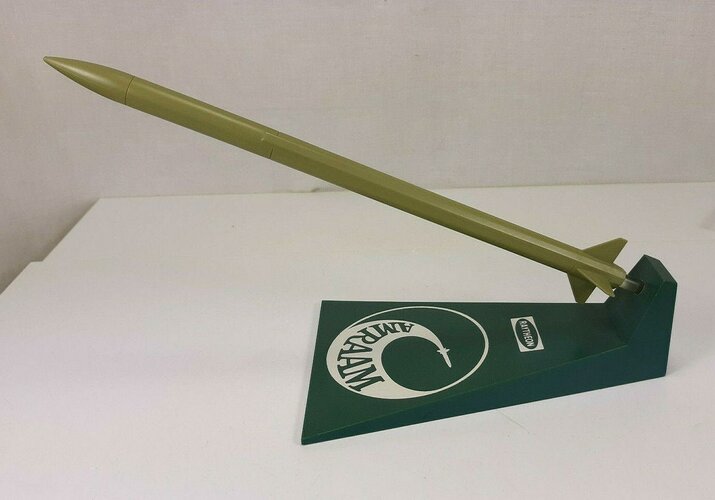

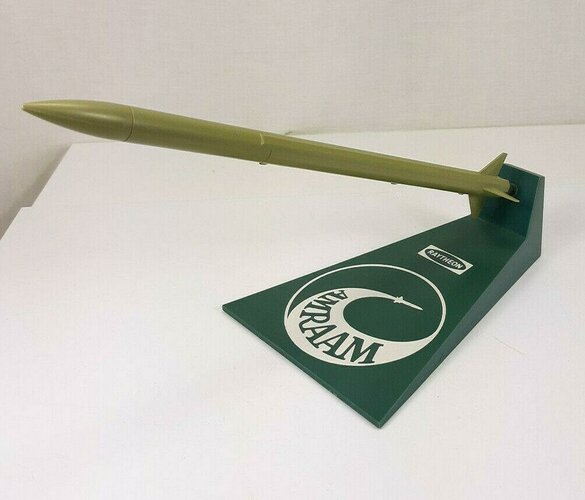

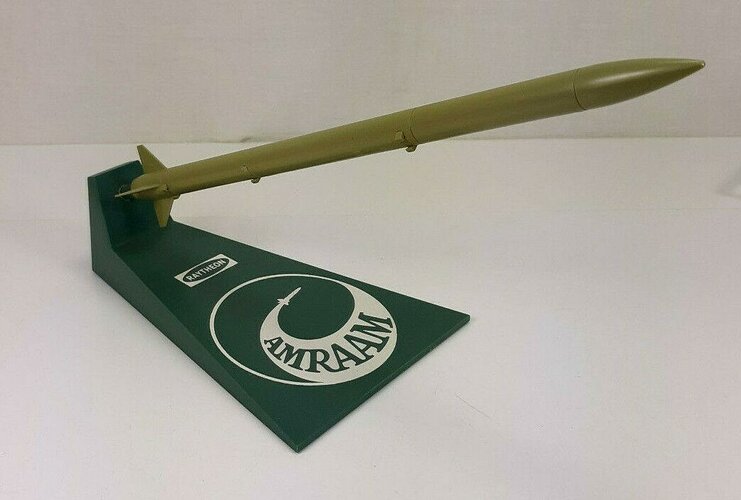

We have photos of Raytheon's prototype (see previous posts), but who were the other three contenders?

Last edited:
three prospective contractors have been pursuing exploratory development of critical technologies using both government and company funds, while two hopefuls have been working entirely with corporate funds. General Dynamics, Hughes and Northrop have received government funding, while Ford Aerospace and Raytheon have operated with corporate funds.

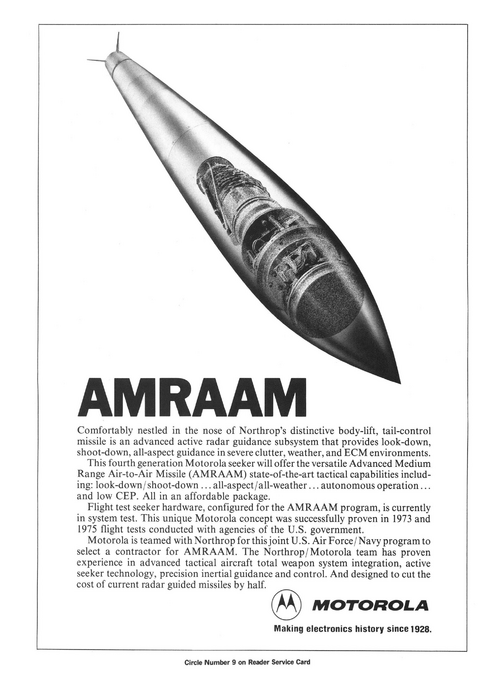

In anticipation of the requirement for an active radar-guided air-to-air missile, Motorola‘s Government Electronics Div. initiated company-funded studies, which resulted in a modest follow-on contract from the Naval Air Systems Command in 1971. Motorola subsequently built a breadboard model that was evaluated in captive flight tests in a joint Navy/USAF effort. An improved model, operating at a different frequency and at higher power level was tested in 1975, with good,results.

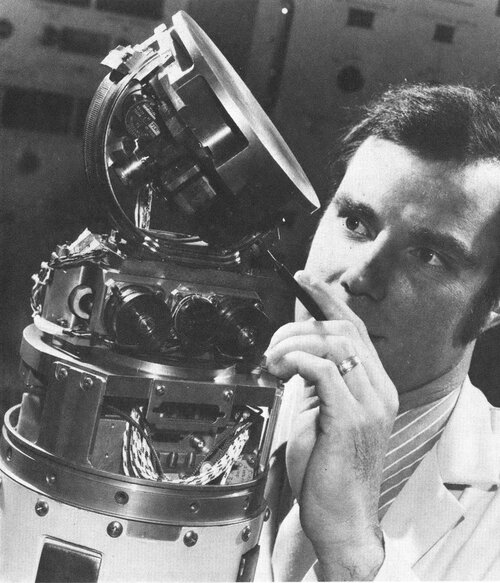

More recently, Motorola has delivered a brassboard model of the now tri-service guidance unit, designed to fit into a 5-in dia. missile frame, which will be evaluated at the Naval Weapons Center (AW&ST Jan. 16, p. 57). Motorola is a member of the Northrop team that will bid for the new joint-service missile.

Another Contender

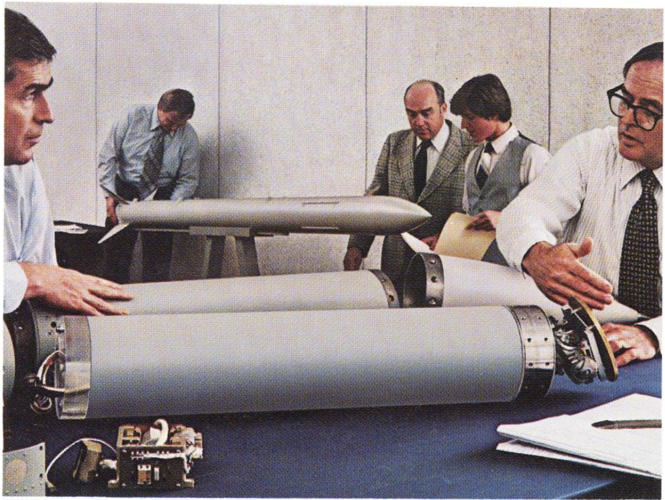

Hughes Aircraft, whose experience in all-weather air-to-air missiles goes back to the first weapon of this type ever mass produced in the U. S., the semi-actively guided Falcon, is considered another strong contender. The company has provided little information on its technical approach except to disclose that its missile radar will employ solid-state Impatt diodes to generate microwave energy, using a company patented power-combiner. Failure of one or more diodes in the combiner simply results in a reduction in power rather than complete failure
The radar is expected to employ a programmable digital signal processor, using technology developed by Hughes for use in its new radar for the F-18/A-18 (AW&ST Jan. 16, p. 55). The thin, plastic radar antenna will be driven for scanning by torque motor—type actuators.

International Team

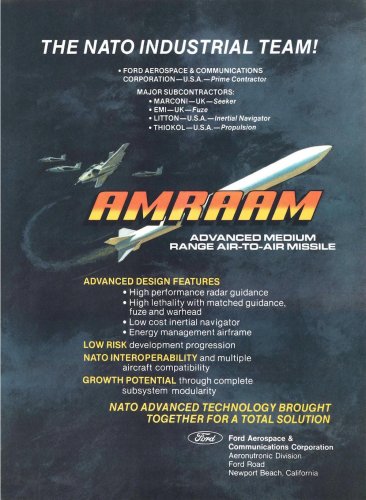

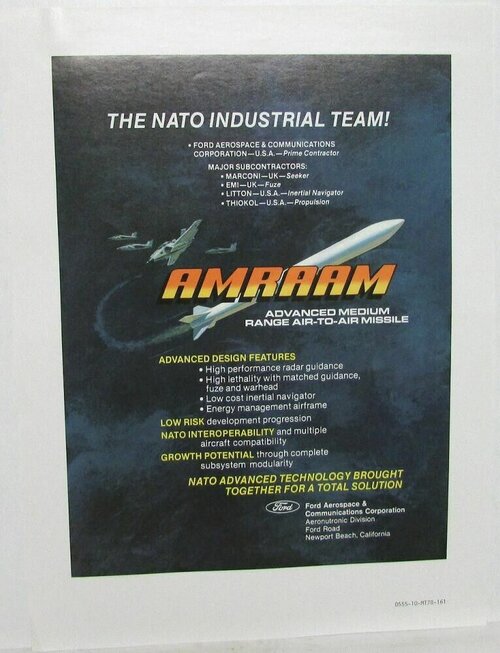

Ford Aerospace has teamed with Britain‘s Marconi-Elliott and EMl, Ltd.. for the guidance portion of its entry. Marconi-Elliott developed the effective monopulse radar semi-active guidance head for the British Skyflash air-to—air missile.

USAF is hoping to obtain congressional approval to reprogram funds to fill the Fiscal 1978 void in funding for the new air-to-air missile program. if Congress approves, modest study contracts will be awarded to the five contenders. The present timetable. assuming that advanced development is approved this fall by the Defense Systems Acquisition Review Council, is to select two contractors late this year for a 33—month effort, leading to a fly-off/shoot-off in late 1981.
Source: AWST 13th March 1978 P.167-168

Last edited:
New Radar-Guided Weapon Under Study
By Barry Miller
Los Angeles—Next-generation Air Force and Navy air-to-air radar-guided missile intended to supplant the Raytheon Sparrow AIM-7F as the medium-range, all-weather armament for new fighters will move into a competitive three-year advanced development late this year.

The weapon is earmarked for four high-performance fighters—USAF’s McDonnell Douglas F-15 and General Dynamics F-16 and the Navy/Grumman F-14 and McDonnell Douglas F-18. A sizable foreign market also is foreseen, particularly among North Atlantic Treaty Organization F-16 customers, but possibly for the Northrop F-18L and F-5 fighters as well, depending on how certain technical features evolve during development.

Five companies are running initial studies of the advanced medium-range air-to-air missile (AW&ST Sept. 20, 1976, p. 9) under contract to what has recently
become a joint Air Force-Navy system program office at USAF’s Armament Development and Test Center at Eglin AFB, Fla. Three of the five—General Dynamics/Pomona, Hughes Aircraft and Northrop—are working with contracts of about $900,000 each; the remaining companies, Raytheon and Ford Aerospace & Communications, are unfunded contractors.

The program office anticipates releasing proposal requests late in the spring for a three-year prototype phase leading to a competitive flyoff between two contractors. An Air Force official indicated the two prototype contractors will be selected late in the summer.

The selection will be narrowed to one contractor for engineering development and a production start on the weapon in the mid-1980s.

The advanced medium-range air-to-air missile (AMRAAM) will incorporate a number of technical advances intended to provide users with a “‘fire-and-forget” capability, at least at short ranges. This will free launching aircraft from the need to illuminate targets through intercept, as they must now do with the semiactively guided Sparrow missile. The fire-and-forget feature is the product of using an active radar seeker, conceptually similar to the terminal seeker in the much larger Hughes Phoenix missile. Squeezing the active seeker into a small missile airframe of the size anticipated, perhaps no larger than the characteristic 5-in.-dia. of a Sidewinder, is a key technological advance. Its feasibility may hinge on the availability of compact, solid-state power sources that are strong enough to yield a 3-5-mi. terminal range.


An active terminal guidance seeker solves the otherwise difficult problem of interfacing the weapon with four radars of different pulse repetition rates in the four aircraft candidates to use missiles. The different pulse rates would complicate accommodation of the weapon if it were semi-actively guided.
The “‘fire-and-forget” performance lessens the chance that a target will become aware that it is under missile guidance illumination and frees the firing aircraft to search for other threats. It also poses the prospect of relieving future aircraft of the need to have or use forward-looking radars for missile attack. The attacking aircraft might be able to acquire targets visually (much as they were required to do with Sparrow in Southeast Asia) and fire the weapons without emitting their own radar energy or might acquire targets based on threat signal emissions using an onboard passive radar homing and warning system.

By having an essentially quiet weapon concept, in which signal emission from the launching platform is minimized or eliminated, the services would minimize the likelihood of the aircraft weapon control system suffering disruption by hostile jamming.

The contractors for the missile are considering a midcourse guidance system sufficiently accurate to bring the weapon to within the approximate volume where the terminal seeker could take control. Most of them are concentrating on strapdown inertial platforms that can be updated through midcourse by radio commands.

The launching aircraft would be able to have several missiles in the air at one time because the weapons will be autonomous or nearly autonomous after launch. This multiple target capability would give the smaller, less-complex new missile much of the same kind of multiple-shot capability that the Phoenix achieves with the F-14 track-while-scan AWG-9 radar.

While the exact size of the new missile is still undecided, studies are focusing on a weapon roughly half the size and weight of the Sparrow AIM-7F but with a comparable range and a few performance features akin to those of Phoenix. The latter would include the active terminal homing and multiple target capability.

“The AMRAAM missile will be a poor man’s Phoenix,” one observer commented. The cost of this weapon, the program office hopes, will be about half that of the Sparrow.

Of the four aircraft candidates for the new missiles, the F-16 appears to offer the main size constraint. The aircraft is not now equipped nor intended to control Sparrow launches. If it were equipped with Sparrow, the fighter would suffer a noticeable performance degradation amounting to a 10-15% penalty in aerodynamicperformance and time to accelerate.

A radar-guided missile would be important armament for the F-16 in a European environment where weather so frequently precludes use of visual weapons.

European Advances

Entrants in the missile competition are attempting to tap advances made in air-to-air missile technology by West European companies. Marconi Space and Defense Systems, Ltd., is Ford Aerospace’s radar guidance subcontractor for the effort, and the British EMI, Ltd., is one of several companies Ford is considering as its fuzing contractor. Marconi made the monopulse seeker for the United Kingdom Skyflash modification to the Sparrow AIM-7E, which has demonstrated what is widely regarded as a remarkable success in tryouts at the Pacific Missile Test Center. Skyflash has scored 11 hits in 12 firings,
six of which were contact hits, demonstrating the reduced miss distance capability of the monopulse seeker. The latter type of seeker provides look down, shootdown performance against low-flying targets, and competitors on the new missile are expected to include monopulse features in their active seekers.

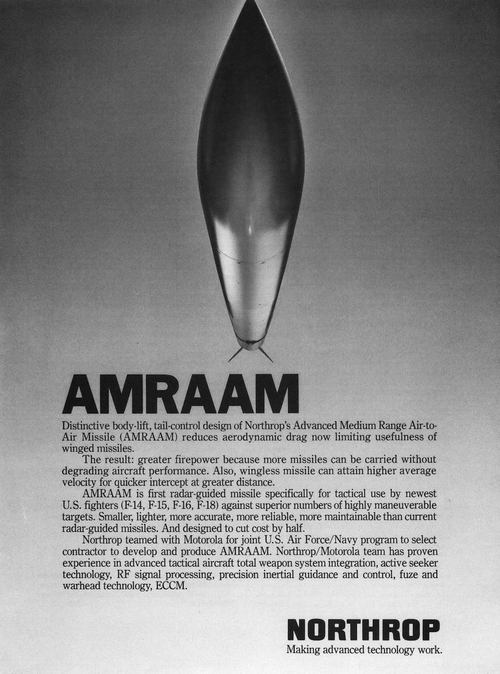

Northrop has a license agreement with Engins Matra under which it will obtain aerodynamic and control data relating to the French company’s Magic 550 missile for incorporation in the new U.S. missile. The French missile, Northrop believes, has greater maneuverability and presents less drag than comparably sized missiles like Sidewinder. It also has an autopilot. The Magic achieves its maneuverability with an extra group of four fixed control surfaces ahead of the movable control canards in the forward portion of the missile. The combination of the two smooths flight at high angles of attack. The weapon has a spin free tail, with each of four tail surfaces hinged on a bearing, which avoids imparting any rolling moment to the missile.

Northrop is teamed in its effort with Motorola, whose active solid-state seeker work on what is called a fast acquisition search and track (Fast) seeker has led to a $7.2-million tri-service development contract. Under this contract, Motorola is building five active radar seekers, packaged in both 8-in.-dia. and the Sidewinder 5-in. dia. versions. Some of the service interest in the Motorola seeker is as a possible replacement for the Sidewinder infrared seeker.

As applied to the new missiles, the Motorola sensor is expected to reduce the wandering of the missile’s aim point, which occurs at short distances from the target as the phase front returns from its radar signals combine. Reducing the aimpoint error or miss distance would permit use of smaller warheads, hence result in a smaller missile. The seeker uses an Impatt diode power source. There is a possibility the fuzing function could be handled by the seeker instead of requiring a separate unit.

Northrop’s design approach also would incorporate a strapdown inertial platform developed by Northrop’s Precision Products Dept. and now in test at the Naval Weapons Center. The sensor developed for possible application in the Chaparral air defense missile system meets the Sidewinder 5-in. envelope objective. The three-gyro, three-accelerometer package with small digital computer resolves sensor outputs into a proper coordinate system. The platform can accept command inputs over a one-way radio link.

The new missile is expected to be entirely digital, using a reprogrammable processor for both midcourse and terminal guidance calculations. These processors are smaller, more flexible and more reliable than analog equivalents previously used in small tactical missiles. They also have important cost implications: equipment can be modified more readily during the missile’s operational lifetime, and changes can be made during engineering development by altering software.

A digital guidance seeker offers an additional bonus in its ability to implement increasingly sophisticated guidance laws. With range, range-rate, angle and angle-rate data available, the seeker’s computer could obtain target acceleration data from the derivatives of the rate information, provided the signals are clean.Since the missile computer knows its own acceleration, based on the platform’s information, it could determine exactly what the target is doing.

During current studies, the five contractors have to perform tradeoff studies and prepare cost and performance estimates. They must conduct guidance hardware experiments and deliver seekers to Holloman AFB, N. M., by May for testing. The contractors are now working to a draft joint services operational requirement prepared after the studies got under way originally as a lightweight radar missile with backing from the Defense Advanced Research Projects Agency.
AWST 14 Feb 1977

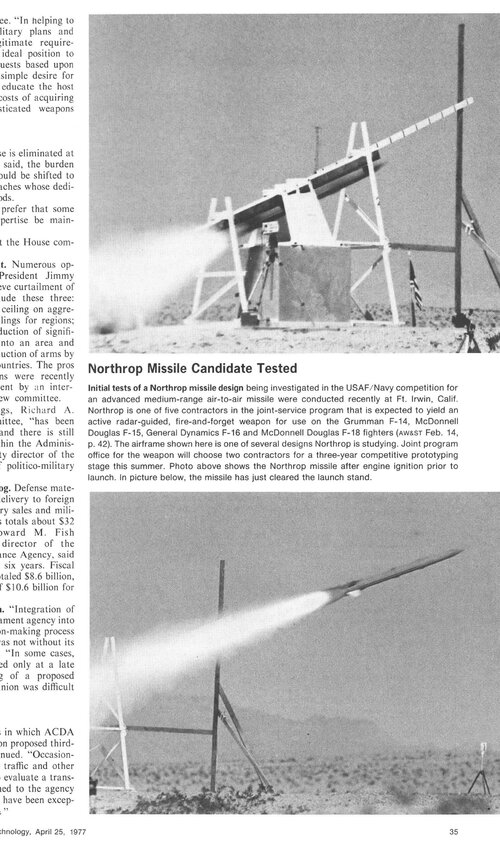

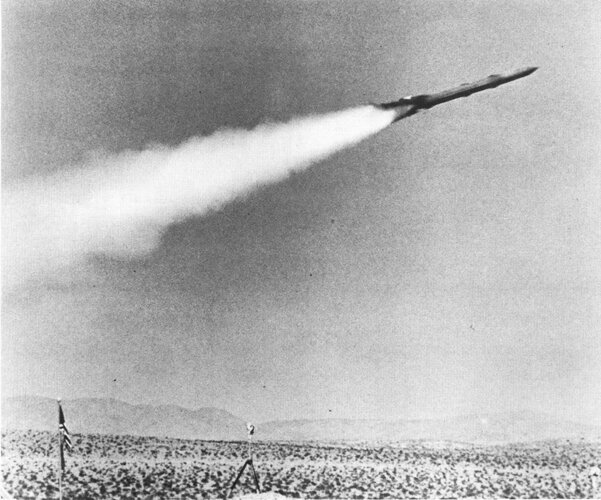

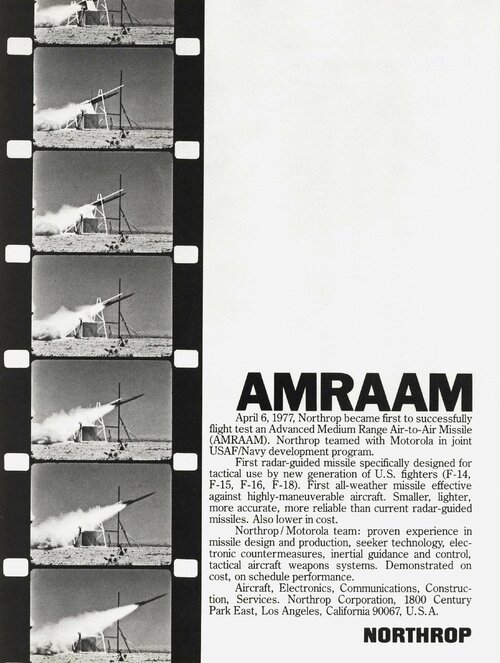

Aerodynamic vehicle used for evaluation by Northrop in the USAF/Navy joint advanced medium-range air-to-air missile program (AMRAAM) is launched from a ground site. The vehicle is one of several studied by Northrop, one of five contractors in the study effort. Objective of the program is to develop an active-guided fire-and-forget missile for new fighters—the Grumman F-14, McDonnell Douglas F-15, General Dynamics F-16 and the McDonnell Douglas/Northrop F-18.

AWST 6 June 1976


Attachments

  • Northrop AMRAAM.jpg
    Northrop AMRAAM.jpg
    1 MB · Views: 94
Missile Guidance Proposals Sought
Air Force and Navy plan to issue in mid-June a request for proposal to industry for competitive prototyping of a guidance section for the joint-service advanced medium-range air-to-air missile (AMRAAM) for the Grumman F-14, McDonnell Douglas F-15, General Dynamics F-16 and Northrop/McDonnell Douglas F-18 fighters.

The services planned to issue the proposal request this week but had to delay because a reciprocal defense procurement memorandum of understanding has not been signed with the United Kingdom.

Great Britain’s Marconi Space and Defense Systems, Ltd., is teamed with Ford Aerospace & Communications to provide the entrant for the companies’ seeker design for the advanced missile. Without the memorandum of understanding being signed, the Ford-Marconi team could not enter the competition, so the request date has been delayed.

Other competitors for the new seeker include:

= Hughes Aircraft.
= Raytheon.
= General Dynamics.
= Northrop/Motorola.

Hughes Aircraft last week was discussing with Marconi possible use of Marconi technology or hardware components in the active terminal guidance seeker for the Hughes design in the advanced missile development program.

All of the five companies now entered in the design definition phase for the advanced missile’s seeker have focused their designs on an active inverse monopulse technique. Only two will be chosen for prototyping.

The advanced medium-range air-to-air missile program is intended to develop a replacement for the present Navy/Raytheon AIM-7F Sparrow in the late 1980s (Awast Feb. 14, p. 42). Two of the seeker competitors in the advanced missile program— Raytheon and General Dynamics—also are competitors in the program to produce a semi-active inverse monopulse seeker for the AIM-7F now in the inventory to enhance its capability to operate in an electronic countermeasures environment.

A Marconi inverse monopulse seeker developed for the Hawker Siddeley XJ-521 Skyflash air-to-air missile, which has already undergone some testing in the U.S. by the Navy at Pt. Mugu, Calif., will be continued in live firing trials if it is successful in electronic countermeasure tests.

The Marconi seeker is being tested concurrently with competitive seekers built by Raytheon and General Dynamics in an electronics countermeasures test facility, under terms of a U. S.-British memorandum of understanding negotiated through the U. S. Defense Directorate of Research and Engineering. This program envisions live firing trials with a limited number of Skyflash missiles after the ECM studies are completed. The trials were to involve about two dozen missiles out of a planned procurement order for about 500, with the balance being purchased by USAF for operational use and evaluation on the McDonnell Douglas F-4.

However, USAF changed its mind and refused to purchase the 500 missiles after the British government decided not to stay in the North Atlantic Treaty Organization’s airborne warning and control system (AWACS) program (Aw&st Apr. 11, p. 15). However, ECM facility testing of the three seekers will
continue as planned.

In the XJ-521 tests already conducted by the Navy, the targets have been augmented with radar signature equipment and have all been at the same altitude as the McDonnell Douglas F-4 launch aircraft, or at a look-up angle, Defense officials said. The only target not augmented for the tests has been a drone T-33 aircraft, a large-radar signature target, according to U.S. officials. The two prototype advanced inverse monopulse seeker systems Raytheon and General Dynamics—use digital processing equipment for guidance, providing a capability for software programming to overcome electronic countermeasures as the threat increases in the future, according to officials.

AWST 2 May 1977

AD- B067 125L
AEDC-TSR-78- P11 Fld/Gp 20/1
Documentation of a Wind Tunnel Test with the General Dynamics Corporation AMRAAM Competition Missile and the F- 15 Aircraft.

AD- B067 076L
AEDC-TSR-78-P13 Fld/Gp 1/3
Documentation of a Wind Tunnel Test with the Northrop Corporation AMRAAM Competition Missile and the F- 15 Aircraft.

AD- B067 120L
AEDC-TSR-78- P15 Fld/Gp 16/4.1
Documentation of a Wind Tunnel Test with the Raytheon Company AMRAAM Competition Missile and the F- 15 Aircraft.

AD- B067 119L
AEDC-TSR- 78- P16 Fld/Gp 20/1
Documentation of a Wind Tunnel Test with the Ford Aerospace Corporation AMRAAM Competition Missile and the F- 15 Aircraft

AD- B067 229L
Fld/Gp 16/4.1
Documentation of a Wind Tunnel Test with the Ford Aerospace Corporation AMRAAM Competition Missile and the F- 15 Aircraft

AD- B067 137L
AEDC-TSR-79- P59 Fld/Gp 1/3
Wind Tunnel Tests of Raytheon AMRAAM Missiles in the Carriage Position of 0.05- Scale F-15 and F-16 Aircraft Models.

AD-B067 116L
AEDC-TSR-79-P61 Fld/Gp 1/3
A Wind Tunnel Test to Determine Separation Characteristics of the Raytheon AMRAAM Missile from the F- 15 and F-16 Aircraft.

AD-B067 272L
AEDC-TSR-79- P77 Fld/Gp 16/4.1
Static Force and Moment Testing of a 0.331- Scale Model of the Raytheon AMRAAM Missile.

AD-B067 118L
AEDC-TSR-80- P12 Fld/Gp 20/1
Aerodynamic Loads on the F- 14 Aircraft and on the Raytheon AMRAAM in the Carriage Position.

AD- B067 117L
AEDC-TSR-80-P79 Fld/Gp 20/4
The Aerodynamic Characteristics and Store Loads of a 0.06-Scale F- 18 Aircraft Model Configured with the Raytheon AMRAAM Missile

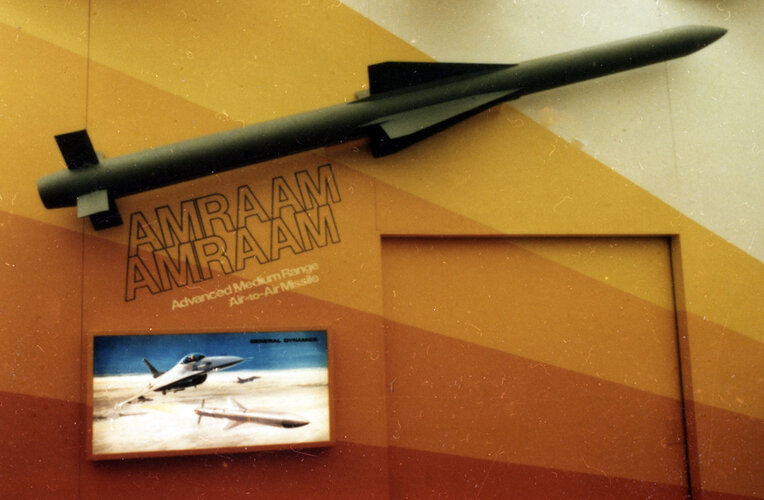

So we only have one unknown submission, General Dynamics Pomona.

Three other known contenders (Northrop, Raytheon, Ford Aerospace) used wingless designs with tail control only. Note Ford Aerospace became part of Loral, who later did the HAVE DASH AAMs.

Of the designs, Northrop used an existing Motorola seeker, Ford Aerospace partnered with Marconi for the seeker and Thorn-EMI for the fuse, clearly betting on the international cooperation angle and leveraging Sky Flash technology. Interestingly, a Marconi millimetric active radar seeker was replaced on Sky Flash 90 by Thomson-CSF.

Hughes, Raytheon and General Dynamics designed their own seekers. The unique selling point of Hughes seeker, the solid state transmitter, was abandoned and replaced with a conventional TWT.

Last edited:
This advanced anti-air radar seeker from a GEC Review article from 1985 gives possible clues to the design of the Marconi AMRAAM seeker. Its notably using a twist-cassegrain antenna.


Attachments

  • Marconi 15cm seeker.png
    Marconi 15cm seeker.png
    117.2 KB · Views: 114
