Swiss SmartFish project

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,107
Reaction score
1,096
www.smartfish.ch

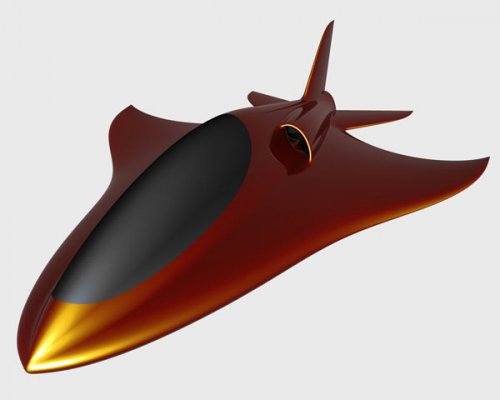

"The objective of team SmartFish is to develop and commercialise a revolutionary general aviation aircraft technology that is highly innovative in terms of safety, economy and emotion. This technology can be used for a wide range of applications, from UAV to high performance sports planes to business jets that can accommodate up to 20 passengers.

The SmartFish proof of concept will be realized in collaboration with following companies: Extra (world leader in aerobatic aircraft) for system integration and test flights, Leichtwerk for interpretation statics and dynamics, LTB Borowski for composite manufacturing, Liebherr Aerospace for Landing Gear System development, DLR (German Aerospace Center) for flutter analysis and inlet optimization, RUAG Aerospace for wind tunnel testing, and EPFL, the Swiss Federal Institute of Technology (they did a great job for Alinghi) for overall design optimization. "


Attachments

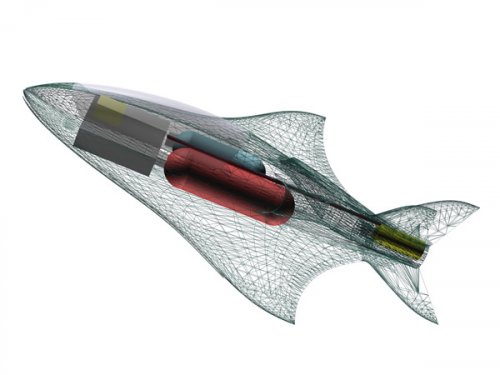

  • HyFish_600x.jpg
    19.7 KB · Views: 79
  • Design_10_Grundriss.jpg
    4.7 KB · Views: 68
  • Design_10_Seitenriss.jpg
    3 KB · Views: 69
  • Design_10_Frontansicht.jpg
    1.8 KB · Views: 66

Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,054
Reaction score
1,445
Website
www.aerospaceprojectsreview.com
flateric said:
www.smartfish.ch

"The objective of team SmartFish is to develop and commercialise a revolutionary general aviation aircraft technology that is highly innovative in terms of safety, economy and emotion. ... "

Wow. Just... wow. They actually think that this design would be landable safely by general aviation pilots? This looks like it'd have the glideslope and maneuverability at low speed of the Space Shuttle, with an agle of attack at landing that would be damned near pointing straight up.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,107
Reaction score
1,096
That's why, Scott, it was posted in 'The Bar' :)


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,271
Reaction score
1,121
"They actually think that this design would be landable safely by general aviation pilots?"

Why not ? "Care free handling" is built into the flight control systems of modern fighters,
and this aircraft surely wouldn't be flyable at all without it. Ok, if it fails, the pilot will have a
problem, but having a look into safety records and statistics of the general aviation, it's
quite obvious, that the biggest risk is sitting in the cockpit ! A modern flight control system
may well enhance safety even more, than ULM-like parachute systems, I think. It's just a
matter of money ...


dannydale

ACCESS: Secret
Joined
May 13, 2007
Messages
226
Reaction score
18
Is it just me or does that design look almost like a hypersonic waverider when viewed from the top?


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,107
Reaction score
1,096
That's why Rutan and Branson called for Philip Stark to design interior...but not exterior...


Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,864
Reaction score
329
To me, the problem with this design won't be one of L/D, it will probably have a much lower wing loading then the Shuttle. But hasn't the problems with designs like this been the non linearity of the lift curve as alpha increases and the attendant drag associated with high lift of such designs making them difficult to control? I remember RANS made a lifting body fuselage homebuilt with twin tails and such, to look like a homebuilt F-18, but it had flight control/stability problems IIRC and eventually crashed.

Granted, they could make an FCS that could deal with that, but if they are talking about it for GA purposes, the plane must run around the cost of a GV, just for the FCS and the cost to maintain it.

That's why Rutan and Branson called for Philip Stark to design interior...but not exterior...

LOL!


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,107
Reaction score
1,096

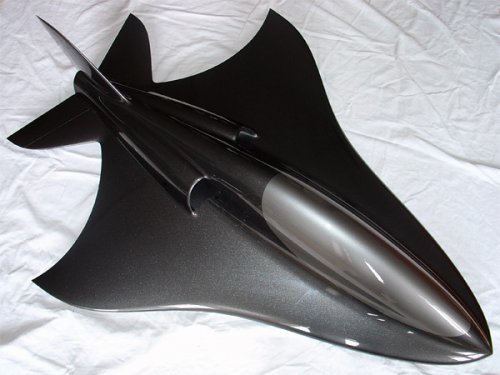

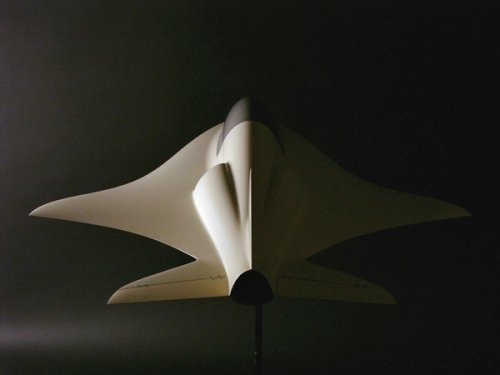

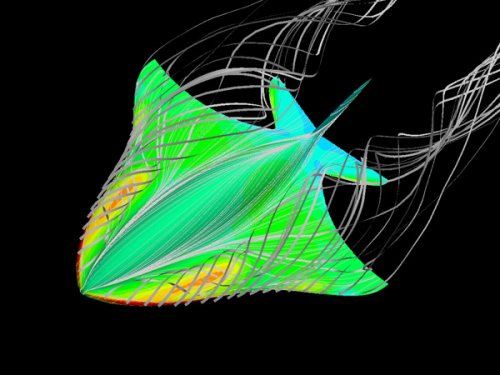

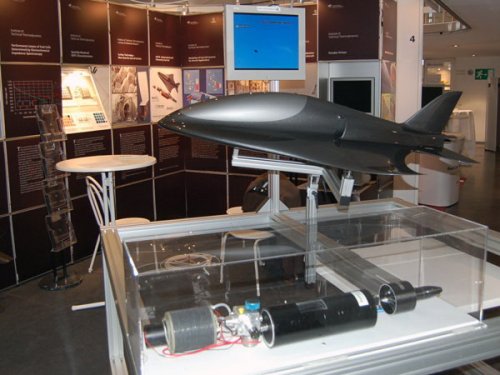

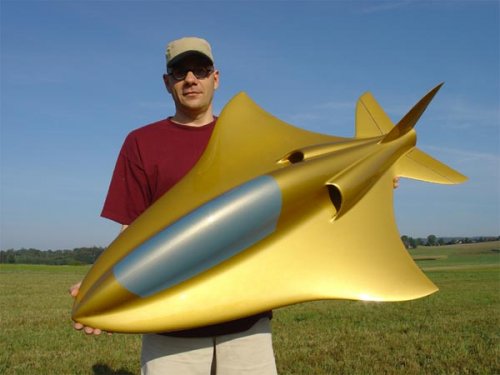

At least model flights well...

http://www.youtube.com/watch?v=3sD3WD6CMRY

Taken from http://alvelda.blogspot.com/2007/04/smartfish-hydrogen-fuel-cell-powered.html


Attachments

  • Design-10.jpg
    31.5 KB · Views: 22

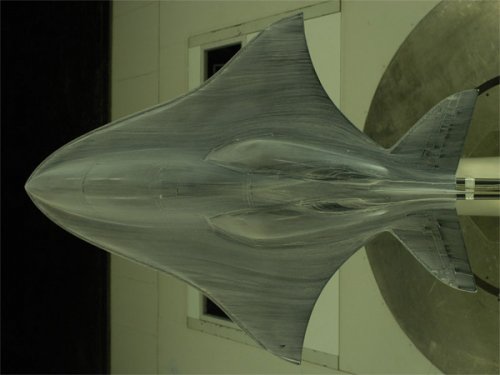

  • SmartFish_Design_10_Ruag_Aerospace_3.jpg
    56.4 KB · Views: 18
  • Vortex_Lift.jpg
    120.5 KB · Views: 17
  • Design_14B_Back_600x.JPG
    56.5 KB · Views: 17
  • News_September_06.3.jpg
    108.4 KB · Views: 19
  • Model_HyFish_600x.jpg
    97.7 KB · Views: 23
  • hyfish.jpg
    70.4 KB · Views: 35

AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,303
Reaction score
205
I look at this bird -sorry, fish- and I don't see how they can sell it as a GA. I mean, the looks are exciting and everything you want, but aerodynamics and economics tell you you want decent aspect ratio on a GA aircraft. I am not questioning that something like that will fly, but unless it's optimized for a flight regime unlike what you would typically expect from a VLJ (say 300-400kts, up to 1,000nmi range), the wing planform does not make sense. It's no coincidence that all VLJs have aspect ratios around 5-7 and little or no sweep. Is this really supposed to be a commuter airplane?
Does anybody know what the powerplant would be? FJ33/PW615?

my guess is, this is a PR thing to get investors salivating. the real thing would look different (i.e., more conventional).


yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,490
Reaction score
707
AeroFranz said:
I look at this bird -sorry, fish- and I don't see how they can sell it as a GA. I mean, the looks are exciting and everything you want, but aerodynamics and economics tell you you want decent aspect ratio on a GA aircraft. I am not questioning that something like that will fly, but unless it's optimized for a flight regime unlike what you would typically expect from a VLJ (say 300-400kts, up to 1,000nmi range), the wing planform does not make sense. It's no coincidence that all VLJs have aspect ratios around 5-7 and little or no sweep. Is this really supposed to be a commuter airplane?
Does anybody know what the powerplant would be? FJ33/PW615?

my guess is, this is a PR thing to get investors salivating. the real thing would look different (i.e., more conventional).

Phsst!!! There you go obviscating the notion with facts. ;D


dannydale

ACCESS: Secret
Joined
May 13, 2007
Messages
226
Reaction score
18
flateric said:
At least model flights well...

http://www.youtube.com/watch?v=3sD3WD6CMRY

Taken from http://alvelda.blogspot.com/2007/04/smartfish-hydrogen-fuel-cell-powered.html
Yeah, it does fly nicely. It still looks like a hypersonic design, especially if you moved the engines to the bottom between a compression ramp and a SERN. I'd move the tailplanes somewhere else to prevent interference with the exhaust, however.


Grif

ACCESS: Confidential
Joined
Jan 19, 2008
Messages
52
Reaction score
2
I've just realised what this reminds me of..."Stand-By For Action! Anything Can Happen In The Next Half Hour!" Stingray!
Grif


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158
Hi,

http://www.smartfish.ch/index.cfm/fuseaction/show/path/1-2.htm


Attachments

  • Design_28_1_600x345.jpg
    51.7 KB · Views: 17

dannydale

ACCESS: Secret
Joined
May 13, 2007
Messages
226
Reaction score
18

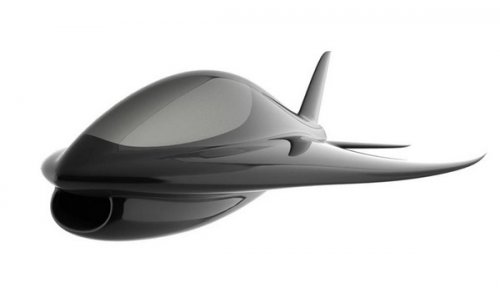

LOL!! Now it really looks like a fish! :D Also....

dannydale said:
Is it just me or does that design look almost like a hypersonic waverider when viewed from the top?
dannydale said:
It still looks like a hypersonic design, especially if you moved the engines to the bottom between a compression ramp and a SERN. I'd move the tailplanes somewhere else to prevent interference with the exhaust, however.

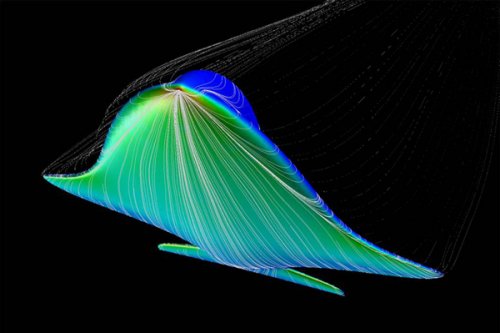

I CALLED IT! I FRAKKING CALLED IT! Well, mostly. Behold, the SPACEFISH reentry vehicle! First ballon-borne prototype launch is this month, too!


Attachments

  • SmartFish_Hypersonic_AOA_30_600x.jpg
    142.4 KB · Views: 13

JonnyPJohnston

I really should change my personal text
Joined
Sep 14, 2012
Messages
1
Reaction score
0
It was originally designed by a group of Swiss university students to be a glider on Saturn's moon Titan.

I think it should be a Manned Suborbital Ultralight.

Launched either by balloon or atop a rocket, say a slightly larger version of the original SpaceX launch vehicle, Falcon 1.

JP Johnston ME CSWP
Rogue Exploration Technologies
Woodburn, IN USA
