• Hi Guest! Forum rules have been updated. All users please read here.

Supermarine 4040

Deltafan

ACCESS: Top Secret
Joined
May 8, 2006
Messages
1,093
Reaction score
466
Wow ! ;D


It looks a littlle like the Lockheed prototype from the 50's :)


elider

ACCESS: Confidential
Joined
Feb 16, 2006
Messages
122
Reaction score
3
Wow is right. You absolutely amaze me. It's so good to see your art again. Thanks.


Archibald

ACCESS: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
4,735
Reaction score
2,372
Awesome!!! What the hell was this project ? a VTOL piston-powered fighter ? :eek:


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
3,101
Reaction score
698
Website
beyondthesprues.com

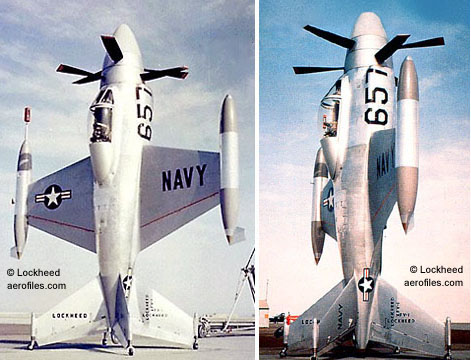

It certainly has a look similar to the Lockheed XFV-1:



Please tell me if this was a real project and if so are there any details?

Regards,

Greg


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,807
Reaction score
81
This is a real Supermarine project.
The concept was proposed in the Supermarine
Technical Report No.4040 of 26 February 1944.

Source : 'Spitfire , The History' by E.Morgan & E.Shacklady,Key Publishing.


Archibald

ACCESS: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
4,735
Reaction score
2,372
Awesome !!! :eek: (pics and aircraft!!)

It's the first time I heard of a VTOL aircraft with a piston engine... what engine was it ? A 3000+ hp RR Eagle ?


kitnut617

ACCESS: Secret
Joined
Dec 15, 2006
Messages
401
Reaction score
127
I hoping PlanesPictures tells us that it would have used the RR Crecy (all 5000 hp of it) ::)


Ju388

ACCESS: Restricted
Joined
Mar 21, 2010
Messages
13
Reaction score
0
Awesome. But that last picture, "Fatal Problem" reminded me of my first springtime sortie into back yard with the lawnmower today........


Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,480
Reaction score
550
The archivists at Solent Sky have just located some preliminary sketches and calculations from 1944 that appear to be early thoughts for Clifton's Technical Note 4040. Of course this was never a project or even truly a concept, just a note to show that it was theoretically possible to acheive vertical flight with a RR Griffon. Images on their Facebook page.
https://www.facebook.com/search/top/?q=solent%20sky%20museum


Foo Fighter

I came, I saw, I drank some tea (and had a bun).
Senior Member
Joined
Jul 19, 2016
Messages
1,859
Reaction score
755
The Solent sky museum site appears to be down, shame.


TsrJoe

ACCESS: Secret
Senior Member
Joined
Jan 2, 2006
Messages
446
Reaction score
330

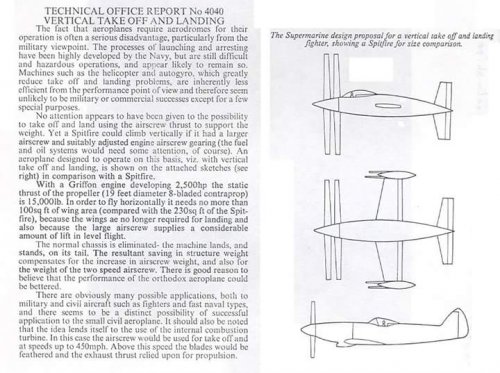

Supermarine Technical Report No.4040, 26 February 1944


Attachments

  • FB_IMG_1527545104858.jpg
    59.1 KB · Views: 561

TsrJoe

ACCESS: Secret
Senior Member
Joined
Jan 2, 2006
Messages
446
Reaction score
330

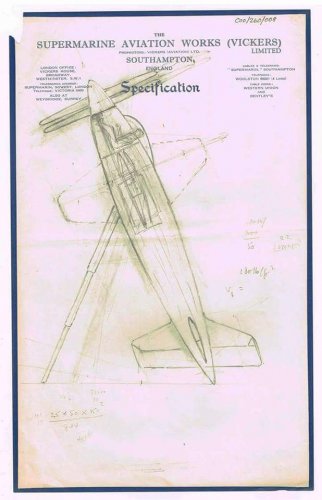

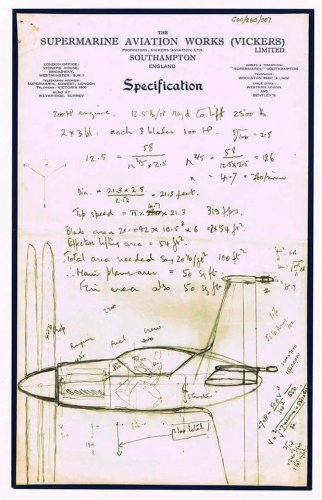

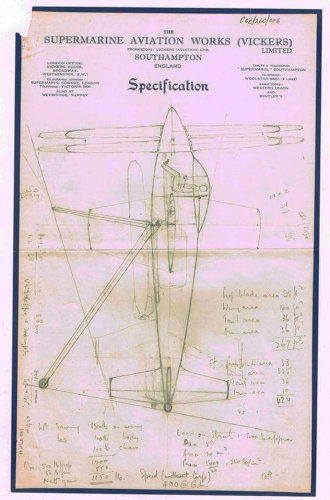

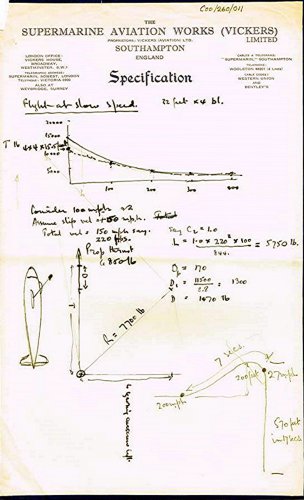

from Solent Sky Supermarine archive ...


Attachments

  • FB_IMG_1527545096148.jpg
    71.2 KB · Views: 546
  • FB_IMG_1527545099279.jpg
    49.8 KB · Views: 525
  • FB_IMG_1527545102029.jpg
    67.1 KB · Views: 512

Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,480
Reaction score
550
Foo Fighter said:
The Solent sky museum site appears to be down, shame.


Seems to be OK

https://www.facebook.com/solentskymuseum/

Clifton's sketches posted on 7th May


Foo Fighter

I came, I saw, I drank some tea (and had a bun).
Senior Member
Joined
Jul 19, 2016
Messages
1,859
Reaction score
755
Another facefaq event, shame but I will not go there due to the incessant demand that I sign up. Not a chance in hell.


Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,480
Reaction score
550
That's fair enough but it does not stop you viewing material the museum has posted there. A quick click on 'not now' and away you go.


Johnbr

ACCESS: Top Secret
Joined
May 6, 2007
Messages
755
Reaction score
164
Clifton started with the small 200hp concept and used that as the starting point for three larger concepts powered by a 2500hp engine (Griffon or Sabre, I guess). These were a fighter weighing 8750lb,


Attachments

  • Su 4040.jpg
    Su 4040.jpg
    262.9 KB · Views: 271

SAustin16

Bravo to All Brave Test Pilots
Joined
Jan 13, 2008
Messages
132
Reaction score
6
PlanesPictures,

Beautiful and stunning work. Well done.

The VTOL prop planes with the pilot flying on his back never progressed because trying to land was extremely difficult. Landing an aircraft straight ahead is never routine, and these tail-sitters made landings dangerous even at a good landing pad. Lockheed's VTOL Test Pilot Fish Salmon was a close friend of my Dad's. I discussed the Lockheed VTOL with Dad in the 1980's after I'd started flying, and Fish had said that looking down over his shoulder and judging everything he needed to was just impossible. Landing one of these at an unprepared field likely would have been a disaster.

Bravo from Texas.


masher47

Yesterdays dreams...
Senior Member
Joined
Feb 17, 2013
Messages
131
Reaction score
550
The XFV probably would never had tried to land on an unprepared field as if you look at the drawings of the proposed production aircraft the ends of the tail fins are pointed and designed to open as they penetrated a cable mesh like a window screen that would secure the airframe in the vertical. Not practical on any other surface.
