Stroukoff's Pantobase: a C-123 on skids

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,695
Reaction score
3,482
Hi,

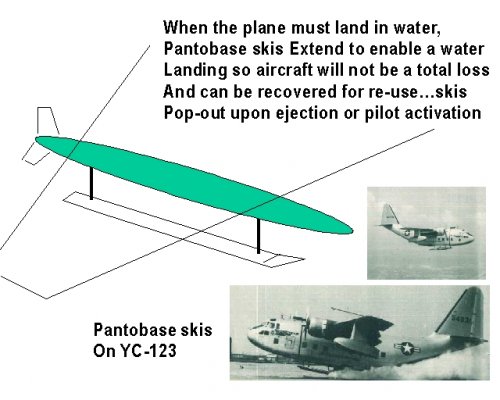

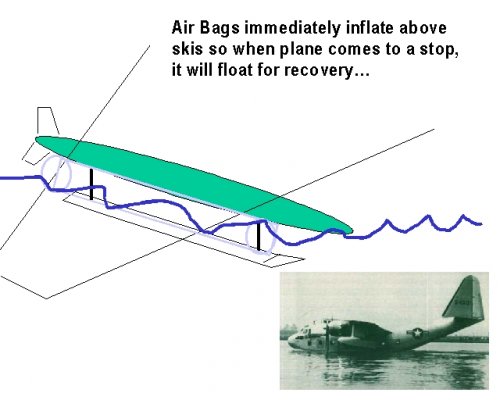

Here is a two picture for C-123 on skids for take off and landing
on the sea.


Attachments

  • C-130 with skids.jpg
    C-130 with skids.jpg
    162.5 KB · Views: 288
  • C-130 on sea.jpg
    C-130 on sea.jpg
    128.8 KB · Views: 265

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,465
Reaction score
196
Sorry hesham but it is YC-123...


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,226
Reaction score
933
Yes, the pics show the YC-123 (although AFAIk, the Pantobase system wasn't intended
just as a safeguard against ditching, but to transform a landplane into a pure amphibian),
but Hesham is right in so far, as there was a concept for a C-130 amphibian using hydro
skis. The photo (!) shows a RC model built for tests .
(from FlugRevue 1/1975)


Attachments

  • C-130_amphibian.JPG
    26.2 KB · Views: 247

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,695
Reaction score
3,482
Oh sorry,

I will correct it,that happenned because I was hurry.


Cy-27

ACCESS: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
563
Reaction score
164
There was an article about the C-123 in Aviatsia i Vreyma (1996-2) which had some details about the Pantobase Fairchild YC-123E as well as a photo of the YC-123E (Serial 54031) , the same shot as in Hesham's initial post and in C-123 Provider in Action (Squadron Signal 1992).

Fairchild YC-123E

The YC-123E had been an experiment in providing the C-123's with ability to operate wherever it might need to; on snow, ice, water, mud or rough un-made strips. It used the Stroukoff Aircraft Corporations own Pantobase system which were two high-stress skis fitted to the lower fuselage. The aircraft also had wingtip mounted floats and a fully sealed fuselage. All of these features gave the YC-123E the ability to operate from almost any runway surface available. The variant also incorporated Boundery Layer Control (BLC) benefits developed with the earlier YC-123D.

First Flight: 28 July 1955
Crew: 3
Maximum Take-off Weight: 24,500 kg
Empty Weight: 15,250 kg
Engines: 2 x Pratt & Whitney R-2800-99W (2,500 hp each)
Length: 23.5 m
Wing Span: 33.6 m
Height: 10.4 m
Wing Area: 114.7 sq m

(The piece also had 5 pages on the development of the C-122 -> C-123 -> C-134 through to the MS-8-3A project (with plan view of the latter) and Michael Stroukoff's developments with gliders as well as the Stroukoff involvement in C-123 variants).


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
Topic moved from "The Bar" and title changed.

Here's a nice British Pathé video of the Pantobase in action:

https://www.youtube.com/watch?v=DeeVH--xn1U
