Specialized aircraft for aid and missionary work

cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,386
Reaction score
99
Website
cluttonfred.info
Off the top of my head I can think of a number of bush planes, past and present, marketed as being perfect for the short, rough field passenger and cargo hauling on a shoestring life of aid and missionary work. Many of them fulfilled that role ably.

I can also think of a couple that claimed to be designed with such work in mind: the Christavia homebuilt and the AAC Angel STOL twin, for example. On the latter, I have never understood why a low-wing pusher with retractable main gear in front of the props was supposed to be good for rough field work, but that's another thread.

Does anyone know of other aircraft specifically designed with aid or mission work in mind: 1) low cost, both initially and in operation; 2) great short, rough field performance and 3) flexibilty to carry people or cargo or both?

Cheers,

Matthew


Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
587
Reaction score
86
Mole said:
Read 100 times and not one reply...have I stumped the group?

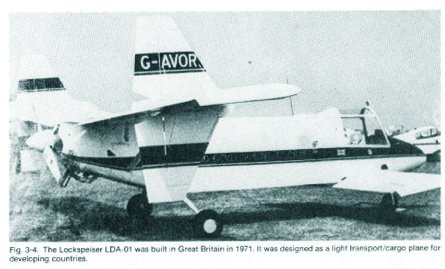

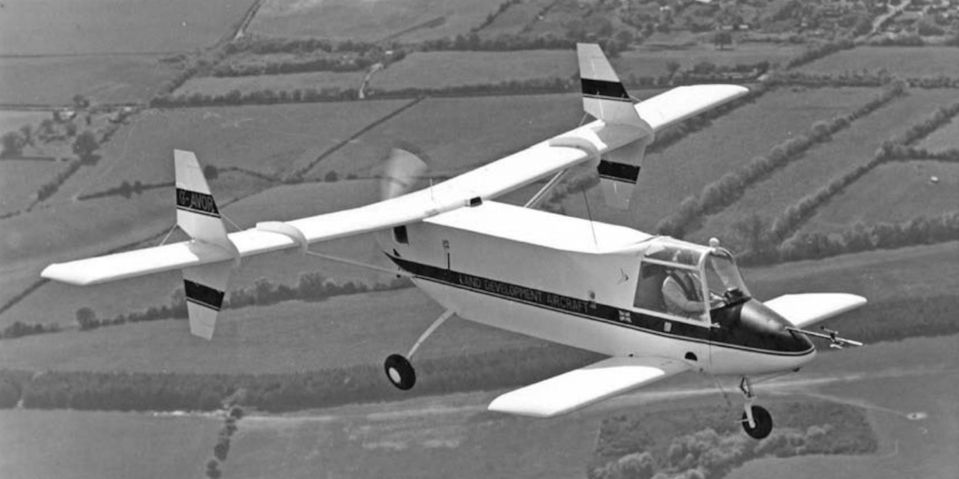

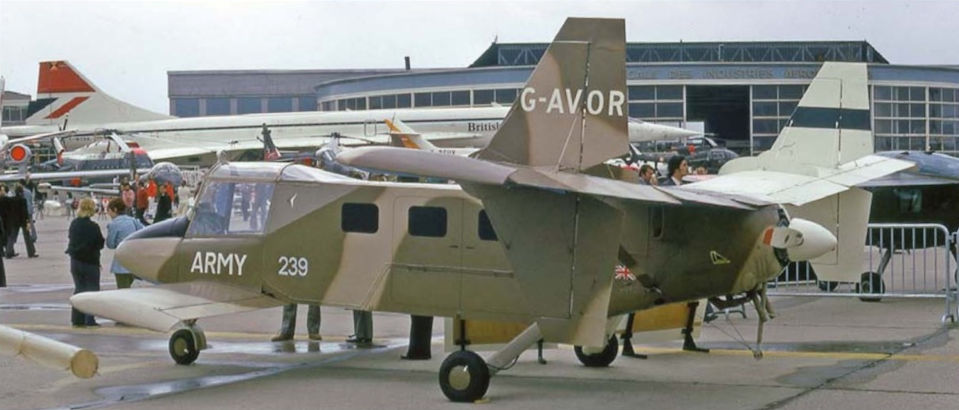

Ooops, perhaps the Lockspeicer LDA, in exibition at the 1975 Paris Air Show, can be a candidate.


Attachments

  • LDA-01.jpg
    708 KB · Views: 645

cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,386
Reaction score
99
Website
cluttonfred.info
Ah, I was getting worried there for a minute. ;)

I had forgotten about the Lockspeiser LDA-01. My memory says and Wikipedia confirms that the model that actual flew was a "seven-tenths scale research and development aircraft, which was designed and built by David Lockspeiser to prove a concept for a low-cost utility transport." Does anyone have any info (ideally specs and a 3-view) of the planned production model?


Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
587
Reaction score
86
Mole said:
Does anyone have any info (ideally specs and a 3-view) of the planned production model?

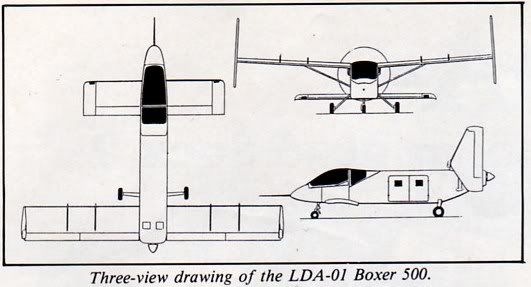

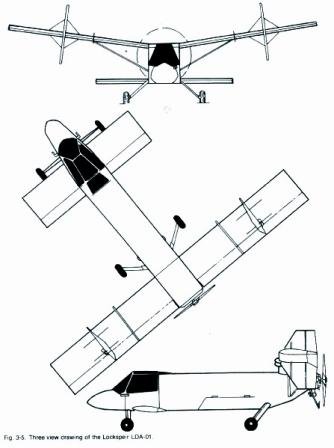

Only a 3-view of the prototype.


Attachments

  • LDA-01-3V.jpg
    51.1 KB · Views: 551

AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,260
Reaction score
161
I was looking this airplane up the other day on the Flight archives. It was marketed as a "flying Land Rover". There are a few articles here and there, but no cutaway, which would have been interesting.
There is also a blurb in "macchine bizzarre nella storia dell'aviazione" by Enzo Angelucci. Just a few technical data. I'll post it when I get to my office on monday.


cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,386
Reaction score
99
Website
cluttonfred.info
Thanks Retrofit and AeroFranz. I would be very interested in info on the proposed full-scale version as the design has always seemed a bit odd to me. If the cargo weight was to be placed in the fuselage roughly centered between the cockpit and engine, it seems that the CG would have been awfully far forward. I assume that the weight distribution in the proof of concept model was different and the production model would have moved the wing forward or the engine back some, but I have never actually seen what Lockspeiser had in mind.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,225
Reaction score
932

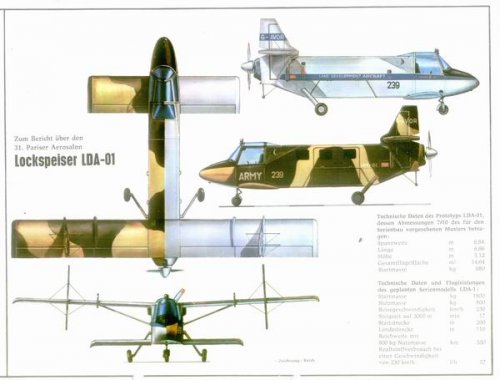

Here's a colour 3-view from FliegerRevue 1973. Green "Aircraft of the World" 1972/73
gave the following data for the series version:
MTOW 2040 kg, 1 pilot + 6 pax, or two stretchers, 1 Lycoming O-540 engine, span 13,41m,
length 10,51 m.


Attachments

  • LDA-01.JPG
    35 KB · Views: 659

AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,260
Reaction score
161
it says in my book that the LDA-1 (as opposed to the LDA-01 prototype) was to have the following characteristics:

span 13.41m
Length 10.51m
height 3.72m

Empty weight 680kg
Takeoff gross 2,041kg
Powerplant Lycoming O-540 340CV
Cruise speed 245 kph
Minimum speed 75 kph

future developments would have included a twin engined 12-14 seater variant with rear door, tricycle gear


cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,386
Reaction score
99
Website
cluttonfred.info
Thanks, AeroFranz, that's very interesting. Look at that empty/gross weight ratio, wow! Replace the piston engine with a derated Rolls Royce (Allison) 250 turboprop, the empty weight would drop even more and the engine would run on biofuel or what have you. That's about 56 kg fuel per hour at 50% power so you could have a 6 hour endurage with reserves and still carry a metric ton of cargo. Nice!


cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,386
Reaction score
99
Website
cluttonfred.info
Thread necromancy, and my own thread to boot, but does anyone have any nice drawings of the FULL-SIZE Lockspeiser LDA-1 as opposed to the 70% scale LDA-01 which actually flew? Thanks!


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
frank said:
Evangel 4500. http://www.evangel4500.com/

Here's a picture of the Evangel from Aerofiles (see attachment).

I've still got the original brochure of the first model (simply called the Angel) somewhere. When I find it I'll scan it.


Attachments

  • evangel.jpg
    44.1 KB · Views: 490

walter

ACCESS: Secret
Joined
Jan 31, 2008
Messages
376
Reaction score
100
I think the Kodiak (Quest Aircraft) was developed with financial support from Missionary and non-profit relief organizations. The Kodiak is in production and I understand that every 10th aircraft is made available for Missionary work at cost price.
I understand that the small Weilage Boon Jr. Helicopter of Mr. Arthur Weilage (Weilage Helicopter Company) was also developed with Missionary work in mind.
A picture of the Evangel 1 (the high wing prototype which preceded the Evangel 4500) is on the evangel4500 site above under prototype.


cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,386
Reaction score
99
Website
cluttonfred.info
Mole said:
Thread necromancy, and my own thread to boot, but does anyone have any nice drawings of the FULL-SIZE Lockspeiser LDA-1 as opposed to the 70% scale LDA-01 which actually flew? Thanks!

Thanks, guys, but I am still looking for othe art on the FULL-SIZE Lockspeiser LDA-1 if anyone has it. As far as I can tell, the art in this thread is for the 70% scale demonstrator. Thanks!


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454

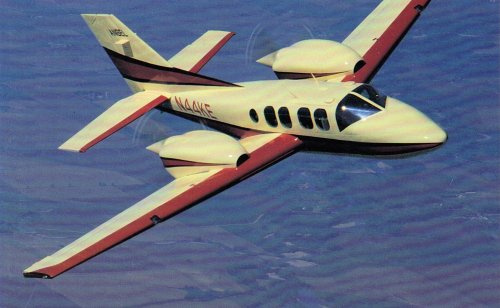

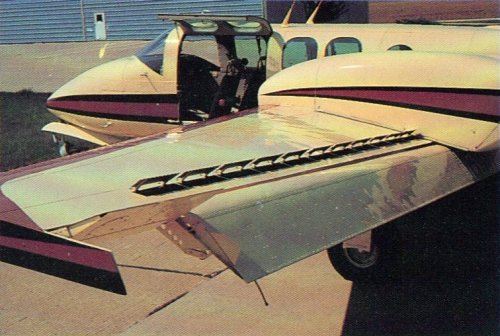

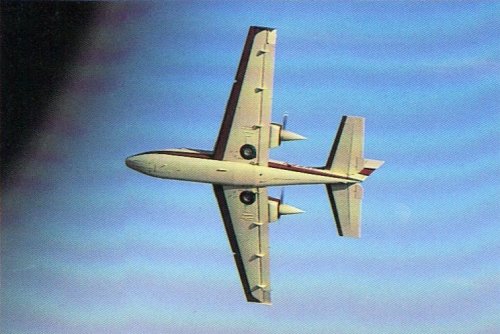

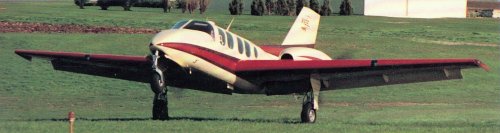

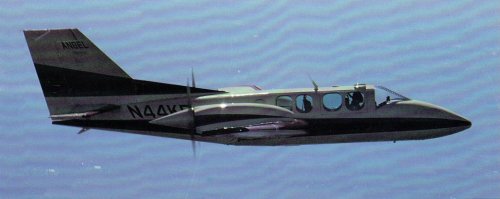

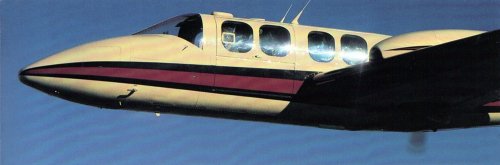

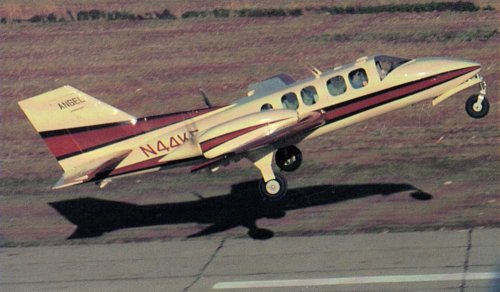

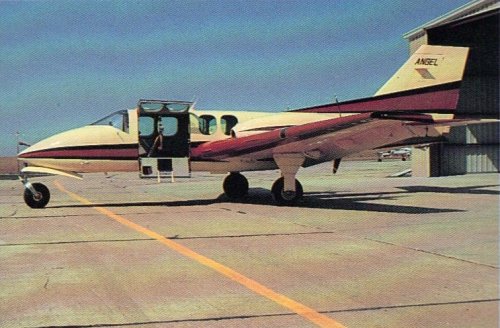

Here is a series of pictures of the Angel Aircraft er... Angel. Name of the company, name of the aircraft!


Attachments

  • angel23.jpg
    316.4 KB · Views: 70
  • angel22.jpg
    298.6 KB · Views: 55
  • angel25.jpg
    308.6 KB · Views: 61
  • angel41.jpg
    264.5 KB · Views: 475
  • angel32.jpg
    206.4 KB · Views: 489
  • angel31.jpg
    219.1 KB · Views: 514
  • angel12.jpg
    442 KB · Views: 542
  • angel11.jpg
    410.6 KB · Views: 746

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
All these pics were taken from the original 4-page promotional brochure, which I'm also adding here in PDF form:


Attachments

  • angel-logo.gif
    43.4 KB · Views: 70
  • Angel brochure.pdf
    1.4 MB · Views: 31

cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,386
Reaction score
99
Website
cluttonfred.info
Thanks, Stephane, interesting pics and a neat airplane, though I never understood the logic of putting the props immediately behind the main wheels on an aircraft indended to operate from unimproved strips.


LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,202
Reaction score
130
Mole

If everyone used logic in aircraft design, this site would be smaller and less interesting than it is.


aim9xray

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Feb 20, 2007
Messages
564
Reaction score
194
I would imagine that the pusher configuration was selected for safety - imagine using that extra-wide cabin entry with propellers from a conventional tractor installation spinning less than a foot away...


cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,386
Reaction score
99
Website
cluttonfred.info
aim9xray said:
I would imagine that the pusher configuration was selected for safety - imagine using that extra-wide cabin entry with propellers from a conventional tractor installation spinning less than a foot away...

True enough, but then the extra-wide door could have been behind the wing.


Weaver

Clarence: stop secrets...
Joined
Apr 1, 2008
Messages
49
Reaction score
14

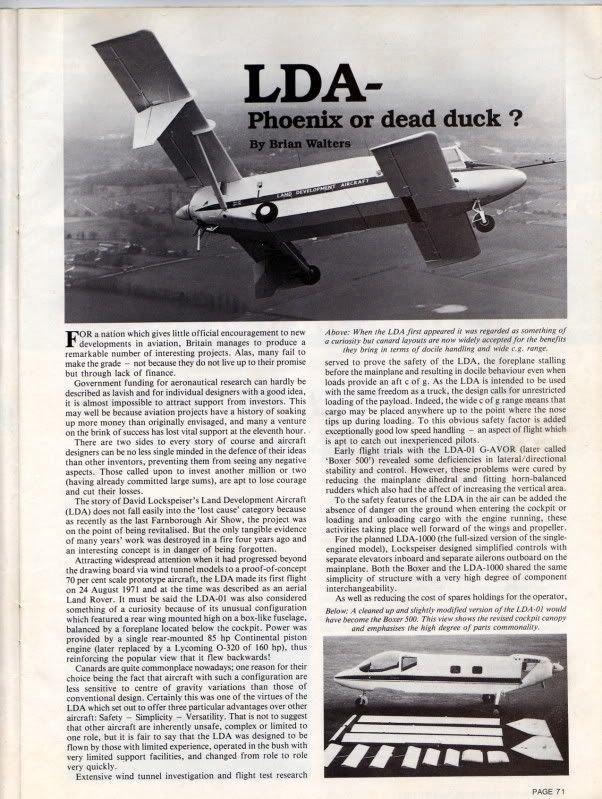

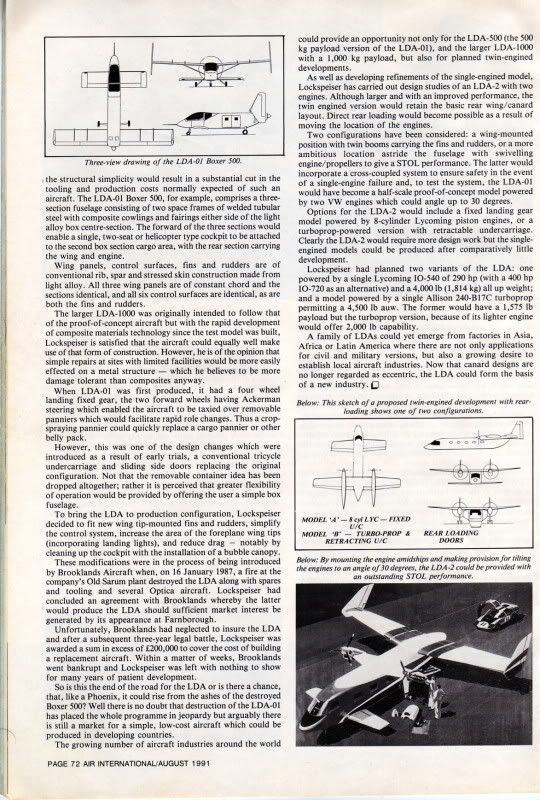

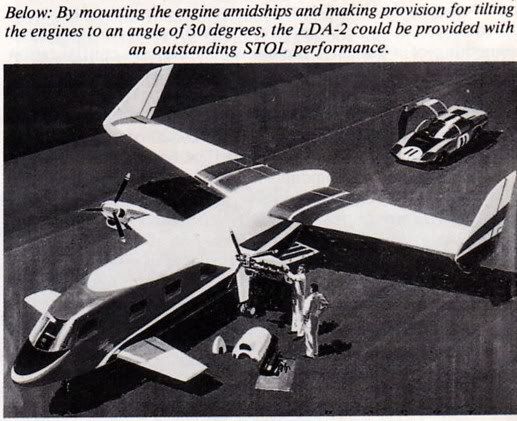

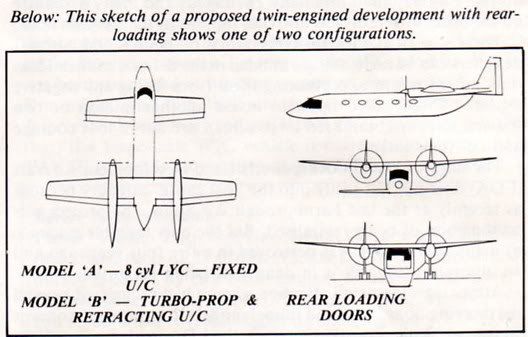

Article from AIR International, Aug.1991:






Pat Flannery

ACCESS: Restricted
Joined
Sep 18, 2011
Messages
14
Reaction score
0
Regarding the bottom illustration; in the future do people drive race cars to the airport, or has the aircraft landed on a racetrack for a little quick engine work?


Weaver

Clarence: stop secrets...
Joined
Apr 1, 2008
Messages
49
Reaction score
14
I rather suspect it's going to be transporting the racing car - bit far from the "helping underdeveloped countries" brief, dont you think though.... ???


martinbayer

ACCESS: Top Secret
Joined
Jan 6, 2009
Messages
700
Reaction score
165
I realize it's a bit off topic, since it's not a dedicated design, but at one point Hawk marketed their OV-10A kit as a "Patrol and Aid Mission Aircraft". Does anybody know whether such a use was actually contemplated, or whether this version is pure fantasy?

Martin


Attachments

  • Hawk OV-10A.JPG
    Hawk OV-10A.JPG
    32.9 KB · Views: 221

Nik

ACCESS: Secret
Joined
Jul 15, 2009
Messages
394
Reaction score
21
Lockspeiser...

Years ago, I exchanged some letters with Mr Lockspeiser. IIRC, one reason for the 'voluminous' fuselage was that one aircraft would be able to carry complete engines, wing panels etc into rough fields where another was stranded...


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,777
Reaction score
1,913
martinbayer said:
I realize it's a bit off topic, since it's not a dedicated design, but at one point Hawk marketed their OV-10A kit as a "Patrol and Aid Mission Aircraft". Does anybody know whether such a use was actually contemplated, or whether this version is pure fantasy?

Martin

I have a vague memory of a Carter era plan that this was probably related to. I'll see if I can dig up the references.

Nik said:
Years ago, I exchanged some letters with Mr Lockspeiser. IIRC, one reason for the 'voluminous' fuselage was that one aircraft would be able to carry complete engines, wing panels etc into rough fields where another was stranded...

That was good thinking.

By the way, I suppose the tilt-engined proposal would have been known as the LDA-2 Model 'C', if it had proceeded any further?


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,777
Reaction score
1,913
Haven't been able to dig up that Carter plan yet.

In other news, this may well come under this category: http://www.secretprojects.co.uk/forum/index.php/topic,14035.0.html


cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,386
Reaction score
99
Website
cluttonfred.info
"The Aviation Historian" featured a nice piece on David Lockspeiser, who passed away earlier this year. He was quite an aviation legend as a Hawker Hunter test and demonstration pilot. In any case, I found this promotional video for the LDA project. Enjoy!

http://youtu.be/SLewWbAltm8


paperforce

ACCESS: Restricted
Joined
Jan 30, 2008
Messages
23
Reaction score
1

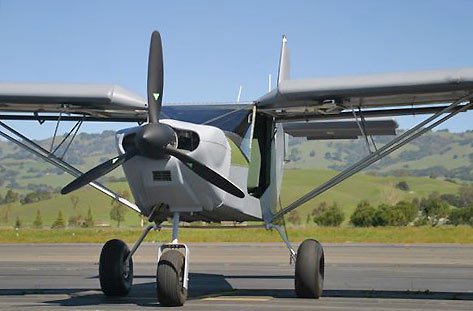

I just got back from the Reno Air races and Mission aviation Fellowship was showing their Kodiak http://en.wikipedia.org/wiki/Quest_Kodiak a brilliant plane.


Richard N

Lost in the Sky
Senior Member
Joined
Jun 18, 2009
Messages
503
Reaction score
279
The Helio Courier was designed to safely operate in environments requiring STOL capability and to prevent stall/spin crashes ( http://en.wikipedia.org/wiki/Helio_Courier ). It was adopted by the JAARS missionary outreach organization ( https://www.jaars.org/ ) as the most practical way of getting their people and supplies in and out of the remote locations they serve. At one time, they were the largest operator of Helio Couriers. "The HELIO COURIER Ultra C/STOL Aircraft" ( http://www.amazon.com/Helio-Courier-Ultra-stol-Aircraft/dp/0786422890 ) has a chapter on JAARS and their Couriers.

I visited the JAARS booth at Oshkosh last month and they had one there, but said they are being phased out because of the difficulty of getting avgas in remote areas. At one time, they were having to bring in their own avgas to fuel their piston powered aircraft and they are transitioning to turbines when possible, but that is slowed by the initial high cost of turbines.
The turbine advantage is that they can be fueled anywhere that has jet fuel which is anywhere jet airliners operate.

A development they and other piston powered aircraft operators are watching is the development of aero diesel engines that run on jet fuel. They are not as expensive as turbines and have the added advantage of going as much as 60% farther than avgas powered aircraft on the same weight of fuel.


http://www.youtube.com/watch?v=XJCzOW7a0e4


Attachments

  • Helio Courier Book.jpg
    Helio Courier Book.jpg
    15.8 KB · Views: 269

riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,107
Reaction score
552
Cessna Caravans are used for missionary work, but Quest Kodiaks are preferred because they climb better than early (600 hp) Caravans. Several companies (Blackhawk, TexasTurbines, etc.) offer engine upgrades for Caravans to improve STO performance.


VTOLicious

ACCESS: Top Secret
Senior Member
Joined
Nov 24, 2008
Messages
693
Reaction score
292

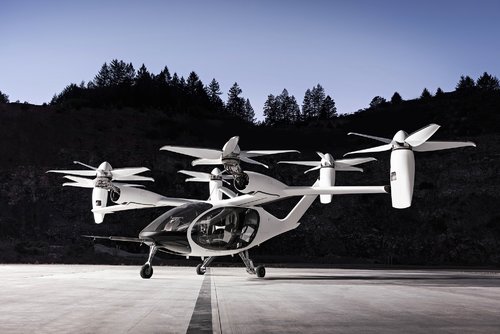

I wonder if electric STOL/VTOL aircraft can make a case in that area. Both manned and unmanned.


Attachments

  • IMG_20200116_085634.jpg
    725.2 KB · Views: 30
