Saunders Roe SR/A.1 variants

Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
2 December 2007
Messages
6,467
Reaction score
7,811
Website
www.amazon.com

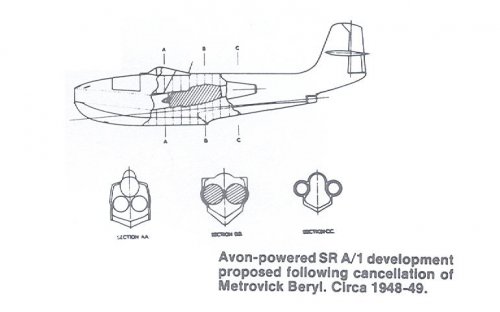

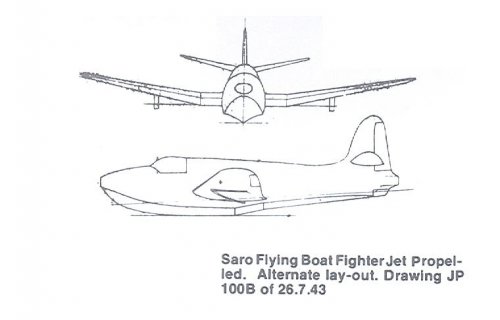

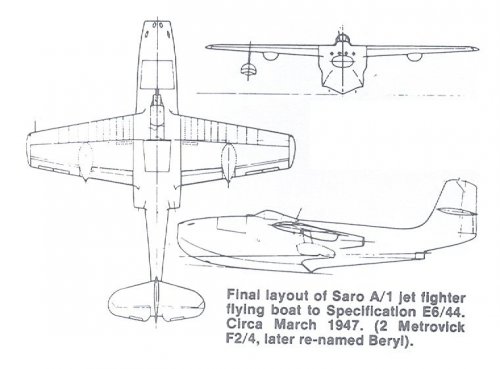

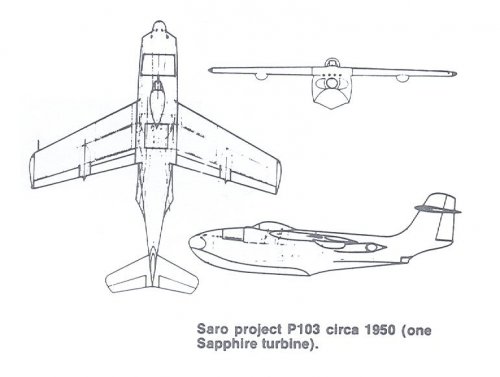

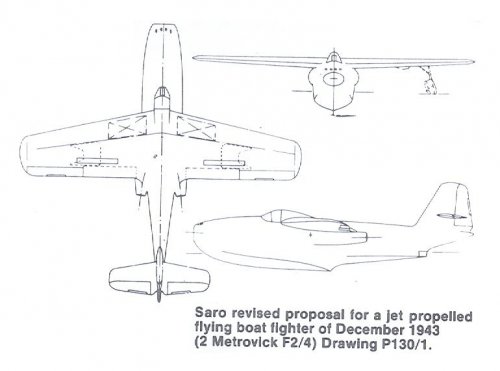

From iso publications 1996


Attachments

  • Escanear0001.jpg
    28.4 KB · Views: 756
  • Escanear0009.jpg
    35.8 KB · Views: 280
  • Escanear0008.jpg
    45.9 KB · Views: 244
  • Escanear0007.jpg
    43.2 KB · Views: 236
  • Escanear0006.jpg
    31.3 KB · Views: 642
  • Escanear0005.jpg
    36.8 KB · Views: 656
  • Escanear0003.jpg
    27.7 KB · Views: 654
  • Escanear0002.jpg
    30.8 KB · Views: 684

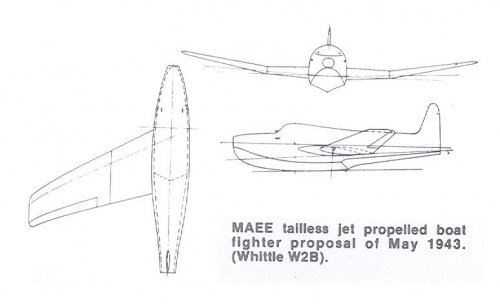

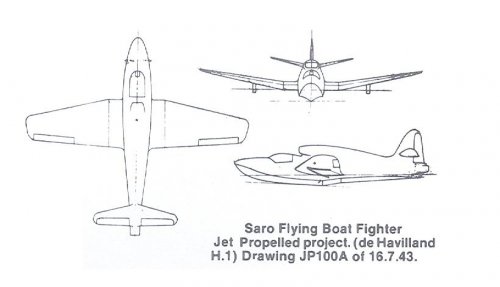

Especially interesting is the MAEE (Marine Aircraft Experimental Establishment)
proposal from 1943, as it is in fact the first britsh design for a swept wing
aircraft.
(see: Air International 10/96)

Well, good question, I must admit !
Maybe we are starting a discussion like "What is an aircraft" ...

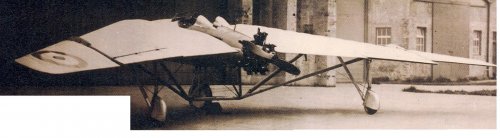

The Westland Pterodactyl was a kind of flying wing, the sweep back probably
was just used to keep CG in the limit, not to achiev aerodynamic benefits.
But in fact it WAS a swept wing, you're quite right and if the MAEE proposal
wasn't using sweep back for the same reason, I'm not sure.
Sorry, hadn't look into the thirties ... ::)

I did wonder if you meant "first jet engined design with sweepback"?

Perhaps there was something earlier but the Pterodactyls suddenly swooped into my forebrain and I couldn't resist taunting you!

Regards,
Barry

".. and I couldn't resist taunting you!"
Absolutely ok, I can stand it ! :D
And you're right, too, that the claim in AI says "first jet engined design with sweepback" !
Well, in my mind swept wings are always part of a fast, mostly jet aircraft, but that's not
part of the definition of swept wing. So "More precision, please" ;D

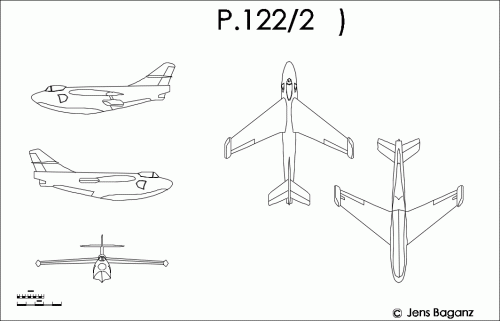

Another SR/A.1 variant we've still forgotten was the P.122.2 with lateral intakes,
allowing for a nose radom. An artist's impression can be found in Tony Buttlers
BSP on page 174.


Attachments

  • Saro_P-122-2.GIF
    30.8 KB · Views: 262

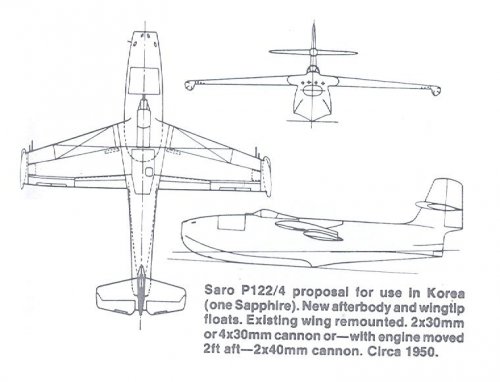

I know this is an old thread but thought better to add this 'what if' scheme here, assuming it had made it to Korea that is.



Super pictorial illustrations from Aeroplane.
Saunders Roe SR/1A, there is a video clip loop shown at the Science Museum, London.
There was an earlier UK aircraft with a sophisticated swept wing that saw military service in Canada, United States, and UK as well as being built and flown in France as a civil aircraft.( sorry not a jet)
There was a design for a Naval twin turbofan sweptwing bomber that appears to pre-date the proposed Saro aircraft.

There was a early reference to a too-early Airspeed blended-hull seaplane fighter for which I have seen no illustration but there was a scheme proposed based on it with a front centrifugal jet, bifurcated jetpipe, four cannon, blended-hull, T-tail and a pilot sitting behind the c.g.,


Jemiba said:
".. and I couldn't resist taunting you!"
Absolutely ok, I can stand it ! :D
And you're right, too, that the claim in AI says "first jet engined design with sweepback" !
Well, in my mind swept wings are always part of a fast, mostly jet aircraft, but that's not
part of the definition of swept wing. So "More precision, please" ;D

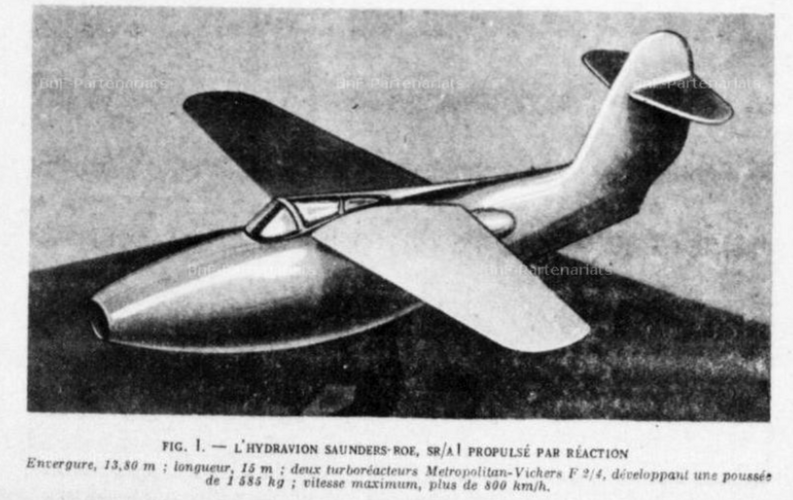

Do not know if this design has been discussed before on the forum, but the Saunders-Roe SR.A/1 jet-propelled fighter flying boat while never entering into production is a nice looking sea plane, especially if you look at these 4 images below of the advertisement of the plane.

Image I



Image II



Image III



Image IV


When this plane was proposed? 1940-41? Because KGV had UP launchers only for a short period of time!

A scale working model of the proposed Saunders Roe SR1 jet seaplane was tested on the Gareloch by the Marine Aircraft Experimental Establishment. It was propelled by solid fuel and had ailerons and rudder etc. It was radio controlled by a test pilot from RAF Helensburgh. All hush hush at the time.
