Saab civil project

boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
852
Reaction score
171

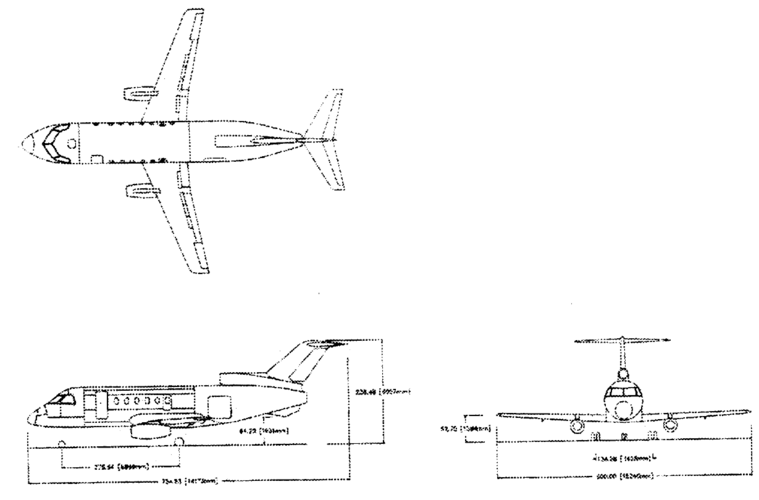

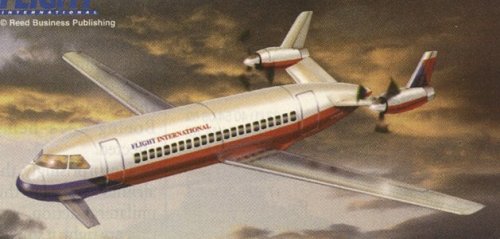

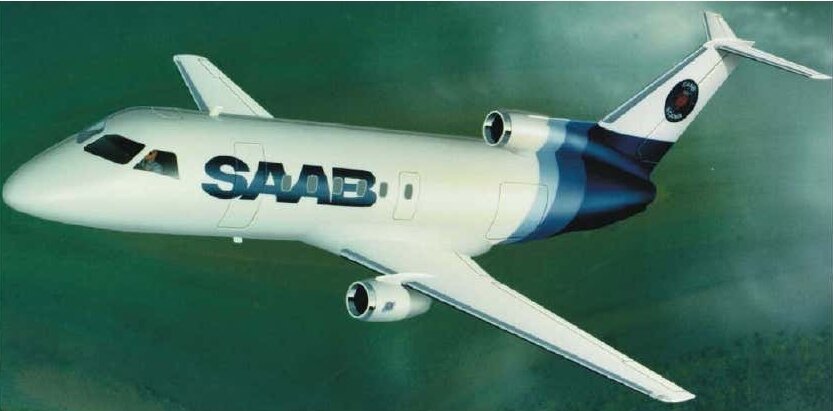

This artwork was shown in FLIGHT 18 - 24 September 1996 (page 4), titled "This is one early Saab configuration never likely to see the light of day".

Did it get a model number?


Attachments

  • Saab.jpg
    47.7 KB · Views: 1,649

Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
14,442
Reaction score
4,183

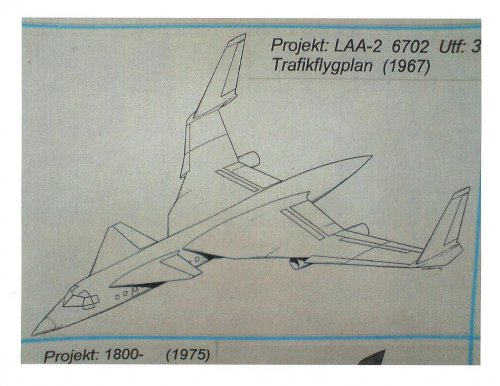

Re: Saab LAA-2 6702

High speed transport to maintain external air routes/communication links in times of heightened tensions or crisis/war?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890
Re: Saab civil projects

Hi,


here is some SAAB Civil Projects,I hope to get their drawings;


94: Business aircraft, basically a twin engined Safir and like the Aero Commander.
100: Business aircraft, 4-5 passengers, 1956.
102: Twin rear engined jetliner, 45 passengers, 1958.
103: Twin turboprop airliner for 1200 m fields, 68 passengers, 1958.
104: One nose mounted turboprop, one jet in tail, 600 m field, 24 passengers, 1957.
105: Twin engined trainer, Swedish air force designation SK 60, 1958, 188 built 1966-72.105CT: A four seat
civilian business jet version of the above, no bubble canopy.
106: Business jet derivative of the 105 with longer cabin, 4 or 6 passengers, 2 crew, 1959.
108: Turboprop (-3) and jet (-5) commuters, 28 or 36 passengers, 1970 (number later reused).
115/108-6: Three engined jet commuter, 24 passengers, 1970 (both numbers later reused).
107: Several 600/1200 m (STOL/RTOL) field transport aircraft in different sizes and configurations, 1967-69: 107-1 STOL, 4 turboprops, 44 passengers; 107-2 RTOL, 2 or 4 turbofans, 44 passengers; 107-3 (and -4 with canard) RTOL, 2 turbofans, 80 passengers, cockpit over opening nose.
108-4 2 turboprops, 30 passengers or 3400 kg cargo.
109: Twin engined business jet, rear mounted engines with air intakes on top of the fuselage in front of the fin,5 passengers, 1969.
110: As 109 but three engines and up to nine passengers.

111: Single engine agricultural turboprop, 1 ton payload (or three passengers), 1977.
112: Twin jet corporate aircraft, 15 passengers, 1969.
113: Three engined corporate jet, 25 passengers, 1969.
115: Four turboprop STOL transport/airliner, 100 passengers, 1970.

116, 117, 118 STOL transporter in cooperation with HFB with 100, 60 and 40 passengers with four turboprops, 1971
190: Super Scandia, twin ALF 502 commuter jet (over the wings for grass field capability), 1975.
191: Possible Bulldog/Saab 105 replacement for the Swedish air force, nose and canopy very like 105 (which can also be said for Fairchild T-46) with either a single jet on top of the fuselage, twin jets
in the rear fuselage,
one pulling or pushing turboprop.
Forestry crane helicopter, rotor tip jets, 1964

Autogiro, 4 persons, 1965
200: 700 kg empty weight helicopter, 2-3 persons, 1968.

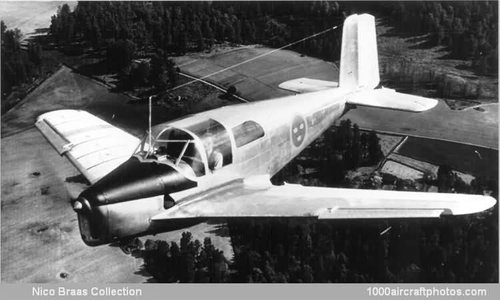

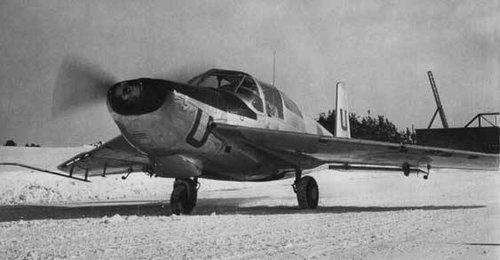

201: Saab Safir fitted with J 29 Tunnan wing in 1947, used for low speed trials.
202: The same Safir now with Lansen wing, flew from 1950




toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
109

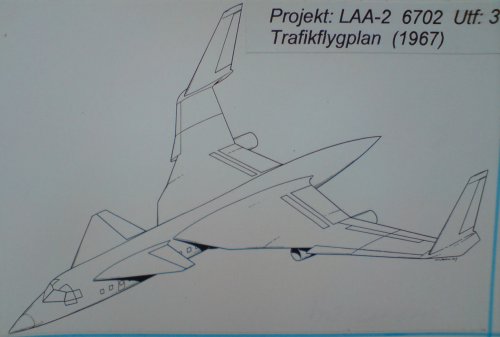

it seems to be civil ,,


Attachments

  • laa2.jpg
    287.6 KB · Views: 990

TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,672
Reaction score
1,871
We have it here as well.

http://www.secretprojects.co.uk/forum/index.php?topic=12758.0

No idea of the role, but the caption does say "airliner" in Swedish. Judging by the door under the canard, it's not a small plane either. The cockpit seems a bit out of scale, though.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890
Thank you my dear Toura,


and I hope to get any drawings to those projects.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890
From Flygvapen NYTT magazine,

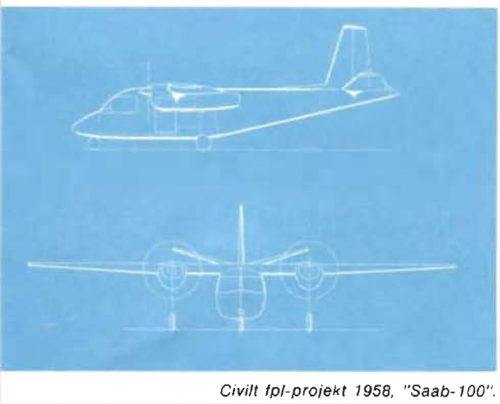

here is the SAAB-100 a light transport aircraft with high-wing and powered by two engines.


Attachments

  • SAAB-100.png
    275 KB · Views: 722

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890

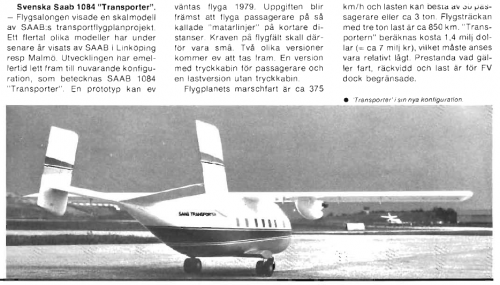

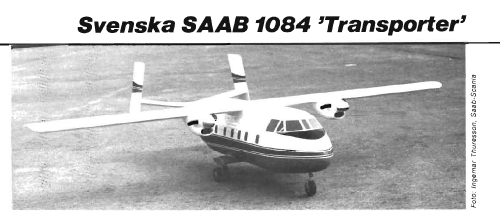

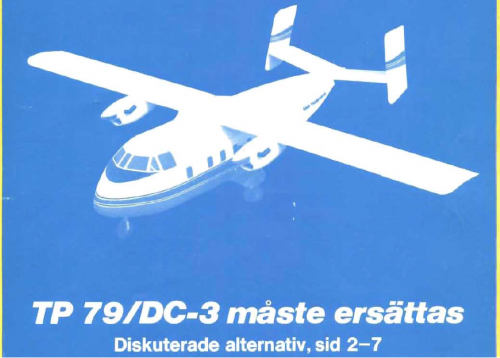

From Flygvapen NYTT magazine,


here is also the SAAB-1084 medium transport high wing twin engined project,fitted with
twin tail fin.


Attachments

  • SAAB-1084  3.png
    SAAB-1084 3.png
    417.9 KB · Views: 133
  • SAAB-1084  2.png
    SAAB-1084 2.png
    281.4 KB · Views: 144
  • SAAB-1084.png
    287.2 KB · Views: 678

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890
At first,we can merge those topics;
http://www.secretprojects.co.uk/forum/index.php/topic,8152.msg246266.html#msg246266

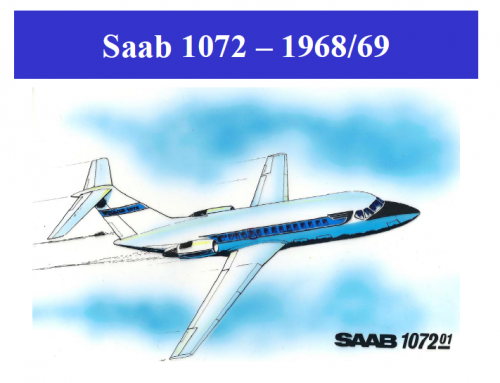

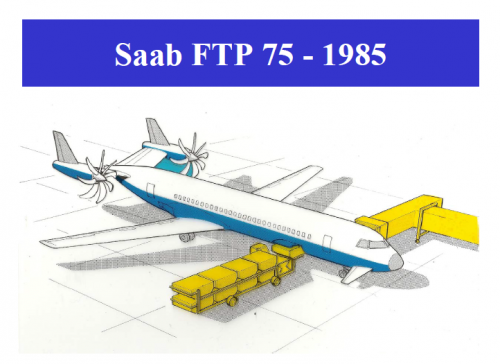

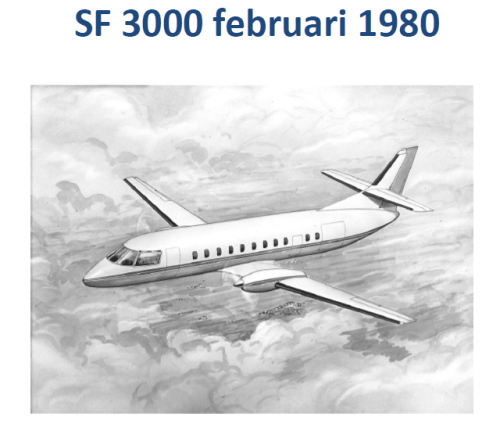

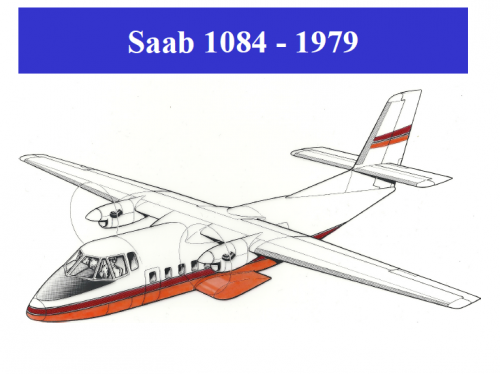

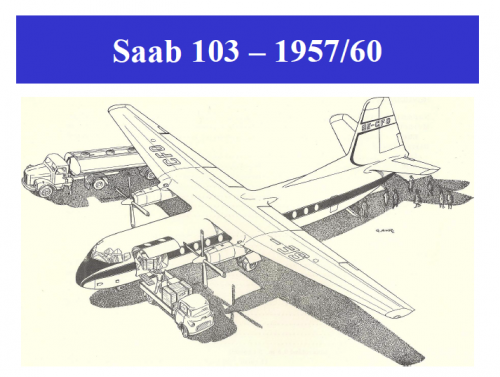

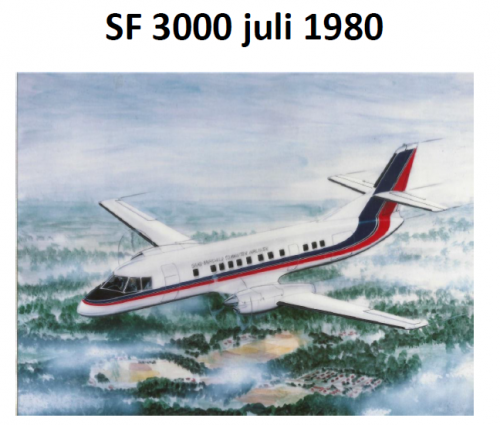

the SAAB projects, Models 103,1072,1084,FTP75 & SF.3000.


http://saabveteran.se/lunch/141119_saab340.pdf
http://www.saabveteran.se/110417totalt/110417_edlund.pdf


Attachments

  • SF.3000 7-1980.png
    SF.3000 7-1980.png
    554.9 KB · Views: 104
  • SF.3000 2-1980.png
    SF.3000 2-1980.png
    219 KB · Views: 104
  • FTP 75   2.png
    FTP 75 2.png
    104.3 KB · Views: 117
  • FTP 75.png
    FTP 75.png
    235.4 KB · Views: 132
  • 1084.png
    223.8 KB · Views: 120
  • 1072.png
    341.7 KB · Views: 122
  • 103.png
    269.8 KB · Views: 120

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,291
Reaction score
1,242

weirc

ACCESS: Confidential
Senior Member
Joined
Jan 15, 2008
Messages
61
Reaction score
8

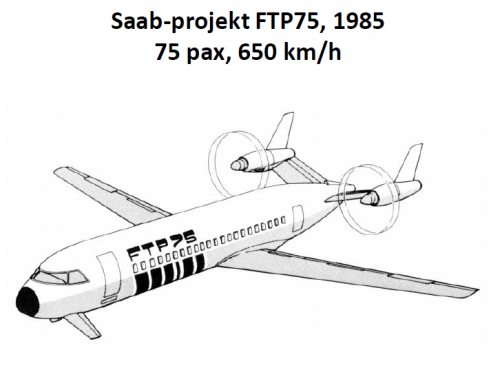

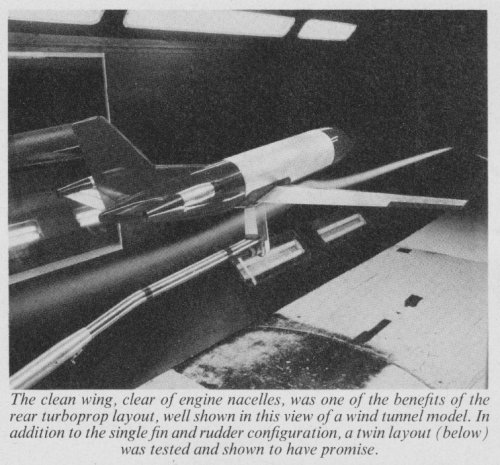

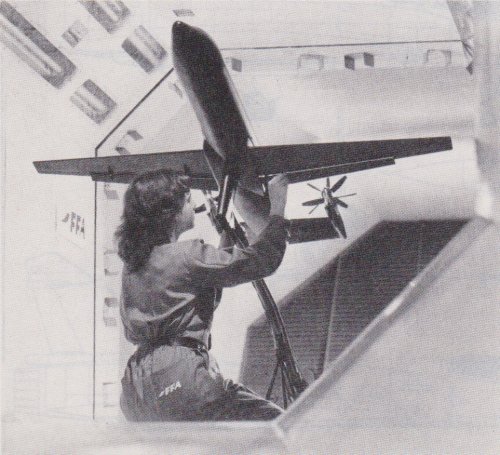

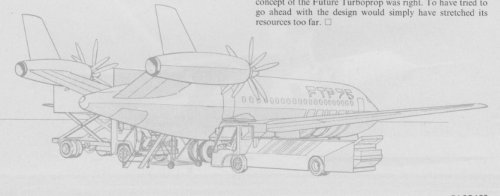

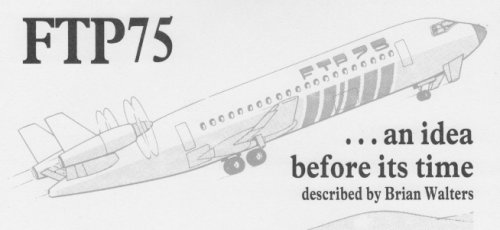

Some images of FTP 75 from Air International / March 1990


Further images attached


Attachments

  • Image 2.jpeg
    Image 2.jpeg
    486 KB · Views: 119
  • FTP 75 1.jpg
    FTP 75 1.jpg
    258.4 KB · Views: 91
  • FTP 75 4.jpg
    FTP 75 4.jpg
    71.6 KB · Views: 110
  • FTP 75 5.jpg
    FTP 75 5.jpg
    57.6 KB · Views: 117

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890

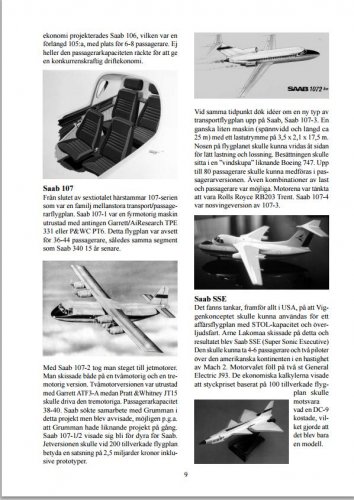

Hi,

please can I ask,from which book or magazine this page ?.


Attachments

  • kampf.jpg
    94.7 KB · Views: 190

riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,353
Reaction score
768
Interesting how the Saab 1084 starts as a "DC-3 replacement" then evolved into an "inflated Skyvan" and then resembled the successful LET 410.
Does the round fuselage cross-section imply a pressurized cabin?

During the 1950s and 1960s dozens of factories attempted "DC-3 replacements" but few could compete with the low cost of military surplus airframes and even fewer sold significant numbers.

Curiosity about the "inflated Skyvan" makes us wonder about the internal dimensions of the cabin, location of cargo doors and why it has dihedral in the horizontal tail.
Shorts sold significant numbers of Skyvans, Skyliners and Sherpas. Today many still haul odd-shaped cargo and train military paratroopers because they can operate for a fraction of the cost of a C-130. As a side note, when American Special Forces needed to resupply outposts near the Afghan-Pakistan border, they bought a couple of PZL Skytrucks, which look like this SAAB 1084.

How big was the market for SAAB 1084?
Would it have sold better than Skyvan, CASA 212, PZL Skytruck, etc.?

Last edited:

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890
Hi Riggerrob,

I think this SAAB-1084 couldn't achieve a successful such as CASA-212 or the same
class of airplanes fulfilled for replacing DC-3.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890
Hi,

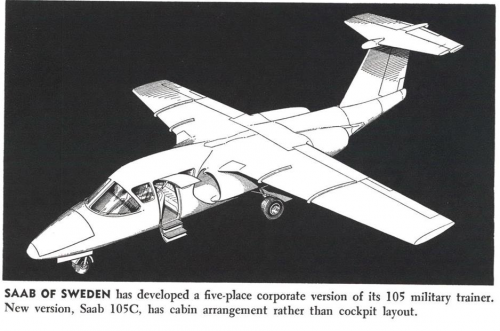

here is a SAAB-105C,a five seat executive version of trainer aircraft,remained a project only.

http://archive.aviationweek.com/image/spread/19660509/14/2


Attachments

  • 2.png
    485.4 KB · Views: 339

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890
Hi,

I don't know if this artist drawing was a real design or a hypothetical one ?.

http://www.saabveteran.se/minnen/d21/d21omslag.htm


Attachments

  • 1.JPG
    8.1 KB · Views: 292

TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,672
Reaction score
1,871

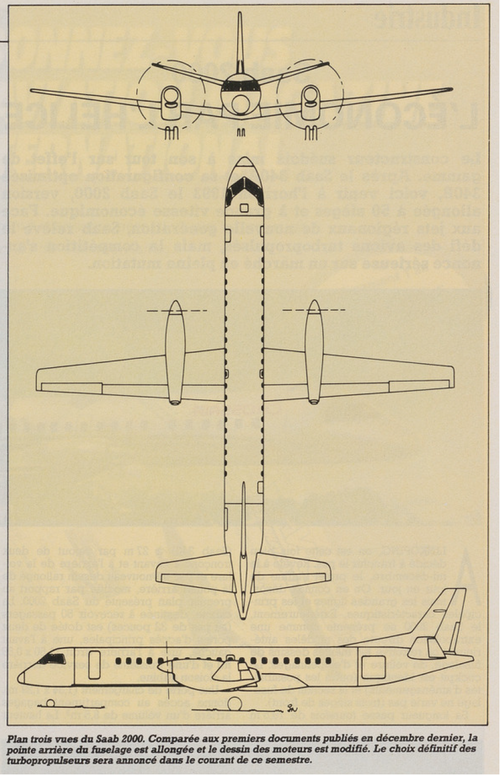

That has to be a joke. It's a Gripen wing and tail mated to a Saab 340 or Saab 2000 forward fuselage.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890

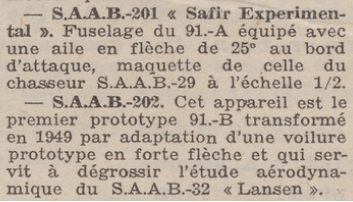

From Ailes 14/11/1953.


Attachments

  • 1   14-11-1953.png
    1 14-11-1953.png
    148 KB · Views: 118

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890

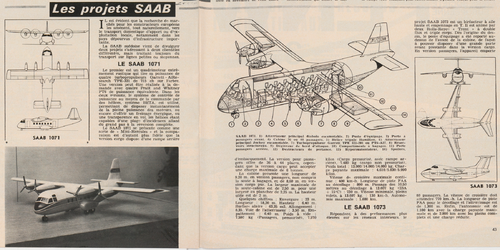

From aviation magazine Inter. 1969.


Attachments

  • SAAB.png
    4.8 MB · Views: 101
