Russian Analog aircraft

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,680
Reaction score
3,467
Hi,

who know this ?;

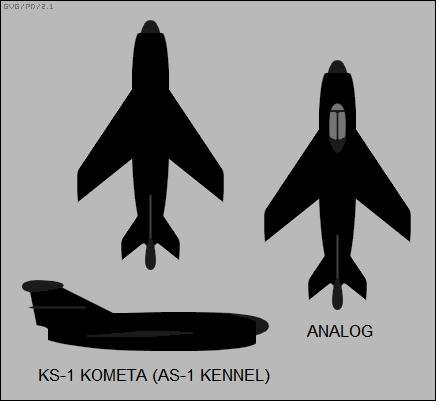

(As the Kometa emerged, it looked very much like a half-scale unpiloted MiG-15 fighter. Initially, the Kometa was to be powered by an RD-20 turbojet, a copy of the German BMW-003, but it wasn't powerful enough, and so a RD-500K, a copy of the British Rolls Royce Derwent V turbojet designed for expendable operation, was used instead. Three piloted versions known as "Analogs" were built for testing, with first flight in January 1951. The Analog looked something like a "toy" jet fighter, with a cockpit and canopy crammed into limited space, and bicycle retractable landing gear with wingtip outriggers. A single MiG-9 fighter was also modified to test the guidance system).
http://www.vectorsite.net/twcruz_6.html


Attachments

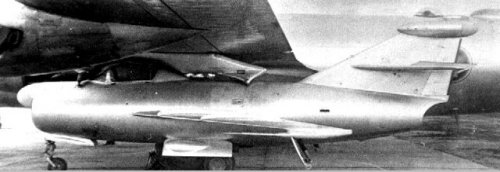

  • Analog.JPG
    16.2 KB · Views: 122

burunduk

I love the history of airplanes
Joined
Jan 2, 2007
Messages
76
Reaction score
32
This aircraft was called "K". First flight 4 January, 1951, piloted by Sultan Amet-Khan.
Three exemplars were called "K-1", "K-2", "K-3"

Engine 1 turbojet RD-500K,
Start mass 2250 kg
Fuel mass 284 kg
Span 4,692m
Max speed 1100 km/h
Landing speed about 280 km/h
Range (start from the ground) 150 km
Range (start from the mother aircraft Tu-4) 220 km
Take-off run 950m
Landing run 2200m (!)
Crew 1


Attachments

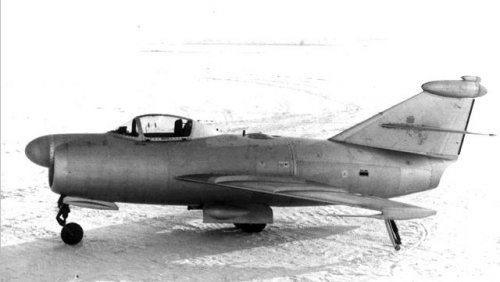

  • k_1.jpg
    27.7 KB · Views: 117
  • k_2.jpg
    30.5 KB · Views: 108
