RIINAA II, HIPAAS, Deep Strike: 1969-70 Vought Naval Attack aircraft studies

Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,613
Reaction score
117
Website
www.hitechweb.genezis.eu

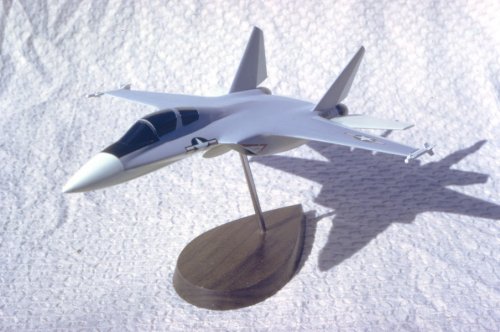

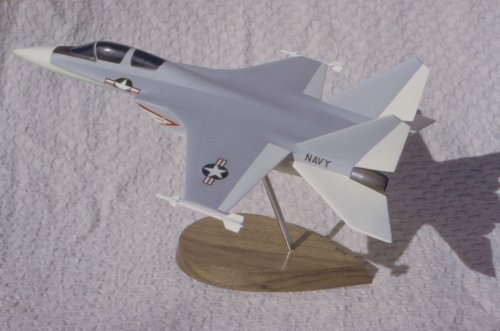

The second one is one of a big nubmer of Vought´s preVFX studies, but not very often published. It is fixed wing, but not the same design as normaly published. Who wants, write me at hitechweb@szm.sk I have this pictures in printable quality - nearly 2MB each. Source: my friend from Ohio.


Attachments

  • FixedWingNew1.JPG
    69 KB · Views: 1,417
  • FixedWingNew2.JPG
    94.1 KB · Views: 1,359

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,453
Reaction score
3,476
This is thought to be a Vought fixed wing VFX study.

First pic is a 1969 unnumbered Secoy sketch with some notable similarities in configuration but different intake design.

Next two pics via Matej.

[removed pic - same copy of pic earlier in topic - Admin]

Last pic from personal pictures of forum member shows the same model being held by the model-maker himself.


Attachments

  • Secoy2EngineStudyNo14-6-69.jpg
    68 KB · Views: 1,097
  • Vought-2a.jpg
    38.1 KB · Views: 1,045

Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
561
Reaction score
318
Matej said:
The second one is one of a big nubmer of Vought´s preVFX studies, but not very often published. It is fixed wing, but not the same design as normaly published. Who wants, write me at hitechweb@szm.sk I have this pictures in printable quality - nearly 2MB each. Source: my friend from Ohio.

I have found pieces of drawings of the aircraft in your first two photos.
The drawings identify this model as Deep Strike 1.
When I get the drawings cleaned up a little more I will add them to this topic.

If the offer for the large files is still available I would like to get them.

bill


Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
561
Reaction score
318

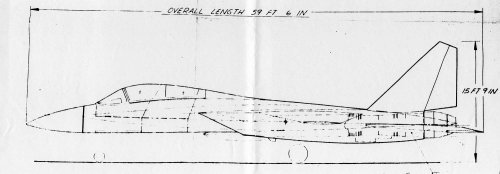

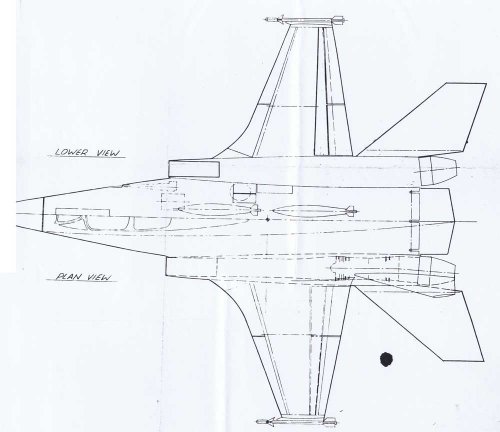

Here are the two views of Deep Strike 1.

Sorry the nose is missing off of the top/bottom view, it was not on the original copy

bill


Attachments

  • Deep_Strike_1_Top-Bottom.jpg
    48.5 KB · Views: 379
  • Deep_Strike_1_Side.jpg
    94.6 KB · Views: 1,102

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,453
Reaction score
3,476
Neat! Any clues as to timeframe, etc from the drawings?

It seems possible to be a fixed wing contemporary of the 1965 VFAX V-484, as I speculated above.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,453
Reaction score
3,476
Vought's "Deep Strike 1" previously suggested as a VFX or VFAX design is now identified as a study under the 1969 RIINAA II program.

The model owned by Sir George Cox shown in American Secret Projects: Jet Fighters Page 178 is almost identical to the Navy model shown here minus wingtip AAM rails, it seems likely to be essentially the same project aimed at the USAF.


Attachments

  • RIINAA II.jpg
    RIINAA II.jpg
    53.5 KB · Views: 240

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,453
Reaction score
3,476

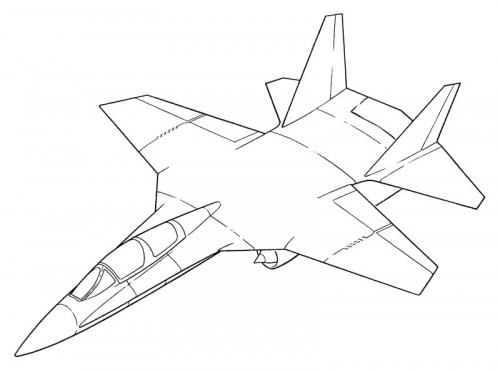

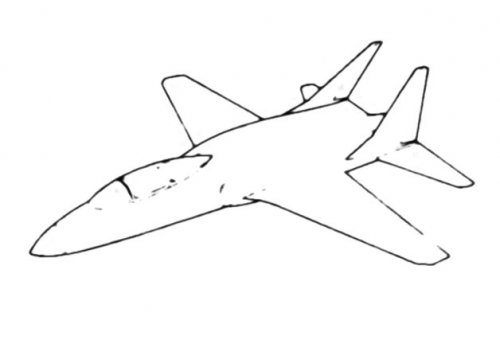

HIPAAS (HI Performance Advanced Attack System) 1968-1970 Vought project for an advanced attack aircraft. Haven't located any other drawings so far.


Attachments

  • HIPAAS-78.jpg
    57.2 KB · Views: 190
  • HIIPAAS-83.jpg
    14 KB · Views: 195

Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
561
Reaction score
318
Maybe this will help.
From the Vought Archives


Attachments

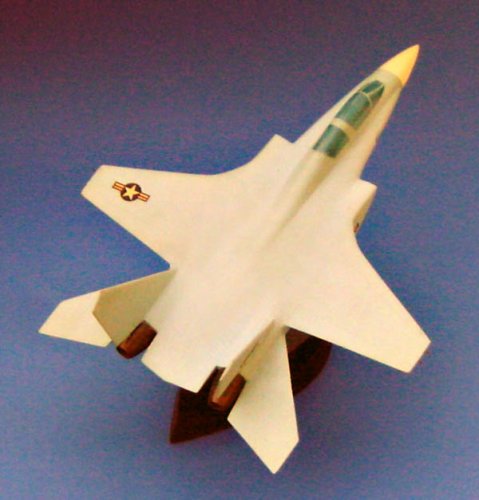

  • ~max0003.jpg
    42.9 KB · Views: 341

Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
561
Reaction score
318

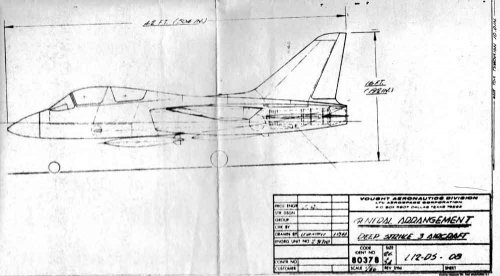

Here is a side view.
The drawings refer to is as Deep Strike 3

From the Vought Archives


Attachments

  • Deep-Strike-3.jpg
    34.4 KB · Views: 283

circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
130
overscan said:
The model owned by Sir George Cox shown in American Secret Projects: Jet Fighters Page 178 is almost identical to the Navy model shown here minus wingtip AAM rails [...]

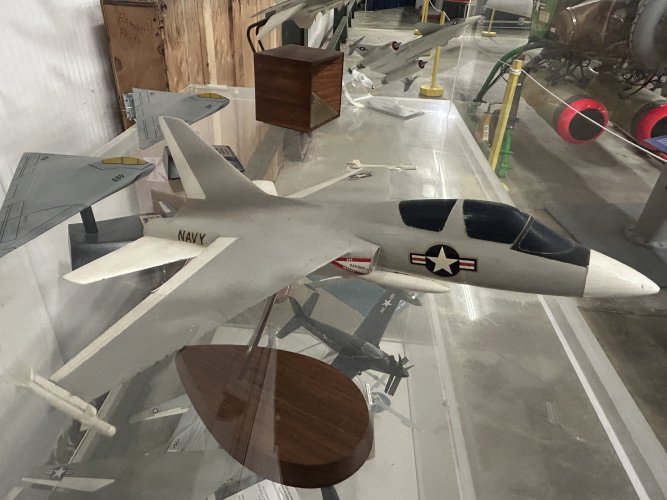

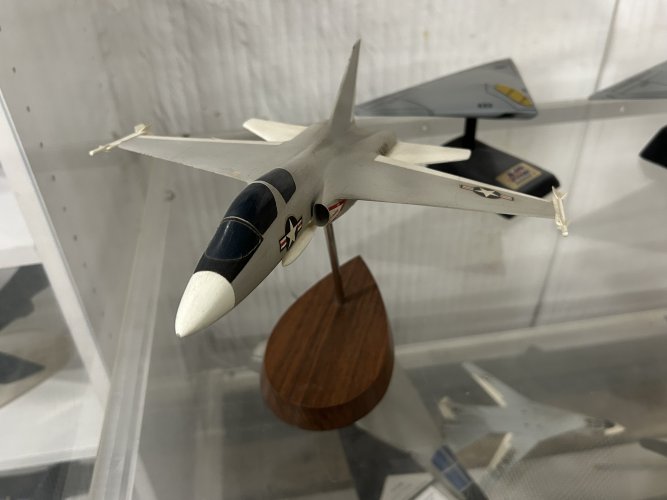

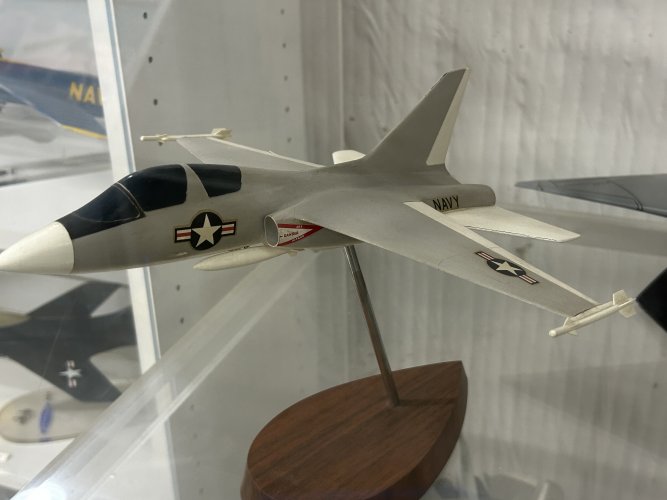

The model used to have AA missiles and rails: note mounting pins on wingtips.


Attachments

  • Vought Deep Strike I.jpg
    Vought Deep Strike I.jpg
    67.3 KB · Views: 233

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,630
Reaction score
512
Greetings All -

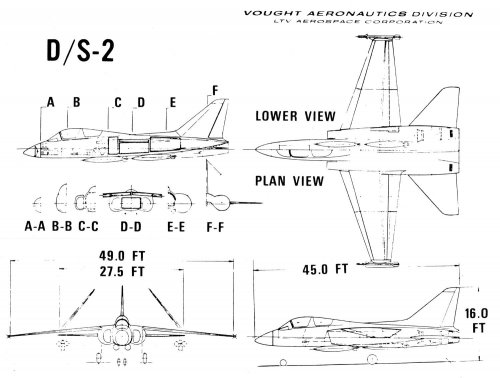

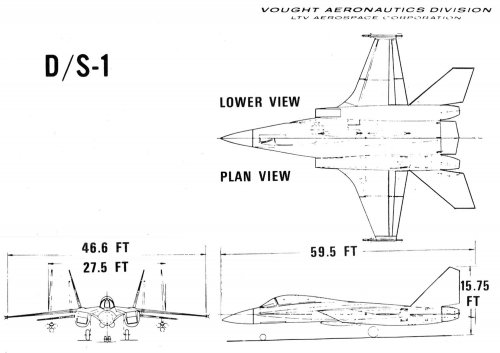

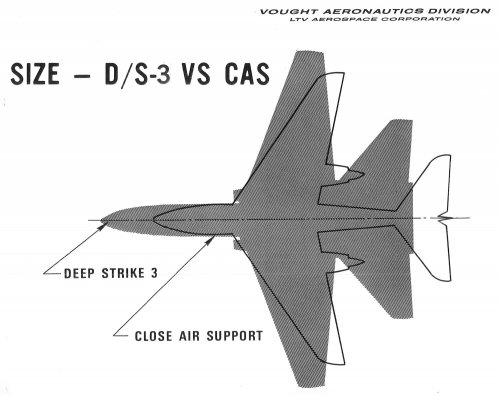

Here's what I found on my last visit to the Vought Archives. Did not find the Deep Strike 3 design 3 view though :(

Enjoy the Day! Mark


Attachments

  • xDS-1 3V.jpg
    xDS-1 3V.jpg
    99.8 KB · Views: 360
  • xDS-2 3V.jpg
    xDS-2 3V.jpg
    136.4 KB · Views: 317

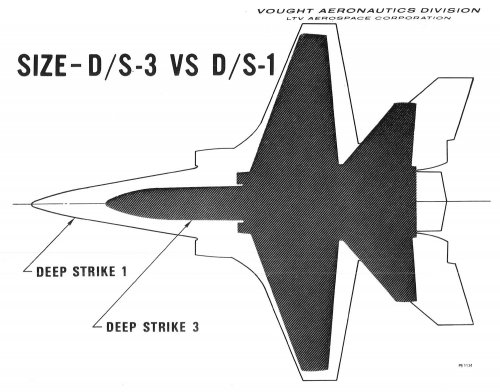

  • xDS-3 versus DS-1 comparison.jpg
    xDS-3 versus DS-1 comparison.jpg
    200.7 KB · Views: 255
  • xDS-3 versus CAS comparison.jpg
    xDS-3 versus CAS comparison.jpg
    204 KB · Views: 186
  • xDeep Strike Artwork.jpg
    xDeep Strike Artwork.jpg
    581 KB · Views: 257

Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
561
Reaction score
318
From a poor photocopy of a September 1970 HIPAAS report are these three general arrangement sketches.

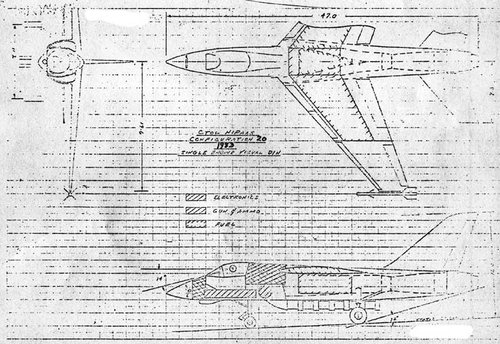

CTOL was single engine, single pilot

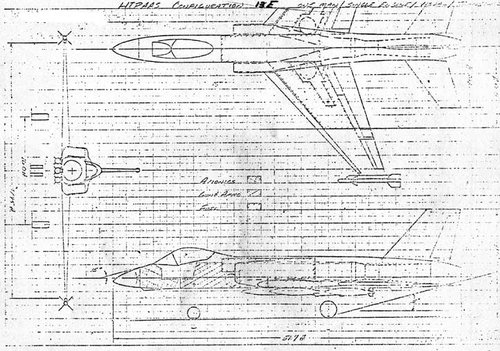

HIPAAS Configuration 13 was also single engine, single pilot

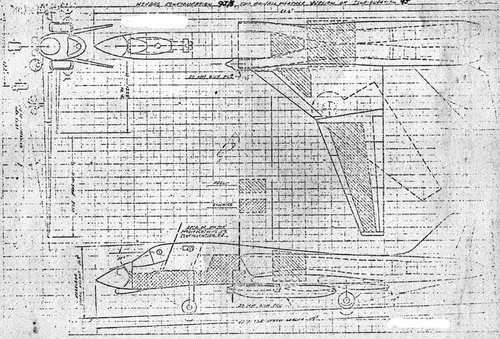

HIPAAS Configuration 9J/S was twin engine, with two pilots, all weather
Sorry about the quality, something is better than nothing!


Attachments

  • CTOL-HIPAAS-Configuration-20-Vought.jpg
    88.2 KB · Views: 95
  • HIPAAS-Configuration-13E-General-Arrangement-Vought-1970.jpg
    88.1 KB · Views: 89
  • HIPAAS-Configuration-9J-S-Two-Seat-Two-Engine-All-Weather-Vought.jpg
    104.9 KB · Views: 90
