Republic AP-100 VTOL fighter

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,004
Reaction score
5,686

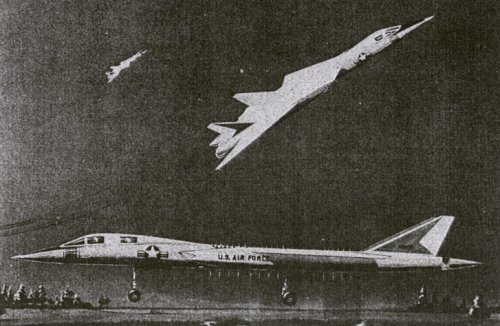

Heres a somewhat unclear pic of a late 1960s Republic fighter design. It seems to connect back to the Republic F-108 but also shows some similarities to the Fairchild-Republic TFX submission. Anyone got more?


Attachments

  • Late-60s-Republic-Fighter.jpg
    60.1 KB · Views: 1,105

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,991
Reaction score
5,274
It seemed to Republic AP.100 nuclear powered aircraft.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
108

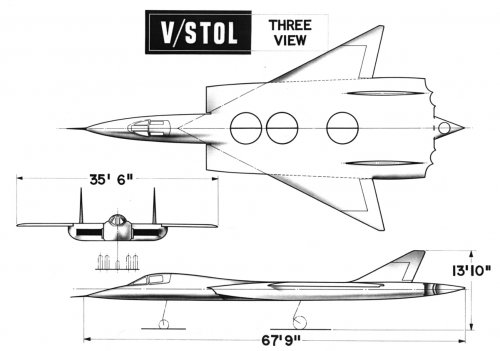

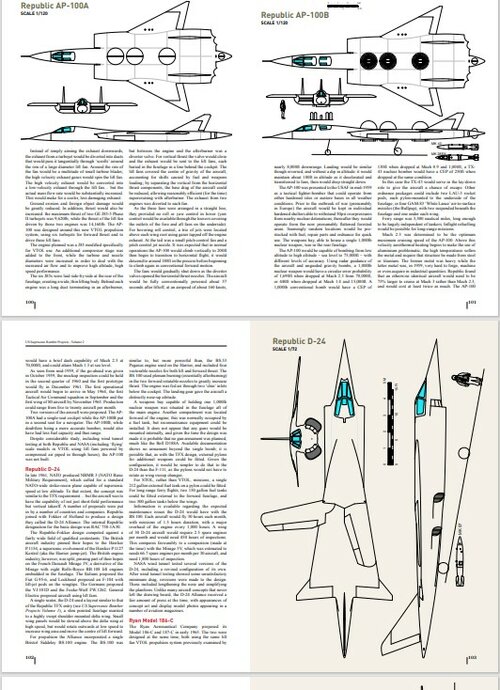

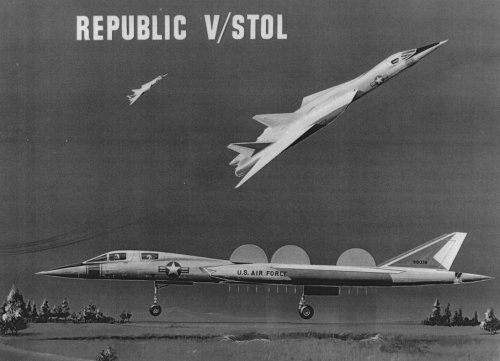

The model shown is the Republic AP-100 V/Stol fighter bomber.
Powerplants ; 6 improved General-Electric J-85 turbo jets plus
3 "Lift Fan" propulsion systems.
Span:35.5' Lenght:67'9'' Height:13'10''
gross w:38.000 pounds.

"A" version single seater "B" version two seater.

Source : Air Progress Spring 1961.

An illustration was send a time ago to my friend Pometablava who
was so kind to put it on this forum.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,004
Reaction score
5,686

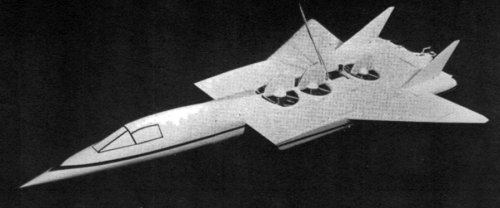

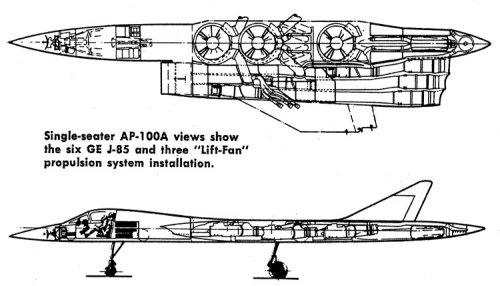

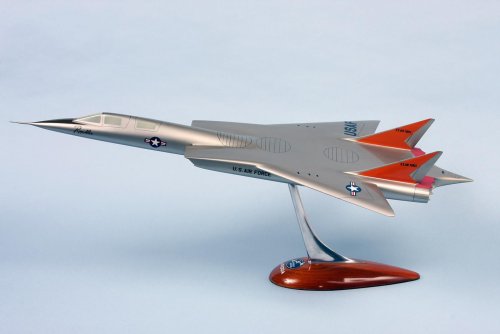

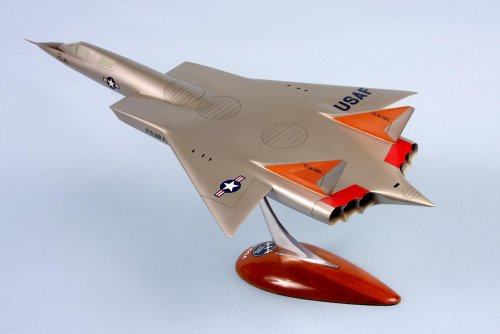

More, thanks to lark.


Attachments

  • AP100.jpg
    83.3 KB · Views: 1,130
  • AP100a.jpg
    147.8 KB · Views: 1,024

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,004
Reaction score
5,686

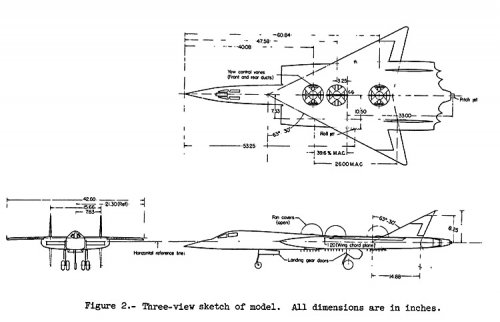

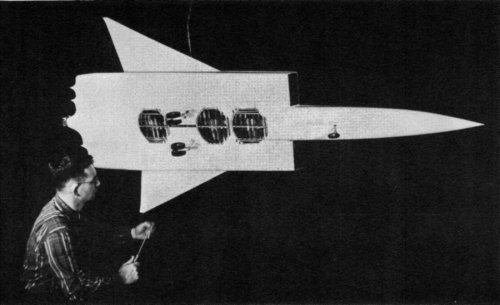

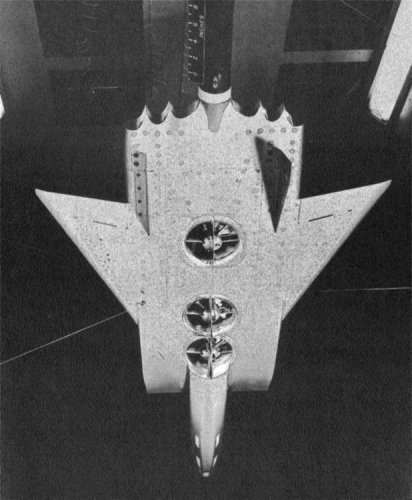

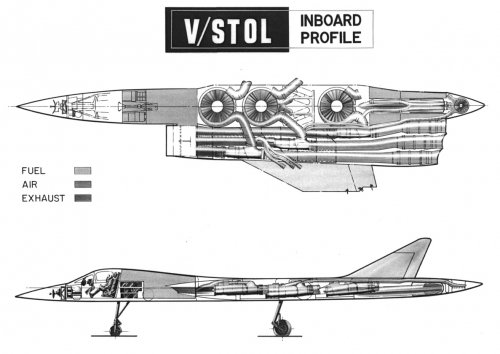

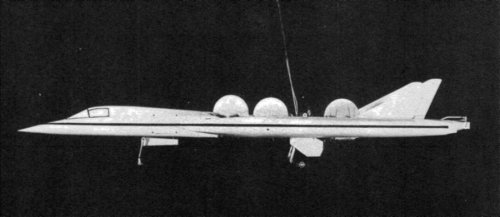

From NASA report (http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19710070030_1971070030.pdf)


Attachments

  • AP100-4.jpg
    58.4 KB · Views: 397
  • AP100-3.jpg
    115.4 KB · Views: 254
  • AP100-2.jpg
    80.1 KB · Views: 740
  • AP100.jpg
    78.5 KB · Views: 830

elider

ACCESS: Confidential
Joined
Feb 16, 2006
Messages
122
Reaction score
8
I hope every gets as thrilled as I do when I see posts like this. This is fantastic. Thanks Overscan.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
108
Great find! Thanks.
(oh..sweet nostalgia)


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,304
Reaction score
1,322

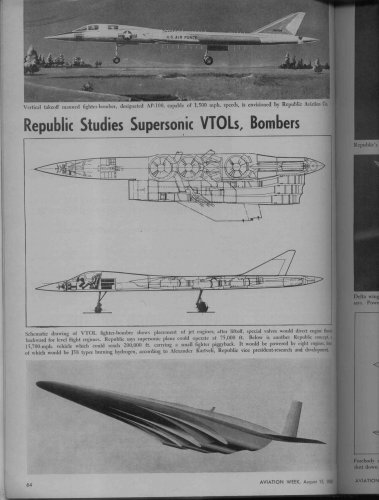

Here the AP-100 from Aviation Week, August 1960 ...


Attachments

  • Republic-designs-1.JPG
    249.4 KB · Views: 475

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,991
Reaction score
5,274
My dear Jemiba,

what is the aircraft below the AP-100 in Aviation Week
artists?.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,304
Reaction score
1,322
".. another Republic concept, a 15,700-mph. vehicle which could reach 200,00 ft ...."
There were no more informations, than those given in the caption, sorry .


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
108
Years ago , Scott Lowther was also seaching for more info
about the Republic early spaceplane shown in Jemiba's illustration.
I wonder I he ever found it...


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,180
Reaction score
1,404
Dear Jemiba - I see also that the Aviation Week scan at the right side has more Republic projects cropped from the next page, yeah? ;) Did you scan them as well? Anything interesting?


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,262
Reaction score
1,949
Website
www.aerospaceprojectsreview.com
lark said:
Years ago , Scott Lowther was also seaching for more info
about the Republic early spaceplane shown in Jemiba's illustration.
I wonder I he ever found it...

Sadly, no. I was contacted by one guy who claimed to have a paper about it, but I never heard back from him.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,304
Reaction score
1,322
.. the other page : ;)


Attachments

  • Republic-designs-2.JPG
    244 KB · Views: 421

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,004
Reaction score
5,686

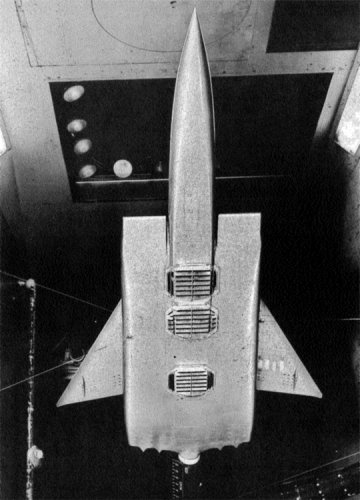

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19730065305_1973065305.pdf

More pics of the NASA model


Attachments

  • AP100a.jpg
    141.2 KB · Views: 144
  • AP100b.jpg
    124.3 KB · Views: 144

Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
596
Reaction score
119
Website
theavgeeks.com
A. It's in the fuel truck.
B. It's in the air-refuelling tanker.
C. It's in the external tanks but they made the plane too heavy for VTO.

:D


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,262
Reaction score
1,949
Website
www.aerospaceprojectsreview.com
lark said:
Years ago , Scott Lowther was also seaching for more info
about the Republic early spaceplane shown in Jemiba's illustration.
I wonder I he ever found it...

Actually: yes. Still nothing on the parasite fighter, but I've got good internal and external plan views and data on it (and the AP-100) now. I'll try to post something in the near future.


XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,164
Reaction score
98
Moderators,

Could we start a thread about the spaceplane-like vehicle in the AvWeek article in this thread? It's a nice looking design and I'm kind of curious about the intakes. They're reminiscent of inward-turning designs seen more recently. But I don't ant to go off-topic.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,262
Reaction score
1,949
Website
www.aerospaceprojectsreview.com
XP67_Moonbat said:
Moderators,

Could we start a thread about the spaceplane-like vehicle in the AvWeek article in this thread? It's a nice looking design and I'm kind of curious about the intakes. They're reminiscent of inward-turning designs seen more recently. But I don't ant to go off-topic.

All you need to do is start your own thread. It's not like anyone'll get snippy. You could always include a link in your new thread to this old one.


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,554
Reaction score
360
You could always include a link in your new thread to this old one.

that's the idea to keep the forum organized and get the best performance from the search tool.


Kim Margosein

ACCESS: Confidential
Joined
Feb 10, 2007
Messages
101
Reaction score
8
Is that area behind the cockpit the fuel tank? Considering the efficiency of jets and VTOL in general, it would need it's first refueling around the time it transitions to horizontal.

Kim M


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,262
Reaction score
1,949
Website
www.aerospaceprojectsreview.com
Kim Margosein said:
Is that area behind the cockpit the fuel tank?

Behind the cockpit, and part of the tailcone. It also *seems* to indicate that the wing and vertical tail are also fuel tanks, but since that includes the actual control surfaces, that must just be a trick of the shading.


reelarchives

ACCESS: Restricted
Joined
Oct 3, 2009
Messages
25
Reaction score
8

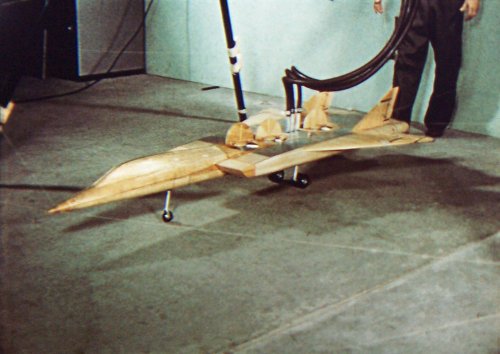

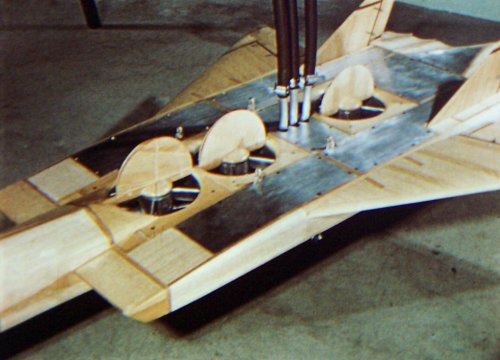

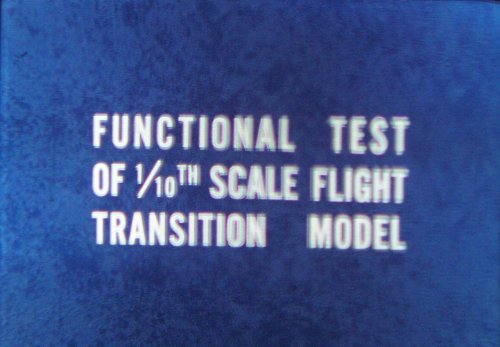

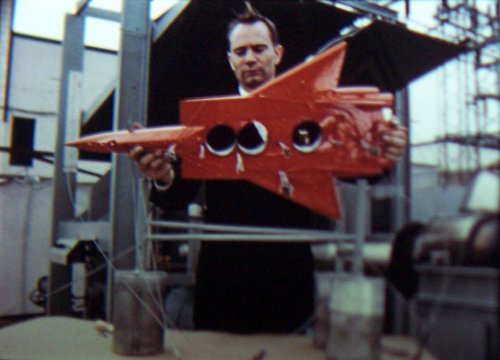

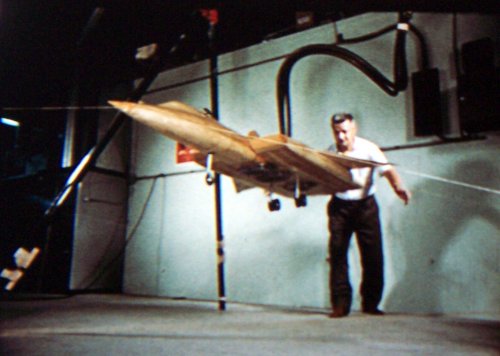

Here are some pics of the AP-100 in development tests from one of my 16mm films - hope you enjoy!


Attachments

  • 100_5474_edited.JPG
    191.7 KB · Views: 96
  • 100_5469_edited.JPG
    273.9 KB · Views: 102
  • 100_5465_edited.JPG
    263 KB · Views: 106
  • 100_5462_edited.JPG
    274.5 KB · Views: 99
  • 100_5454_edited.JPG
    299.9 KB · Views: 103
  • 100_5453_edited.JPG
    275.9 KB · Views: 100
  • 100_5452_edited.JPG
    279.1 KB · Views: 206
  • 100_5450_edited.JPG
    270.5 KB · Views: 237

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,180
Reaction score
1,404
incredible stuff, thanks for sharing these treasures!

any chances to see XF-103 stuff?



overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,004
Reaction score
5,686
Super cool stuff, thanks for posting these.

If you need helping id-ing other stuff just post some piccies ;)


reelarchives

ACCESS: Restricted
Joined
Oct 3, 2009
Messages
25
Reaction score
8
OM said:
Stargazer2006 said:
Very interesting shots! Thanks for sharing.

...Better still, any chance of capping the film and putting it on YouTube?

I just purchased all these films about 2 weeks ago and believe me it takes a lot of time to go through them all. I will copy some of them and sell most of them eventually. All in all I have about 1,000 films to go through and most of them are on film cores of varying sizes from 25 ft to 2,000 ft! They belonged to a former employee of Republic Aviation who rescued them years ago from being tossed when they were shutting down the plant. Most of the films date from the late 1950's to the 1960's along with some footage of the last project they were working on called the T-46A. For now though I'll just share some pictures I come across which I think this forum might find interesting.


reelarchives

ACCESS: Restricted
Joined
Oct 3, 2009
Messages
25
Reaction score
8

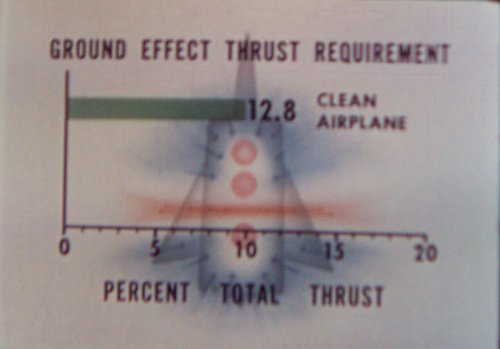

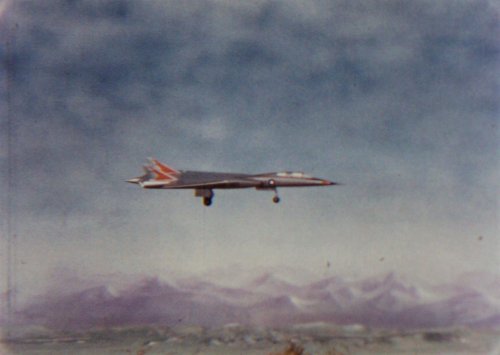

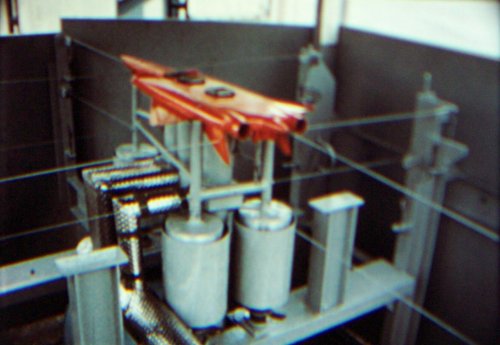

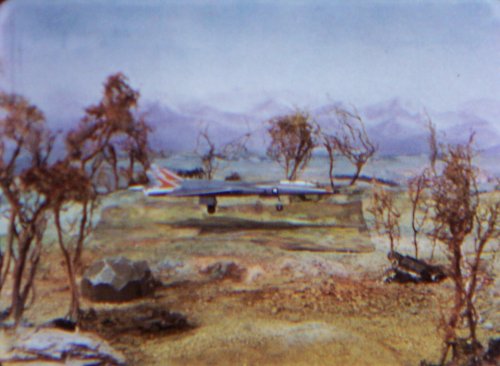

Here are some pics of the AP-100 from an animated film I looked at. I have yet to find anything else showing a real mock up of this fighter.


Attachments

  • 100_7630_edited.JPG
    546.7 KB · Views: 821
  • 100_7629_edited.JPG
    409.2 KB · Views: 806
  • 100_7628_edited.JPG
    526.8 KB · Views: 739

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,004
Reaction score
5,686
I doubt it went any further than scale models, personally. Nice pics though, thanks for sharing, and enjoy digging through what you have ;)


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,004
Reaction score
5,686
Added to existing topic. Video was transferred from film and uploaded by forum member "Reelarchives".
