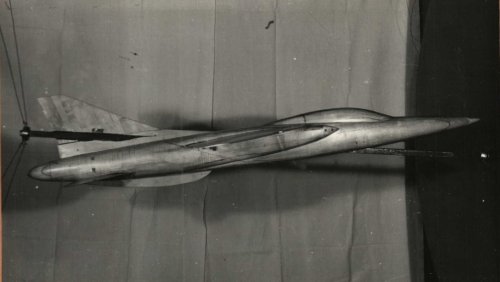

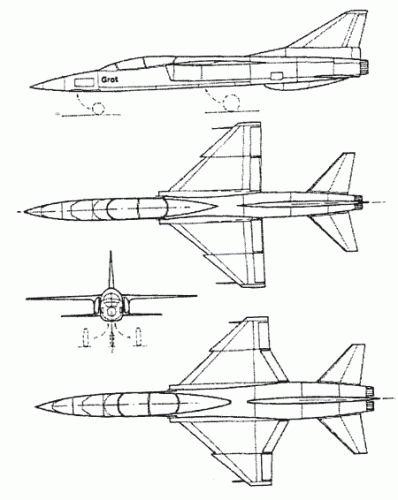

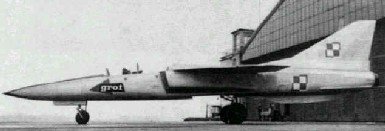

I think this belongs in this section of the forum since, to my knowledge, it never went into production. I found the picture,as I recall, surfing the net and on different sites. Does anyone know the background of this aircraft? What was it's intended role? Was it a rival to another design? Any 3-view drawings?


Attachments

  • ts16.jpg
    8.3 KB · Views: 702
  • ts-16 Grot poland.jpg
    ts-16 Grot poland.jpg
    14.7 KB · Views: 717

dan_inbox

ACCESS: Top Secret
Senior Member
Joined
Sep 3, 2006
Messages
911
Reaction score
466
If you google 'pzl TS-16 grot', then the 1st link is
"The TS-16 Grot (Arrowhead) was a supersonic striker designed by Poland. The project was started in 1958 and cancelled in 1964 ..."
at http://en.wikipedia.org/wiki/PZL_TS-16_Grot

Discipline, homework,etc ;D


elider

ACCESS: Confidential
Joined
Feb 16, 2006
Messages
122
Reaction score
8
Thanks for the advice and the site. Discipline indeed is called for. I know better but seldom do better. Thanks again.


arc3371

ACCESS: Restricted
Joined
Nov 11, 2006
Messages
39
Reaction score
1
In an old Flygvapen Nytt (Air Force News) there is a picture of a Polish aircraft said to be the TS-17 Grot, does anyone here have some info on this aircraft?


boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
855
Reaction score
190
'TS-17' seems to be a wrong interpretation of the TS-16 project ('TS-17' isn't mentioned in Andrzej Morgała's "Polskie Samoloty Wojskowe 1945-1980" book anyway).


Jan den Das

ACCESS: Secret
Joined
Dec 27, 2008
Messages
284
Reaction score
46

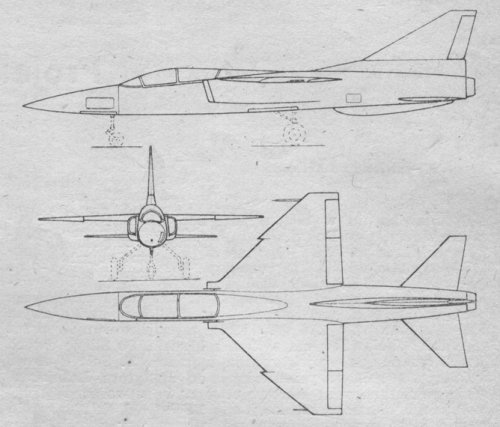

Who can help me with a (at least) three side view drawing of the TS-16 Grot (prototype)?
If possible also of the project production versions?
Thanks
Jan


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,996
Reaction score
5,287
Hi,

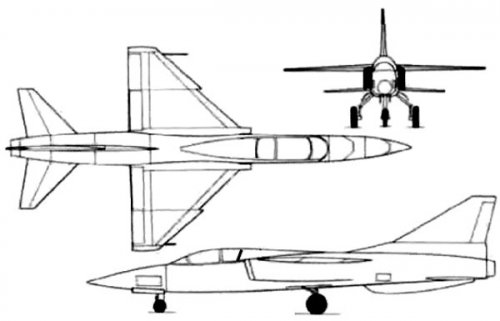

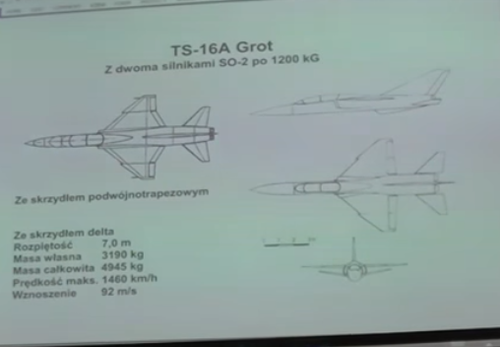

here is the TS-16A a single seat attack version.


Attachments

  • TS-16 SINGLE.JPG
    TS-16 SINGLE.JPG
    41.6 KB · Views: 583

Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
623
Reaction score
323
ivran said:
How to send pictures

Click 'reply' then under the text box you'll find a field 'Attach', where you may browse throught the content of your disk - select an image you want to attach, if you want more - clich 'more attachments'.

Eventually click the 'Post' button. Fairly simple as you'll find out.

I can't wait for your drawings of the TS-16 ;)

Piotr


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,614
Reaction score
184
Website
www.hitechweb.genezis.eu
You need a few posts /I think three/ to be able to post the images. So make another posts and then the "attach image" option will appear.


Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
623
Reaction score
323
If this is a case, you should upload your pictures to Photobucket (or other similar web service) and put links to them in your post here (using Insert Image icon above, the second from the left above the emoticons).

The pictures should appear in the post.

Piotr


ivran

ACCESS: Confidential
Joined
Jan 20, 2008
Messages
145
Reaction score
13


Attachments

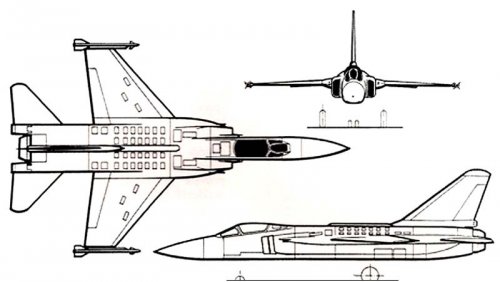

  • IAR-95 05 - 3-side.jpg
    IAR-95 05 - 3-side.jpg
    46.9 KB · Views: 500

ivran

ACCESS: Confidential
Joined
Jan 20, 2008
Messages
145
Reaction score
13

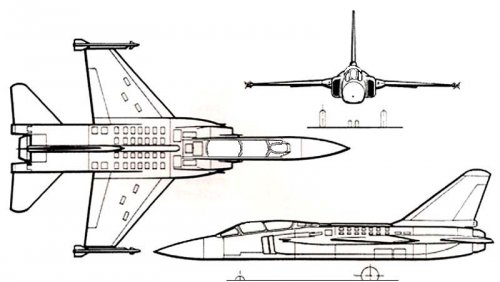

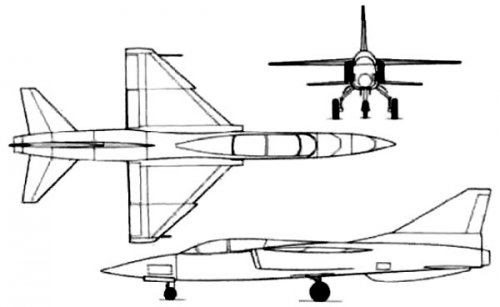

sory thisis IAR -95 a find 3D for TS-16


Attachments

  • IAR-95B 05 - 3-side.jpg
    IAR-95B 05 - 3-side.jpg
    47.1 KB · Views: 470

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,555
Reaction score
361
are both designs related ivran?


ivran

ACCESS: Confidential
Joined
Jan 20, 2008
Messages
145
Reaction score
13
maybe look the chineese FC-1 very similar to IAR-95


Attachments

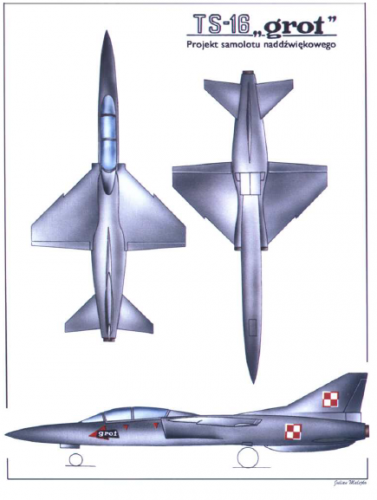

  • Grot Tsc.jpg
    Grot Tsc.jpg
    38.6 KB · Views: 123
  • Grot Trq.jpg
    Grot Trq.jpg
    50.5 KB · Views: 135
  • Grot Asc.jpg
    Grot Asc.jpg
    37.9 KB · Views: 128

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,996
Reaction score
5,287
Hi,

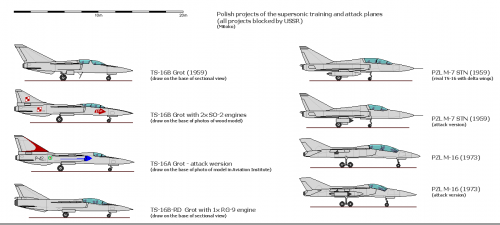

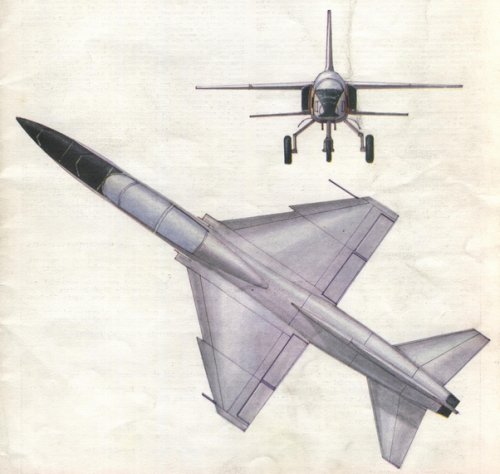

here is the PZL TS-16 variants.


Attachments

  • TS-16M-7M-16_v1ac.png
    25.8 KB · Views: 389

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,996
Reaction score
5,287
Hi,

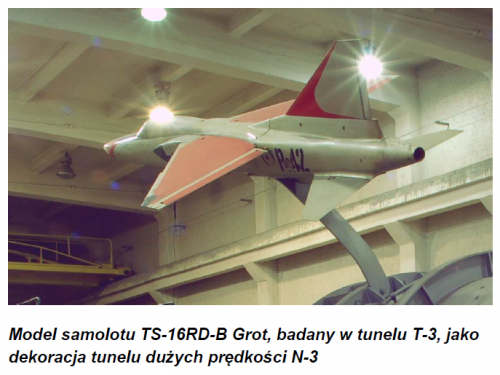

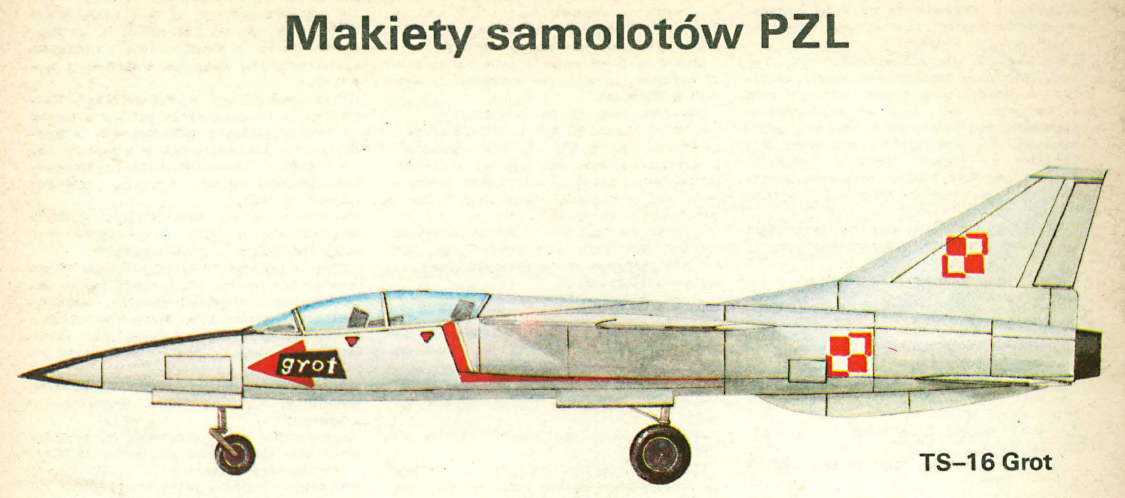

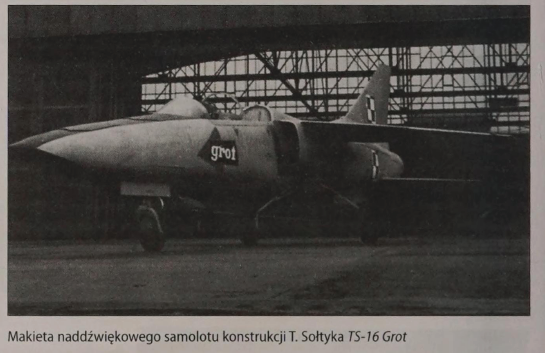

http://www.samolotypolskie.pl/samoloty/2739/126/TS-16-TS-13-Grot2


Attachments

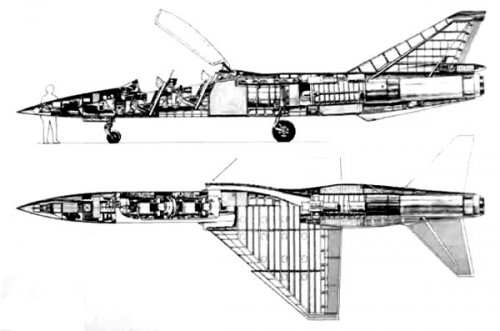

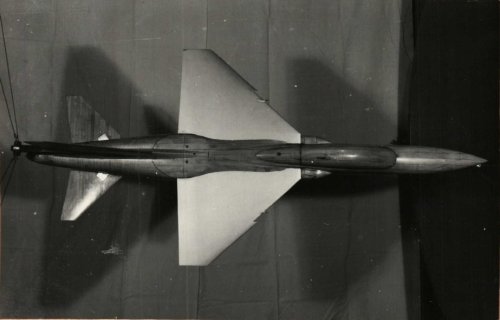

  • TS-16RD_Grot.jpg
    238.2 KB · Views: 84
  • TS-16RD_Grot_rys.jpg
    231 KB · Views: 78
  • TS-16B_Grot_rys.jpg
    236.7 KB · Views: 61
  • TS-16_Grot-03.jpg
    279.4 KB · Views: 190
  • TS-16_Grot_2.jpg
    240.5 KB · Views: 201
  • TS-16_Grot_1.jpg
    268 KB · Views: 224

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,996
Reaction score
5,287
Hi,

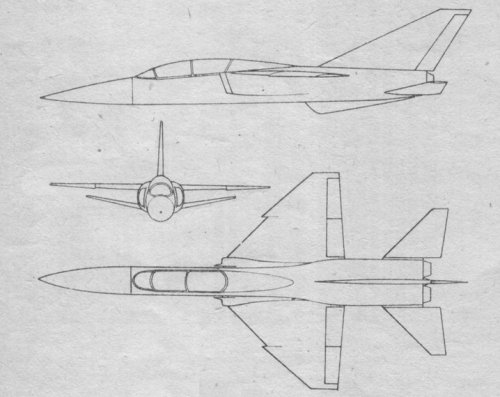

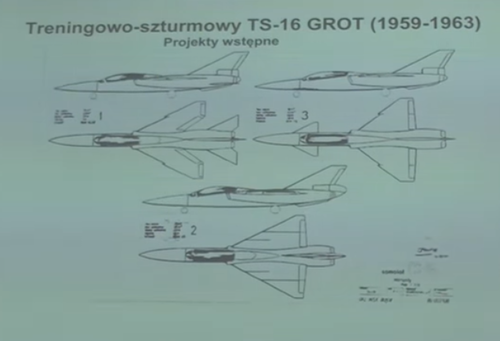

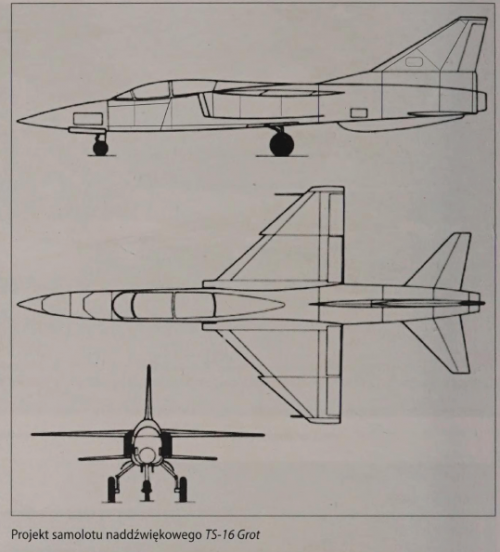

here is a more variants to TS-16 Project,please note the canard one.

http://www.smil.org.pl/ptl/wyklady/110_Samolot_TS-16_Grot.pdf


Attachments

  • 1-110.png
    107 KB · Views: 75
  • 2-110.png
    488 KB · Views: 78
  • 3-110.png
    155.1 KB · Views: 91
