Dear Secret Projects Members, I am seeking assistance for more modelmaking references. I have identified an important Polish airliner prototype that I wish to produce in model form. Please can any of you recommend sources for accurate reference material? I especially require good general arrangement drawings to assist in pattern-making, but any and all suggestions will be most welcome. The attractive and rakish design is the PZL.44 "Wicher"; it looks very smart except for its plywood nose-cone which looks like a bit of an afterthought......

http://www.freewebs.com/aeroscale/pzl44.htm
http://www.oldbeacon.com/plans/resource2/pzl.44.htm
http://www.mmodel.pl/index.php?option=com_content&task=view&id=10&Itemid=19

I do hope that some of you will be able to assist me.

All best wishes,

Terry, (Caravellarella).


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
108
I can highly recommend you 'Polish Aircraft 1893-1939' by
Jerzy B.Cyncnk for a complete description

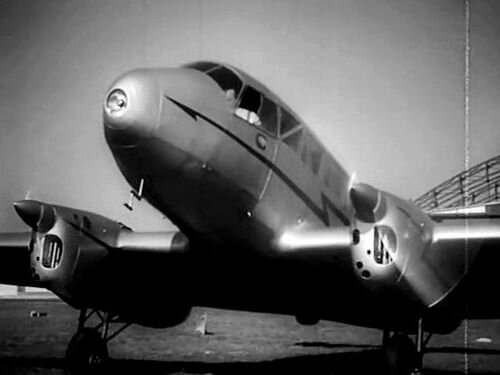

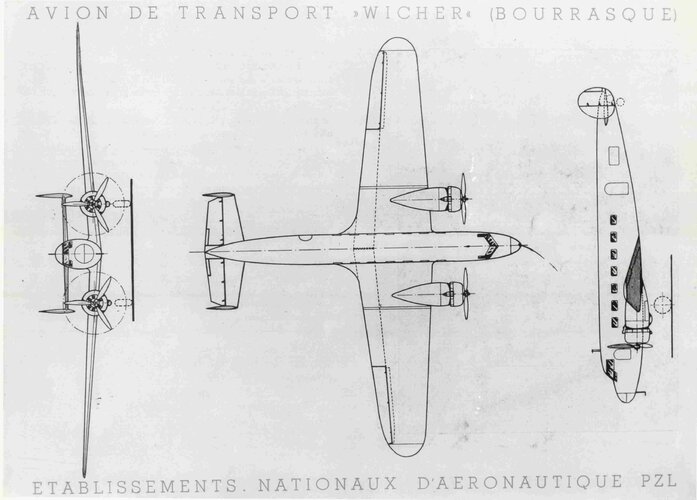

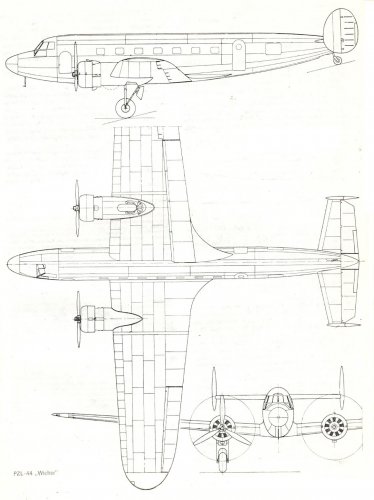

and : http://www.aviastar.org/air/poland/pzl-44.php for an
excellent 3view.

But since this design is not a project, it belongs in the scale modeling section.


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,815
Reaction score
3,592
Website
www.amazon.com
Hi,

I have found a drawing of the PZL-44

Span 23.8m, Length 18.45 m, Height 4.8 m, Wing Surface 75 sqm, Engines two Wright Cyclone GR-1820 G2, colour overall aluminium, Registration SP-BPJ in black characters.


Attachments

  • Escanear0014.jpg
    83.5 KB · Views: 353

Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,039
Reaction score
234
Dear Justo Miranda, thank you very much for the drawing of the PZL.44; it is very helpful. Did your drawing come with any aerofoil & fuselage cross sections?

All best wishes, Terry, (Caravellarella).


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,815
Reaction score
3,592
Website
www.amazon.com
Sure, Terry.

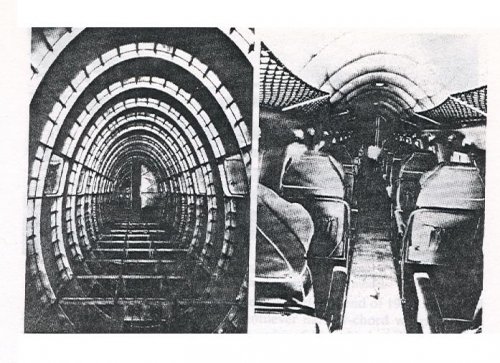

The fuselage cross sections are oval semi-monocoque and was built up of transverse U-section wings and longitudinal Z-section stringers and smooth "Alclad" sheet, as you can see in the attached picture.

I do not have any drawings on the airfoil designed by Jerzy Dabrowski but you may try to find them at
http://www.soton.ac.uk/~jps7/D8%20website/Aerofoils%20used%20by%20aircraft.htm

David Lednicer
Analytical Methods, Inc.
2133 152nd Ave NE
Redmond, WA 98052
dave@amiwest.com

or try a reconstruction using the program at http://www.modelgeeks.com/Uwe/Forum.aspx/air/351/airfoils-ho-to-compute
http://www.aae.uiuc.edu/m-selig/ads/aircraft.html

If everything fails, you may use the Douglas DC-2 (NACA 2215) airfoil, being certain that you will not err much.

All the best,
Justo


Attachments

  • Escanear0001.jpg
    91.4 KB · Views: 208

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,815
Reaction score
3,592
Website
www.amazon.com
One of the urls was wrongly written. Instead of
http://www.modelgeeks.com/Uwe/Forum.aspx/air/351/airfoils-ho-to-compute
it should be
http://www.modelgeeks.com/Uwe/Forum.aspx/air/351/airfoils-how-to-compute

Sorry about that.


Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,039
Reaction score
234
Dear Justo Miranda, thank you for the recommendations; I am very familiar with "The Incomplete Guide to Airfoil Usage" and it has been very useful to me in the past. The airfoil computation software is new to me though, and I will be sure to investigate it fully.

All best wishes, Terry, (Caravellarella).


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
193

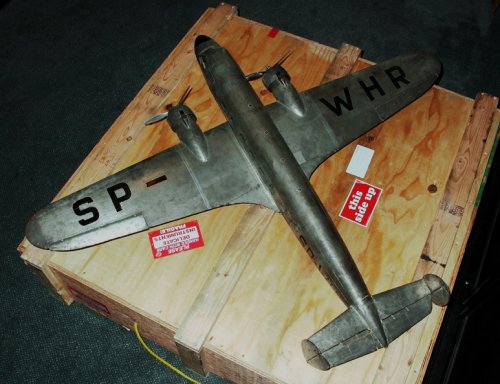

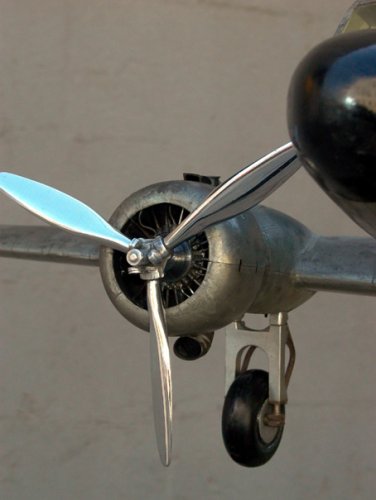

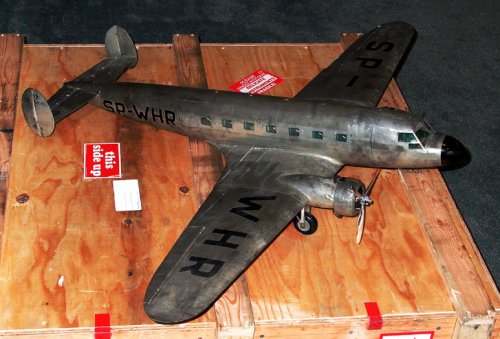

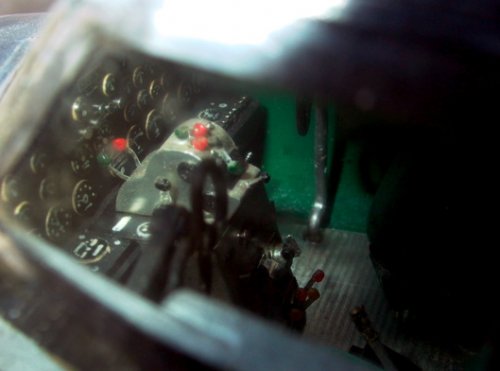

I don't know if you are still looking for material, but these photos are of the original PZL-44 trade show display model, from around 1937. The interior is complete, but hard to photograph.


Attachments

  • PZL-44 Wicher Detail 01 sml.jpg
    PZL-44 Wicher Detail 01 sml.jpg
    80.3 KB · Views: 105
  • PZL-44 Wicher Detail 02.jpg
    PZL-44 Wicher Detail 02.jpg
    72.3 KB · Views: 92
  • PZL-44 Wicher 02 sml.jpg
    PZL-44 Wicher 02 sml.jpg
    219.6 KB · Views: 160
  • PZL-44 Wicher 01 sml.jpg
    PZL-44 Wicher 01 sml.jpg
    233.9 KB · Views: 182

Boogey

B'Boomelang
Joined
Feb 10, 2009
Messages
200
Reaction score
14
Almost not helpfull as I'm not building and colour the aircraft models now ...
It's worth to add, 'cause nobody mentioned it, that Wicher means " strong wind ".


Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,039
Reaction score
234
Dear Circle-5, thank you for the pictures of this excellent model of a really neat-looking airliner......

Terry (Caravellarella)


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
193
With regard to using toxic materials on models, this PZL-44 is entirely covered with lead sheeting. Panel lines, access doors and rivets are all engraved into the lead, using stencils. Of course, this was before WWII, so the worker's health was not important. This model was exhibited at the Paris Air Show in November, 1938. If anybody has a picture of it at the show (which was held indoors at the Grand Palais, not Le Bourget airfield) I would be very grateful for a copy.


riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,423
Reaction score
848
Such small vertical tails!
We wonder how well it flew after one engine quit.


Kazik.R

ACCESS: Restricted
Joined
Jun 5, 2021
Messages
34
Reaction score
93

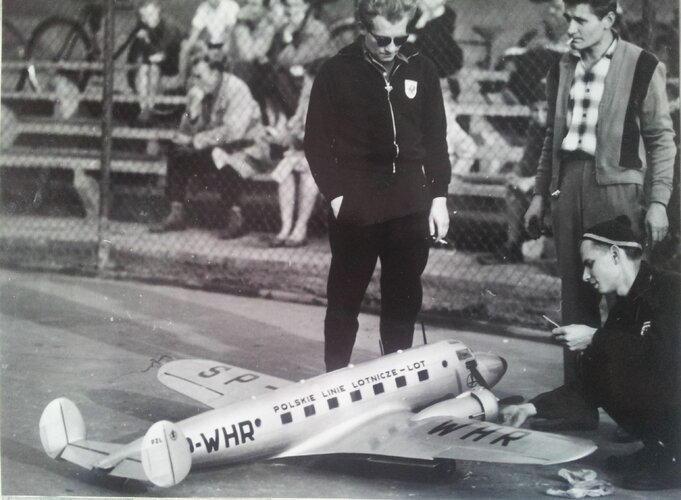

Polish control line model..PZL-44 WICHER from 1962 ..Modeller Janusz Koczkodaj


Attachments

  • 20160206_125752.jpg
    568.9 KB · Views: 32
  • 20160206_125803.jpg
    2.3 MB · Views: 26
  • 20160206_125607.jpg
    662.1 KB · Views: 32

Kazik.R

ACCESS: Restricted
Joined
Jun 5, 2021
Messages
34
Reaction score
93

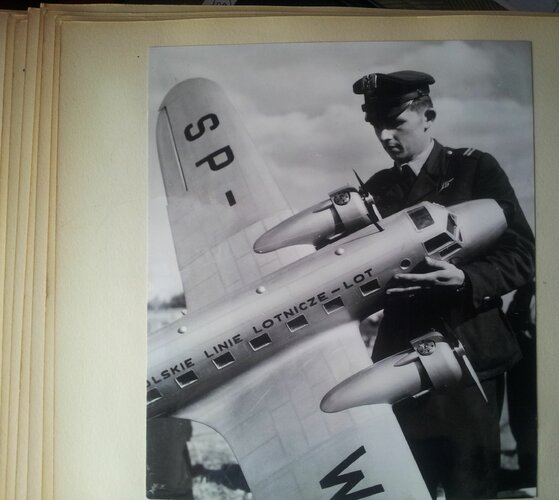

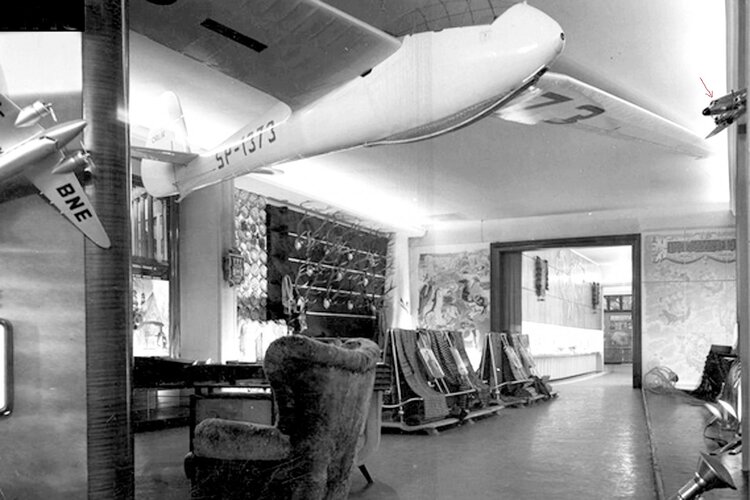

World Expo New York....1938...Polish Pawilon and model PZL-44 Wicher(rot arrow)...and L-14 Super Electra!!!


Attachments

  • 0947.jpg
    58.9 KB · Views: 32
  • 545763984_orlik2ny19382.jpg.3f90d69781036fff13029c69527546f7 (1).jpg
    545763984_orlik2ny19382.jpg.3f90d69781036fff13029c69527546f7 (1).jpg
    300.3 KB · Views: 37

Kazik.R

ACCESS: Restricted
Joined
Jun 5, 2021
Messages
34
Reaction score
93
Captured aircraft....Lwow 1939 PZL-44 WICHER ...SP-BPJ.


Attachments

  • SP-BPJ.jpg
    57.2 KB · Views: 46

Kazik.R

ACCESS: Restricted
Joined
Jun 5, 2021
Messages
34
Reaction score
93

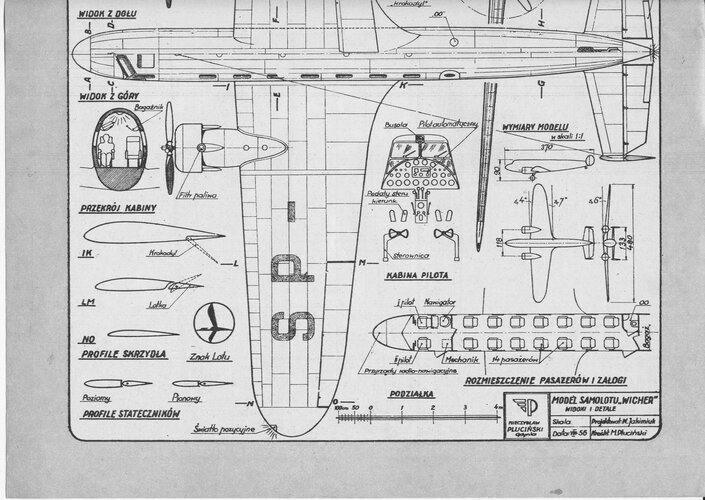

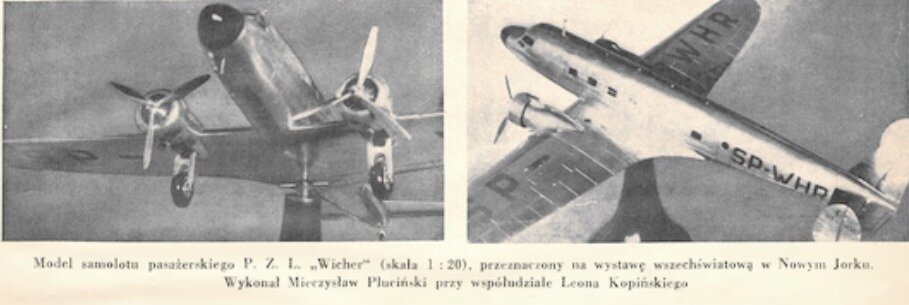

Plany samolotuwykonane przez budowniczego modelu na Expo w Nowym Jorku Mieczysława Plucińskiego...'

Airplane plans made by the model builder at the Expo in New York, Mieczysław Pluciński ... [translation added by moderator]


Attachments

  • plane (58).JPG
    plane (58).JPG
    1.5 MB · Views: 41
  • plane (59).JPG
    plane (59).JPG
    1.4 MB · Views: 43
Last edited by a moderator:

Kazik.R

ACCESS: Restricted
Joined
Jun 5, 2021
Messages
34
Reaction score
93

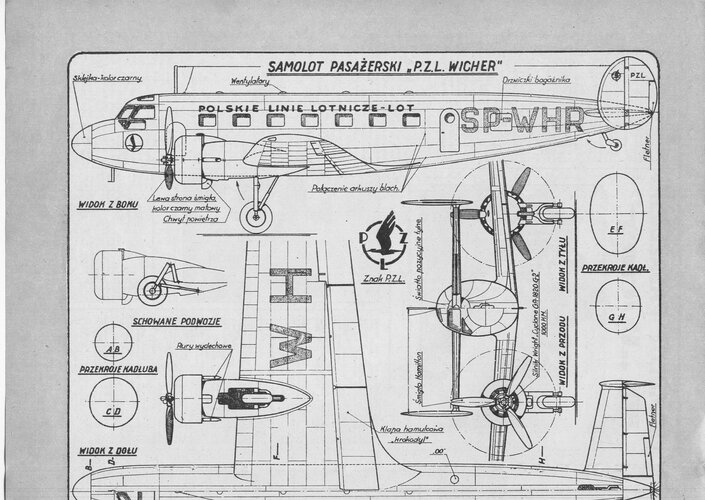

Rysunek z folderu ofertowegoPZL-u na Salon Lotniczy w Paryżu....stąd pomyłka,że ten samolot był tam wystawiony!!!

A drawing from the PZL offer folder for the Paris Aviation Salon... hence the mistake that this plane was exhibited there !!! [translation added by moderator]


Attachments

  • b39.jpg
    549.3 KB · Views: 41
Last edited by a moderator:

Kazik.R

ACCESS: Restricted
Joined
Jun 5, 2021
Messages
34
Reaction score
93
Hi ... Is it possible to contact the photographer of the PZL-44 Wicher model ???


Kazziga

ACCESS: Restricted
Joined
Mar 9, 2008
Messages
7
Reaction score
2
Unfortunately, it seems that the user circled-5 passed away. Has anyone got any information concerning the whereabouts of the PZL-44 Wicher display model, the photos of which he had posted?
