Projekt Huckepack

Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,643
Reaction score
651
If found this Projekt in Wikipedia, so i don't know it for real !

Projekt Huckepack (Project Piggyback)

For the America Bomber Project during WWII
they had Idea to use a Mistel-Gespann that is
a Heinkel He 177 bomber, carry a Dornier Do 217E powered with an additional Lorin-Ramjet.
the Mistel-Gespann liftoff at Bordeaux Luftwaffe base in France
the He 177 flies so fare west as they can then relace the Do 217E that ignite the Lorin-Ramjet.
over USA eastcoast the Do 217 makes it bombing, return back to Atlantic towards rendezvous point
with German U-Boat, Bomber crew bailout with parachute and is pickup by the sub
the bomber would be ditched after crew left it.

real project or Wiki Hoax ?


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,222
Reaction score
929
There were tests with various Lorin ramjets on a Do 217, but I can't
believe, that this would have been suitable for reaching the US.
It would just have increased fuel consume. And I severely doubt, that a
He 177 could have taken-off with this load !


Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,643
Reaction score
651
Jemiba said:
There were tests with various Lorin ramjets on a Do 217, but I can't
believe, that this would have been suitable for reaching the US.
It would just have increased fuel consume. And I severely doubt, that a
He 177 could have taken-off with this load !

me to

the Wiki source say that Projekt Huckepack was chancel because of lack a Kerosene
needed for Ram engine and lost of Bordeaux Luftwaffe base in France in 1944

can the Do217E engine used also for taken-off ?


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,213
Reaction score
1,861
Ignition in a dive only

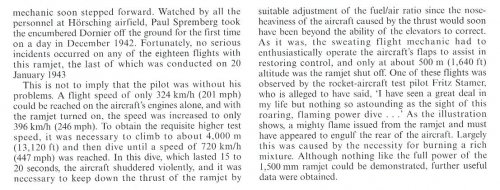

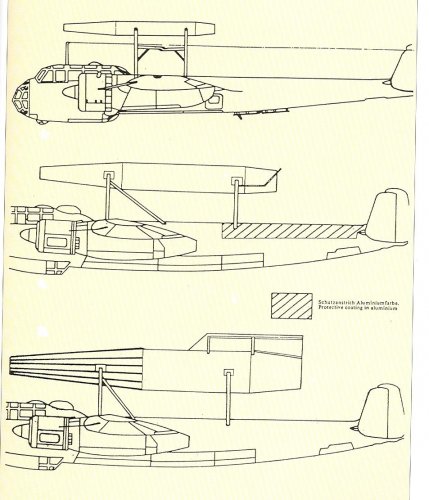

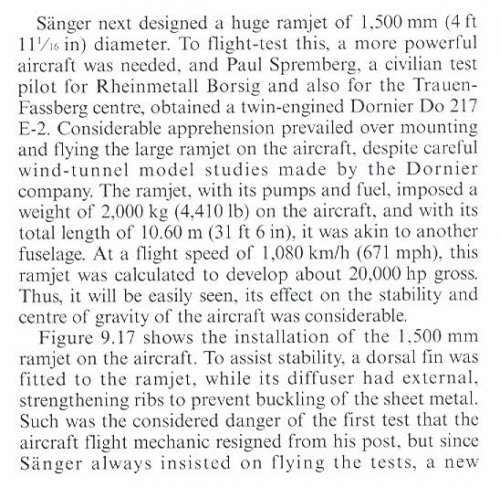

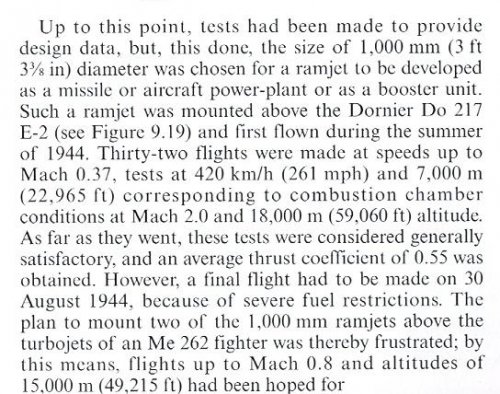

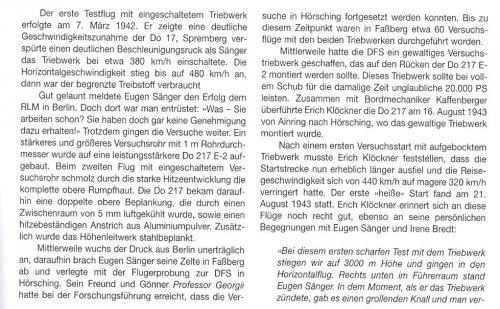

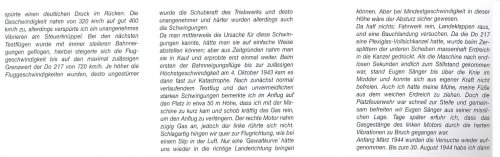

Here some text and drawings from "Geheimprojekte der DFS" by Horst Lommel , Motorbuch Verlag 2000
and unknown source.


Attachments

  • Escanear0001.jpg
    91.8 KB · Views: 127
  • Escanear0002.jpg
    134.1 KB · Views: 118
  • Escanear0003.jpg
    75.3 KB · Views: 103
  • Escanear0004.jpg
    179.3 KB · Views: 106
  • Escanear0005.jpg
    163.6 KB · Views: 108
  • Escanear0006.jpg
    132.8 KB · Views: 67

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,213
Reaction score
1,861
And true Huckepack system , from "Reichdreams" Nº3 ;)


Attachments

  • Escanear.jpg
    283.4 KB · Views: 77

Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,643
Reaction score
651
here two picture

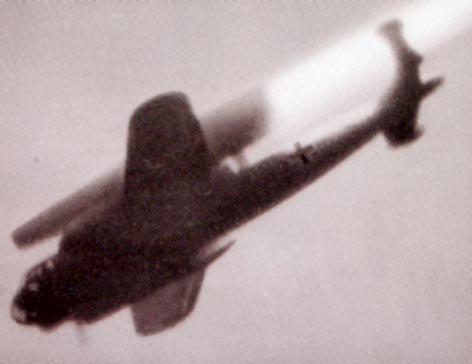

DO 217E Ramjet test in flight

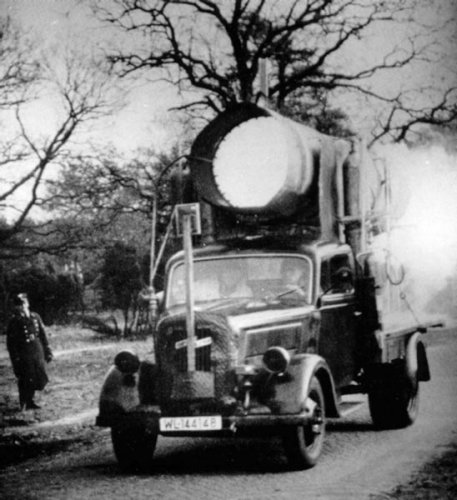

First Ramjet test on truck
(the stick has mirror so Sanger and the driver can see the combustion)
poor police officer on side of road, cannot give them a speed ticket ::)

source: Geo magazin with articel of Sänger II


Attachments

  • Do217Eramjettest.jpg
    14.7 KB · Views: 58
  • LKWRamjettest.jpg
    58.4 KB · Views: 46
