Hi everybody,

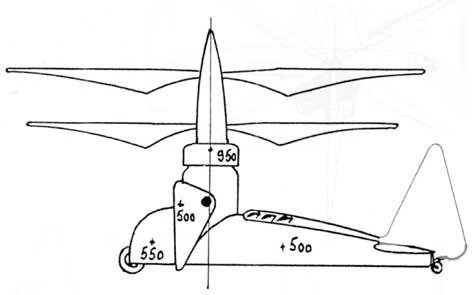

Dorand project of 1954 for STOL mailplane.


Attachments

  • img2.jpg
    13.9 KB · Views: 51

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,011
Reaction score
417
Hi all,

In Docavia 23 I have found little infos about the Dorand DA.08 and DA.09, both light airplane projects from ca. 1957. I know Dorand only as inventor for helicopters? Do you have more informations...

Servus Maveric


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
766
hesham said:
Hi everybody,

Dorand project of 1954 for STOL mailplane.

It wasn't so much STOL as VTOL! See: http://modelarchives.free.fr/Bestiaire/DVTOL_P/index.html


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,316
Reaction score
1,386

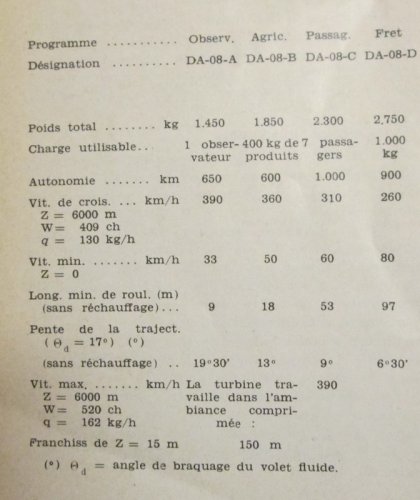

In Aero France, January 1956 issue, I found an article with the title " L'Avion A Ailes Propulsives Et A Gouvernes
Par Controle De La Couche Limite", including a 3-view.
I've attached the text, too, maybe a native French speaker could give a short summary ?

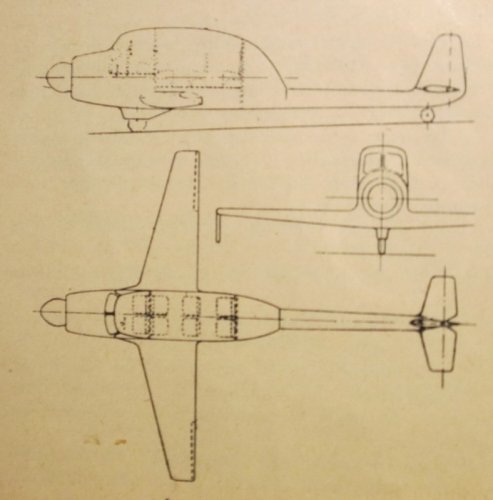

I think, the 3-view shows the DA 8, obviously an 8-seater, but mentioned, too, is the DH G 4,
an experimantal two-seater, which seems to have been build.


Attachments

  • Dorand_DA-8_01.jpg
    101.6 KB · Views: 315
  • Dorand_DA-8_text_01.jpg
    156.3 KB · Views: 293
  • Dorand_DA-8_text_02.jpg
    129.7 KB · Views: 255
  • Dorand_DA-8_text_03.jpg
    122.4 KB · Views: 216

dan_inbox

ACCESS: Top Secret
Senior Member
Joined
Sep 3, 2006
Messages
936
Reaction score
496
The goal is to produce small, low-power transport aircraft: max 750 hp, moderate commercial speed 350 km/h, capable of flying at low speed: 50 km/h, of taking off without assistance from small and bad strips.


Fuel use per kg of thrust is: stopped 0.37 kg/kg/h , at 385km/h 0.7 kg/kg/h.


Here are the reasons which lead René Dorand to use low pressure fluid:
The feeding of propulsive wings by medium-pressure fluid (ratio 1.5 to 1.7) is interesting for planes with a slim profile, for which the cruise speed is around 700 km/h, with a minimum speed of 90 km/h.


The comparison with classical airplanes enables the following observations:
- for the same performance, the rolling length is divided by 4
- in the same flying conditions, horizontal speed is increased by 30%

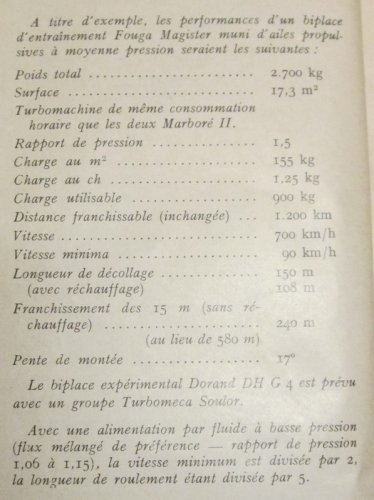

As an example, the performance of a twin-seater trainer Fouga Magister fitted with medium-pressure propulsive wings would be as follows:
(table)
The experimental twin-seater Dorand DH G4 is considered with a Turbomeca Soulor powerplant.


With a feed by low-pressure fluid (preferably mixed fluid, pressure ratio 1.06 to 1.15), the minimum speed is divided by 2, the rolling length divided by 5.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,144
Reaction score
5,665
Nice find my dear Boxkite,

and from TU magazine.


Attachments

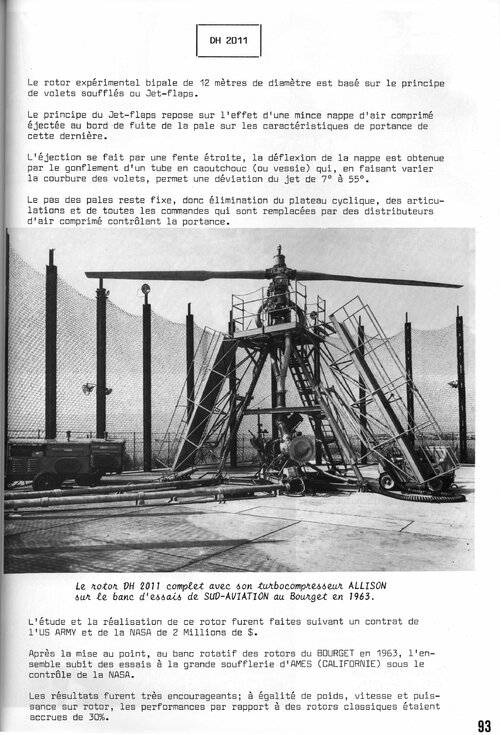

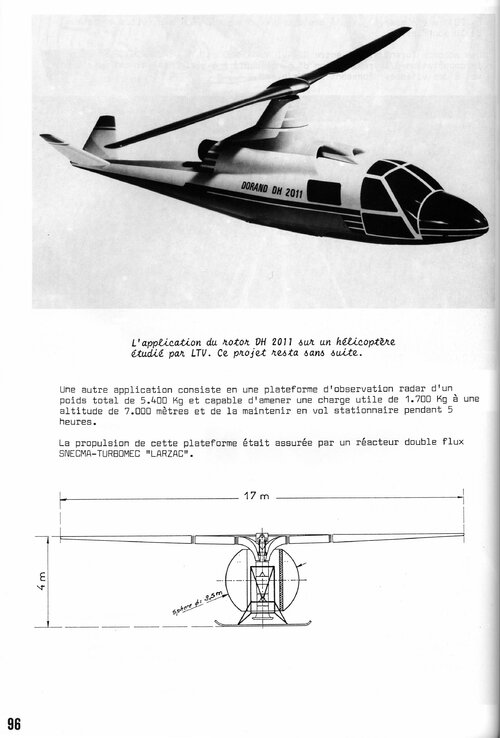

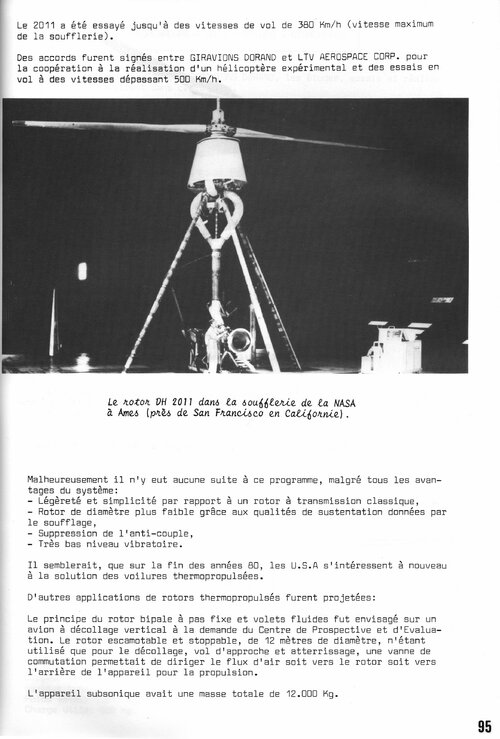

  • TU_dorand_p0093.jpg
    2.1 MB · Views: 15

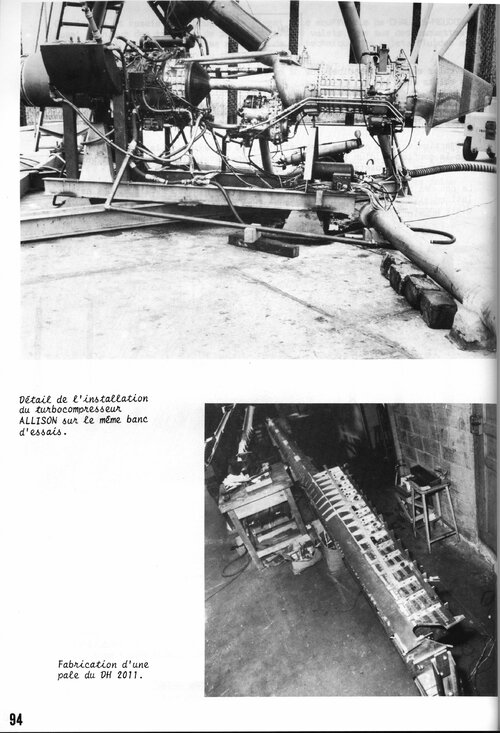

  • TU_dorand_p0094.jpg
    2.3 MB · Views: 15
  • TU_dorand_p0095.jpg
    1.4 MB · Views: 23
  • TU_dorand_p0096.jpg
    1.2 MB · Views: 34

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,144
Reaction score
5,665

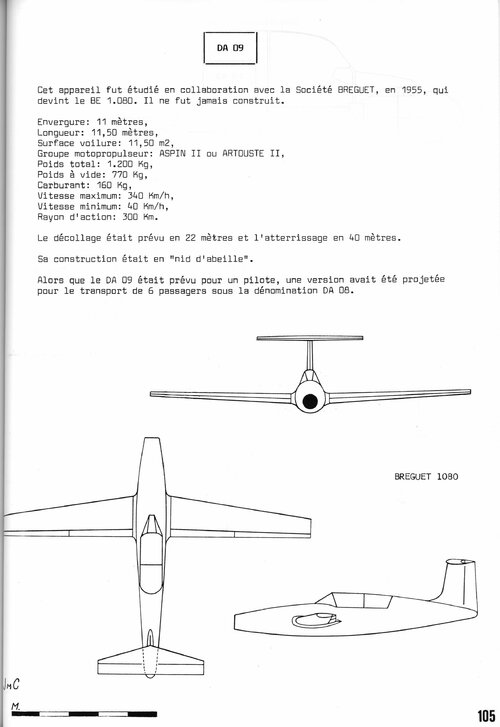

In Docavia 23 I have found little infos about the Dorand DA.08 and DA.09, both light airplane projects from ca. 1957. I know Dorand only as inventor for helicopters? Do you have more informations...
From TU magazine,

there was also DA.01,DA.3,DA.5 & DA.06,and for DA.8 and
DA.9.


Attachments

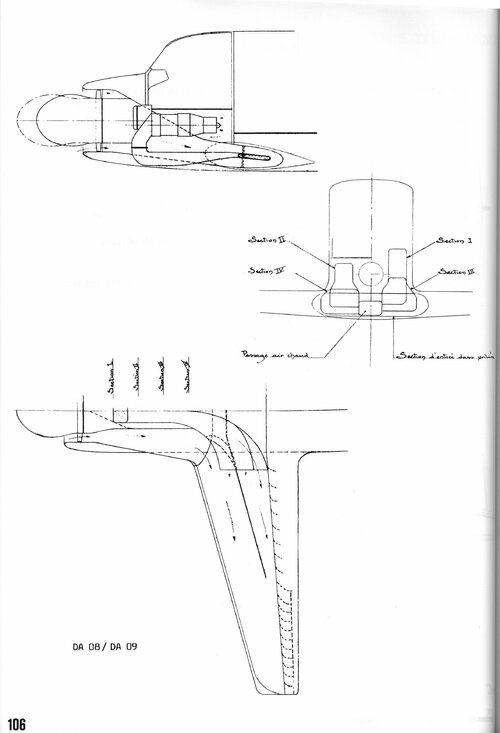

  • TU_dorand_p0105.jpg
    389.8 KB · Views: 21
  • TU_dorand_p0106.jpg
    350.1 KB · Views: 22

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,144
Reaction score
5,665
there was also DA.01,DA.3
From TU magazine;

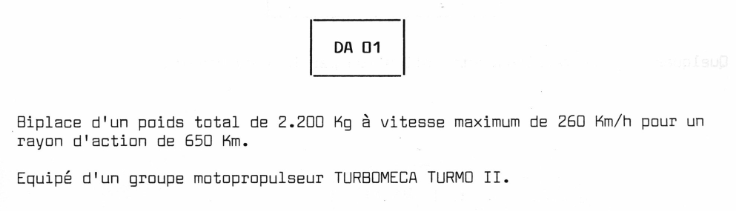

DA.01,

Two-seater with a total weight of 2,200 kg at a maximum speed of
260 km / h for a 650 km radius of action.
Equipped with a TURBOMECA TURMO II powertrain.

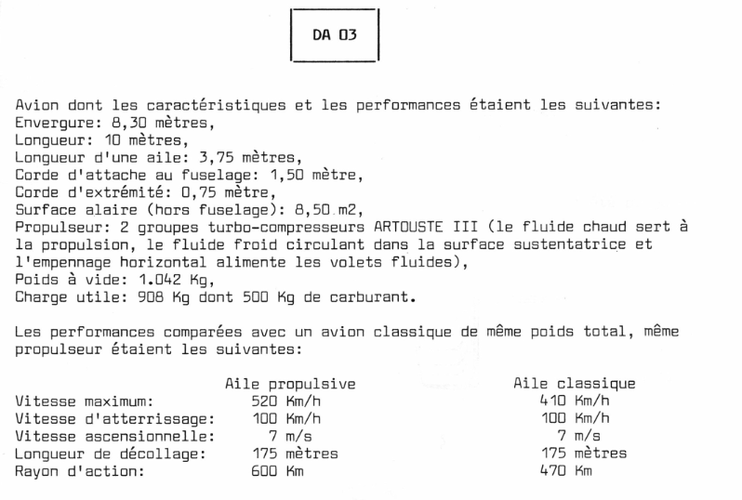

DA.03,

Aircraft whose characteristics and performances were as follows:
Wingspan: 8.30 meters,
Length: 10 meters,
Wing length: 3.75 meters,
Rope for attaching to the fuselage: 1.50 meters,
End rope: 0.75 meter,
Wing area (excluding fuselage): 8.50 m2,
Thruster: 2 ARTOUSTE III turbo-compressor units (the hot fluid is used to
1s propulsion, the cold fluid circulating in the lifting surface and
the horizontal tail feeds the fluid flaps),
Empty weight: 1.042 Kg,
Payload: 906 Kg including 500 Kg of fuel.
Performance compared with a conventional aircraft of the same total weight, even thruster were as follows:


Attachments

  • 1.png
    33.3 KB · Views: 12
  • 2.png
    141.9 KB · Views: 18

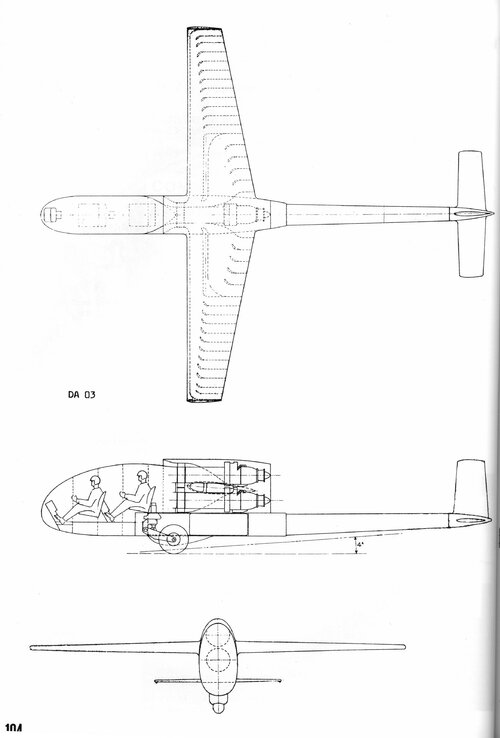

  • TU_dorand_p0104.jpg
    357 KB · Views: 18
