Need some information about Convair X-6

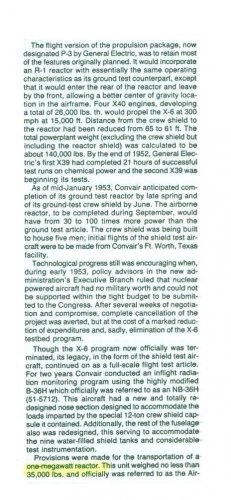

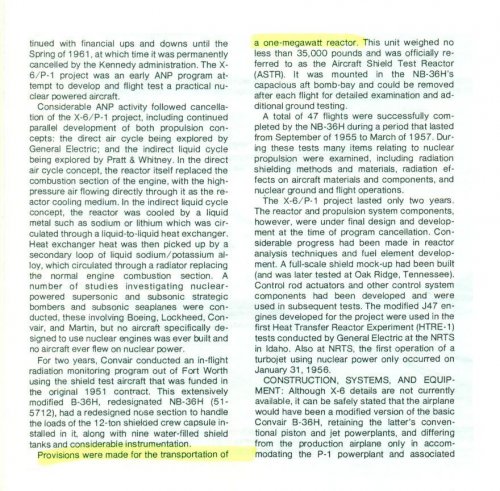

From here http://www.aviation-history.com/articles/nuke-american.htm :
Identifying the aircraft was the radioactivity symbol painted on the tailfin. The R-1, one standing for the energy it would generate, a one megawatt; reactor installed on the aircraft was a liquid-sodium cooled power plant

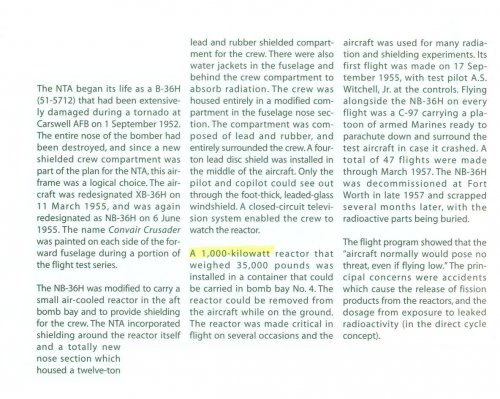

But from wikipedia http://en.wikipedia.org/wiki/Convair_X-6 :

was modified to carry a 3 megawatt, air-cooled nuclear reactor


???

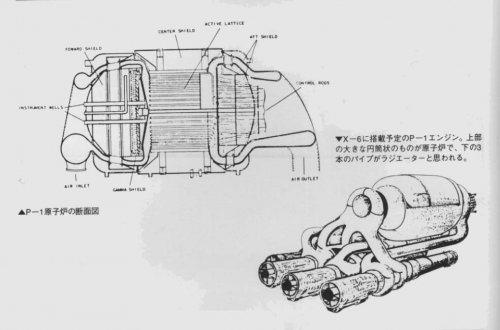

Hi P-1 reactor.


Attachments

  • p1.jpg
    57.1 KB · Views: 180
here additional Info and picture of X-6 proposal
text in french
http://jpcolliat.free.fr/x6/x6-4.htm
http://jpcolliat.free.fr/x6/x6-5.htm
http://jpcolliat.free.fr/x6/x6-6.htm

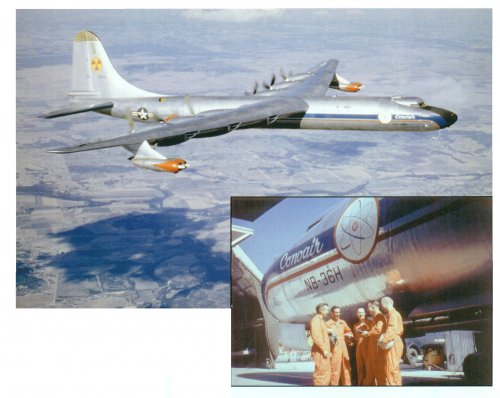

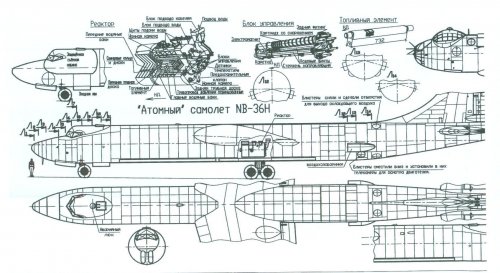

Bonus NB-36 H
http://jpcolliat.free.fr/x6/x6-7.htm
