Piper PAT-1 experimental prototype

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804

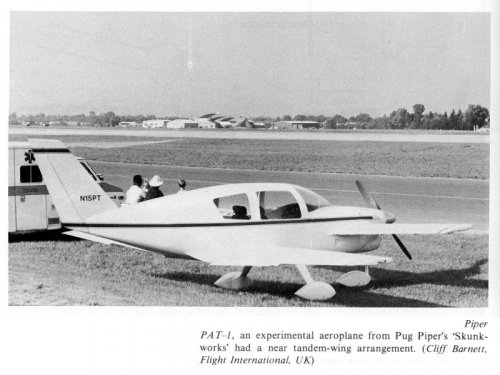

While browsing through a book on aviation design (The Design Of The Aeroplane, BSP Professional Books 1993) I stumbled upon this Piper prototype which I had never heard about. It is called the PAT-1 and though typical of Piper's single-engined general aircraft such as the Cherokee or Archer, it features what is almost a second wing at the front, making it a sesquiplane of sorts.

Does anyone have any additional information on this rare bird?


Attachments

  • PAT-1.jpg
    281.2 KB · Views: 116

walter

ACCESS: Secret
Joined
Jan 31, 2008
Messages
376
Reaction score
125
The info posted by Bailey already sums up much of this aircraft. It was first flown in July 1981, but sadly lost in a fatal crash a couple of months later. Costructon was largely composite and some details: wingspan 25.25ft, length 23.396ft and height 9.167ft. Nicknamed Pugmobile.
No relationship with the Piper company, except that Howard (Pug) was son of William T.


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,371
Reaction score
384
Sadly one more failed effort to get us flying on something better than the 50 year-old 172... :'(


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804
Never took time to thank you, Bailey, for solving the mystery... Thanks!

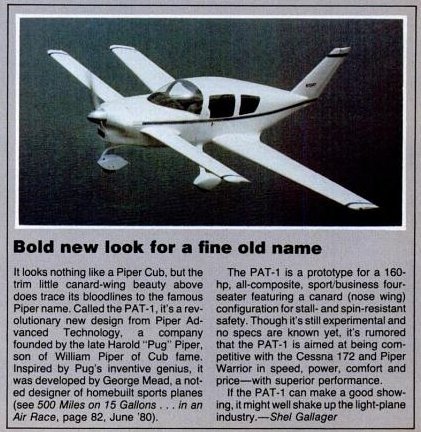

Further investigation reveals that the Piper PAT-1 (Piper Advanced Technology) which was meant to be the first all-composite canard commercially produced. Unfortunately, the main push behind it, Howard Piper, died just before the maiden flight in June 1981. Then the only prototype crashed in a demonstration flight in Nov 1981 when the engine separated from the fuselage following a blade separation. 3 people aboard were killed, including designer George Meade & 2 NASA employees. That was the beginning and the end of this forgotten bird.

Main source: RCuniverse.com

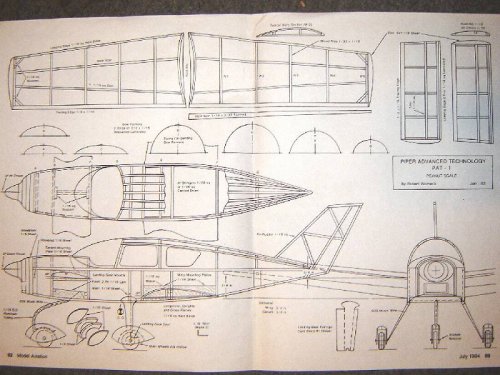

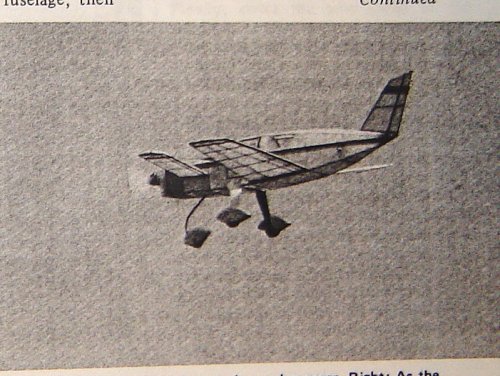

I'm enclosing a view of a nice peanut-scale model that was done, and the plan that was used, all from the selfsame page.


Attachments

  • Vq51906.jpg
    296.8 KB · Views: 76
  • Us53049.jpg
    86.2 KB · Views: 74

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,039
Reaction score
560
Just a correction.....
Stargazer, the plan you posted is a 'peanut scale'; free-flight, rubber powered, max. 13" span, quoted from the linked page,

"Both are free flight rubber designs...the PAT-1 is a peanut,...
I'm considering enlarging them for powered flight,"

see also :- http://www.samsmodels.com/site/peanut.html


cheers,
Robin.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804
robunos said:
Just a correction.....
Stargazer, the plan you posted is a 'peanut scale'; free-flight, rubber powered, max. 13" span, quoted from the linked page,

"Both are free flight rubber designs...the PAT-1 is a peanut,...
I'm considering enlarging them for powered flight,"

Thanks Robin! Of course you're right! Silly me... My dad used to build these rubber-band-powered balsa wood aircraft and fly them on the beach when I was a kid (lots of them looked pretty much like Piper Cubs, from what I can remember...). I didn't know they were called "peanut scale" in English though... :-[
