Patriot SAM replacement

JakobS

I really should change my personal text
Joined
Oct 28, 2016
Messages
12
Reaction score
0
Seems like the government have secured enough parliamentary support to push through Patriot here in Sweden now. The deal should be finalised before the end of the week as it is now.


John21

CLEARANCE: Confidential
Joined
May 28, 2007
Messages
143
Reaction score
0
bring_it_on said:
I wonder which S&T Surveillance radars (portable) he is referring to at 13:00.

https://www.youtube.com/watch?v=htN5pZVnrVA
Do you by chance have the PDF these slides in the briefing came from? Google isn’t giving me anything. :(


bring_it_on

I really should change my personal text
Joined
Jul 4, 2013
Messages
1,883
Reaction score
0

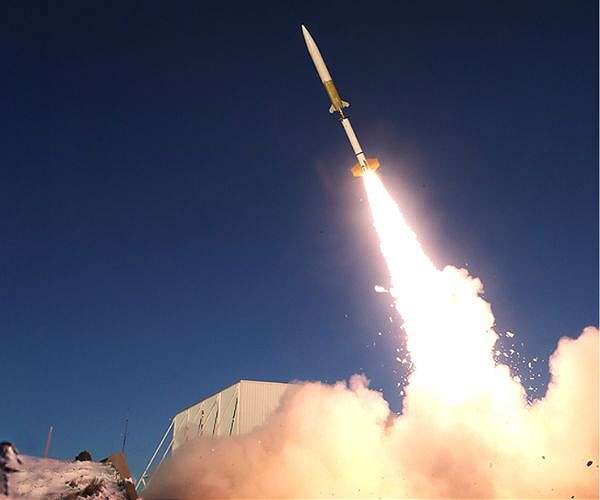

Integrated Air and Missile Defense Battle Command System extends hundreds of miles to enable the multi-domain battlespace


HUNTSVILLE, Ala. – Aug. 15, 2018 – The Northrop Grumman Corporation (NYSE: NOC)-developed Integrated Air and Missile Defense (IAMD) Battle Command System (IBCS) successfully demonstrated its ability to scale up and network across long distances during a recent U.S. Army-led test. The evaluation was conducted by U.S. Army soldiers over a five-week period with air and missile defense assets located at sites in New Mexico, Texas and Alabama.“The ability of IBCS to integrate sensors and shooters over a vast area and grow the single integrated air picture offers huge advantages to air defenders and the joint forces,” said Dan Verwiel, vice president and general manager, missile defense and protective systems, Northrop Grumman. “This was demonstrated using an operationally realistic equipment laydown across several states and showed how IBCS is truly a force multiplier.

“This Soldier Checkout Event (SCOE) demonstrated the ability of IBCS to scale broadly. It further demonstrated IBCS’ robust network management technologies to efficiently and effectively maintain voice, data and video connectivity for the warfighter’s increasingly complex and challenging environment,” said Verwiel.

As part of SCOE 4.0, the multi-node distributed test examined IBCS’ scalability, resilience and performance under stressing threat conditions. The open-architecture IBCS networked more than 20 nodes across White Sands Missile Range, New Mexico; Fort Bliss, Texas; and Redstone Arsenal, Alabama. Integrated to operate as a single system, the test involved nine IBCS engagement operations centers and 12 IBCS integrated fire control network relays, along with Sentinel short range air defense radars and Patriot radars, Patriot Advance Capability Two (PAC-2), PAC-3 and PAC-3 Missile Segment Enhancement interceptors.

The test required IBCS to virtually form an IAMD task force to defend four critical assets while tracking ‘red’ and ‘blue’ fighter aircraft, cruise missiles and tactical ballistic missiles. Multiple two-hour scenarios were run to check IBCS abilities, including: providing and managing a network to maintain voice, data and video connectivity; performing friend-or-foe identification of air objects and forming the single integrated air picture; and planning, executing and monitoring simulated threat engagements.

The test also included dynamically adding and removing nodes to confirm IBCS’ ability to self-configure as a mobile ad hoc network.

The IBCS-enabled enterprise system provides significant benefits over standalone, proprietary systems that merely ‘talk’ with each other. With IBCS, air and missile defense commanders can orchestrate forces over extensive distances using whatever means of communications that are available. Today, commanders are restricted by the proprietary and limited networks tied to the individual closed systems.

“Extensive testing has shown IBCS to be increasingly mature and its capabilities will be game-changers on the battlefield. IBCS delivers an unprecedented degree of integration to fill gaps in today’s air defenses while enabling multi-domain concepts such as affordably integrating unmanned or fifth generation fighter aircraft,” said Verwiel.

IBCS continues to validate the advantages of an open-systems, net-centric, enterprise approach to air and missile defense for getting capabilities to the warfighter that make a pivotal difference on the battlefield. Previous SCOE trials proved IBCS’ value for building a significantly more accurate integrated air picture and its effectiveness for countering electronic attacks.

The system has already demonstrated its ability to take out live targets, having conducted a successful intercept on its inaugural flight test and a more difficult “engage-on-remote” on its second flight test. During its third flight test, IBCS simultaneously intercepted two types of threats with two different interceptor types by providing command-and-control for sensors and weapons never designed to work with each other. Two more successful flight tests in support of the Indirect Fire Protection Capability were conducted with Sidewinder and Longbow Hellfire missiles. Both missiles were integrated into the system within a few short months.

IBCS is the central component of the Army’s future IAMD construct. The program is managed by the Army Program Executive Office for Missiles and Space, Redstone Arsenal, Alabama.


bring_it_on

I really should change my personal text
Joined
Jul 4, 2013
Messages
1,883
Reaction score
0
Army chooses Raytheon, Lockheed to mature new missile defense radars


Raytheon spokesman Mike Nachshen told Defense News that the company is entering the technology-maturation and risk-reduction phase of the program with a brand-new radar, rather than an upgraded Patriot radar.The capability was designed from the ground up using gallium nitride technology and a staring array, rather than a rotating one, to provide constant 360-degree coverage, according to Nachshen. The company has its own GaN foundry.

Raytheon expects to begin discussions with the Army over the next few weeks to determine how the radar’s performance will be evaluated, the timeline of the phase and how much the Army plans to invest.


sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
11,340
Reaction score
1
litzj said:
bring_it_on said:
https://twitter.com/MariuszCielma/status/1036675799162732544
Israelized PAC3...
More like a Patriot launcher with Stunner missiles in it.


bring_it_on

I really should change my personal text
Joined
Jul 4, 2013
Messages
1,883
Reaction score
0
Packing a punch
GEM-T is the first missile to harness the power of gallium nitride


There's a powerful substance called gallium nitride working inside many new technologies, from smart light bulbs and quick-charging cellphones to the lasers that read Blu-ray discs.

Also known as GaN, the semiconductor material boosts power in all kinds of devices. One application is the first missile to harness the power of GaN tech: GEM-T, short for the Patriot™ Guidance Enhanced Missile – Tactical Ballistic Missile. But not all GaN is created equal; the version in consumer products doesn’t hold an LED diode to what's in GEM-T. Raytheon has spent more than $300 million developing the latter kind for the defense sector.

GEM-T, a mainstay of the U.S. Army’s Patriot Air and Missile Defense system, is used against aircraft and tactical ballistic and cruise missiles. Now GEM-T is packing a GaN transmitter that never needs to be recertified over the 45-year life of the missile.

“Our GaN is what’s breathing new life into these transmitters,” said Christine Walsh, Raytheon program manager for an international Patriot program. “GEM-T has been the beneficiary of all those years of Raytheon’s work on GaN technology.”

Those years — nearly two decades — have been spent pushing the limits of power and efficiency of GaN in Raytheon’s Department of Defense-accredited Trusted Foundry, where high performance GaN amplifiers are made.

HOW IT WORKS

Transmitters connect the missile with the ground system, allowing it to control the weapon during flight. The GaN version in GEM-T uses solid state instead of the conventional traveling wave tube design, which requires a supply of parts and recertification to match the life of the missile. The new ones with GaN do not.

The new transmitter has the same form, fit and function as the old one. It’s also tough, doesn’t require additional cooling, and is ready to operate within seconds of powering up. That means that the GEM-T with the new GaN transmitter will continue to perform in the most demanding conditions.

According to Jason Rathbone, missile integrated product team lead for the Patriot product line, the tech is ready for the U.S. Army, and is affordable. “Today,” he said, “the legacy transmitters on the current GEM-T missiles need to be periodically rebuilt and recertified, so replacing the old one with the new solid-state transmitter is a smart move.”

PRODUCTION LINES ARE READY

Raytheon is ramping up production of the GEM-T missile under a number of international contracts. The new transmitter, which was designed to allow future innovations, is well on its way to completing its qualification programs and will be tested during an upcoming flight test.

This transmitter technology might also see additional testing in other missiles. The Army has indicated interest in replacing its entire inventory with these types of long-lasting transmitters, which have reduced recurring costs per unit by 36 percent in the GEM-T program.

Radars and missiles are just the beginning, as GaN technology also has the potential to replace any radio frequency application that requires high power and efficiency in a small space. That includes radio data links, active seekers and proximity fuzes. Advancements like the GEM-T transmitter are only the first.


bobbymike

CLEARANCE: Above Top Secret
Joined
Apr 21, 2009
Messages
8,526
Reaction score
1
Here’s hoping Raytheon has excellent cyber-security


fredymac

CLEARANCE: Top Secret
Joined
Dec 14, 2009
Messages
1,334
Reaction score
1
Updated Patriot operator displays.

https://www.youtube.com/watch?v=A_-Ozi1A3sM


Moose

CLEARANCE: Top Secret
Joined
Jul 4, 2010
Messages
931
Reaction score
0
fredymac said:
Updated Patriot operator displays.

https://www.youtube.com/watch?v=A_-Ozi1A3sM
Hope Aegis Open Architecture allows it to adopt such an advanced display, because that's pretty fantastic.


bring_it_on

I really should change my personal text
Joined
Jul 4, 2013
Messages
1,883
Reaction score
0
The article does not appear to be accurate. The latest NDAA requires that the Army submit a proposal to fund a 360-degree sensor by 2023 or risk loosing nearly half of the funding the congress put into the program. The Army's response was to accelerate the timeline and move IOC to December, 2023 (which points to them attempting to comply with the FY19 NDAA which was recently signed into law). From what we know based on OEM statements over the last weeks and earlier, both Lockheed and Raytheon are working on a 360-degree sensor with Raytheon aiming for a non rotating array with multiple panels. There is no third OEM working on the TMRR sensor so that is a good indication on what proposals the Army is likely get get.

If the Army tinkers with the requirements significantly at this stage of the program, the Congress may just move the entire effort to the MDA which I think it has threatened to do in the past. Although a case can be made that with IFPC and Patriot married together, there will be 360-degree sensor and shooter coverage against a part of the threat, I think in the long term, given the hypersonic threat you would want that upper-lower tier, and lower-upper tier coverage in multiple sectors to cover a defended area. What the Army could do is, require a sensor to be operational by 2023 and 360-degree capability added over the next few years. That is not likely to go down well with Congress.

Just my 2-cents.

Army to accelerate LTAMDS, pulling target fielding from 2027 to 2023

The Army has a new plan for the Lower Tier Air and Missile Defense Sensor program that would accelerate initial fielding by four years to 2023, a revised schedule that addresses congressional concerns about the program and quickens competition between Lockheed Martin and Raytheon which were both tapped for the next phase of the Patriot radar modernization project.

Brig. Gen. Robert Rasch, program executive officer for missiles and space, said Army leaders also want LTAMDS, a radar that aims to give units a broader and deeper view of the battlespace than the current AN/MPQ-65A sensor system, to the field four years sooner than previously scheduled.

"The Army has asked us to go faster and Congress has asked us to go faster," he told reporters Oct. 10 at the Association of the United States Army’s annual conference. "And so we are looking at opportunities to do exactly that, to meet the congressional intent of having the capability out sooner than the program of record."

He declined to provide any specifics but added, "more information will be coming out on that very quickly. . . . Industry has been working hard, very well with us."

In December 2017, the Army approved an LTAMDS acquisition strategy that pegged initial operational capability in 2027. That date did not sit well with Congress.

The Fiscal Year 2019 National Defense Authorization Act includes a provision that would fence half of LTAMDS funding if the Army advances an acquisition strategy for a new 360-degree sensor system that proposes a target date for initial operational fielding after Dec. 31, 2023.

The Army has now reconsidered its 2027 fielding date.

In August, the Army "submitted a report to Congress . . . annotating we would pull the effort to the left to meet the congressional mandate to field by FY-23," Army spokeswoman Britney Walker told Inside Defense Oct. 12.

The Army in recent weeks tapped both Raytheon and Lockheed Martin to advance work on their respective LTAMDS proposals, according to company representatives. The selections were made with other transaction agreement rules, and the service has yet to finalize the terms or scope of the contracts, according to a source.

Both companies are proceeding into the technology maturation and risk reduction phase of the program, which requires multiple demonstrations to provide respective designs as the Army continues to refine its requirement for the Patriot radar replacement.

"We've worked with the U.S. Army for decades to address advancing threats with the latest technology," Tom Laliberty, vice president of Integrated Air and Missile Defense at Raytheon's Integrated Defense Systems business, said in a statement. "Our expertise in the lower-tier air and missile defense domain, combined with our Gallium Nitride based sensor technology, allows us to offer the U.S. Army the radar they need, when they need it."

Lockheed Martin, which is angling to unseat Raytheon as the Patriot radar provider, is looking to draw on its extensive sensor portfolio as part of its LTAMDS offering.

"We're looking at all the radars," a Lockheed Martin spokesman said Oct. 9 at the AUSA convention, referring to the company's current radar programs such as Space Fence for the Air Force, the Long Range Discrimination Radar for the Missile Defense Agency and the AN/TPQ-53 radar. “What are the processes, the technologies [for those systems] and how do we apply that to the Lower Tier Air and Missile Defense Sensor? . . . That's the discussion we're still having with the Army."


bring_it_on

I really should change my personal text
Joined
Jul 4, 2013
Messages
1,883
Reaction score
0
AUSA 2018: Lockheed Martin, Raytheon advance in US Army’s LTAMDS effort

“The LTAMDS requirements we are working off today are far more challenging to accomplish than what we had originally back in 2014,” Bob Kelley, a senior manager at Raytheon IDS, told Jane’s on 9 October at the annual Association of the United States Army (AUSA) symposium in Washington, DC.

“Back in 2014, for affordability purposes, and really for speed purposes, we looked at a Patriot upgrade to be the LTAMDS solution,” he noted. “But given the requirements we have today, a Patriot upgrade can absolutely not be the solution.”

Raytheon has developed a prototype that might appear to look like a Patriot radar on the outside, but on the inside it has the workings of the new radar the company is going to bring forward. Raytheon has logged more than 3,000 hours on that prototype, running on a test range to rack commercial air traffic. Kelley said the company brought in the Massachusetts Air National Guard who flew fighter jets in very stressing profiles to enable the radar to collect data on the engagement.

Kelley said while Raytheon is leveraging lessons learned out of Patriot for its LTAMDS effort it is actually leveraging more out of other radar programmes such as the SPY-6 radar for the US Navy, the Three-Dimensional Expeditionary Long-Range Radar (3DELRR) for the US Air Force, and the AN/TPY-2 radar for the US Missile Defense Agency. A common theme among those three radars is the use of active electronically scanned arrays and gallium nitride transmit and receive modules.

Often, Kelley said, he is asked if Raytheon will pursue a rotating or starring radar. As Raytheon looked at the problem and the threat set soldiers face the company felt confident that it must be a starring radar.

A rotating radar, when it is not looking at the target, is predicting where that target is going to be for the next rotation around, he said.

“These threats are very high velocity and manoeuvering, it may not be where you thought it was going to be and if it is not, you just lost all the history. You might see it again, but you will pick it up as a brand new track and you are going to start that whole kill chain process [over],” Kelley said.

Rotating radars work well, Kelley noted. In fact, Raytheon’s 3DELRR is a rotating radar. The problem arises when soldiers have to deal with the intense threats peer nations have already demonstrated such as an attack on location with multiple threats, from 360° degrees, and the ability to mount an attack quickly and put threats on location in a very short period of time, overwhelming the radars and the operators manning the radars.

“You have to have simultaneous 360° with the ability to process through that whole kill chain on multiple targets simultaneously,” Kelley said. “In our studies we just didn't see how a rotator could be successful in this mission area, so we elected to go with a starring radar.”


sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
11,340
Reaction score
1
That nice fancy radar isn't going to accomplish much without a PAC-2 replacement for longer ranges. (No, SM-X won't work.)


bring_it_on

I really should change my personal text
Joined
Jul 4, 2013
Messages
1,883
Reaction score
0
LTAMDS is needed for the full envelope of the MSE anyways, and there is probably some benefits to be derived from IBCS connecting THAAD and Patriot. The Radar is the primary expense driver relative to a new missile the overall cost of which is quite small relatively speaking. The path they are on is MSE-->IAMD/IBCS-->LTAMDS. They probably need to look at the launchers and interceptors next. I'd think they'd focus on the hypersonic glider threat first. I am not sure shooting down cooperating fighters or AEW aircraft 300 km out is their primary concern although that is likely to come into consideration later.

Does the PAC-2 truly outrange the PAC-3 MSE in the ABM role?


sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
11,340
Reaction score
1
bring_it_on said:
Does the PAC-2 truly outrange the PAC-3 MSE in the ABM role?
No idea. It significantly outranges it in the SAM role though. For the BGRV defense I really wish they'd keep developing THAAD-ER.


bring_it_on

I really should change my personal text
Joined
Jul 4, 2013
Messages
1,883
Reaction score
0
sferrin said:
bring_it_on said:
Does the PAC-2 truly outrange the PAC-3 MSE in the ABM role?
No idea. It significantly outranges it in the SAM role though. For the BGRV defense I really wish they'd keep developing THAAD-ER.
From what I have heard, the MSE outranges the PAC-2 in the BMD role with a fairly decent margin. As far as a long range SAM, I don't think a very long range SAM is what the Army needs as a priority in the short-medium term. That is likely a long term need though. Looking at the cost, the Army needs to finish developing, testing and fielding IAMD, and then buying 6-8 dozen LTAMDS sensor it needs while also upgrading Sentinels to the A4 standard for both IFPC and to extend the capability of PATRIOT. At some point they will also need to develop more modern launchers and then likely new interceptors. With IBCS and dispersed Sentinel's you do however extend the range of your sensors so as these capabilities are fielded longer ranged intercepts Over The Horizon (and against targets which may be harder to detect) targeting would begin to make a lot of sense.

THAAD-ER makes sense and I think that MDA is looking into that capability so that is not something that the Army will be developing (thank god) so I think that capability either in the form of a THAAD-ER or something different will come by the medium term.

The Army needs to focus on the areas it has determined are essential with the Air Defense modernization programs -- IAMD/LTAMDS/MSE, M-SHORAD, and IFPC. These will keep their budgets busy for half a decade if not more.


bring_it_on

I really should change my personal text
Joined
Jul 4, 2013
Messages
1,883
Reaction score
0
Sense-Off for Lower Tier Air Missile Defense Sensor (LTAMDS)


This is an initial announcement that the Army is conducting a Sense-Off for Lower Tier Air Missile Defense Sensor (LTAMDS) solutions during 3QFY19. It is the Army's intent to use the Sense-Off as part of the evaluation to select a single vendor to build and deliver LTAMDS to the Army, supporting achievement of an Initial Operational Capability (IOC). The Government will conduct an Industry Day and expects interested participants to respond to this announcement and commit to the Sense-Off.

A. Purpose of the Sense-Off


The Government will provide industry the opportunity to demonstrate Engineering and Manufacturing Development (EMD)-like LTAMDS systems at White Sands Missile Range (WSMR), New Mexico, in 3QFY19. The demonstration event, hereinafter termed a "Sense-Off", is a critical element of the acquisition strategy to procure and field LTAMDS. The vendor solution will interoperate with the Integrated Air and Missile Defense (IAMD) Battle Command System (IBCS) Engagement Operations Center (EOC), and provide weapon guidance support for the family of PATRIOT Advanced Capability (PAC)-3 interceptors. Results from the Sense-Off, digital simulation performance, and the evaluation of the FY19 ROTI proposal will culminate in a DOTC OTA award to a single vendor who will produce six LTAMDS for qualification and fielding to support an IOC in 4QFY22. This will be followed by a follow-on contract for additional quantities.

Program Strategy


The Government is pursuing an accelerated fielding of mature technology (see attached LTAMDS schedule).



The Government will use the Sense-Off, digital simulation results, and the FY19 ROTI proposal to measure vendor performance and assess LTAMDS capability growth potential. A vendor's sensor solution must be a mature design to support fielding LTAMDS in 4QFY22. The Government will award a Firm Fixed Price (FFP) DOTC OTA to the vendor who can demonstrate holistic system level performance closest to the prioritized and weighted P-Spec threshold requirements, while also granting additional consideration to those vendors whose system potentially meets or exceeds threshold performance values. There will be a subsequent fixed price production contract or OTA for the production and fielding phase. It is anticipated this follow-on contract will be for an additional 16 systems.



Following the Sense-Off, the winning vendor will deliver 6 Production Representative Units (PRUs) via the FFP DOTC OTA for Developmental Testing/Operational Testing (DT/OT) and rapid fielding. The winning vendor will deliver three PRUs by 3QFY21, and three additional PRUs by 1QFY22. The six PRUs will be a mature design and establish the product baseline that supports follow-on production and fielding. The Government will refurbish 4 of the initial 6 PRUs to support a UMR IOC fielding in 4QFY22.

B. Industry Day (14-15 November 2018)


Vendors will provide the Government a presentation (up to 60 minutes) demonstrating their ability to participate in the Sense-Off. The Government will use this presentation to determine a vendor's eligibility to participate in the Sense-Off. These will be closed one-on-one sessions, where the vendor describes how they will meet the following to participate in the Sense-Off: 1) How you will meet size, weight, and power (SWaP) constraints (described below); 2) How you will demonstrate required LTAMDS design maturity to rapidly fabricate PRUs at OTA award; 3) Inform the Government on Sense-Off and accelerated LTAMDS fielding readiness; 4) Establish a "need to know" to receive the LTAMDS P-Spec; and 5) Evidence of ability to meet minimum range safety and operational approvals. A maximum of five participants per company will be allowed to attend Industry Day.



Vendor presentations will include the aforementioned mandatory items and include the following at a minimum:



1. Describe how the proposed LTAMDS multi-function radar solution provides search, track, classification, discrimination, identification, and weapon guidance support for the family of PAC-3 interceptors contained in a single sensor platform.

2. Describe how the proposed solution interoperates with the IBCS EOC (via Plug and Fight Kit AB-interface) architecture.

3. Describe how the proposed solution meets transportability and mobility requirements per MIL-STD-1366E on a single truck or trailer pulled by a HEMTT class prime mover.

4. Describe how the proposed LTAMDS solution meets power and cooling requirements to support up to 400 KW of prime power.

5. Describe how the proposed solution will operate using commercial generator power (minimum 400KW) and interim tactical power of 150KW maximum (via current PATRIOT EPP).

6. Describe how the proposed solution provides capability against Tactical Ballistic Missile (TBM) and non-TBM Air and Missile Defense threats.

7. Describe the proposed solution's functionality/performance against the threat across the battle space.

8. Describe how the design incorporates Modular Open Systems Architecture (MOSA) requirements in accordance with DoD Policy and Guidance.

9. Describe capability growth of the design architecture.

10. Describe program approach for participation in the LTAMDS Sense-Off.

11. Describe how the proposed solution addresses PAC-3 Missile Flight Alignment.

12. Describe digital simulation and target injection capabilities.

13. Describe P-Spec compliance crosswalk. (Vendors not participants in the previous CD Phase are exempt from providing a P-Spec crosswalk as part of Sense-Off entrance criteria).

14. Describe ability to meet minimum approvals for range Operational (e.g. radio frequency authorization, security classification guidance, test plans/procedures, test support requirements), Safety (e.g. hazard analysis, safety analysis report, hazard classifications, hazardous materials, standard operating procedures) and Environmental (e.g. input to environmental review).

Anticipated Sense-Off Demonstration


1. Vendor will demonstrate radar emplacement and displacement process with alignment accuracy.

2. The Sense-Off occurs May-June 2019, with each vendor provided two weeks of range time.

3. The Government is responsible for the WSMR and live target related costs of conducting the Sense-Off.

4. The vendors are responsible for specific costs for participation including, but not limited to, transport, set-up, calibration, target emulators, sustainment, data collection and transfer and system operation.

5. The Government will assess operational viability via Soldier touch-point opportunities.

6. The Government will provide the following Government Furnished Equipment (GFE) and Government Furnished Information (GFI) at the Sense-Off to demonstrate operation with various prime power sources: commercial generator power, PATRIOT EPP, and related interface documentation.

7. The vendors are required to operate, and provide their own integration/interoperability solutions using government furnished commercial generator power (minimum 400KW) and interim tactical power of 150KW maximum (via current PATRIOT EPP).

8. The vendors will provide a target injection unit to facilitate testing of their system. The Government will provide the A/B Interface Test Tool (ABITT) as GFE to demonstrate operation with AIAMD equipment (to support integration and tests).

9. The Government will provide the following GFI to demonstrate operation with AIAMD equipment: Integrated Air and Missile Defense (IAMD) Plug and Fight (P&F) B-Kit to A-Kit Interface Control Document (ICD) and prime power interface documentation (to support integration and tests).

10. For the Sense-Off demonstration, the Government will provide non-TBM and TBM type live targets, Digital Radio Frequency Memory (DRFM) jammer, pole jammer and PAC-3 MSE Radio Support Unit (RSU) Test Set.

11. The vendors will provide all necessary Risk Mitigating Framework (RMF)/Information Assurance (IA) credentials so that approvals are granted (i.e. Interim Authority To Operate (IATO, a test specific ATO), etc.) to connect to WSMR networks. The vendor will satisfy all network connection requirements prior to setup at WSMR.

12. The vendor will support all range requirements to ensure the system can be emplaced (safety, environmental, etc.) as well as authorization to radiate/operate.

13. The vendor will conduct a Test Readiness Review (TRR) at WSMR prior to the Sense-Off demonstration.

Anticipated Sense-Off Evaluation


The Government will evaluate vendor performance against current P-Spec requirements at the Sense-Off, which will be used as part of the Government's evaluation and selection decision under the FY19 ROTI. Both live target testing and digital simulation/target injection will be required to meet these objectives. The Government will provide Sense-Off participants the Draft Sense-Off Evaluation Criteria no later than 14 December 2018. The performance specifications of the evaluation criteria will not change and will be included, for formal response, to all Sense-Off participants no later than 15 March 2019 in the 20-01 ROTI under the applicable technology sub-objective. All Sense-Off participants will receive their demonstration data. The Government will conduct an evaluation to determine which solution performed best against the LTAMDS P-Spec.



1. Power options anticipated to be available are commercial generator power (minimum 400KW) and interim tactical power of 150KW maximum (via current PATRIOT EPP).

2. Radar performance assessments will be prioritized against: commercial generator power and PATRIOT EPP.

3. Radar can demonstrate connectivity and interoperability with AIAMD ABITT.

4. Radar can demonstrate various capabilities via special measurements:

a. Clutter Attenuation

b. Jammer noise cancellation in antenna sidelobes

c. PAC-3 missile datalink transmit/receive

5. Radar can demonstrate the Search/Acquisition functions (under autonomous and cued search) against live and emulated TBM and non-TBM targets across the battle space:

a. Demonstrate search volume or cued search functionality

b. Demonstrate detection range

c. Demonstrate firm track range

6. Radar can demonstrate the tracking function of live targets across the battle space:

a. Show ability to track ballistic targets

b. Show ability to track non-maneuvering and maneuvering targets

c. Demonstrate range & angle measurement accuracy

7. Radar can demonstrate acquisition and track capability of non-TBM in clutter.

8. Radar can demonstrate acquisition and track capability of TBM and non-TBM in Electronic Attack.

https://www.fbo.gov/index?s=opportunity&mode=form&id=24b7712dae3dc64fd43f85717d13a010&tab=core&_cview=0
