Northrop X216H

Vietcong

Avation Enthusiast from VN
Joined
11 January 2010
Messages
76
Reaction score
15
Website
aviationprojects.blogspot.com

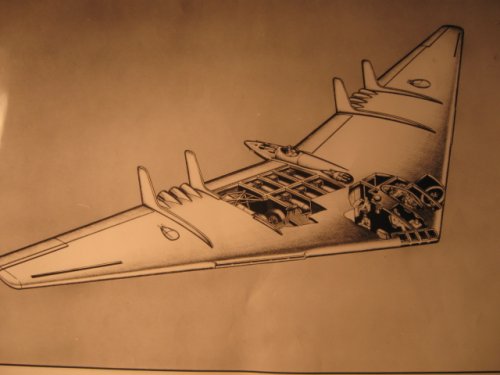

THe Northrop X216H was the flying wing jet bomber proposal since of WW2 but It was not adopted by USAAF,but I think It may influenced on YB-35 or YB-49.Here are It specifications may like the YB-49.Here cutaway drawing of this aircraft


Attachments

  • 1944_Flying_Wing__2_.jpg
    123.8 KB · Views: 338
You're being mistaken here, my friend. "X216H" was the civil registration of Northrop's very first aircraft, the Avion 1 from 1929. It was sort of a flying-wing, not quite, but indeed it got Northrop started on the subject of flying-wings, which was dear to him throughout his life.

The picture above is of a B-35 bomber!

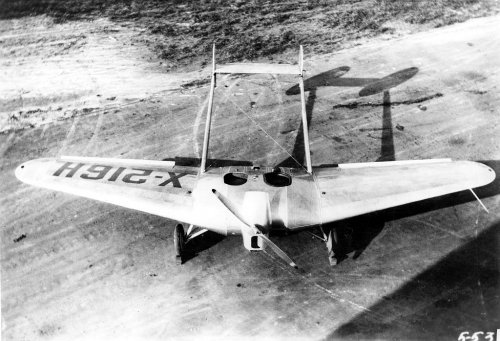

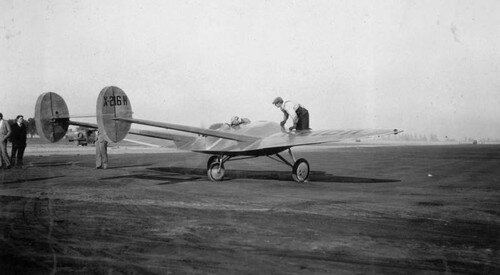

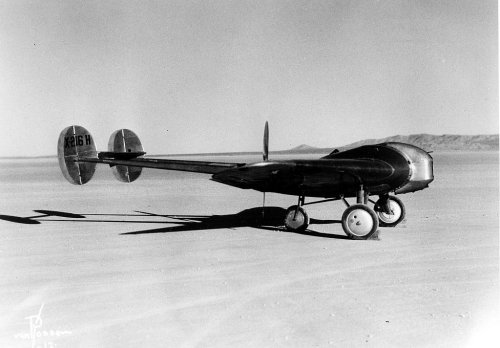

Here's the "1929 Flying Wing" as it was called. It was tested as both a tractor and a pusher.


Attachments

  • Avion Experimental No. 1.jpg
    Avion Experimental No. 1.jpg
    115.5 KB · Views: 225
  • 1929 FW 1-2.jpg
    1929 FW 1-2.jpg
    168.9 KB · Views: 154
  • 1929 FW 2-2.jpg
    1929 FW 2-2.jpg
    131 KB · Views: 200
skytamer [.] com/Avion_Experimental_No.1.html
  • Model: Avion Experimental 1 (Northrop)
  • Description: 1/2-seat, open cockpit, landplane, monoplane
  • Original Engine: Menasco, 4-cylinder
  • Engine Power: 90-hp
  • Wing Span: 30 ft 6 in
  • Wing Area: 20 ft²
  • Length: 20 ft
  • Height: 5 ft
  • Empty Weight: no data
  • Gross Weight: 1,100 lbs
  • Top Speed: no data
  • Year Built: 1928-29
  • ATC: none

    second [.] wiki/wiki/northrop_experimental_no1
    After about a year of construction, the avion prototype was completed and an experimental license with the aircraft registration number (N) X216H was granted. The entire construction was granted a US patent on May 10, 1929 (# 1,929,255). For the maiden flight, Northrop hired test pilot Edward Bellande, who took off with the No.1 in Burbank , but landed on a place in the desert in Muroc . According to another source, the machine was shipped to Muroc by truck. [1]Bellande assessed the flight characteristics of the small machine as very satisfactory and carried out a large number of test flights over the dry lake in the Mojave Desert. The maximum speed is said to have been around 25% higher than that of a conventional aircraft of comparable size and performance.
    - - - - - - -

    Other reports say that it compared well with other planes of its class in all criteria, and was markedly faster than any of the others.

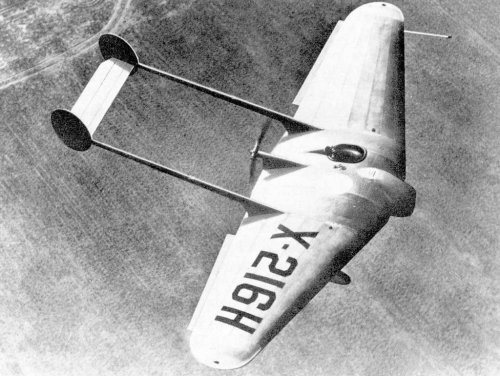

    I like to notice the resemblance to the later Higgins/Bellanca 39-60 / HC-57, and the Boeing model 360-362 bombers.


Attachments

  • Northrop X-216-H Avion 1_02893564.jpg
    Northrop X-216-H Avion 1_02893564.jpg
    26.2 KB · Views: 59
