NIIP Bars-29 radar

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,010
Reaction score
5,692
Main Features

  • Aiming and homing of missiles with semiactive, active and infrared homing heads, application of uncontrollable weapons and cannon weapons.
  • Simultaneous track-while-scan of up to 15 targets and firing at 4 of them in the whole angular zone in discrete tracking mode, retaining the scan capability.
  • Tracking of 2 sea targets and homing one guided missile X-31A at mobile or stationary target
  • Tracking preliminary target designation for controlled or uncontrolled weapon firing at ground target.
  • While in the mode of attacking one surface target, simultaneous detection of air targets and firing at 1 target in a long-range air fight.
  • Fighter flying control during multitarget missiles launching in "air-to-air" mode and during missiles application in "air-to-surface" mode.
  • The System is adaptable to any kind of MiG-29 fighter

Specifications

  • Detection range
  • (effective scattering area - 5m2), km............................100-120
  • Lock-on range for automatic tracking, km..............................85
  • Working frequencies range...................................................X
  • Max beam deviation in surveillance, aiming and weapon
    application modes, allowing for the aerial correction angle in azimuth,
    provided by drive mechanism...............................................±75°
  • Electronic scanning by phased array - cone with the
    vertex of angle of................................................................80°
  • Correction angle in azimuth by drive..................................±35°
  • Bank stabilization..........................................................±120°
  • Mean transmitter power, W.............................................1000
  • Cooling.................................................................air-to-liquid
  • Weight, Kg.....................................................................250

System is based on uniform engineering solutions and maximum unification with RLSU-30MKI(BARS-30MKI) for Su-30MKI aircraft.

Source:
NIIP Promotional materials from Aero India 2005

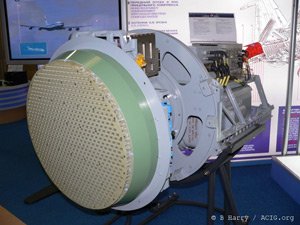

Photo (c) B. Harry, acig.org (via email)


Attachments

  • bars-29.jpg
    29.2 KB · Views: 171

JCage

ACCESS: Restricted
Joined
May 18, 2006
Messages
39
Reaction score
0
The performance seems quite similar to the Zhuk-ME, in terms of overall detection range.

A question: Pit mentioned that-

"In monopulse phase-azimuth radars, there is no such distinction between "search and tracking range", you get a plot you can track/lock-on the damn plot in the same moment.

AN/APG-63 is per example one of those radars.

Monopulse amplitude-azimuth radars (like Myech, Rubin and those kind of sets) yes, there is a little distinction on search range and tracking range."


Doesnt that apply here? If it does, then why the difference between tracking and detection range?
